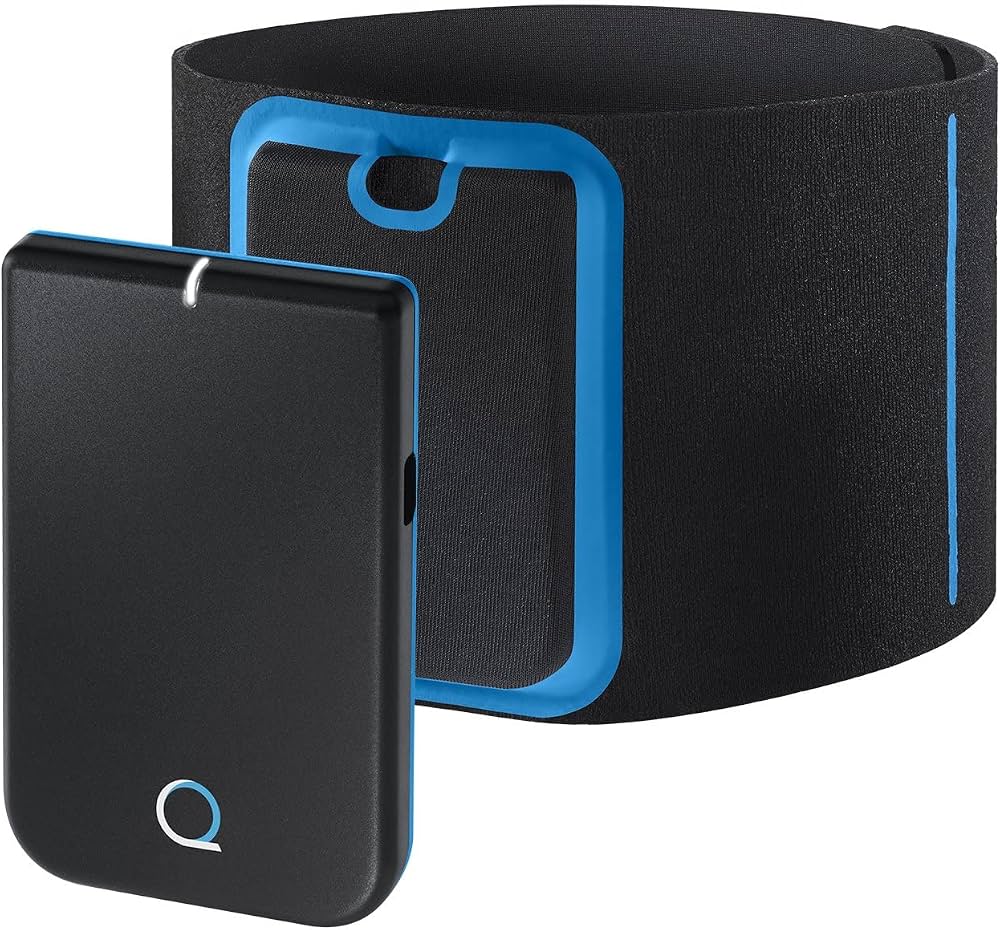

Introducing the Quell Pain Relief 2.0 Device

Quell Wearable Pain Relief Technology™ is patented, non-invasive nerve stimulation system that provides relief from chronic pain. It consists of a device, a wearable band, an electrode that attaches to the device, and the Quell Relief app to control and customize your therapy.
Quell provides pain relief by comfortably stimulating sensory nerves in your calf.  The nerves carry neural pulses to the brain that trigger a natural response to block pain signals in your body.
Pain relief is initiated by using the app on your smartphone. Regular therapy sessions are 60 minutes. After your first session, therapy will automatically restart every other hour. You have complete control and can start or end therapy anytime.
The more you use Quell, the better the chance of experiencing relief. For best results, use Quell daily. We recommend that new users wear Quell for a minimum of 3 therapy sessions per day (up to 24/7) at a strong, but comfortable intensity for at least the first 30 days.

The Quell device is priced at approximately $249, offering a drug-free alternative for those seeking relief.

What's Included

Upon receiving your Quell 2.0 Starter Kit, you should inspect its contents to make sure all of the following are included:

Detailed Specifications

The Quell Pain Relief Device comes with several key features, including:

• Advanced neurostimulation technology that targets the sensory nerves in your leg to provide widespread pain relief.
• A comfortable and adjustable design that fits securely on your upper calf.
• A rechargeable battery that lasts up to 40 hours on a single charge.
• Bluetooth connectivity that allows you to control the device using the Quell app on your smartphone.
• A built-in calibration feature that automatically adjusts the intensity of the neurostimulation for optimal pain relief.
• A therapy duration of 15 minutes to 60 minutes per session, with up to 4 therapy sessions per day.

Getting Started

1. Fully charge your Quell device before first use. Once plugged into an outlet, a blinking white light indicates your device is charging. Once the light turns solid, your device is fully charged.
2. Download the free Quell Relief app to your smartphone or tablet from the App Store or Google Play.
3. Follow the step-by-step setup instructions in the app to pair your device and setup your Quell Health Cloud account while your device is charging
4. Once your device is fully charged, follow the instructions to calibrate your device and begin therapy.

Charging the Battery

A fully charged battery can provide up to 25 hours of therapy for most users.

To charge the battery:

1. Plug the USB cable into the micro-USB port on the side of the device.
2. Plug the other end of the cable into the AC Adapter.

The AC Adapter should then be plugged into a standard electrical outlet. We do not recommend using a computer USB port for charging Quell. The white indicator lights on the device will show that the device is charging.

• When the battery is fully charged, the white indicator light will remain solid. It will take  approximately 3 hours to charge an empty battery.
• When the battery is fully charged, unplug the cable from the device. If the orange light blinks while device is connected to the outlet, charging has failed. Call 800-204-6577.
• When recharging your device, if the battery is too low to start a therapy session (<10%), you can charge the device for approximately 20 minutes to provide enough battery life for one therapy session.

Do not use your device with the USB cable connected as this creates a safety harzard.

Checking the Battery

To check battery level, pick up and hold the device in your hand. The indicator light will blink white if the battery has sufficient charge to run at least one therapy session. If no indicator light flashes, the battery needs to be recharged following the steps above.

Downloading the Quell Relief App

Using your smartphone, open the App Store or Google Play. Search "Quell Relief" and download the app to your device. Ensure that your smartphone's Bluetooth is turned on and that your device is running iOS 10 or later, or Android 6 or later. Launch the Quell Relief app and follow the step by step instruction within the app to pair and setup a Quell Health Cloud account while charging your device. Once your device is fully charged, you can finish setup and complete calibration.
By signing up for a Quell Health Cloud account, not only do you access unique features and back up your data so it's never lost, you have an opportunity to be part of something bigger. When you participate, your de-identified data helps fuel scientific research on chronic pain. For more details, review Chapter 8, Using the Mobile App.
The instructions below expand upon the setup instructions provided within the Quell Relief app.

Inserting the Device

• Place the Quell band with the blue accents face down so that you are looking at the back of the band. Insert the device into the opening on the back of the band with the indicator light facing up.
• The indicator light should align with the viewing window on the front of the band, and the snap connectors should be visible through the opening on the back of the band.

Attaching the Electrode

• You will need to attach a new electrode prior to first use of the device and replace the electrode on average every 2 weeks thereafter.
• You should reseal the package if it contains an electrode. Improper storage of the electrode will reduce its life.

Only use Quell electrodes manufactured by NeuroMetrix,  Inc.

1. Align the snaps on the electrode to the snap connections on the back of the device. Insert snaps until they are securely fastened to the device.
2. Remove the liner covering the electrode prior to placing the device on your leg. Remember to save the liner as it should be re-applied to protect the electrode when it is not in use. When re-applying the liner to the electrode for storage, ensure graphics on the liner are facing up so that the paper side doesn't stick to the gel.

3. The electrode should be replaced approximately 2 weeks from the date of its first use. You can set a tracking reminder within the app.



Device Placement

1. Place your Quell band on your upper calf about 1-2 inches below  the knee. You may place on either leg. Be sure the electrode is only covering healthy skin that is not irritated and does not have cuts or other wounds. Position the device so that it is comfortable. You may position the device on the inside, outside, or back of the leg. You should avoid placing the device directly over your shinbone.
2. If the device cannot be placed in the standard location as shown, refer to APPENDIX D for alternate site options.
3. Wrap the band around your leg and adhere the Velcro end. The band should fit securely and comfortably around your leg. The electrode should make smooth contact with the skin. If there is buckling of  the electrode, smooth the electrode and re-secure the band. It is important that all four electrode pads are in contact with the skin. If the pads are only partially on the skin, then the stimulation may feel uncomfortable or your device may not start therapy.
4. The band was designed to stretch and fit most legs.

Using the Mobile App

From your mobile device or tablet, search for “Quell Relief” by NeuroMetrix, Inc. and download the app. Before proceeding, make sure that Bluetooth is enabled on your mobile device or tablet.
iOS and Android devices must have Bluetooth Low Energy (LE, also called Bluetooth Smart) compatibility. The Quell Relief app also requires iOS 10 or later, or Android 6 or later.
For more insights on the data tracked with the app, visit https://www.quellrelief.com/how-quell-works/app/  and select Sleep, Therapy, Activity, or Pain.

Creating a Health Cloud Account

By signing up for a Quell Health Cloud account, not only do you access unique features and back up your data so it’s never lost, you have an opportunity to be part of something bigger. Thanks to people like you, the Quell Health Cloud is already one of the largest pain databases in the world, with over 15 million hours of data. This data is fueling scientific research and Quell product improvements.

Only de-identified data are used in scientific research and product improvement. This means your registration information (i.e., name, email or contact address) is disconnected from your personal usage, sleep, activity and pain data so you cannot be identified. Our research is performed using aggregated data. This means researchers combine your de-identified data with millions of other data points and look at the data set as a whole.

Settings/Personalization Features

The tables below and on the next page describe app personalization features and settings, and how they may help you optimize your Quell therapy during the day and at night.

• Tracking
  Chronic pain can decrease your quality of life and impact your sleep and activity levels. Your Quell device and app can track therapy usage, sleep, activity (steps and gait), and pain ratings over time. This data can be viewed by day, week, month, or in 3 month periods. Reviewing this data over time can help improve your pain management by identifying patterns and triggers, and by improving communication with your doctor and other healthcare professionals.
  • Therapy Tracking - Quell will track the number of therapy sessions completed per day. For best results, use Quell daily. We recommend wearing Quell for a minimum of 3 therapy sessions per day. The more you use Quell, the better the chance of experiencing pain relief.
  • Sleep Tracking - Chronic pain is a common cause of poor sleep, and insufficient sleep may worsen chronic pain. It is essential that you get as much high quality sleep as possible. Quell can help by decreasing your pain overnight and monitoring your sleep. Note: Quell only tracks sleep when using the device overnight.
  • Activity Tracking - An increased level of activity is one of the best ways to reduce your pain, lessen its impact on your sleep and mood, and improve your health. Quell can help by measuring how much you walk each day and how many steps you take. Your Quell also measures two quantitative features of your gait (the manner in which you walk), its cadence and variability, which may be helpful in managing your health. Note: Quell only tracks activity when you are wearing the device.
  • Pain Rating - You can review your pain rating and its impact on your sleep, activity, and mood over time to track your progress with Quell.
• About Me
  A profile can help Quell personalize your therapy and enhance important chronic pain research. Your profile can include information including year of birth, gender, height, weight, health conditions, pain locations, pain duration, pain pattern, pain frequency, feelings about pain, and weather sensitivity. Weather sensitivity must be completed in order to receive Weather Alerts. All identifying information is removed before your data is used in research.
• Rate Pain
  Inputting your pain rating is useful to track your pain over time. By selecting Pain Rating, the app will take you through a series of screens which will ask you to rate your pain over the last 24 hours, how much pain interfered with your sleep, how much pain interfered with your activity level, and how much pain interfered with your mood. These pain ratings are then tracked within the Tracking menu.
• Videos
  View the Videos section of the app menu for useful videos about Calibration, Getting Started and more.
• Support
  The Support section of the app menu features a comprehensive User Manual and Electrode Care Tips.
• Store
  Selecting Store within the app menu will take you out of the app to the QuellRelief.com store. Within the store you can purchase additional electrodes, replacement bands, travel cases and more.

Description

The Quell Pain Relief Device is a drug-free and non-invasive solution for managing chronic pain. It uses advanced neurostimulation technology to target the sensory nerves in your leg, providing widespread pain relief. The device is comfortable and adjustable, fitting securely on your upper calf. With Bluetooth connectivity, you can control the device using the Quell app on your smartphone, allowing you to customize your therapy sessions to your specific pain needs. The built-in calibration feature ensures that the intensity of the neurostimulation is always optimized for your comfort and pain relief. Whether you're dealing with lower back pain, knee pain, or any other type of chronic pain, the Quell Pain Relief Device can help you find relief and live a pain-free life.

Quell Pain Relief 2.0 Device Calibration

The calibration process must be completed before first using the device. Watch the Calibration video on the app or on quellrelief.com/quell-user before you calibrate for the first time.

Calibration allows Quell to learn your sensation threshold. Based on your sensation threshold, Quell will deliver a customized stimulation level for pain relief  therapy. During the calibration process, Quell will slowly increase  stimulation several times to determine your sensation threshold.  Once you have completed the calibration process, you are ready to  begin your first therapy session.

Follow the instructions in the app to calibrate your Quell for first use. If needed, you can recalibrate your device at any time within the app.

Please Note

• We recommend you sit in a quiet place where you can focus, with your feet flat on the floor during the calibration process.
• To calibrate Quell, open the Quell Relief app, click the menu icon, select Settings and then Calibration. Read the instructions on the How to Calibrate screen, and then click Start Calibration to begin the calibration process.
• Wait until you feel the slightest tingle under the electrode, then immediately tap the button within the app. It may take 20-30 seconds to feel the sensation the first time and the sensation may feel very light.
• Do not wait until the sensation feels strong before tapping the button.
• You will feel subsequent stimulation slightly faster.
• If you need to stop at any point or feel that you have made a mistake, tap the "Stop Calibration" button within the app. You can always recalibrate your device at any time
• Once completed, calibration should set your therapy intensity to the optimal level for you. Therapeutic stimulation will feel stronger than the sensation you felt during calibration. Therapy should always feel strong, but comfortable.

Pain Relief Therapy

Chronic pain is different for everyone. Please be patient. It may take several weeks of consistently using Quell before you start to experience pain relief.

The more you use Quell, the better the chance of pain relief.

For best results, use Quell daily. We recommend using Quell for a minimum of 3 therapy sessions every day, but Quell can be used up to 24 hours per day.
During a therapy session, the device will comfortably stimulate the nerves in your leg to provide pain relief. Regular therapy sessions last 60 minutes, and a new session will automatically restart every other hour. If you prefer to not have automatic restart turned on, you can change your Therapy Dose under Settings within the app.
To optimize pain relief, you should feel a strong but comfortable sensation during therapy.

 The intensity that you will require is estimated based on your sensation threshold determined during calibration. However, because of differences among people, this estimated intensity may
be too low and feel weak, or too high and feel uncomfortable. In either case, you should adjust the intensity within the app.

The greatest pain relief will be obtained when you set the intensity to the highest level that is also comfortable.

 The device will remember changes made to the intensity during the first 10 minutes of therapy if the therapy session is successfully completed, and you should not need to adjust often. Please follow the steps below for initiating a therapy session.

Preparing for Therapy Session

Before starting a therapy session make sure you have an electrode attached to the device. You should also check the battery to ensure it has an adequate charge. If the indicator light blinks white, you have sufficient charge to run a therapy session. Place the device on your leg as described in Chapter 2, Getting Started & Device Basics.
Starting a Therapy Session
To start a therapy session, tap the Start Therapy button on the Dashboard screen in the app. The indicator light will blink white for the duration of the therapy session.
Automatic Start
You can also set therapy to start automatically after attaching the device to your leg. Within  the Settings menu of the app, select Therapy Automation and turn on Automatic Start. Once enabled, therapy will begin automatically within one minute of placing the device on your leg. You will no longer need to start therapy within the app. You can always stop therapy by tapping the STOP button within the app, or by double tapping the device firmly with your fingers.
What Therapy Feels Like
The intensity will gradually increase during the first 2 minutes to an intensity that is strong  but comfortable. This strong but comfortable intensity is based on results of the calibration process. You may feel a strong sensation at first but it will typically fade to a comfortable level after a couple of minutes. If the sensation is uncomfortable or painful, you should decrease the intensity within the app. Therapy will continue for 60 minutes in Regular dose (see Chapter 8 for personalization options).
Once you have placed the device on your leg,  you may cover the device with your  clothing. You should be careful not to dislodge the device and electrode when covering with clothing. You may go about your  normal activities during a therapy session. Do not shower, bathe or swim with the device on your leg.

Adjusting Intensity During a Therapy Session
Frequent adjustments should not be necessary; however, if the sensation feels uncomfortable or is not strong enough, you may make adjustments. To adjust therapy intensity or to stop therapy, tap the "+/-" buttons on the Dashboard screen in the smartphone app.  You may adjust intensity as needed at any time during a therapy session using the smartphone app. Optimal pain relief will be obtained at the highest intensity that is also comfortable. If you find you are frequently adjusting intensity, try recalibrating your device.

Ending a Therapy Session

• Regular therapy sessions will run automatically 60 minutes on, then 60 minutes off, unless you turn off therapy during a session or recalibrate between therapy sessions.
• To stop an active therapy session before it ends, tap the STOP button on the Dashboard screen in the app.  If the app is not readily accessible, you can manually stop therapy during a session by double tapping the device firmly with your fingers. Your leg should be still. You should not remove the device while it is stimulating, so make sure that the white indicator light is not blinking before removing the device and electrode from your leg. Otherwise you may experience  an uncomfortable sensation while removing the device.
• After ending a therapy session, you may either leave the device on your leg or  remove it. If you remove the device, be careful to not damage  the electrode and remember to reapply the  liner (see page 11 for instructions on  removing electrode).
• If you leave the device on your leg for long periods of time, you should check your skin regularly to make sure that it does not get irritated. We recommend airing out your skin for 15-30 minutes after 5 hours or after wearing your device overnight. You may also switch legs to give your skin a break. Chapter 7 provides information on skin care.
• If a problem arises during a therapy session, stimulation will stop and the indicator light will blink orange for 2 minutes. Refer to APPENDIX B for troubleshooting assistance. You should air out your skin after wearing for 5 hours or when you wake up from wearing Quell overnight. After 5 hours of wear during the daytime, the device will pulse on and off for 1 minute as a reminder.

Personalizing Therapy

Therapy can be personalized to meet your needs within the app. Within the Settings menu, you can choose from a variety of Therapy Dose, Stimulation, and Therapy Automation options. If you decide to update any of these settings, the new selection will take effect at the start of your next therapy session.

To learn about the different therapy personalization settings, please review Chapter 8, Using the Mobile App.

Overnight Therapy

You may use Quell at bedtime and throughout the night to relieve pain while you sleep.

Before going to sleep, make sure the device is placed securely and comfortably around your leg. All 4 gel pads on the electrode must be making complete contact with the skin. Start  a therapy session within the app. The default sleep setting is "Gentle Overnight." In this setting, the first therapy session will stimulate at your regular intensity level. Subsequent therapy sessions will start automatically every other hour throughout the night at a reduced intensity. If you are asleep during these sessions, the device will automatically lower the intensity.

Within the Settings menu of the app, you will find multiple sleep mode options that you can choose from. If you decide to change Sleep Modes, the new selection will take effect at the start of your next nighttime therapy session. To learn about the different sleep settings, please review Chapter 8, Using the Mobile App.

Electrodes

Quell electrodes may look unassuming, but they are key to enabling the Quell device to deliver clinical strength therapy for drug-free pain  relief. The electrodes are designed to operate consistently for up to 2 weeks. With repeated use, the electrode gel may peel and/or dry out thereby losing some of its adhesion, but the electrode is still usable.

Electrode Removal

You should be careful to not damage the electrode when you remove it from your  upper calf area. Slowly peel the electrode from your skin, while making sure that each of the gel pads does not separate from the electrode. Avoid touching  the gel with your fingers as  that can damage the gel  and decrease the life of the  electrode. After removal of the  electrode, you should cover it  with the liner.

If you have difficulty removing the electrode, refer to Chapter  7 for tips on skin care to ease electrode removal.

Electrode Storage

Electrodes should always be stored with the  liner covering the gel pads. Place the liner with graphic side up so the paper does not stick to the gel. You may snap the electrode into the device for convenient storage. For long term storage, electrodes should be stored in the electrode pouch or a sealed bag at room temperature out of direct sunlight.

Electrode Replacement

The gel pads on the electrodes are primarily water, so you may observe signs of wear during the course of normal use, which can include irregular  edges on the gel pads, gel spreading, color fading, or some of the underlying silver traces becoming exposed. Your Quell electrode does not need to be replaced until stimulation during therapy feels uncomfortable and/or you see the orange error light on the Quell device blink when you attempt to start therapy.
The electrode should be replaced prior to 2 weeks if stimulation becomes painful despite positioning the device so that the entire electrode is making smooth contact with the skin. You  can order electrodes at https://www.quellrelief.com/replace or from the location where you purchased your device. It is recommended that electrode is replaced at 2 week interval to maximize therapy comfort and efficacy.

Electrode Options

Quell Standard Electrodes are included in most Quell Starter Kits. They are designed to deliver comfortable, effective pain relief year round. The Standard electrode gel is optimized to provide consistent, comfortable nerve stimulation in most conditions and is ideal for daily use. Each individual Quell Electrode is designed to last for approximately 2 weeks of typical use.

Quell Sport Electrodes are a second type of electrode designed to work with your Quell. The Sport Electrode has a unique gel developed to better hold up in situations with high levels of humidity and perspiration. The Sport Electrode has a gel that absorbs less moisture, but is otherwise comparable to the Standard Electrode included in the Starter Kit.

Skin Care

Quell works by electrically stimulating the sensory nerves in the upper calf through your skin. Some people have dry or sensitive skin, and it is important to regularly monitor your skin where it contacts the electrode to ensure that skin irritation does not occur. If your skin becomes irritated, using the device may be uncomfortable. There are some simple things you can do to take care of your skin while using Quell.
Ensure your skin is clean and dry. Never use the device on open wounds or rashes or over swollen, red, infected, irritated, or inflamed skin.

Prevent Skin Irritation

Air out Skin

You should air out your skin for 15-30 minutes after 5 consecutive hours of wear during the day, or after overnight use. You may also switch the device to the other leg every 5 hours, or when you wake up. After 5 hours of use during the day, the device will pulse on and off for 1 minute as a reminder to air out your skin.
If you have sensitive skin, you may also want to start slowly. Limit the time the device is on your skin during the first week. If you do not experience irritation you may increase use while closely monitoring your skin.

Check for Skin Irritation

Signs of skin irritation can include the following:

• Skin itches while device is on the skin or after removal
• Skin is red where it contacted electrode
• Raised or reddened hair follicles

If skin irritation develops you should not place the device over the irritated area until it completely heals. You may apply a topical steroid cream to help accelerate healing and reduce irritation. You may also place the device on the other leg or use different locations as shown in APPENDIX D. If you experience skin irritation, then you should limit device use for a week to make sure that further irritation does not occur.

Maintenance, Safety, and Service

Cleaning Device
Use a damp cloth to clean the exterior of the device. Do not use any other cleaning solutions since they may damage the case. Never immerse the device in water or other liquids.
Cleaning Band
Remove device before washing the band. Handwash band with a gentle detergent and let it air dry. If band material is becoming stretched, it may be put through a gentle dryer cycle; ensure Velcro is adhered to band before drying.
Device Storage
When device is not in use, store it in a dry location away from direct sunlight.
Disposal
Used electrodes can be disposed of in normal trash receptacles. Dispose of the device according to  national, state, and local regulations as the device contains a Lithium-Ion battery.

Indicator Light

Device on Skin

Device off Skin

Charging

Alternate Placement Sites

If you cannot place your Quell device at the recommended location just below the knee, due to situations such as a wound or skin irritation, then you may position it at one of the following alternate sites:

You should calibrate the device at the new site before initiating therapy.

Precautions and Warnings

Indications
Quell is intended for use as a transcutaneous electrical nerve stimulation device for the symptomatic relief and management of chronic intractable pain. The device may be used during sleep. The device is only labeled for use and compatible with NeuroMetrix Quell brand electrodes.
Contraindications
Do not use this device if you have a cardiac pacemaker, implanted defibrillator, or other  implanted electronic device unless specialist medical opinion has first been obtained.
Precautions

• You may experience skin irritation or hypersensitivity due to the electrical stimulation or  electrical conductive medium (gel).
• Use caution if stimulation is applied over areas of skin that lack normal sensation.
• Use this device only with electrodes and accessories recommended by the manufacturer.

Adverse Reactions

You may experience skin irritation and burns beneath the stimulation electrodes applied to the skin.

Warnings

Do not place the stimulation electrodes across or through the head, directly on the eyes, covering the mouth, on the front of the neck, on the chest or upper back, or crossing the heart.

• Do not apply stimulation over open wounds or rashes, or over swollen, red, infected, or inflamed areas or skin  eruptions (e.g., phlebitis, thrombophlebitis, varicose veins).
• Do not apply stimulation over, or in proximity to, cancerous lesions.
• Do not apply stimulation when in the bath or shower.
• Do not apply stimulation while driving, operating machinery, or during any activity in which electrical stimulation can put you at risk of injury.
• Apply stimulation only to normal, intact, clean, healthy skin.
• No modification of this device is allowed.
• Do not use the device on children under the age of 18.
• Simultaneous connection of a patient to high frequency surgical equipment may result in burns at the site of the stimulator electrodes and possible damage to the stimulator.
• Operation in close proximity (e.g. 1 m) to shortwave or microwave therapy medical equipment may produce instability in the stimulator output.
• Application of electrodes near the thorax may increase the risk of cardiac fibrillation.
• Do not remove the device from the leg before therapy has stopped. Check that the light is not illuminated on device, otherwise you may experience an uncomfortable sensation when you remove the device.
• Do not use the device if it has been accidentally damaged, causing the housing to come open, or an unexpected shock may result

Symbols

Electromagnetic Compatibility Declaration

Quell is intended for use in the electromagnetic environment specified below. The user should ensure that it is used in such an environment.

Table 1
Manufacturer's declaration - electromagnetic immunity
Quell is intended for use in the electromagnetic environment specified below. The user should ensure that it is used in such an environment

NOTE 1 At 80 MHz and 800 MHz, the higher frequency range applies.
NOTE 2 These guidelines may not apply in all situations. Electromagnetic propagation is affected by absorption and reflection from structures, objects, and people.

• Field strengths from fixed transmitters, such as base stations for radio (cellular/cordless) telephones and land mobile radios, amateur radio, AM and FM radio broadcast and TV broadcast cannot be predicted theoretically with accuracy. To assess the electromagnetic environment due to fixed RF transmitters, an electromagnetic site survey should be considered. If the measured field strength in the location in which the Quell Device is used exceeds the applicable RF compliance level above, the Quell Device should be observed to verify normal operation. If abnormal performance is observed, additional measures may be necessary, such as re-orienting or relocating the Quell Device.
• Over the frequency range 150 kHz to 80 MHz, field strengths should be less than 3 V/m.

Table 2
Recommended separation distances between portable and mobile RF communications equipment and the Quell Device
The Quell Device is intended for use in an electromagnetic environment in which radiated RF disturbances are controlled. The customer or the user of the Quell Device can help prevent electromagnetic interference by maintaining a minimum distance between portable and mobile RF communications equipment (transmitters) and the Quell Device as recommended below, according to the maximum output power of the communications equipment.

For transmitters rated at a maximum output power not listed above, the recommended separation distance d in meters (m) can be estimated using the equation applicable to the frequency of the transmitter, where P is the maximum output power rating of the transmitter in watts (W) according to the transmitter manufacturer.
NOTE 1 At 80 MHz and 800 MHz, the separation distance for the higher frequency range applies.
NOTE 2 These guidelines may not apply in all situations. Electromagnetic propagation is affected by absorption and reflection from structures, objects, and people.

Bluetooth

The Bluetooth word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by NeuroMetrix, Inc. is under license. Communication between the Quell Device and the Smartphone is via Bluetooth.
Disabling Bluetooth
If Bluetooth is disabled on your smartphone or tablet, then the Quell Relief app will not function. Your Quell device will only function if you have previously enabled Automatic Start within the app.

Troubleshooting

Calibration

I cannot start the calibration procedure.

Within the app, the Calibration option can  be found under the Settings menu. To start calibration, tap "Start Calibration."
You should be sitting down or standing still with your foot flat on the floor. Make sure the electrode is snapped onto the device, the liner has been removed, and your Quell is properly placed on your leg (on the upper calf, 1-2” below your knee). All 4 gel pads on the electrode must be making complete contact with the skin.

I am trying to calibrate but I don’t feel anything.

Confirm electrode liner has been removed and that the light is blinking. The purpose of the calibration process is to measure your sensation threshold, meaning that when you feel even the slightest sensation, you should tap the button within the app. Do not wait until the sensation feels very strong to tap the button. It may take 20-30 seconds to feel the sensation the first time and the sensation may feel very light. You will feel subsequent stimulation slightly faster. If you go through the calibration process and never feel stimulation, the therapeutic intensity will be set at the maximum possible intensity.

Calibration Tips

• It is a good idea to wait about 5 minutes after putting the electrode on for the skin-gel interface to stabilize, before you start calibrating.
• If your leg is cold (for example, if you come in from the outside during winter), you should wait 30-60 minutes so that your leg warms up to room temperature before calibrating.
• This is because cold will artificially elevate the sensation threshold (the same reason cold makes you feel numb).
• Do not calibrate right after a therapy session because the sensation threshold will be artificially elevated. You should wait at least 1 hour and preferably 2 hours after a therapy session.

Therapy

Make sure you initiate therapy only after the device and electrode are properly placed on the calf.

I am not getting pain relief.
We recommend that you use your Quell daily for at least 3 therapy sessions per day for the first month. Make sure you feel a strong but comfortable sensation during therapy sessions (indicated  by single white blinking light). If not, you can try calibrating the device again or increasing the therapeutic intensity by using the app or pressing and holding the button.

The therapy stopped and the light is blinking orange continuously.
A blinking orange light typically indicates poor contact between the electrode and the skin. This may occur because the device is not securely placed on the leg or because the electrode is  dry. Check that the electrode is snapped in, the electrode gel pads are in complete contact with the skin, and the band is attached snugly (but not too tightly) on the leg. Start therapy again. If the problem recurs, remove the device and inspect the electrode. Place the device back on the leg and restart the therapy session. If the problem persists, then replace the electrode.

The light is blinking white but I do not feel anything.
The intensity may be too low. Use the app to increase the intensity until you feel a strong but comfortable sensation. Alternatively, calibrate the device again.

The device isn’t automatically restarting.
Go to Settings and Therapy Dose. If "Manual" is selected, you need to manually restart therapy. With any other selection (Regular, Low, or High Dose), therapy will automatically restart as long as the device is attached to your leg and all 4  gel pads on the electrode are making complete contact with your skin.

Therapy may also need to be manually restarted if your last therapy was manually stopped/halted, your last therapy was halted because of a trip condition, you calibrated your device since your last therapy, or you charged your device since your last therapy session.
The therapy stings or feels uncomfortable.

Turn off the device by using the app or by firmly double tapping the device with your fingers. Remove the device and inspect the electrode, make sure all four electrode gel pads are in good condition. If your skin is dry then consider using skin moisturizer, but wait 20-30 minutes for
the moisturizer to absorb into your skin before attaching your Quell to your leg. Place the device and electrode back on your leg, making sure that there is complete contact between the electrode and the skin. Sometimes it is helpful to smooth the electrode onto the skin first and then secure the sports band. If the discomfort persists, then you should replace the electrode.

If replacing the electrode doesn’t help, you may need to recalibrate. One way to check calibration level is to see how long it takes to feel any sensation during therapy session. If it is felt within the first five seconds, it is a good indication that calibration is too high.

I have leg cramps/muscle contraction during therapy, or muscle soreness after use. Confirm that the intensity is appropriate – strong but comfortable. You can recalibrate. You may also want to decrease the intensity, as long as it remains strong.

Try the other leg. One leg may be more prone to cramping or soreness than the other leg.  Reposition the device to minimize the amount of electrode on the back of the calf. This usually means positioning the device on the inside or outside rotated towards the front (but not right on top of the tibia bone).

If you mostly have cramping/soreness when lying down, make sure that the device is not positioned such that it is compressed between the bed and your leg. Compressing the device forces the electrodes closer to the muscle, making it more likely to activate it. If this is happening, position the device so that it will not be compressed between the bed and your leg in your preferred sleep position to minimize any discomfort.

There is no risk associated with soreness. If you  are getting a lot of pain relief from Quell, you may decide it is worth it to keep wearing it, even if you have some soreness as a consequence.
The device increased intensity on its own. If the increase was noted toward the latter half of the therapy session, the habituation ramp  is too steep for you. The device is designed to increase intensity throughout a therapy session to compensate for nerve habituation. For some people, this ramp is too steep, in which case the therapy intensity should be decreased during the therapy session. If you allow therapy to run the full 60 minutes, the device will remember the adjustment for future therapy sessions.

My device is pulsing at the end of therapy.

Pulsing serves as a reminder that you have been wearing the device on the same place for at least 5 hours. You should remove the device for 15-30 minutes to allow the covered skin to breathe. You may also move the device to the other leg if more therapies are desired. A “long term wear” alert will pulse for one minute at the conclusion of the 3rd therapy session (at least 5 hours of wear).
If you don’t remove the device, it will pulse again at the conclusion of each subsequent session until the device is removed. Sessions will still continue to run automatically. The device will not pulse after five hours of overnight wear while you are sleeping, but will alert you when you get out of bed.

Sleep

Do I need to do anything to the device on wake up?
No, you do not need to do anything special. Once you are up and moving about for more than a few minutes, the device will automatically revert to normal daytime therapeutic intensity the next time it restarts therapy. We do recommend you remove your device or switch legs after waking up to prevent skin irritation. When you put your Quell back on and start therapy, the device will restart at normal intensity.

The device is waking me up when therapy restarts overnight.
Check sleep settings on smartphone app. You may have inadvertently changed sleep mode setting or may need to change the settings to "Gentle Overnight", "Bedtime Only", or "As Needed" mode.

My device doesn’t “wake up”/restart in the morning.
Make sure your electrodes are securely attached and that the orange light isnt blinking. You should also wait 60 minutes to see if device will restart on its own.  Use the app to check Sleep Mode. If Sleep Mode was set to “Bedtime Only” or "As Needed",  the first session in the morning will need to be manually started.

Electrodes

The gel sticks to my skin when I am removing the electrode.
Be sure to peel the electrode from the skin very carefully. If, despite this, the gel is coming off the electrode, then try applying a light lotion on the skin area where electrodes will make contact at least thirty minutes to an hour prior to placing your Quell on your leg, giving enough time for the lotion to fully absorb into the skin.

The gel is dry and losing its stickiness.
Even when the electrode seems to be losing its adhesion to the skin, it should still be usable; the band will help to keep contact with the skin.
The electrodes should last approximately 2 weeks with typical use. Be sure to store electrodes properly between uses as described in Chapter 6.
The gel on my electrode is coming off and/or spreading.
The electrode should still function and can be used safely as long as the stimulation feels comfortable and the device does not repeatedly blink orange during therapy sessions. Gel spread is more likely to occur in hot, humid weather since the hydrogel may absorb additional moisture to cause it to expand. You may want to try the Quell Sport Electrode.
How can I minimize gel spread?

• Ensure that the band isn’t wrapped too tightly around the leg, as that will contribute to gel spread. The electrode shouldn’t leave an imprint on the leg after it is removed. If it does, you need to loosen the band slightly.
• Remove your Quell when not in use to allow the gel to cool.
• Minimize outdoor use during hot, humid weather, when possible.
• Be mindful about where the device and electrode are stored in hot and humid weather, i.e., a hot car.
• In some cases, it may also help to alternate between two electrodes (if you switch the device at the 5-hour or “long-term wear” alert, for example) to minimize the amount of gel migration that may result from extended sessions. Issues with gel spread are less frequent during cooler, drier months.

What do I do if I have lost the electrode liner?

Use a piece of wax paper (plain paper will stick to the hydrogel).  Another option is to place the electrode in a plastic zipper bag laid flat or loosely folded (if a larger bag is unavailable) with the gel facing out.  Gel will stick to itself if pads are allowed to touch.
Skin Care
My skin is irritated (redness or rash) or itches where the device was worn.

• Skin irritation may occur. The skin should be aired out after wearing for 5 hours and after overnight use by removing the device and electrode from the leg or switching legs. If at any time the skin begins to feel irritated (itchy) while the device is on, device should be removed and the skin allowed to breathe.
• Consider using light skin moisturizer 20-30 minutes before placing your Quell on your leg if your skin is dry.
• Ensure that the strap is not being placed too tightly; this can cause the strap/electrode to create indents in the skin and lead to irritation.
• Alternate leg on which Quell is worn, if possible.
• Reorient the device so the electrode is covering another part of the leg, i.e., device faces in toward the other leg or the back of the leg or the outside of the leg.
• If the skin is irritated, do not place device or electrode over the irritated area until it has fully healed.

Charging

My device isn’t charging.
Confirm the charging adapter is plugged into a functioning wall outlet that is on. USB outlets  on a computer may not have sufficient power to charge the device, so it is not recommended. Using a charger other than the one provided with Quell, i.e., a cell phone charger, isn’t advisable.
What if there is no flashing light?
If the battery has been drained completely and all lights are off, allow at least 20 minutes for the white light to begin flashing after connecting the device to the charging adaptor plugged into a wall outlet.
What if there is a flashing orange light?
If the orange light continues to blink after  the device has been plugged in, there is a charging issue.

Limited Warranty

NeuroMetrix, Inc. manufactures its hardware products in accordance with industry standard   practices. NeuroMetrix warrants the Quell  device to be free from defects in materials and workmanship at the time of shipment. The warranty term is two years beginning on the date of sale to the original purchaser, as further described in the following text.

Replacement bands are available at https://www.store.quellrelief.com

Pros & Cons

Pros

• Users can easily adjust the intensity of stimulation to suit their pain levels via the app.
• Quell offers pain relief without the need for medications, making it a safe option for those looking to reduce pain naturally.

Cons

• The device is not water-resistant, so it cannot be worn during water activities or heavy sweating.
• Some users experience Bluetooth connectivity issues between the device and the app.

Customer Reviews

Many customers suffering from chronic pain conditions report significant relief with consistent use of the Quell device. Users praise its effectiveness, calling it a "life-changing" device that allows them to manage pain without medication.
