Introduction

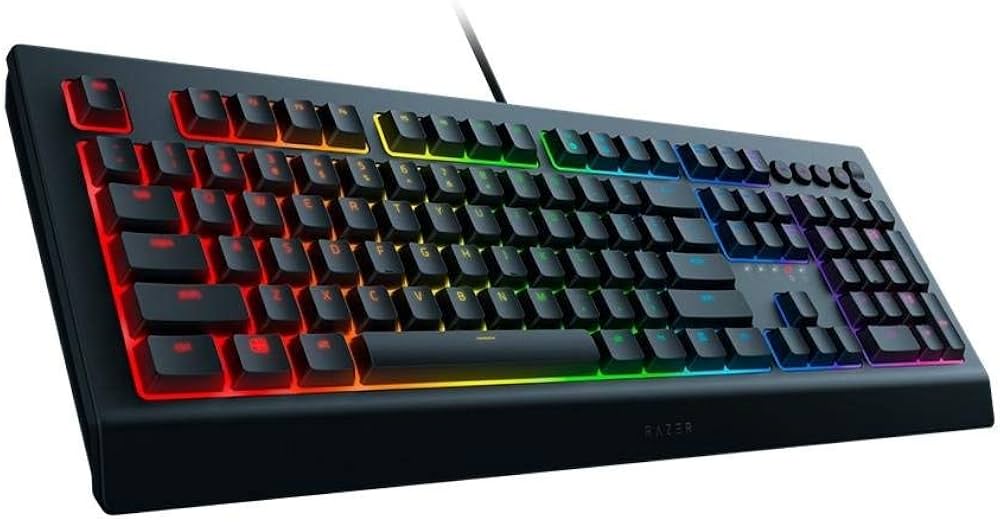

The Cynosa V2 is known for its individually backlit keys, powered by Razer Chroma RGB, allowing for extensive customization with over 16.8 million colors and numerous lighting effects. It features quiet and comfortable membrane switches that provide a soft, cushioned feel, making it ideal for both gaming and typing. With dedicated media controls and fully programmable keys, the Cynosa V2 offers great versatility and convenience. The keyboard also includes support for Razer Synapse 3, enabling you to create macros, customize key functions, and save your personalized settings to the cloud. Whether you are a casual gamer or a serious competitor, the Razer Cynosa V2 Gaming Keyboard delivers a reliable and immersive gaming experience.

PACKAGE CONTENTS

• Razer Cynosa
• Important Product Information Guide

SYSTEM REQUIREMENTS

• PC/Mac with USB port
• Windows® 8 / Windows® 7 / Windows Vista® / Windows® XP (32-bit) / Mac OS X (10.8 – 10.10)
• Internet connection
• 200MB of free hard disk space

TECHNICAL SPECIFICATIONS

• Gaming grade membrane keys
• Spill resistant durable design
• Fully programmable keys with on the fly macro recording
• Dedicated gaming mode
• Optimized gaming key matrix for minimized key ghosting
• Razer Synapse enabled

APPROXIMATE SIZE & WEIGHT

• Width: 457 mm
• Length: 174 mm
• Height: 328 mm
• Weight: 862 g

DEVICE LAYOUT

1. Volume Control Keys
2. Media Keys
3. On-The-Fly Macro Record Key
4. Gaming Mode Key
5. Sleep Mode Key
6. LED Indicators

Description

With its membrane keyboard, the Razer Cynosa V2 Gaming Keyboard provides a smooth and cozy typing experience. Long gaming sessions will be ideal because of the padded keys. Additionally, the design of the keyboard is spill-resistant, so you won't have to worry about unintentional spills damaging it. The Razer Cynosa V2's adjustable Chroma RGB lighting is one of its best features. The keyboard's 16.8 million color variations allow you to match it to your gaming setup. The media keys facilitate fast access to audio functions, and the individually lighted keys make it simple to recognize keys in low light. Additionally, the keyboard has ten roll-over keys with anti-ghosting technology to guarantee accurate keystrokes. Razer Synapse 3 and the Razer Cynosa V2 work together to make it simple to alter the lighting and settings on the keyboard.

INSTALLING YOUR RAZER CYNOSA

• Step 1: Connect your Razer device to the USB port of your computer.
• Step 2: Install Razer Synapse when prompted* or download the installer from http://www.razerzone.com/synapse
• Step 3: Create your Razer ID or login to Synapse with your existing Razer ID.
  *Applicable for Windows 8 or later.

USING YOUR RAZER CYNOSA

Pressing the “FN” key in combination with the function keys will activate their secondary features.

On-The-Fly Macro Recording

Follow these steps to create an OTF Macro Recording:

1. Press the key combination to start recording.
2. The Macro Recording Indicator will light up to show that the device is ready to record.
3. Type in the keys you want to record.
4. Press FN + F9 to stop the recording or the ESC key to cancel recording. The Macro Recording Indicator will start to blink to show that the device has stopped recording and is ready to save the macro.
5. Press the desired key where you want to save your macro.

Gaming Mode

The Gaming Mode disables the Windows Key function to avoid accidental usage. You may expand this functionality to include Alt + Tab and Alt + F4 by using Razer Synapse.

CONFIGURING YOUR RAZER CYNOSA

Disclaimer: The features listed here require you to log into Razer Synapse. These features are also subject to change based on the current software version and your Operating System.

KEYBOARD TAB

The Keyboard Tab is your default tab when you first install Razer Synapse. This tab allows you to customize your device’s profiles and key assignments.

Profile

A profile is a convenient way of organizing all your custom settings and you can have an infinite number of profiles at your disposal. Any changes made within each tab are automatically saved to the current profile and stored into the cloud servers.

You can create a new profile by clicking the button or delete the current profile by clicking the button. The button allows you to Copy, Import, and Export profiles. Your current profile by default is named “Profile”; however, you can rename it by typing on the text field below PROFILE NAME.
Each profile can be set to FN + 0 - 9 using the SHORTCUT dropdown menu for fast profile switching. Each profile can also be set to automatically activate when you run a program or application through the use of the LINK PROGRAM option.

Customize Tab

The Customize Tab is where you can modify the basic functionalities of your device such as key assignments to suit your gaming needs. The changes made in this tab are automatically saved to your current profile.

Key Assignment Menu

Initially, each key is set to DEFAULT. However, you may change the function of this key by clicking the desired key to access the Key Assignment Menu.

Listed below are the customization options and their description:

Default: This option enables you to return the key to its original function. To choose the DEFAULT, simply select it from the Key Assignment Menu.

Keyboard Function: This option enables you to change any key into another keyboard function. To choose a keyboard function, select KEYBOARD FUNCTION from the Key Assignment Menu and enter the key you wish to use on the given field below. You may also include modifier keys such as Ctrl, Shift, Alt, or any of those combinations.

Mouse Function: This option allows you to change any key into a mouse button function. To choose a mouse function, select MOUSE FUNCTION from the Key Assignment Menu and an ASSIGN BUTTON submenu will appear.

Listed below are the functions which you can choose from the Assign Button submenu:

• Left Click: Performs a left mouse click using the assigned button.
• Right Click: Performs a right mouse click using the assigned button.
• Scroll Click: Activates the universal scrolling function.
• Double Click: Performs a double left click using the assigned button.
• Mouse Button 4: Performs a “Backward” command for most internet browsers.
• Mouse Button 5: Performs a “Forward” command for most internet browsers.
• Scroll Up: Performs a “Scroll Up” command using the assigned button.
• Scroll Down: Performs a “Scroll Down” command using the assigned button.
• Scroll Left: Performs a “Scroll Left” command using the assigned button.
• Scroll Right: Performs a “Scroll Right” command using the assigned button.

Inter-device

Inter-device allows you to change the functionality of other Razer Synapse-enabled devices. Some of these functionalities are device-specific such as using your Razer gaming keyboard to change the Sensitivity Stage of your Razer gaming mouse. When you select Inter-device from the Key Assignment Menu, a sub-menu will appear.
DEVICE TO LINK allows you to choose which currently connected Razer device can be linked while FUNCTION allows you to choose which functionality you want to use for the linked device.

Macro

A Macro is a prerecorded sequence of keystrokes and button presses that is executed with precise timing. By setting a key to Macro, you can conveniently execute a chain of commands. When you select this option from the Key Assignment Menu, a submenu will appear which allows you to choose a prerecorded macro command. See the MACROS TAB to learn more about creating Macro commands.

Switch Profile

The Switch Profile enables you to change profiles on the fly and immediately load all your pre-configured settings. When you select Switch Profile from the Key Assignment Menu, a sub-menu will appear that will allow you to choose which profile to use. An on-screen display will automatically appear whenever you switch profiles.

Launch Program

Launch Program allows you to launch a program or a website using the assigned key. When you select Launch Program from the Key Assignment Menu, two options will appear which allow you to search for the specific program you want to open or write the address of the website you want to visit.

Multimedia Function

This option allows you to bind multimedia playback controls to your device. After selecting Multimedia Function, a submenu will appear. Listed below are the multimedia playback controls you can choose from the submenu:

• Volume Down: Decreases the audio output.
• Volume Up: Increases the audio output.
• Mute Volume: Mutes the audio.
• Mic Volume Up: Increases the microphone volume.
• Mic Volume Down: Decreases the microphone volume.
• Mute Mic: Mutes the microphone.
• Mute All: Mutes both microphone and audio output.
• Play / Pause: Play, pause, or resume playback of the current media.
• Previous Track: Play the previous track.
• Next Track: Play the next track.

Windows 8 Charms

This option enables you to assign the key into an Operating System shortcut command. For more information please visit: http://windows.microsoft.com/en-us/windows-8/getting-around-tutorial

Windows Shortcuts

This option enables you to assign the key into an Operating System shortcut command. For more information please visit: http://support.microsoft.com/kb/126449

Disable

This option renders the assigned key unusable. Use Disable if you do not want to use the key or if it interferes with your gaming.

Heatmaps Tab Keyboard

The Heatmaps Tab shows the most frequently used keys on your Razer device for each game on your Games List.

Social Media

• You can share your heatmap image on social media networks such as Facebook or Twitter directly from Razer Synapse. From the Heatmaps tab, click the Share button on the bottom right of the screen. You will be prompted to log in to the selected social media using an existing account if you have not already done so.



• You can also login to your social media accounts first from the “SETTINGS” screen. From the Stats & Heatmaps window, click . Select the “ACCOUNTS” tab. Click CONNECT next to the social media network you wish to sync with. Enter your login details and wait for the connection to complete.



Setup Guide

• The Razer Cynosa V2 Gaming Keyboard is simple to set up.
• The keyboard is ready for use as soon as you plug it into the USB port on your computer.
• Install Razer Synapse 3 to change the lighting and settings of the keyboard.
• From there, you may make macros, change the keyboard's lighting, and remap its keys.

SAFETY AND MAINTENANCE

SAFETY GUIDELINES

In order to achieve maximum safety while using your Razer Cynosa, we suggest that you adopt the following guidelines:

1. Should you have trouble operating the device properly and troubleshooting does not work, unplug the device and contact the Razer hotline or go to www.razersupport.com for support. Do not attempt to service or fix the device yourself at any time.
2. Do not take apart the device (doing so will void your warranty) and do not attempt to operate it under abnormal current loads.
3. Keep the device away from liquid, humidity, or moisture. Operate the device only within the specific temperature range of 0°C (32°F) to 40°C (104°F). Should the temperature exceed this range, unplug and switch off the device in order to let the temperature stabilize to an optimal level.

COMFORT

Research has shown that long periods of repetitive motion, improper positioning of your computer peripherals, incorrect body position, and poor habits may be associated with physical discomfort and injury to nerves, tendons, and muscles. Below are some guidelines to avoid injury and ensure optimum comfort while using your Razer Cynosa.

1. Position your keyboard and monitor directly in front of you with your mouse next to it. Place your elbows next to your side, not too far away, and your Keyboard within easy reach.
2. Adjust the height of your chair and table so that the keyboard and mouse are at or below elbow height.
3. Keep your feet well supported, posture straight, and your shoulders relaxed.
4. During gameplay, relax your wrist and keep it straight. If you do the same tasks with your hands repeatedly, try not to bend, extend, or twist your hands for long periods.
5. Do not rest your wrists on hard surfaces for long periods. Use a wrist rest to support your wrist while gaming.
6. Customize the keys on your keyboard to suit your style of gaming in order to minimize repetitive or awkward motions while gaming.
7. Do not sit in the same position all day. Get up, step away from your desk and do exercises to stretch your arms, shoulders, neck, and legs.
8. If you should experience any physical discomfort while using your Keyboard, such as pain, numbness, or tingling in your hands, wrists, elbows, shoulders, neck, or back, please consult a qualified medical doctor immediately.

MAINTENANCE AND USE

The Razer Cynosa requires minimum maintenance to keep it in optimum condition. Once a month we recommend you unplug the device from the computer and clean it using a soft cloth or cotton swab with a bit of warm water to prevent dirt buildup. Do not use soap or harsh cleaning agents.

Troubleshooting

If you experience any issues with the Razer Cynosa V2, here are some troubleshooting tips:

• If the keyboard is not being recognized by your computer, make sure it is properly plugged in and that the cable is not damaged.
• If the keyboard's lighting is not working, make sure Razer Synapse 3 is installed and that the keyboard's lighting settings are enabled.
• If keys are not registering, make sure the keyboard is not in a mode that disables certain keys (such as gaming mode).

Warnings: Do not spill liquids on the keyboard, as this can damage the keyboard. * Do not use excessive force when pressing keys, as this can damage the keyboard.

Pros & Cons

Pros

• Soft cushioned keys for a comfortable typing experience
• Spill-resistant design
• Customizable Chroma RGB lighting
• Dedicated media keys
• Affordable price

Cons

• Membrane keyboard may not be as durable as mechanical keyboards
• No dedicated macro keys
• Keys may feel mushy to some users

Customer Reviews

Customers have praised the Razer Cynosa V2 for its comfortable typing experience and customizable Chroma RGB lighting. However, some have criticized the keyboard for its mushy keys and lack of dedicated macro keys. Overall, the keyboard has received positive reviews and is a great option for gamers on a budget.
