Introduction

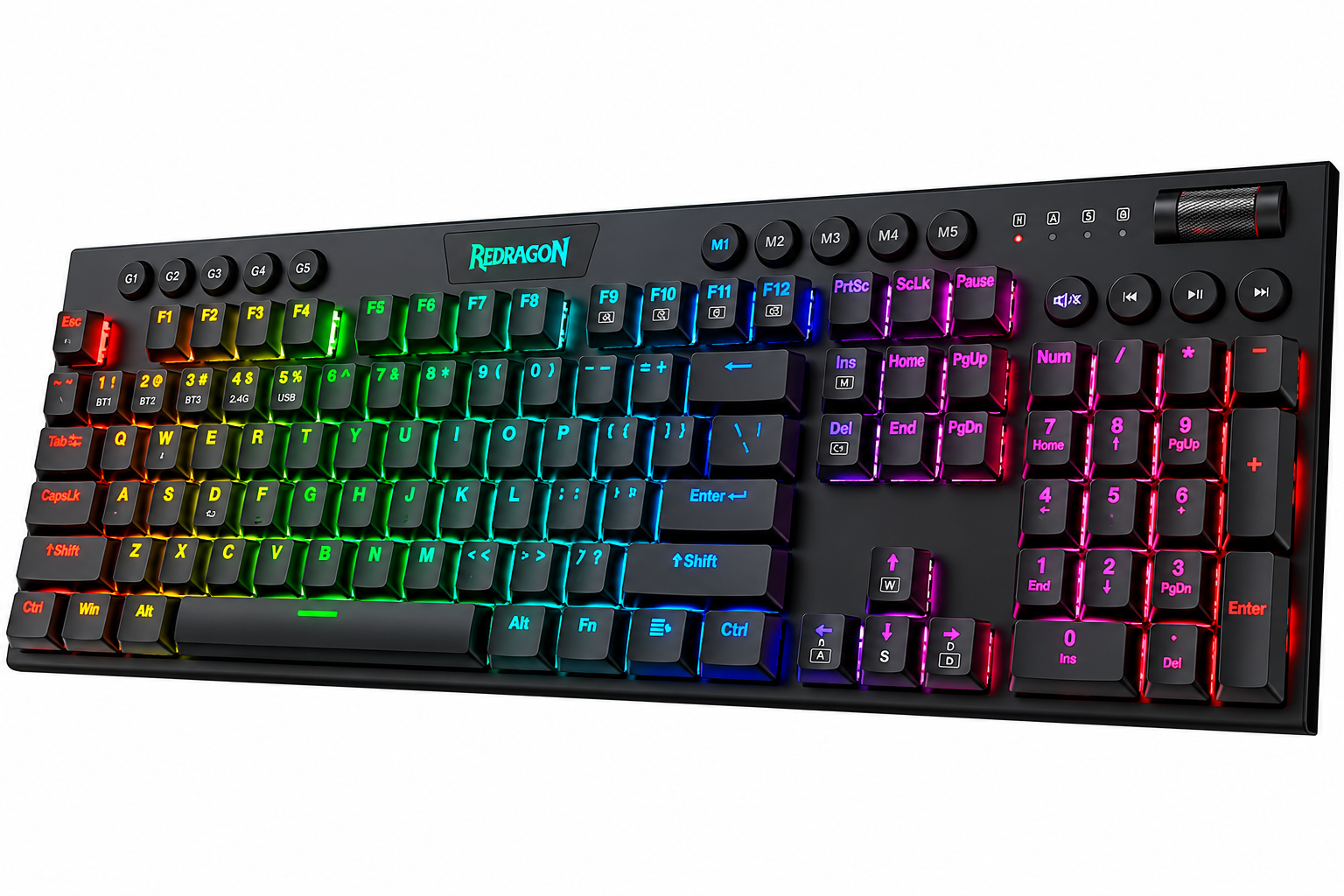

The Redragon Horus Mechanical Keyboard K618-RGB is a cutting-edge gaming keyboard that combines advanced technology with a sleek design. Featuring a versatile 3-mode connection, it supports USB-C wired, Bluetooth 3.0/5.0, and 2.4GHz wireless modes for seamless compatibility across devices. The low-profile mechanical switches enhance responsiveness, while customizable RGB backlighting allows users to personalize their setup. With dedicated macro keys and media controls, the K618-RGB is priced at approximately $79.99.

Brand, to protect your rights and for better customer service, we ask that you note our warranty rules.

1. Within the guarantee period, the repair is guaranteed for failure due to electrical circuit problems. Man-made damages, such as disassembly, hard impacts, submersion into the water, plugging into improper current or voltage, and damage caused by natural disasters such as fire, flood, or earthquake are not included.
2. Consumable parts (such as footsticks) and spare parts replacement are not included in our warranty.
3. Please fill out the warranty card. The warranty card is valid with the stamp of the retailer.
4. This warranty card will not be reissued if lost. Please keep it in a safe place.

Specifications

Keyboard K618-RGB boasts several key features that set it apart from other gaming keyboards. Here are some of its detailed specifications:

• Switches: Outemu Blue switches for tactile and clicky feedback.
• Backlighting: RGB backlight with customizable lighting effects.
• Design: Compact tenkeyless design to save desk space.
• Media Controls: Dedicated media controls for easy access to playback functions.
• Cable Management: Braided USB cable with cable management options.
• Compatibility: Compatible with Windows, Mac, and Linux operating systems.

OS support
Windows XPNista/Win7/Win8/Win10

How to connect the keyboard with a computer Wired Connection

1. Slide the ON/OFF switch on the left side of the keyboard to OFF.
2. Take out the USB A to USB Type C cable in the package and connect the keyboard to your computer, Press the FN+S(USB) key ,  and the LED marked with M twinkles in 5 times indicating the connection is successful.
3. The computer will recognize and configure the keyboard automatically.
4. Once the keyboard is powered up, charging begins. The LED marked with M lights on red. It will turn to white when the keyboard is fully recharged.

2.4G Wireless Connection

1. Slide the ON/OFF switch on the left side of the keyboard to ON.
2. pPress[FN]+[4] for about 3 seconds, and the LED marked with M flashes quickly in green, plug the USB receiver into any available USB port on your computer within 20 seconds. The computer will recognize and configure the keyboard automatically.
3. The indicator will flash on Red when the battery is low. Please recharge the keyboard in time by plugging the type C cable into the computer or it will turn off automatically soon, Please note LED marked with M will be light on Red while charging, it turns to Green when charging is completed( In 2.4g connecting mode).

Description

Redragon Horus Mechanical RGB is built with durability and performance in mind. The Outemu Blue switches offer a lifespan of up to 50 million keystrokes, ensuring long-term reliability. The compact tenkeyless design makes it perfect for gamers who prefer a more focused setup or those who need extra space on their desks. The RGB backlighting is fully customizable through the included software, allowing users to personalize their lighting effects to suit their preferences.

The keyboard also features dedicated media controls and a braided USB cable that adds to its overall aesthetic appeal. With its ergonomic design and adjustable height settings, this keyboard ensures comfort during extended gaming sessions.

Bluetooth Connection

Slide the ON/OFF switch on the left side of the keyboard to ON.

1. Slide the ON/OFF switch on the left side of the keyboard to ON.
2. Press [FN]+[l ](or [2]/[3] for other Bluetooth devices), the LED marked with M flashes in blue (or cyan/magenta for the others).
3. Turn on Bluetooth and scan for available devices on your computer or smart phone. It will find"BT3.0Keyboard or BTS.0 KB"device. Select one of them to get connected with it automatically.
4. The indicator will flash in Red when the battery is low. Please recharge the keyboard in time by plugging the C cable into computer or it will turn off automatically soon, Please note LED marked with M will be light on Red while charging, it turn to cyan/magenta when charging completed( In Bluetooth connecting mode).

Function Introduction

1. With standard USB and 2.4G/BT connections, the keyboard can be used on computers without any software or driver installation.
2. There are 20 backlight effects.
3. Commands of key combinations with [FN] key.
   • [FN]+[lns]: Change backlight mode. There are 20 backlight effects.
   • [FN]+[Del]: Change back light color.
   • [FN] + [-]:Slow down the running speed of backlight .
   • [FN] + [--+]:Add up the running speed of backlight.
   • [FN]+[TAB]:Turn the backlight to white.
   • [FN] + [Win]: Disable or enable the [Win] key.
   • [FN]+ [W]: Switch the original W/NS/D to arrow keys and right arrow keys to W/NS/D, press again to restore.
   • [FN] + [1]: Select Bluetooth device one (for Bluetooth connection).
   • [FN] + [2]: Select Bluetooth device two (for Bluetooth connection).
   • [FN] + [3]: Select Bluetooth device three (for Bluetooth connection).
   • [FN] + [4]: Change to 2.4G wireless connection. Press and hold the [FN]+[4] for 3 seconds to pair the keyboard with its receiver.
   • [FN] + [SJ]: Switch to Wired connection.
   • [FN] + [ESC]: Set the keyboard to the default setting.

Scroll button function
The scroll button is placed on the right corner of the keyboard for volume adjustment and keyboard backlight brightness adjustment function.
Backlight brightness adjustment: Press the key, and it is light on White color, The Scroll button can switch to different brightness levels.
Volume adjustment: Press the key the key light's OFF, scroll button can switch the volume level.

Multimedia function on F9-F12

• FN+9: Browser
• FN+ 10: Research
• FN+ 11: Calculator
• FN+ 12: E-mail

Shortcut key function

• Previous track
• Next track
• Play / Pause

Macro recording function
There are 4 profiles keys from M1 to M4 , each profile can assign with 5 macro keys from G1 to GS, total 20 group macro recording.

1. Press M key (M1/M2/M3/M4) to set a profile group, the key lights ON.
2. Press MR key (MR key lights ON),then press G key (G1/G2/G3/G4/GS),the key lights ON.
3. Record the desired keys.
4. Press MR key to complete recording (MR key lights OFF).

For example: M1------> MR ----> G1 ------> ABC----> MR

How to play Macro

1. Choose the profile group by press M key from Ml to M4.
2. Press the Macro key from Gl to GS.

For example: Ml-+ Gl (ABC).

How to delete Macro

1. Choose the profile group by press M key from M 1 to M4 (The key backlighting in flash).
2. Press MR key (MR key backlighting in flash).
3. Double press G keys from Gl to GS (The key lights OFF).
4. Press MR key to save(MR key lights OFF).

How to recharge the keyboard

1. Find the USB A to USB type C cable in the packaging ,plug the keyboard and connect it with computer for charging, the LED indicator(M) of keyboard will be turn to red.

Remark: The LED indicator (M) will turn to red when keyboard is out of battery.

Swap functions of [W][A][S][D] and arrow keys

1. Press and hold the [FN] key, and then press the [W] key to interchange the function of the four letter keys [W][A][S][D] and the four arrow keys [t][l] [-][--+].
2. Repeat the above operation to resume the previous setting.

Setup Guide

Setting up the Keyboard is straightforward and simple. Here's a step-by-step guide:

1. Unbox the keyboard and carefully remove it from its packaging.
2. Connect the braided USB cable to your computer or gaming console.
3. Install the Redragon software from the included CD or download it from the official website if you prefer.
4. Configure your keyboard settings using the software, including lighting effects, macro keys, and other preferences.
5. Adjust the height settings to a comfortable position for typing or gaming.

Redragon Horus K618-RGB Troubleshooting

If you encounter any issues with your Redragon Horus, here are some common problems and their solutions:

• No Backlight: Ensure that the backlight option is enabled in the software settings. Also, check if the keyboard is properly connected to a powered USB port.
• Sticky Keys: Clean the switches regularly to prevent dust buildup. Use compressed air or a soft brush to clean between keys.
• Software Issues: Uninstall and reinstall the Redragon software if you encounter any compatibility issues or bugs.

1. If the keyboard doesn't respond, please check if the keyboard's USB cable is correctly inserted into the corresponding USB port on the computer, or try another USB port on the computer.
2. If you spill liquid on the keyboard, please remove keyboard's USB cable from the computer immediately. Wipe up excess liquid and put the keyboard in a warm place (for instance, under a lamp) to let the keyboard dry naturally before using again.

Instructions Warnings: Avoid exposing the keyboard to water or extreme temperatures. Handle cables with care to prevent damage.

Pros & Cons

Pros

• Affordable price point compared to other mechanical keyboards.
• Compact tenkeyless design saves desk space.
• Customizable RGB backlighting enhances gaming ambiance.
• Durable Outemu Blue switches with long lifespan.
• Ergonomic design with adjustable height settings for comfort.

Cons

• Outemu switches may not be as durable as other brand switches like Cherry MX.
• No wrist rest included, which might be a drawback for some users.
• Software can be somewhat clunky for beginners to use.

Customer Reviews

Customers generally praise the Redragon Horus K618-RGB for its value-for-money proposition. Many reviewers appreciate its compact design, customizable lighting effects, and responsive switches. However, some users have noted that the software could be improved and that wristrests are not included.

Most Common Complaints

• Software compatibility issues.
• No wrist rest included.
