Usage: Rewire Security SpyTrack Plus GPS Tracker User Manual

rewire SpyTrack Plus GPS Tracker

Introduction

The rewire SpyTrack Plus GPS Tracker is a cutting-edge device designed for real-time location tracking with high precision and reliability. Ideal for vehicle owners, fleet managers, and security-conscious individuals, this tracker combines advanced GPS, GSM, and GPRS technologies to deliver accurate positioning and seamless connectivity. Its compact design allows for discreet installation, making it suitable for a wide range of applications including personal vehicle tracking, asset monitoring, and theft prevention.

Key benefits of the SpyTrack Plus include instant alerts on movement, geo-fencing capabilities, and remote engine immobilization in certain models, enhancing both security and control. The device supports global GSM networks, allowing users to track locations anywhere with cellular coverage. Its user-friendly mobile app and web platform provide easy access to tracking data, historical routes, and device settings.

Targeted at individuals and businesses seeking affordable yet robust tracking solutions, the SpyTrack Plus offers competitive pricing typically ranging between $70 and $120, depending on features and vendor. It is widely available through online retailers and authorized distributors. Whether you need to monitor a single vehicle or an entire fleet, the rewire SpyTrack Plus GPS Tracker delivers reliable performance with simplicity and security.

Specifications of the rewire SpyTrack Plus GPS Tracker

• GPS Module: High-sensitivity GPS chipset with an accuracy of up to 10 meters
• Network Support: Quad-band GSM 850/900/1800/1900 MHz for global cellular coverage
• Communication: GPRS for data transmission enabling real-time tracking via mobile and web apps
• Power Supply: 9V to 90V DC input, suitable for most vehicle electrical systems
• Beeper & Alerts: Movement alerts, geo-fencing notifications, low battery warning
• Battery: Built-in rechargeable lithium battery for backup up to 6 hours
• Dimensions: Compact size approximately 80mm x 40mm x 25mm
• Additional Features: Remote engine cut-off (model dependent), SOS emergency button
• Installation: Professional installation recommended; includes 12-pin wiring harness

Compared to similar devices such as the Spytec GL300 or Tracki 2025, the SpyTrack Plus offers competitive pricing and enhanced vehicle integration options. Its broader voltage input range and remote engine control capabilities give it an edge for fleet and security applications.

Features

• No installation requirement
• Magnet mounting
• Real-Time GPS Tracking
• Dual GPS Antennas
• Temperature and Humidity monitoring
• Small Form Factor: 375 grams    Accessible via APP on PC, Mac, iOS, or Android devices
• Rechargeable Battery with a Battery Life of Up to 50 days
• Instant Alerts by E-mail & Text Message & Smartphone APP
• Geo-fencing Capabilities
• Motion detection
• Tampering (removal) alarm
• 180 days tracking history
• 1 Year Warranty

What’s Included
Included in the box with the Spytrack Plus are the following:

• Spytrack Plus GPS Tracker
• Mini USB Charging Cable
• Installed SIM card with Global Coverage
• Quick Start Instruction Guide

 SpyTrack Plus SIM Card

• Note: The SIM card comes preinstalled on the device. Please do not remove or replace it. If you experience a problem you believe may be related to the preinstalled SIM card, please contact Rewire Security.

Charging the Device

• To charge the Spytrack Plus, lift the flap covering the charging port and plug the charger cable end into the unit via the USB port, then plug the charger into a USB power source. The battery LED light on the front of the tracker will hold a constant red light when charging, and the LED in the center will blink green periodically to indicate that it still has power. If the battery LED flashes red, that means the battery level is low, and the GPS tracker should be charged.

Spytrack Plus Power On/Off

• Spytrack Plus is always “ON” and the power button is used for ligting up the battery level indicator. As the device obtains a mobile signal, the cell LED will begin blinking and will start relaying location data. If the cell LED light on the device is flashing, your tracker is trying to locate a cellular signal over which to send the location data.

Activating the Device

• After purchasing the device, you must purchase SpyTrack Service Plan that allows the device to send your data to your Spytrack account. Spytrack Service includes: Prepaid SIM card with global coverage, Spytrack Website, and Spytrack APP subscriptions. You can activate your device and service plan at: https://www.rewiresecurity.co.uk/spytrack-service-activation
• Follow the activation steps on the website, and within a few minutes, you will receive an email with details about the device, along with the username and password to log on to https://spytrackgps.co.uk. Change your password upon logging in for the first time and begin enjoying tracking your vehicle and assets!

Device Placement

• Make sure the device is placed near a window or on a surface that does not obstruct the signal reception. Placing the device in the boot of a car saloon is not recommended. Move the GPS tracker near where you want to place it and check the green GPS signal to ensure that reception is available in that position. The Spytrack Plus is water resistant, yet we do not recommend placing the device in a place where it may become submerged in water.

Tamper Detection

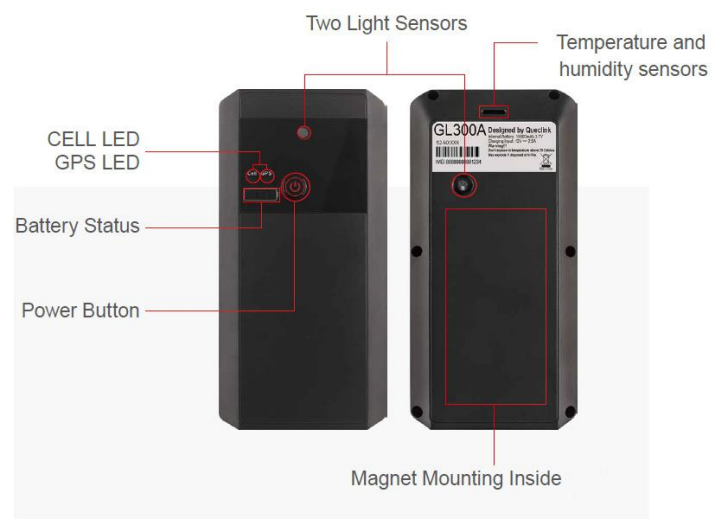

• The Spytrack Plus is able to monitor its environment continuosly. Tamper detection is turned on 60 seconds after the tracker is installed on a vehicle. The light sensor on the back is used for
  tamper(removal) detection. If the tracker is tampared with or removed from the vehicle, Spytrack Plus will identify it and send an alert.

Light Sensor

• Based on the front light sensor on the front, Spytrack plus measures ambient light using preset optical density value.

Temperature & Humidity Sensor

• The Spytrack Plus comes with an integrated temperature and humity sensor. It’s an ideal tracking device for businesses with constant need for measuring the temperature inside their vehicles.

Spytrack GPS Tracking Portal

• https://spytrackgps.co.uk/ is the portal that allows you to track your GPS tracker. Access to the platform comes free of charge included with the Spytrack Service Plan. Spytrack portal is built on the cloud and it can be accessed using any internet-enabled device that runs an internet browser.
• In addition, all of your tracking needs can be fulfilled using nothing but the mobile app. Spytrack app features real-time tracking, alerts, and notifications as well as route history.

Getting Started

• To log into the Spytrack portal, check your email for your Spytrack activation email containing your username and password. For the best security results, please change your password upon logging in for the first time. You can access the “Settings” menu on the left top corner of the website, once in settings menu go to the “My Account” tab to change your password.
• To learn more about Spytrack Portal, please visit: https://www.rewiresecurity.co.uk/spytrackguide/

Troubleshooting for the rewire SpyTrack Plus GPS Tracker

• Device Not Powering On: Verify vehicle battery voltage and wiring connections. Replace the internal backup battery if device shows no response.
• No GSM Signal: Ensure SIM card is active and properly inserted. Check coverage in your area or try repositioning the tracker.
• GPS Signal Lost: Move device to location with open sky access. Avoid metal enclosures or underground parking areas.
• Error Codes: Common SMS error codes include “ERR01” for SIM failure and “ERR02” for GPS module malfunction; reset device or contact support.
• Preventive Measures: Regularly update device firmware via the app, keep SIM card topped up, and schedule periodic device checks.

The rewire SpyTrack Plus GPS Tracker comes with a standard 12-month warranty covering manufacturing defects. For support, contact the vendor’s customer service hotline or official website.

Pros & Cons of the rewire SpyTrack Plus GPS Tracker

Pros

• High GPS Accuracy: Delivers reliable location data within 10 meters, suitable for precise tracking.
• Wide Voltage Range: Compatible with most vehicle electrical systems (9V-90V).
• Remote Engine Control: Available on selected models for added security and theft prevention.
• Easy Mobile Integration: User-friendly app and web platform for real-time monitoring.
• Compact & Discreet: Allows covert installation in vehicles or assets.

Cons

• Professional Installation Recommended: May require expert help, adding to setup cost.
• Limited Battery Backup: Internal battery lasts about 6 hours; continuous vehicle power is needed.
• SIM Card Dependent: Requires an active GSM SIM with data plan for full functionality.
• No Built-in WiFi or Bluetooth: Limits connectivity options compared to some competitors.

Overall, the rewire SpyTrack Plus offers excellent value for money, especially for vehicle tracking and fleet management, with features that compare favorably against market alternatives such as the GL300 and Tracki.

Customer Reviews and User Feedback on the rewire SpyTrack Plus GPS Tracker

Users praise the rewire SpyTrack Plus GPS Tracker for its dependable real-time tracking and ease of use through the mobile app. Many appreciate the accurate location updates and timely movement alerts that enhance vehicle security. Several reviewers highlight the benefit of the remote engine immobilizer feature in theft prevention.

Common complaints include the need for professional installation and occasional GSM signal loss in low coverage areas. Some users noted the internal battery backup could be longer for enhanced portability.

Overall, the tracker holds a solid average rating of 4 out of 5 stars, with recommendations for buyers seeking a robust, affordable GPS tracking solution for vehicles and assets. Users advise ensuring compatibility of the SIM card and reading installation instructions carefully for optimal performance.
