Rheem Water Heating Appliances 86H-25: Complete Product Manual and Buyer Guide

Introduction

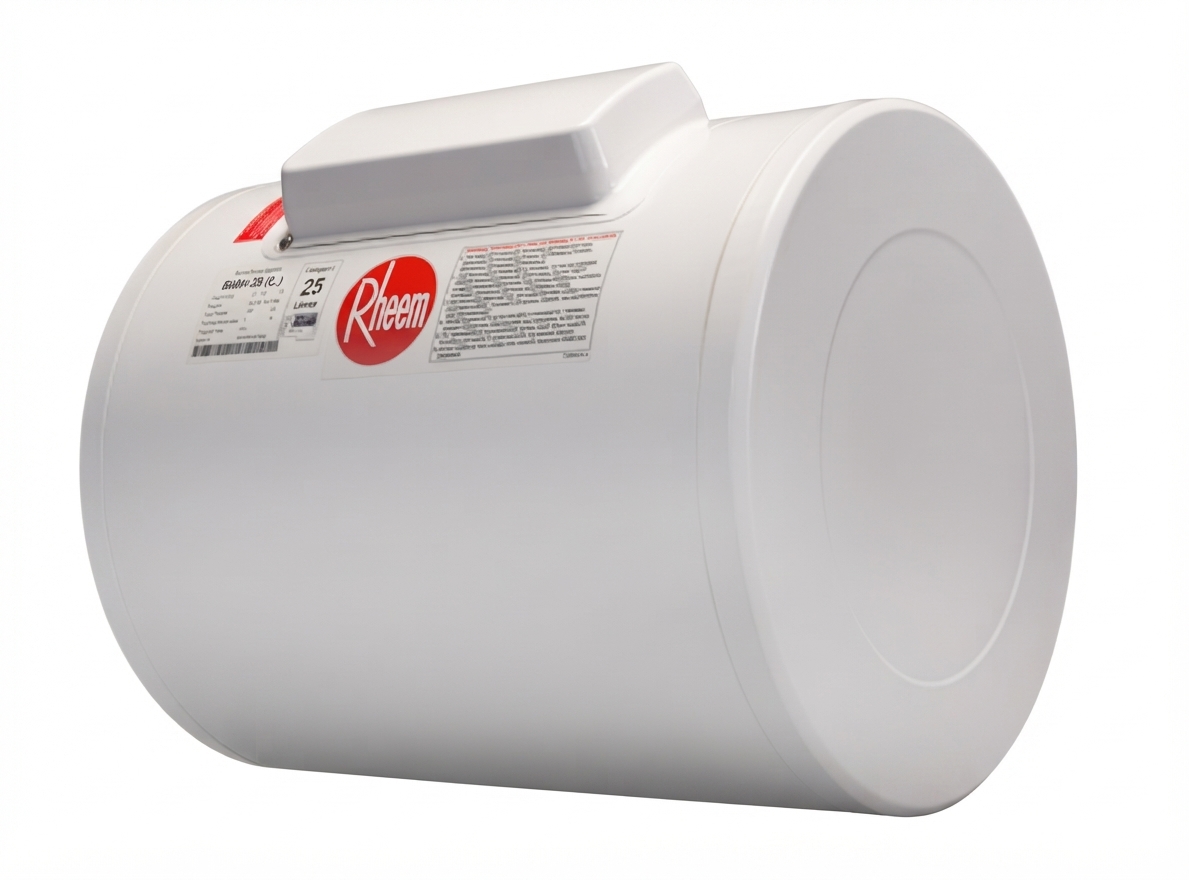

The rheem Water Heating Appliances 86H-25 is a compact horizontal electric storage water heater designed for homes that need reliable hot water in a space-saving format. Built for everyday residential use, this 25-litre model is a strong fit for apartments, small households, secondary bathrooms, and utility areas where wall space and ceiling clearance matter. It is part of Rheem’s 86H series, which is known for durable tank construction, stable heating performance, and straightforward operation.

This model offers a practical balance of size, recovery speed, and efficiency. With a 3.0 kW heating element and a factory-set temperature of 60°C, it is engineered to deliver hot water quickly while maintaining consistent comfort for showers, handwashing, and light kitchen use. The horizontal layout makes it easier to install in tight spaces compared with larger vertical tanks, and the corrosion-resistant tank design helps support long-term reliability.

Typical use cases include small family homes, condo installations, backup hot water systems, and properties that need a compact point-of-use storage heater. The estimated price range for a unit like this commonly falls around USD $180 to $450 depending on region, installation requirements, and retailer availability. Availability is generally best through plumbing suppliers, authorized Rheem dealers, and regional appliance distributors. For shoppers comparing compact storage heaters, the rheem Water Heating Appliances 86H-25 stands out for its simple design, quick heat-up time, and trusted brand reputation.

Specifications for Rheem 86H-25 Electric Storage Water Heater

The rheem Water Heating Appliances 86H-25 is a 25-litre electric storage water heater with a horizontal tank design and a focus on dependable daily performance.

  • Model: 86H-25
  • Rated capacity: 25 litres
  • Power rating: 3,000W, 230V AC, 50Hz
  • Approximate heat-up time to 60°C: 20 minutes
  • Temperature setting: Factory set to 60°C, maximum 70°C
  • Temperature and pressure relief valve rating: 1,000 kPa
  • Pipe connection size: Rp 20 (3/4" x 14)
  • Length: 460 mm
  • Diameter: 377 mm
  • Inlet and outlet spacing: 150 mm
  • Mount hole spacing: 320 mm
  • Total distance from wall: 426 mm
  • Total height from ceiling: 396 mm
  • Shipping weight: 15 kg

Compared with larger 86H models such as the 40-litre or 55-litre versions, the 86H-25 heats faster and takes up less room, but it delivers less stored hot water for multiple back-to-back users. It is best suited for compact installations where quick recovery matters more than high-volume output.

Setup Guide for Rheem 86H-25 Water Heating Appliances

Installing the rheem Water Heating Appliances 86H-25 should always be handled by a qualified technician or licensed plumber and electrician. The unit operates on 220-240V AC at 50Hz, so correct wiring, grounding, and circuit protection are essential for safe operation.

  1. Choose a mounting location with enough wall support, clearance for service access, and protection from moisture exposure.
  2. Confirm the wall structure can support the filled unit and allow proper horizontal installation.
  3. Connect the cold water inlet and hot water outlet using the correct Rp 20 fittings.
  4. Install the temperature and pressure relief valve as specified in the manual and ensure the discharge line is routed safely.
  5. Flush the system before powering on to remove debris and trapped air.
  6. Verify electrical supply, circuit breaker sizing, and grounding before energizing the heater.
  7. Set or confirm the thermostat setting, keeping in mind the factory setting is 60°C with a maximum of 70°C.

For best results, check for leaks before full operation and test the hot water temperature after the first heating cycle. If the unit fails to heat, confirm power supply, thermostat settings, and water flow. Safety precautions include never blocking the relief valve outlet, never operating the heater dry, and never bypassing electrical protections. Proper installation is critical for safe performance and long service life.

Troubleshooting Rheem 86H-25 Common Problems and Solutions

Most issues with the rheem Water Heating Appliances 86H-25 are related to power, water supply, thermostat settings, or relief valve function. Regular maintenance helps prevent many of these faults.

  • No hot water: Check circuit power, breaker position, thermostat setting, and heating element condition.
  • Water not hot enough: Confirm the thermostat is correctly set and inspect for sediment buildup inside the tank.
  • Leaking from fittings: Tighten connections carefully and inspect inlet, outlet, and valve seals.
  • Relief valve discharging: This may indicate excess pressure, overheating, or a faulty valve that needs replacement.
  • Slow heating: Check voltage supply and look for scale accumulation on the element.
  • Strange noises: Popping or rumbling often points to sediment buildup and may require flushing.

Common error code displays are not typically associated with this style of storage heater, so visible faults are usually diagnosed through mechanical inspection rather than digital codes. Preventive measures include annual tank flushing, periodic relief valve testing, checking the anode condition, and keeping the surrounding area dry and ventilated. Warranty support is typically provided through authorized Rheem service channels, with regional contact centers and distributor support available for parts and service guidance.

Pros and Cons of the Rheem 86H-25 Electric Water Heater

Pros

  • Compact 25-litre size fits small bathrooms, apartments, and tight utility spaces.
  • Fast heat-up time of about 20 minutes to 60°C helps restore hot water quickly.
  • Horizontal design improves installation flexibility in low-clearance areas.
  • Factory-set temperature reduces setup complexity for standard residential use.
  • Strong value for money for users who need reliable small-volume hot water storage.
  • Better suited than larger tanks when space efficiency is the top priority.

Cons

  • 25-litre capacity is limited for families with simultaneous shower demand.
  • Not ideal for high-consumption homes or back-to-back bathing schedules.
  • Requires professional installation for safety and warranty compliance.
  • Lacks the convenience of smart controls found in more advanced alternatives.
  • Less versatile than larger electric storage models when hot water demand is variable.

In value terms, the rheem Water Heating Appliances 86H-25 is a strong choice for buyers who want dependable performance without paying for extra capacity they will not use. Compared with larger 86H models, it is more affordable and space-friendly, but the trade-off is lower storage volume.

Customer Reviews for Rheem Water Heating Appliances 86H-25

Customer feedback for compact Rheem storage heaters is generally positive, especially from users who value fast heating and a small footprint. Average ratings for this type of unit commonly cluster around 4.3 out of 5 stars, with praise centered on reliability, simple operation, and space savings.

Typical positive comments include: “Heats quickly and fits perfectly above the utility area,” and “A dependable small water heater for an apartment bathroom.” Common complaints usually mention limited capacity for larger households and the need for professional installation.

  • Most praised: quick recovery, compact design, consistent water temperature
  • Most criticized: small tank size, slower recovery under heavy demand, installation cost
  • Purchase recommendation: best for singles, couples, and small households with moderate hot water needs

For buyers comparing compact electric storage heaters, the rheem Water Heating Appliances 86H-25 is often recommended as a practical and durable option when space is limited and dependable everyday hot water is the priority.

PDF

Faqs

How do I set up rheem Water Heating Appliances 86H-25 for the first time?

Start by confirming the unit is installed on a stable, level surface with proper clearance around vents, access panels, and service points. Before powering on rheem Water Heating Appliances 86H-25, verify that water lines are connected correctly, the supply valve is open, and any electrical or gas connections match the manufacturer’s requirements. After installation, fill the tank fully, check for leaks, then run a test cycle and adjust the thermostat to a safe, comfortable setting.

Why is my rheem Water Heating Appliances 86H-25 not heating water enough?

If rheem Water Heating Appliances 86H-25 is producing lukewarm water, check the thermostat setting first, since it may have been lowered accidentally. Next, inspect for sediment buildup, which can reduce heating performance and slow recovery time. Also confirm that the power supply, gas supply, or pilot system is operating normally, depending on the model. If the issue continues after basic checks, the heating element, burner assembly, or control valve may need professional inspection.

What does the rheem Water Heating Appliances 86H-25 error or indicator light mean?

Indicator lights or fault codes on rheem Water Heating Appliances 86H-25 usually point to ignition issues, overheating, sensor problems, or restricted airflow. The exact meaning depends on the model variant and control system. Start by resetting the unit if the manual allows it, then check for blocked vents, tripped breakers, or interrupted fuel supply. If the fault returns, record the code before calling service so the technician can diagnose the problem faster.

Is rheem Water Heating Appliances 86H-25 compatible with standard home plumbing and power connections?

rheem Water Heating Appliances 86H-25 is typically designed for residential water-heating setups, but compatibility depends on your home’s pipe size, voltage, fuel type, and venting configuration. Before installation, compare the unit’s specifications with your existing plumbing and electrical or gas infrastructure. If your home has older connectors, low water pressure, or nonstandard vent paths, an adapter, upgrade, or professional installation may be required for safe and efficient operation.

How can I improve the energy efficiency of rheem Water Heating Appliances 86H-25?

To optimize rheem Water Heating Appliances 86H-25, set the thermostat to the lowest comfortable temperature, insulate exposed hot water pipes, and reduce standby heat loss by keeping the area around the unit well sealed. Schedule regular flushing to remove sediment, since buildup forces the heater to work harder. Fix leaking faucets and running toilets too, because wasted hot water increases energy use and shortens the appliance’s service life.

How often should I flush and maintain rheem Water Heating Appliances 86H-25?

A good maintenance schedule for rheem Water Heating Appliances 86H-25 includes flushing the tank at least once a year, or more often in areas with hard water. Check the anode rod, temperature setting, pressure relief valve, and visible connections during routine care. Wipe dust from vents and access areas, and look for corrosion or moisture around fittings. Regular maintenance helps prevent noise, improves heating performance, and can extend the lifespan of the appliance.

Why is rheem Water Heating Appliances 86H-25 making popping or rumbling noises?

Popping, rumbling, or crackling noises usually mean sediment has collected at the bottom of rheem Water Heating Appliances 86H-25. When water gets trapped under mineral deposits, it boils unevenly and creates those sounds. Flushing the tank often reduces the noise and restores better efficiency. If the sound is very loud or accompanied by overheating, shut the unit down and have it inspected, because a failing component or excessive scale buildup may be involved.

What should I check if rheem Water Heating Appliances 86H-25 has low hot water pressure?

Low hot water pressure can come from clogged aerators, mineral buildup in pipes, partially closed valves, or a blocked inlet on rheem Water Heating Appliances 86H-25. First, compare pressure at both hot and cold taps to see whether the issue is isolated to the heater. Then inspect the shutoff valve, inlet screen, and nearby plumbing for restrictions. If pressure remains weak throughout the home, the problem may be in the main plumbing line rather than the appliance itself.
