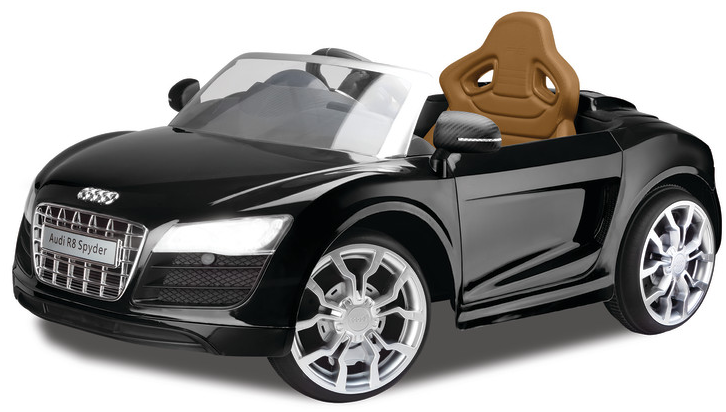

Rollplay 6V Audi R8 Spyder W458AC-F Introduction

The Rollplay 6V Audi R8 Spyder W458AC-F is an exciting ride-on car designed for young children, combining style and safety in a compact package. This electric vehicle mimics the sleek design of the iconic Audi R8, featuring working headlights, a realistic dashboard, and a comfortable seat. With a maximum speed of 2.5 mph, it offers a fun driving experience while ensuring safety. The cost of the Rollplay 6V Audi R8 Spyder is approximately $299.99.

We hope the rider enjoys it for miles to come. Please read this instruction guide carefully before assembling and operating the vehicle. Please have your model number and serial number ready before calling. Please have proof of purchase. Keep your sales receipt or register your product at
https://www.rollplay.com

6V Audi R8 Spyder

Read and understand the entire manual before assembly and operation. The vehicle must be assembled by an adult who has read and understands the instructions.
Made in China.
Styles and colours may vary.
IMPORTANT:  Save this manual with your sales receipt.

Parts

1. Car Body
2. Seat
3. Steering Wheel
4. Dashboard
5. Windshield
6. Left and Right Mirrors
7. Front Wheel (2)
8. Rear Wheel (2)
9. Hubcap (4)
10. Battery Charger (1)
11. Steering Wheel Screw (1)
12. Steering Wheel Nut (1)
13. Dashboard Screw (2)
14. Snap pin (4)
15. Large Washer (7)
16. Inner Wheel Spacer

Helpful Tip:

• Parts 11-16 are located in the blister pack

Specifications of Rollplay 6V Audi R8 Spyder W458AC-F

• BATTER Y6V 7AH
• MOTOR 6V 20W
• AGE 3 Years and Up
• MAX WEIGHT 35 KG (77 lbs)
• PRODUCT SIZE 1.2 m x 62 x 50 cm (47.2 x 24.4 x 19.7 in.)
• SPEED 4.0 km/h (2.5 MPH)
• RECHARGE TIME 8-12 Hours
• TYPICAL RUN TIME 1-2 Hours
• CHARGER OUTPUT DC 7.0V

Description

The Rollplay 6V Audi R8 Spyder W458AC-F boasts an authentic design, mirroring the real Audi R8 Spyder with intricate details such as LED lights, a soft-close hood, and a spacious cockpit. The ride-on car features a sturdy construction and a comfortable seating area, ensuring both durability and comfort for young drivers. It comes with a parental remote control that allows adults to guide the vehicle if needed, providing an added layer of safety.

The car is equipped with forward and reverse gears, allowing children to learn basic driving skills in a controlled environment. The 6-volt battery provides ample power for extended play sessions, and the ride-on car includes a rechargeable battery and charger for convenience.

Charging Instructions

YOU MUST CHARGE THE BATTERY FOR 24 HOURS BEFORE THE FIRST USE!
ONLY AN ADULT SHOULD HANDLE THE BATTERY AND CHARGER.

To Charge the Battery:

1. Ensure the vehicle is stopped and turned off.
2. Unlock and remove the seat.
3. Unplug the red battery connector from the red engine connector.
4. Connect the red battery connector to the red battery charger connector

5. Plug into a 120 V outlet.

   To Unplug the Battery:

6. Unplug the battery charger from the outlet.
7. Unplug the red battery connector.
8. Reconnect the red battery connector to the red engine connector.
9. Replace the seat and tighten lock.

Note: It is not necessary to remove the battery for charging. However, if the battery does not reach the outlet, it can be removed for charging. For Battery Removal instructions, see Page 17.

Assemble the Front Wheels

Helpful Tip: Using pliers will make it easier to remove the snap pin from the wheel axle

1. Locate the snap pins (14) and large washers (15) from the blister box. Slide the large washer (15) onto the axle.
2. Slide the front wheel (7) onto the axle. Ensure that the side of the wheel with the slots is facing out.
3. Slide the large washer (15) onto the axle.
4. Insert the straight side of the snap pin (14) through the hole at the end of the axle to keep the wheel in place.
5. Position the hubcap (9) over the holes on the wheel, and snap the hubcap into place.
6. Repeat sets 1-5 for the other front wheel.

Assemble the Rear Wheels

Helpful Tip

1. If you encounter trouble fitting both wheels onto the rear axle, then your rear wheel axle may need to be realigned.
2. Remove both wheels from the rear wheel axle. Using two hands, push down on the rear wheel axle and slide it gently toward the side of the vehicle that needs more room.

Note: The right side of the vehicle will only have 1 washer. Locate the inner wheel spacer (16), snap pins, (14) and large washers (15) from the blister box.

Left Rear Wheel

1. Slide the large washer (15) onto the axle.
2. Slide the inner wheel spacer (16) onto the axle with the wide end facing out.
3. Slide the left rear wheel (8) onto the axle with the gear teeth facing inward.
4. Slide the large washer (15) onto the axle.
5. Insert the straight side of the snap pin (14) through the hole at the end of the axle to keep the wheel in place.
6. Position the hubcap (9) over the holes on the wheel, and snap the hubcap into place.
   Right Rear Wheel
7. Slide the right rear wheel (8) onto the axle with the gear teeth facing inward. Ensure that the gear teeth connect with the gear box that is pre-installed on the axle.
8. Repeat steps 3-5.

Dashboard/Windshield Assembly

1. Position the two front tabs on the dashboard above the slots on the windshield.
2. Snap the windshield onto the dashboard.
3. Connect the wire from the dashboard to the wire from the car body.

1. Holding the dashboard/windshield assembly together, insert the steering rod on the car body through the hole of the dashboard.
2. Align the dashboard with the slots on the car, and slide the dashboard into place
3. Use a Phillips-head screwdriver to fasten the dashboard screw (13) into the two screw hole locations on either side of the dashboard.

Assemble the Steering Wheel

1. Use a Phillips head screwdriver to remove the screw on the battery compartment of the steering wheel.
2. Insert two AAA batteries into the battery compartment.
3. Replace cover and use the screwdriver to fasten.

WARNING

• Do not mix old batteries with new batteries or batteries of different types.
• Do not mix alkaline, standard (carbon-zinc), or rechargable (nickel-cadmium) batteries.

1. Slide the steering wheel (3) onto the steering rod
2. Align the holes on the steering wheel with the holes on the steering rod.
3. Slide the steering wheel screw (11) through the steering wheel and steering rod.
4. Fasten the nut (12) to the end of the screw and tighten the screw with a screwdriver.

Attach the Mirrors

1. Align the bottom of the mirror with the hole on the car body near the dashboard.
2. Gently press the mirror down into place.
3. Repeat for the other mirror.

Attach the Seat

1. Ensure the lock on the car seat (2) is in the unlock position.
2. Align the two hooks on the back of the car seat (2) with the holes on the back of the battery compartment.
3. Insert the hooks into the holes and rotate the seat down into place.
4. Use a flat head screwdriver or a coin to turn the seat to the locked position.

Operation Instructions

Battery Removal

1. Unlock and remove the seat.
2. Disconnect the red battery connector from the red engine connector.
3. Loosen and remove the screw from the battery strap using a Phillips screwdriver.
4. Slide the battery strap out from the battery strap slot.
5. Remove the battery.

Note: It is not necessary to remove the battery for charging. However, if the battery does not reach the outlet, then it can be removed for charging.

Setup Guide

To set up the Rollplay 6V Audi R8 Spyder W458AC-F, follow these steps:

• Unbox the toy and ensure all components are included.
• Assemble the car according to the provided instructions, which typically involve attaching the wheels and any additional parts.
• Charge the battery using the included charger for at least 8 hours before first use.
• Test the vehicle to ensure all functions are working correctly, including the parental remote control if applicable.
• Guide your child in how to operate the car safely, emphasizing the use of safety gear such as helmets and the importance of staying within designated driving areas.

Rollplay 6V Audi R8 Spyder W458AC-F Maintenance

Important Battery and Charger Information

• Only an adult who has read and understands the safety warnings may handle and oiperate the battery and battery charger. Keep away from children.
• Charge the battery for 24 hours before using the vehicle for the first time.
• Recharge the battery immediately after each use. Charge for at least 8-    12 hours, but no more than 20 hours.
• Charge the battery at least once a month, even if the vehicle is not used or stored.
• Never leave the battery in a discharged condition.
• Connect the terminal of the battery and charger, then plug the charger into a 120V AC outlet.
• It is normal for the charger to heat slightly. If the charger rises above 71°C / 160°F, disconnect the charger and call Customer Service for assistance.
• Keep the charger away from water or excessive moisture to prevent short-circuiting.
• Only use the charger specified with the original item. Do not charge the battery with any other charger.
• Do not attempt to recharge non-rechargeable batteries with the original charger.
• Do not replace the battery with any other battery, or the warranty will be voided. If you need a replacement battery, see Page 23 for replacement information.
• Remove damaged batteries from the car immediately. Recycle or dispose of the used batteries responsibly.
• Do not short circuit the supply terminals.
• Do not leave the battery connected in the vehicle for extended periods of time when the vehicle is not being used. Disconnect the battery connector from the engine connector before storing.
• The vehicle is equipped with a thermal fuse to protect the electric circuit. If the vehicle cuts out, turn the vehicle off and on to reset.

General Care

• Regularly inspect all vehicle parts to ensure they are in good working condition.
• Regularly inspect the charger, cord, plug, and other related parts for damage.
• Remove any damaged parts and immediately contact Customer Service for replacement parts. See Service and Repairs on Page 23 for more information.
• DO NOT operate the vehicle if there are any damaged parts.
• Carefully clean the vehicle with a damp cloth and mild soap. Do not get water in or near any electrical parts. Do not wash the vehicle with a hose.
• Store the vehicle indoors or use a tarp to cover it. Keep away from stoves, heaters, or other sources of heat.

Safety

WARNING: SAFETY RIDING RULES

The user must follow all safety rules and guidelines, or serious injury or death may occur to the user.

• Always use common sense and safe practices when using the vehicle. The user must be at least 3 years old and weigh no more than 35 kg (77 lbs).
• This product contains small parts that are for adult assembly only. Keep small children away when assembling. Remove and dispose of all protective material and plastic bags before assembly.
• Riders must always wear a fitted helmet that complies with U.S. Consumer Product Safety Commission (CPSC) Standard CFR 1203.
• Only sit on the seat in the vehicle.
• Do not allow more than one rider.
• Do not overload the vehicle. Do not remove the weight restriction decals.
• Do not pull the vehicle with another vehicle or similar device.
• Keep body parts such as hands, legs, hair and clothing away from moving parts. Moving parts can cause serious injury.
• Always wear shoes in the vehicle.
• Do not operate near streets or motor vehicles.
• Do not operate near drop-offs such as steps, steep inclines or hills. Operate on relatively level ground.
• Do not operate near water, swimming pools or other fluids.
• Do not operate in dangerous weather conditions such as rain or snow.
• Do not operate near loose dirt, mud, sand or fine gravel.
• Do not operate near flammable vapors (gasoline, paint thinner, acetone, etc.).
• Always use the vehicle in a safe, secure environment with adult supervision.
  PREVENT INJURIES AND DEATHS:
  • NEVER LEAVE CHILD UNATTENDED. ALWAYS keep child in view when child is in vehicle. Direct adult supervision is REQUIRED.
  • NEVER use in roadways, near cars, on or near steep inclines or steps, swimming pools or other bodies of water.
  • ALWAYS wear shoes
  • ALWAYS sit on the seat
  • RISK OF FIRE. Do not bypass.
• WARNING: BATTERY SAFETY
  • Battery posts, terminals and related accessories contain lead and lead components. DO NOT open the battery.
  • Contact exposure to battery leakage (lead acid) may cause serious injury. Immediately contact your doctor if exposure occurs. If the chemical is on the skin, flush immediately with cool water for 15 minutes. If the chemical is swallowed, immediately give the person water or milk. Do not give water or milk if the person is vomiting or has decreased alertness. Do not induce vomiting.
  • Tampering with or modifying the electric circuit system may cause shock, fire or explosion. It could permanently damage the system. Keep the charger housing closed to prevent exposed wiring, which may cause electric shock.
• IMPORTANT: Before using the vehicle for the first time, the battery must be charged for a full 24 hours (no more than 30 hours).
• WARNING: ADULT SUPERVISION REQUIRED
  • Before using the vehicle, the rider must understand the vehicle controls and safety issues.
  • It is the responsibility of the adult to educate the child and to determine if the child is capable of understanding the vehicle controls.
  • An adult must ALWAYS directly supervise the use of this vehicle.
  • NEVER leave a child unsupervised in the vehicle.

Troubleshooting Guide

Completely read through the manual and troubleshooting guide before contacting Customer Service.

Rollplay 6V Audi R8 Spyder W458AC-F Warranty

Rollplay 6-Volt Limited Warranty

• One-year limited warranty from the date of purchase with proof of purchase from a Rollplay certified retailer.
• Six month limited warranty on the 6-Volt battery with proof of purchase from a Rollplay certified retailer.

Product Registration

OR fill out the form online at https://www.rollplay.com

Pros & Cons

Pros

• The car’s detailed design makes it look like a real Audi R8 Spyder, enhancing the driving experience.

Cons

• The car’s maximum speed of 2.25 mph may be too slow for older children.

Customer Reviews

Customers have generally praised the Rollplay 6V Audi R8 Spyder W458AC-F for its realistic design and safety features. Many parents appreciate the parental remote control option, which provides peace of mind while their children play. However, some reviewers have noted that the battery life could be improved and that assembly can be a bit time-consuming.

One common complaint is that the car’s wheels can sometimes get stuck on uneven surfaces, but this issue can often be resolved by ensuring the driving area is smooth and flat.
