Rollplay 6V GMC Sierra Battery Adaptor W460-G03 Introduction

We hope the rider enjoys it for miles to come. Please read this instruction guide carefully before assembling and operating the vehicle. Please have your model number and serial number ready before calling. Please have proof of purchase. Keep your sales receipt or register your product at www.rollplay.com

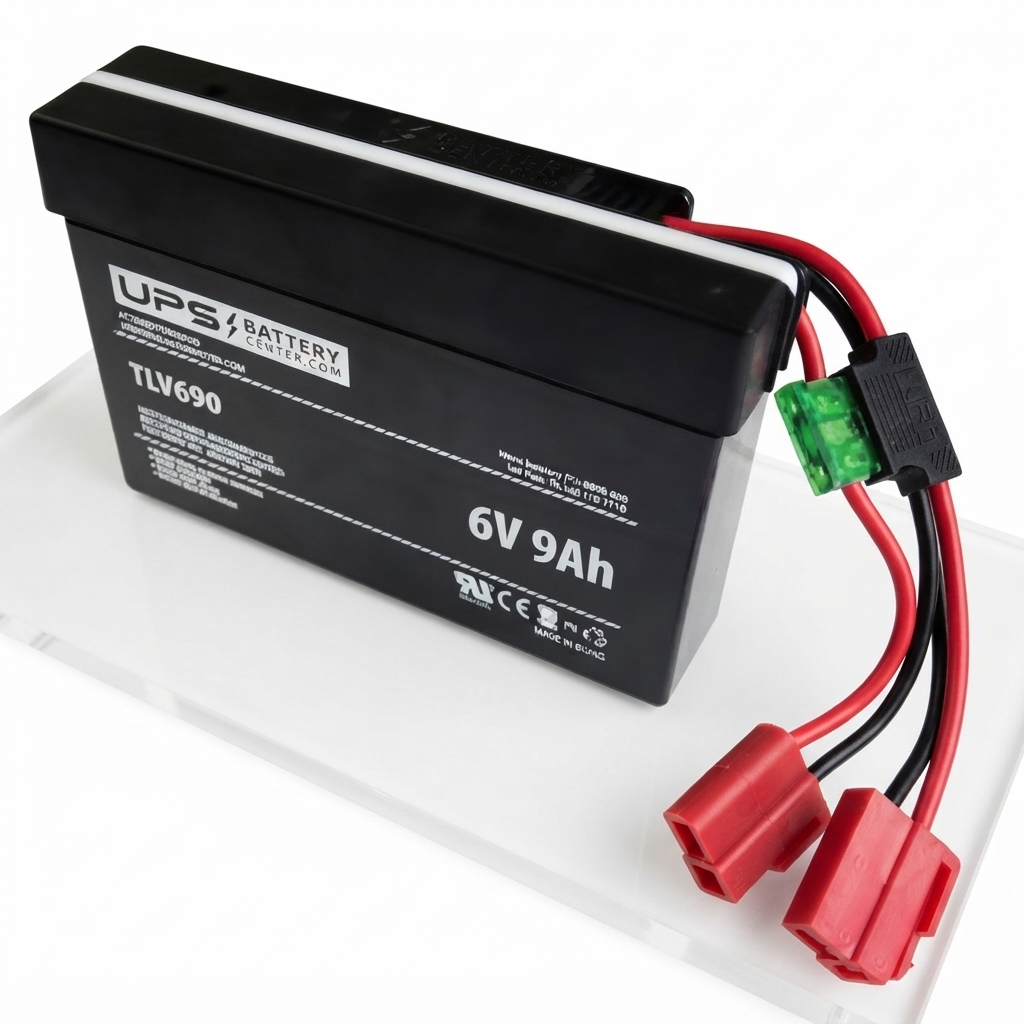

The Rollplay 6V GMC Sierra Battery Adaptor W460-G03 is a replacement battery pack designed for the Rollplay 6V GMC Sierra electric ride-on vehicle. It features a 6V 7AH rechargeable lead-acid battery that provides up to 2 hours of runtime on a single charge. The adapter is easy to install and comes with all necessary hardware. The cost of the Rollplay 6V GMC Sierra Battery Adaptor W460-G03 is approximately $49.99.

Parts

1. Car Body
2. Mirror Assembly
3. Steering Wheel Assembly
4. Seat
5. Front Wheel (2)
6. Rear Wheel (2)
7. Chrome Rim (4)
8. 12 Thick Washer (2)
9. 12 Thin Washer (2)
10. 10 Thick Washer (2)
11. 10 Thin Washer (2)
12. Inner Wheel Spacer
13. Snap Pin (4)
14. Battery
15. Charger
16. Manual
17. MP3 Cable
18. Steering Wheel Screw
19. Steering Wheel Nut
20. Blister Pack

Helpful Tip:

1. Parts 8-13 and 17-19 are located in the blister pack
2. Spare parts: Φ12 Thin Washer 1 Φ10 Thin Washer 1 Snap Pin 2

Rollplay 6V GMC Sierra Battery Adaptor W460-G03 Specifications

• BATTERY 6V 7AH
• MOTOR 6V 15W
• AGE 3 Years and Up
• MAX WEIGHT 77 lb. (35 kg)
• PRODUCT SIZE 26.18” x 19.69” x 50.79” (66.5 x 50 x 129 cm)
• SPEED 2.5 MPH
• RECHARGE TIME 8-12 Hours
• TYPICAL RUN TIME 1-2 Hours
• CHARGER OUTPUT DC 7.0V0.7A

IMPORTANT!

YOU MUST CHARGE THE BATTERY FOR 24 HOURS BEFORE FIRST USE!

Charge the battery after each use.
Charge the battery at least once a month, even if the vehicle is not in use.

DO NOT RETURN THIS ITEM TO THE STORE!

Description

The Rollplay 6V GMC Sierra Battery Adaptor W460-G03 is a high-quality accessory that ensures smooth and reliable power transmission to the ride-on toy. Made from durable materials, this adaptor is built to withstand frequent use and provides a secure connection between the battery and the toy. Its compact design ensures a snug fit, minimizing any potential risks of disconnection during play.

This adaptor is easy to install and does not require any technical expertise, making it a hassle-free solution for parents. It is also designed with safety in mind, featuring protective casings and secure connections to prevent any electrical mishaps.

Charging Instructions

YOU MUST CHARGE THE BATTERY FOR 24 HOURS BEFORE THE FIRST USE! ONLY AN ADULT SHOULD HANDLE THE BATTERY AND CHARGER.
To Charge the Battery:

1. Ensure the vehicle is stopped and turned off.
2. Unlock and remove the seat.
3. Located the red battery connector (A) that attaches directly to the battery.
4. Connect the red battery connector to the red battery charger connector (B).
5. Plug into a 120 V outlet.
   To Reconnect the Battery:
6. Unplug the battery charger from the outlet.
7. Unplug the red battery connector from the red charger connector (B).
8. Connect the red battery connector (A) to the red engine connector (C).
9. Replace the seat and tighten lock.

Note: It is not necessary to remove the battery for charging. However, if the battery does not reach the outlet, it can be removed for charging. For Battery Removal instructions, see Page 17.

Helpful Tip:

1. Ensure the red battery connector is connected to the red engine connector
2. Ensure the white gear box connector is connected to the white engine connector
3. NEVER connect a red connector to a white connector

Assemble the Front Wheels

Helpful Tip: Using pliers will make it easier to remove the snap pin from the wheel axle

1. Locate the front 10 thick washers (10), the 􀀁10 thin washers (11), and snap pins (13) from blister pack.
2. Slide the front 10 thick washer (10) onto the axle
3. Slide the front wheel (5) onto the axle. Ensure that the side of the wheel with the slots is facing out
4. Slide the 10 thin washer (11) onto the axle
5. Insert the straight side of the snap pin (13) through the hole at the end of the axle to keep the wheel in place
6. Position the chrome rim (7) over the holes on the wheel and snap into place
7. Repeat steps 1-6 for the other front wheel

Assemble the Left Rear Wheel

1. Locate the rear 􀀁12 thick washer (8), the thin washer (9), the snap pin (13), and inner wheel spacer (12) from blister pack.
2. Slide the rear 􀀁12 thick washer (8) onto the axle.
3. Slide the inner wheel spacer (12) onto the axle with the wide end facing out.
4. Slide the left rear wheel (6) onto the axle with the gear teeth facing inward.
5. Slide the 12 thin washer (9) onto the axle.
6. Insert the straight side of the snap pin (13) through the hole at the end of the axle to keep the wheel in place.
7. Position the chrome rim (7) over the holes on the wheel and snap into place.

Assemble the Right Rear Wheel

Helpful Tip:

1. If you encounter trouble fitting both wheels onto the rear axle, then your rear wheel axle may need to be realigned.
2. Remove both wheels from the rear wheel axle. Using two hands, push down on the rear wheel axle and slide it gently toward the side of the vehicle that needs more room.

1. Locate the rear 12  thin washer (9) and the snap pin (13) from blister pack.
2. Slide the rear wheel (6) onto the axle with the gear teeth facing inward. Ensure that the gear teeth engage with the gear box already installed on the axle.
3. Slide the 12 thin washer (9) onto the axle.
4. Insert the straight side of the snap pin (13) through the hole at the end of the axle to keep the wheel in place.
5. Position the chrome rim (7) over the holes on the wheel and snap into place.

Assemble the Steering Wheel

Warning: DO NOT mix old and new batteries DO NOT mix alkaline, standard  (carbon-zinc) or rechargeable (nickel-cadmium) batteries.

1. Use a Phillips head screwdriver to remove the screw on the battery. compartment of the steering wheel.
2. Insert two AA batteries into the battery compartment.
3. Replace cover and use the screwdriver to fasten.
4. Locate the steering wheel screw (18) and nut (19) from the blister pack.
5. Slide the steering wheel (3) onto the steering rod.
6. Align the holes on the steering wheel with the holes on the steering rod.
7. Slide the steering wheel screw through the steering wheel and steering rod.
8. Fasten the nut to the end of the screw and tighten the screw with a screwdriver.

Attach the Mirrors

1. Remove the mirrors from the plastic bags
2. Remove the screw and nut from the mirror assembly
3. Align the hole on the mirror with the hole on the car
4. Insert the screw into the hole and fasten the nut with a screwdriver to secure the mirror
5. Repeat steps 1-4 for the other mirror

Attach the Seat

1. Ensure the lock on the car seat (4) is in the unlock position
2. Align the hook on the back of the car seat (4) with the holes on the back of the battery compartment
3. Insert the hook into the holes and rotate the seat down into place 4.
4. Use a flat head screwdriver or a coin to turn the seat to the locked position

Operation Instructions

• Push the power switch to turn on the car. The power indicator light will turn on when the car is on. Press the power switch again to turn off the car.
• Push the shifter forward to move forward. Pull the shifter backward to go in reverse.
• Insert the MP3 cable (17) into the MP3 jack and connect to your device. Turn the MP3 on by rotating the on/off dial. To adjust the volume, rotate the dial.
• Press the foot pedal down to go. Release the foot pedal to stop.
• Press the left and right steering wheel buttons for horn and engine sounds
• Battery power indicator: Press the power indicator button to check battery level.
• Green, Yellow, & Red Lights: Battery is fully charged
• Yellow & Red Lights: Battery level is low
• Red Light: Battery power is lower than 5.5V, and the battery must be recharged

Battery Removal

1. Unlock and remove the seat
2. Disconnect the red battery connector from the red engine connector
3. Loosen and remove the screw from the battery strap using a Phillips screwdriver
4. Slide the battery strap out from the battery strap slot
5. Remove the battery

Note: It is not necessary to remove the battery for charging. However, if the battery does not reach the outlet, then it can be removed for charging.

Maintenance

Important Battery and Charger Information

• Only an adult who has read and understands the safety warnings may handle and operate the battery and battery charger. Keep away from children.
• Charge the battery for 24 hours before using the vehicle for the first time.
• Recharge the battery immediately after each use. Charge for at least 8-12 hours, but no more than 20 hours.
• Charge the battery at least once a month, even if the vehicle is not used or stored.
• Never leave the battery in a discharged condition.
• Connect the terminal of the battery and charger, then plug the charger into a 120V AC outlet.
• It is normal for the charger to heat slightly. If the charger rises above 71°C / 160°F, disconnect the charger and call Customer Service for assistance.
• Keep the charger away from water or excessive moisture to prevent short-circuiting.
• Only use the charger specified with the original item. Do not charge the battery with any other charger.
• Do not attempt to recharge non-rechargeable batteries with the original charger.
• Do not replace the battery with any other battery, or the warranty will be voided. If you need a replacement battery, see Page 23 for replacement information.
• Remove damaged batteries from the car immediately. Recycle or dispose of the used batteries responsibly.
• Do not short circuit the supply terminals.
• Do not leave the battery connected in the vehicle for extended periods of time when the vehicle is not being used. Disconnect the battery connector from the engine connector before storing.
• The vehicle is equipped with a thermal fuse to protect the electric circuit. If the vehicle cuts out, turn the vehicle off and on to reset.

General Care

• Regularly inspect all vehicle parts to ensure they are in good working condition.
• Regularly inspect the charger, cord, plug, and other related parts for damage.
• Remove any damaged parts and immediately contact Customer Service for replacement parts. See Service and Repairs on Page 23 for more information.
• DO NOT operate the vehicle if there are any damaged parts.
• Carefully clean the vehicle with a damp cloth and mild soap. Do not get water in or near any electrical parts. Do not wash the vehicle with a hose.
• Store the vehicle indoors or use a tarp to cover it. Keep away from stoves, heaters, or other sources of heat.

Setup Guide

1. Locate the Battery Compartment: Identify the battery compartment on your Rollplay 6V GMC Sierra ride-on toy.
2. Remove Old Adaptor: If an old adaptor is present, carefully remove it from the compartment.
3. Insert New Adaptor: Place the new Rollplay 6V GMC Sierra Battery Adaptor W460-G03 into the compartment, ensuring it is securely connected.
4. Connect Battery: Connect the 6V battery to the adaptor, following the manufacturer's instructions for proper connection.
5. Test the Toy: Turn on the ride-on toy to ensure the adaptor is working correctly.

Safety

WARNING: SAFETY RIDING RULES

PREVENT INJURIES AND DEATHS:
NEVER LEAVE CHILD UNATTENDED. ALWAYS keep child in view when child is in vehicle. Direct adult supervision is REQUIRED.
NEVER use on roadways, near cars, on or near steep inclines or steps, swimming pools or other bodies of water.
ALWAYS wear shoes.
ALWAYS sit on the seat.
NEVER allow more than (1) rider in the vehicle.
RISK OF FIRE. Do not bybass.
The user must follow all safety rules and guidelines, or serious injury or death may occur to the user.

• Always use common sense and safe practices when using the vehicle. The user must be at least 3 years old and weigh no more than 77 lb.
• This product contains small parts that are for adult assembly only. Keep small children away when assembling. Remove and dispose of all protective material and plastic bags before assembly.
• Riders must always wear a fitted helmet that complies with U.S. Consumer Product Safety Commission (CPSC) Standard CFR 1203.
• Do not overload the vehicle. Do not remove the weight restriction decals.
• Do not pull the vehicle with another vehicle or similar device.
• Keep body parts such as hands, legs, hair and clothing away from moving parts. Moving parts can cause serious injury.
• Always wear shoes in the vehicle.
• Do not operate near streets or motor vehicles.
• Do not operate near drop-offs such as steps, steep inclines or hills. Operate on relatively level ground.
• Do not operate near water, swimming pools or other fluids.
• Do not operate in dangerous weather conditions such as rain or snow.
• Do not operate near loose dirt, mud, sand or fine gravel.
• Do not operate near flammable vapors (gasoline, paint thinner, acetone, etc.).
• Always use the vehicle in a safe, secure environment with adult supervision.
• Battery posts, terminals and related accessories contain lead and lead compound (asic) chemicals known to the state of California to cause cancer, reproductive harm, and are toxic and corrosive. DO NOT open the battery.
• Contact exposure to battery leakage (lead acid) may cause serious injury. Immediately contact your doctor if exposure occurs. If the chemical is on the skin, flush immediately with cool water for 15 minutes. If the chemical is swallowed, immediately give the person water or milk. Do not give water or milk if the person is vomiting or has decreased alertness. Do not induce vomiting.
• Tampering with or modifying the electric circuit system may cause shock, fire or explosion. It could permanently damage the system. Keep the charger housing closed to prevent exposed wiring, which may cause electric shock.

IMPORTANT: Before using the vehicle for the first time, the battery must be charged for a full 24 hours (no more than 30 hours).

WARNING: ADULT SUPERVISION REQUIRED

• Before using the vehicle, the rider must understand the vehicle controls and safety  issues.
• It is the responsibility of the adult to educate the child and to determine if the child  is capable of understanding the vehicle controls.
• An adult must ALWAYS directly supervise the use of this vehicle.
• NEVER leave a child unsupervised in the vehicle.

Troubleshooting Guide

Completely read through the manual and troubleshooting guide before contacting Customer Service.

Rollplay Warranty

Rollplay 6-Volt Warranty

• One-year limited warranty from the date of purchase with proof of purchase from a Rollplay certified retailer.
• Six month limited warranty on the 6-Volt battery with proof of purchase from a Rollplay certified retailer.
• This one-year limited warranty covers the ride-on vehicle against defects in materials and workmanship to the original purchaser. Proof of purchase receipt from a Rollplay certified reseller is required.
• Rollplay ensures the original 6-Volt battery is warranted for 6 months from initial purchase of the vehicle from a certified retailer. Proof of purchase receipt required.

Product Registration

Fill out the form online at https://www.rollplay.com

Pros & Cons

Pros

• Reliable Performance: Ensures consistent power supply to the ride-on toy.
• Safety Features: Secure connections and protective casing for added safety.
• Easy Installation: Simple and hassle-free setup process.
• Durable Construction: Made from high-quality materials for long-lasting use.
• Affordable Price: Priced competitively, making it a worthwhile investment.

Cons

• Limited Compatibility: Only compatible with specific Rollplay models.
• No Additional Features: Basic adaptor without any additional functionalities.

Customer Reviews

Customers have generally been pleased with the Rollplay 6V GMC Sierra Battery Adaptor W460-G03, praising its ease of installation and reliable performance. Some users have noted that the adaptor fits perfectly and provides a secure connection, ensuring their child's toy remains functional. However, a few users have mentioned that the adaptor could be more versatile in terms of compatibility with other models.

Common complaints include the limited compatibility and the lack of any additional features beyond basic functionality. Despite these minor drawbacks, the vast majority of customers recommend this adaptor for its quality and reliability.
