Introduction

The Rollplay 6V Mini Cooper-S W446AC-Y-F is a stylish and fun ride-on toy designed for children aged three and up. This electric vehicle mimics the iconic Mini Cooper design, providing an exciting driving experience with a maximum speed of 2.5 mph. Equipped with a rechargeable battery, it offers hours of playtime, making it perfect for outdoor adventures. The cost of the Rollplay 6V Mini Cooper-S is approximately $249.99.

Specifications

• BATTERY: 6V 7AH
• MOTOR: 6V 15W
• AGE: 3 Years and Up
• MAX WEIGHT: 35 kg (77 lb)
• PRODUCT SIZE: 102.9 x 64.8 x 53.9 cm (40.5 x 25.5 x 21.25 in.)
• SPEED: 2.5 MPH
• RECHARGE TIME: 8-12 Hours
• TYPICAL RUN TIME: 1-2 Hours
• CHARGER OUTPUT: DC 7.0V 0.7A

Rollplay 6V Mini Cooper-S W446AC-Y-F Parts

1. Manual
2. Steering wheel assembly
3. Seat
4. Rear Spoiler
5. Chassis
6. Front wheels (2)
7. Rear wheels (2)
8. Rim
9. Large Washer
10. Small Washer
11. Snap pins (4)
12. Hub cap
13. Dashboard
14. Speedometer
15. Wing mirror
16. Windshield
17. Front light cover
18. Rear light cover
19. Charger

20. Battery



Description

The Rollplay 6V Mini Cooper-S W446AC-Y-F is a scaled-down, electric version of the Mini Cooper-S, designed to capture the essence of the original car. It features a vibrant yellow finish and detailed design elements, including a replica steering wheel and functional headlights. The ride-on car has a sturdy plastic body and comes equipped with a comfortable seat for one child. The vehicle is powered by a rechargeable 6V battery that provides enough power for a fun driving experience without being too fast for young users.

The product dimensions are approximately 43 inches in length, 24 inches in width, and 20 inches in height, making it an ideal size for small children. The weight capacity of the ride-on car is 66 pounds, ensuring it can support children of various sizes within the recommended age range.

Charging Instructions

YOU MUST CHARGE THE BATTERY FOR 24 HOURS BEFORE THE FIRST USE! ONLY AN ADULT SHOULD HANDLE THE BATTERY AND CHARGER.

To Charge the Battery

1. Ensure the car is stopped and the power switch is turned off.
2. Unlock and remove the seat.
3. Unplug the red battery connector (A) from the red engine connector (B).

4. Connect the red battery connector (A) to the red battery charger connector (C) and plug (D) into a 120 V outlet.



To Unplug the Battery

1. Unplug the battery charger (D) from the outlet.
2. Unplug the red battery connector (A).

3. Reconnect the red battery connector (A) to the red engine connector (B).



4. Replace the seat and tighten lock.



Note: It is not necessary to remove the battery for charging. However, if the battery does not reach the outlet, it can be removed for charging. For Battery Removal instructions, see Page 17.

Assemble the Front Wheels

Note: The washers and snap pins for the front and rear wheels are taped onto the front and rear axle.

1. Slide the large washer (9) onto the front axle.
2. Slide the front wheel (6) onto the front axle.
3. Slide the wheel cover (8) onto the front axle.
4. Slide the small washer (10) onto the front axle.
5. Slide the snap pin (11) into the hole on the front axle until firmly attached.
6. Finally, cover the hub cap (12) to complete wheel assembly.
7. Repeat steps 1-6 for the remaining front wheel.

Assemble the Left Rear Wheel

Left Rear Wheel

1. Slide the large washer (9) onto the front axle.
2. Slide the left rear wheel (7) onto the left rear axle. The side with the gear teeth faces inward.
3. Slide the wheel cover (8) onto the front axle.
4. Slide the small washer (10) onto the front axle.
5. Slide the snap pin (11) into the hole on the front axle until firmly attached.
6. Finally cover the hub cap (12) to complete wheel assembly.

Assemble the Right Rear Wheel

Right Rear Wheel

1. Slide the right rear wheel (7) onto right rear wheel axle. The side with gear teeth faces inward. (Note: the gear teeth must engage with the gear box.)
2. Slide the wheel cover (8) onto the front axle.
3. Slide the small washer (10) onto the front axle.
4. Slide the snap pin (11) into the hole on the front axle until firmly attached.
5. Finally cover the hub cap (12) to complete wheel assembly.

Helpful Tip

1. If you encounter trouble fitting both wheels onto the rear axle, then your rear wheel axle may need to be realigned.
2. Remove both wheels from the rear wheel axle. Using two hands, push down on the rear wheel axle and slide it gently toward the side of the vehicle that needs more room.
3. Once the rear axle is properly centered, refer to the above steps to assemble the wheels.

Attach the Steering Wheel

1. Remove the screw and nut from the steering wheel assembly before attaching.
2. Insert the steering wheel into the steering rod, and match the screw holes of the steering wheel with the screw holes on the steering rod.
3. Insert the screw into the hole and fasten the nut to secure.

WARNING

• Do not mix old batteries with new batteries or batteries of different types.
• Do not mix alkaline, standard (carbon-zinc), or rechargeable (nickel-cadmium) batteries.

Steering wheel requires 2 x AA batteries

1. Open the battery compartment cover with the screwdriver.
2. Insert the two batteries into the battery compartment.

3. Replace the battery compartment cover and securely close with the screw.



Note: If steering wheel sound becomes distorted or slow, please change the batteries based on the above procedure.

Attach the Speedometer/Windshield

1. Align the speedometer (14) with the slot of the dashboard.



2. Push it slightly until you hear the click to complete the assembly.



3. Align the windshield (16) with the two side slots between the dashboard and the body.
4. When evenly aligned, push lightly on the windshield while holding at each end until it clicks. (Note: the two sides of the windshield must be pushed in evenly.)

5. Push down lightly on the middle of the windshield until it clicks.



Attach the Spoiler/Mirrors

1. Line up the clips on the rear spoiler (4) with the slots on the back of the car body.
2. Push the rear spoiler until it clicks and connects with the car body to complete the assembly.

3. Insert the clip of the mirror (15) into the slot of the chassis.



4. Push the clip into the slot until you hear a click to complete the assembly.
5. Please note to differentiate between the left and right mirrors.
6. Repeat steps 1-3 for the opposite mirror.

Attach the Seat

1. Position the seat (3) over the battery compartment.
2. Slide the seat onto the guides located in front of the rear spoiler.
3. Turn the thumb screw clockwise on the seat to lock it properly in position.
4. Ensure the red battery connector is attached to the red engine connector in the battery compartment before attaching the seat.

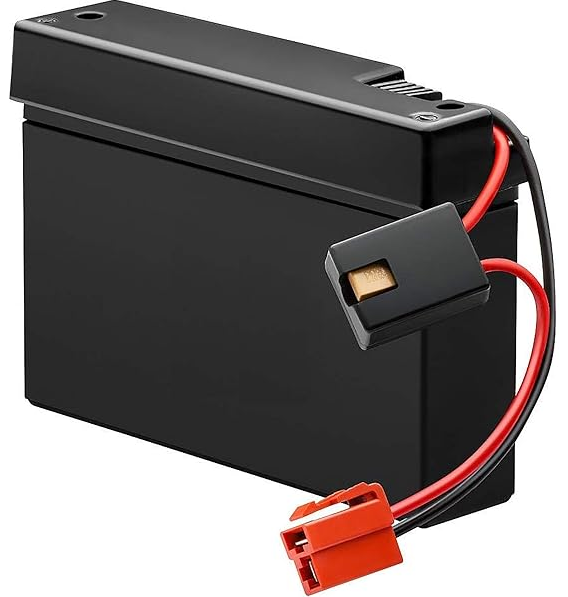

Battery Removal

1. Disconnect the red battery connector (A) from the red engine connector (B).
2. Loosen and remove the screw.
3. Unfasten the battery from the strap.
4. Remove the battery.

Note: It is not necessary to remove the battery for charging. However, if the battery does not reach the outlet, then it can be removed for charging.

Operating Instructions

• To turn on the vehicle, turn the power switch to “I.” To turn off the vehicle, turn the power switch to “O.”
• Push the shifter forward to move forward. Pull the shifter backward to go in reverse.

• Press the foot pedal down to go. Release the foot pedal to stop.



• Press the left and right buttons on the steering wheel to make sounds.

Note: The steering wheel must have batteries to make sounds. (See Page 13 for directions.)

Setup Guide

To set up your Rollplay 6V Mini Cooper-S, follow these steps:

1. Unboxing: Carefully remove all packaging materials and ensure all parts are included.
2. Assembly: Assemble the car according to the provided instructions. This usually involves attaching the wheels and any additional features like the steering wheel or headlights.
3. Battery Installation: Insert the rechargeable battery into the designated compartment and charge it according to the manufacturer's instructions.
4. Testing: Once assembled and charged, test the vehicle to ensure all components are working correctly.
5. Operating Instructions: Teach your child how to operate the car safely by showing them how to use the accelerator pedal and steering wheel.

Maintenance

Important Battery and Charger Information

• Only an adult who has read and understands the safety warnings may handle and operate the battery and battery charger. Keep away from children.
• Charge the battery for 24 hours before using the vehicle for the first time.
• Charge the battery immediately after each use. Charge for at least 8-12 hours, but no more than 30 hours.
• Charge the battery at least once a month, even if the vehicle is not used or stored.
• Never leave the battery in a discharged condition.
• Connect the terminal of the battery and charger, then plug the charger into a 120V AC outlet.
• It is normal for the charger to heat slightly. If the charger rises above 71°C / 160°F, disconnect the charger and call Customer Service for assistance.
• Keep the charger away from water or excessive moisture to prevent short-circuiting.
• Only use the charger specified with the original item. Do not charge the battery with any other charger.
• Do not attempt to recharge non-rechargeable batteries with the original charger.
• Do not replace the battery with any other battery, or the warranty will be voided. If you need a replacement battery, see Page 24 for replacement information.
• Remove damaged batteries from the car immediately. Recycle or dispose of the used batteries responsibly.
• Do not short circuit the supply terminals.
• Do not leave the battery connected in the vehicle for extended periods of time when the vehicle is not being used. Disconnect the battery connector from the engine connector before storing.
• The vehicle is equipped with a thermal fuse to protect the electric circuit. If the vehicle cuts out, turn the vehicle off and on to reset.

General Care

• Regularly inspect all vehicle parts to ensure they are in good working condition.
• Regularly inspect the charger, cord, plug, and other related parts for damage.
• Remove any damaged parts and immediately contact Customer Service for replacement parts. See Service and Repairs on Page 24 for more information.
• DO NOT operate the vehicle if there are any damaged parts.
• Carefully clean the vehicle with a damp cloth and mild soap. Do not get water in or near any electrical parts. Do not wash the vehicle with a hose.
• Store the vehicle indoors or use a tarp to cover it. Keep away from stoves, heaters, or other sources of heat.

Safety of Rollplay 6V Mini Cooper-S W446AC-Y-F

WARNING: SAFETY RIDING RULES

The user must follow all safety rules and guidelines, or serious injury or death may occur to the user.

• Always use common sense and safe practices when using the vehicle. The user must be at least 3 years old and weigh no more than 35 kg (77 lbs).
• This product contains small parts that are for adult assembly only. Keep small children away when assembling. Remove and dispose of all protective material and plastic bags before assembly.
• Riders must always wear a fitted helmet that complies with U.S. Consumer Product Safety Commission (CPSC) Standard CFR 1203.
• Only sit on the seat in the vehicle.
• Do not allow more than one rider.
• Do not overload the vehicle. Do not remove the weight restriction decals.
• Do not pull the vehicle with another vehicle or similar device.
• Keep body parts such as hands, legs, hair, and clothing away from moving parts. Moving parts can cause serious injury.
• Always wear shoes in the vehicle.
• Do not operate near streets or motor vehicles.
• Do not operate near drop-offs such as steps, steep inclines, or hills. Operate on relatively level ground.
• Do not operate near water, swimming pools, or other fluids.
• Do not operate in dangerous weather conditions such as rain or snow.
• Do not operate near loose dirt, mud, sand, or fine gravel.
• Do not operate near flammable vapors (gasoline, paint thinner, acetone, etc.).
• Always use the vehicle in a safe, secure environment with adult supervision.

PREVENT INJURIES AND DEATHS

• NEVER LEAVE CHILD UNATTENDED. ALWAYS keep child in view when child is in vehicle. Direct adult supervision is REQUIRED.
• NEVER use in roadways, near cars, on or near steep inclines or steps, swimming pools, or other bodies of water.
• ALWAYS wear shoes
• ALWAYS sit on the seat

RISK OF FIRE. Do not bypass.

WARNING: BATTERY SAFETY

Battery posts, terminals, and related accessories contain lead and lead compound (acid) chemicals known to the state of California to cause cancer, reproductive harm, and are toxic and corrosive. DO NOT open the battery.

• Contact exposure to battery leakage (lead acid) may cause serious injury. Immediately contact your doctor if exposure occurs. If the chemical is on the skin, flush immediately with cool water for 15 minutes. If the chemical is swallowed, immediately give the person water or milk. Do not give water or milk if the person is vomiting or has decreased alertness. Do not induce vomiting.
• Tampering with or modifying the electric circuit system may cause shock, fire, or explosion. It could permanently damage the system. Keep the charger housing closed to prevent exposed wiring, which may cause electric shock.
• IMPORTANT: Before using the vehicle for the first time, the battery must be charged for a full 24 hours (no more than 30 hours).

WARNING: ADULT SUPERVISION REQUIRED

• Before using the vehicle, the rider must understand the vehicle controls and safety issues.
• It is the responsibility of the adult to educate the child and to determine if the child is capable of understanding the vehicle controls.
• An adult must ALWAYS directly supervise the use of this vehicle.
• NEVER leave a child unsupervised in the vehicle.

Troubleshooting

Warranty

RollPlay 6-Volt Warranty

• One-year limited warranty from the date of purchase with proof of purchase from a RollPlay certified retailer.
• Six-month limited warranty on the 6-Volt battery with proof of purchase from a RollPlay certified retailer.
• This one-year limited warranty covers the ride-on vehicle against defects in materials and workmanship to the original purchaser. Proof of purchase receipt from a RollPlay certified reseller is required.

Pros & Cons

Pros

• Durable Construction: Built with high-quality materials to withstand regular use.
• Safe Speed: The 2.5 mph speed limit ensures a safe driving experience for young children.
• Realistic Design: Detailed features like working headlights and a replica steering wheel enhance the driving experience.
• Easy Assembly: Simple setup process with clear instructions.
• Affordable Price: Priced competitively, making it an excellent value for money.

Cons

• Limited Range: The battery life could be longer, requiring more frequent recharging.
• Weight Capacity Limitation: The 66-pound weight limit may restrict use for larger children.
• No Additional Features: Some users might find the lack of additional features like music or parental remote control a drawback.
• Customer Support Issues: Some customers have reported difficulties in getting support from the manufacturer.

Customer Reviews

Customer reviews for the Rollplay 6V Mini Cooper-S have been generally positive, with many parents praising its durability and realistic design. However, some have noted that the battery life could be better and that the weight capacity is somewhat restrictive for larger children.

A common complaint is the difficulty in obtaining customer support from the manufacturer, which can be frustrating if any issues arise with the product.
