Product Overview

R series stepper driver, which surpasses the performance of common analog stepper driver comprehensively based on the new 32-bit DSP platform developed by TI, and adopting the micro-stepping technology and PID current control algorithm design. The R series stepper drivers have the features of low noise, low vibration, low heating and high-speed high torque output, it is suitable for most stepper motors by integrated with the micro-stepping technology.

The R42 driver can select the running current and subdivision through the DIP switch. There are 16 subdivisions and 8 current selections. It has overvoltage, undervoltage and overcurrent protection. Its input and output control signals are optically isolated.

We hope that our products with excellent performance can help you to complete the sports control program successfully.
Please read this technical manual before using the products.

Description

The R42 offers an intuitive and user-friendly interface, with a simple yet powerful configuration software that allows for easy setup and customization. The driver features a robust design, with advanced thermal management for optimal heat dissipation and enhanced longevity. The R42's compact form factor and versatile mounting options make it an ideal solution for a wide range of applications, offering unparalleled precision and control in a convenient package.

Application environment and installation

Environmental requirement

Driver installation dimensions

Driver installation requirements

1. Please install the driver vertically or horizontally, with its front facing forward, top facing upward to facilitate cooling.

2. During assembly, avoid drillings and other foreign matters falling inside the driver.

3. During assembly, please use M3 screw to fix.

4. When there is vibration source (such as a driller) close to the installation position, please use a vibrating absorber or a vibration resistant rubber gasket.

5. When multiple drivers are installed in the control cabinet, please pay attention to reserve enough space for sufficient heat dissipation. If necessary, you can configure cooling fans to ensure good heat dissipation conditions in the control cabinet.

Driver port and connection

Port function description

Power supply input

The driver’s working power is DC power, and the input voltage range is between 24V ~ 48V.
Input power polarity should not be reversed!!!
The driver’s work mode is constant current control. The driver output the voltage to motor by changing the input power into PWM chopping wave when it is working. In this case, the input power will affect the performance of driver.

Power selection reference

Voltage
Stepper motor has the characteristics of torque decrease with the increase of motor speed, and the input voltage will affect the amplitude of high-speed torque reduction. Properly increasing the voltage of the input power supply can increase the output torque of the motor at high speed. Therefore, if you want to get better high-speed performance, pls increase the power supply voltage of the driver; and for low-speed applications, choosing a slightly smaller voltage can appropriately reduce the heat of the motor.

Current
The working process of the driver is to convert the input high-voltage and low-current power supply into the low-voltage and high-current at both ends of the motor winding. In actual use, the appropriate power supply should be selected according to the motor model, load torque and other factors.

The effects of regeneration voltage
When the stepper motor is working, it also retains the characteristics of the generator. When decelerating, the kinetic energy accumulated by the load will be converted into electrical energy and superimposed on the driver circuit and input power supply. Pay attention to the setting of acceleration and deceleration time to protect the driver or power supply. When the driver is powered off, you will see the driver’s LED indicator on when the load is pulled to make the motor move, which is also affected by this.

Setup Guide

Getting started with the R42 is easy, thanks to its intuitive interface and comprehensive setup guide. Simply follow these steps to get up and running:

1. Connect your stepper motor to the R42, ensuring that the motor's wiring matches the driver's terminal configuration.
2. Power up the R42 using the appropriate input voltage, and connect it to your control system via the driver's communication interface.
3. Use the configuration software to set up your motor parameters, including microstepping, current control, and input settings.
4. Test the R42 and your stepper motor, adjusting settings as necessary to achieve optimal performance.

Motor connection

• The matching motor of the R42 driver is the low resistance and low inductance hybrid stepper motor.

• The common 2-phase stepper motor’s lead number are 4, 8 and 6.

• There is only one connection mode for 4 leads motor.

• Series and parallel connection mode are used by 8 leads motor:

• When series used, the winding inductance increased. The set of driver current should be about 0.7times than before. This is suitable for low speed required.

• When parallel used, the winding inductance decreased. The set of driver current should be about 1.4times than before. This is suitable for high speed required.

• Parallel and central tapping connection mode are used by 6 leads motor:

• When parallel used, all the winding connected, and the inductance was higher. This is suitable for low speed required.

• When central tapping used, half of the winding connected, and the inductance was lower. This is suitable for high speed required.

Control signal connection

1. PUL, DIR port: connection for pulse command
   The standard R series driver signal interface is in the form of pulse, and R42 can receivetwo pulse command signals.
   The upper controller can be the pulse signal generating device, such as PLC, MCU, control card and controller.
   The pulse level that R42 driver can be used: 3.3V-24V (no need to connect resistor)

   Pulse and direction (PUL + DIR)
   Double pulse (CW +CCW)

2. ENA port: used to enable or disable
   When the internal optocoupler is off, the driver outputs current to the motor;
   When the internal optocoupler is on, the driver will cut off the current of each phase of the motor to make the motor free, and the step pulse will not be responded.
   When the motor is in error state, ENA input can be used to restart the driver. Firstly, the fault is eliminated, and then a falling edge signal is input to the ENA terminal. The driver can restart the power part and the motor is excited.
   The level logic of the ENA signal can be set to the opposite, with the logic being opposite to the above.

3. Examples for control signal connection
   Common Anode




   Common Cathode




   Difference




The setting of DIP switches and operating parameters

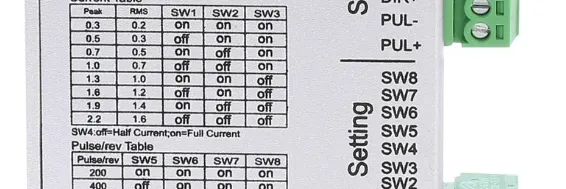

The setting of current

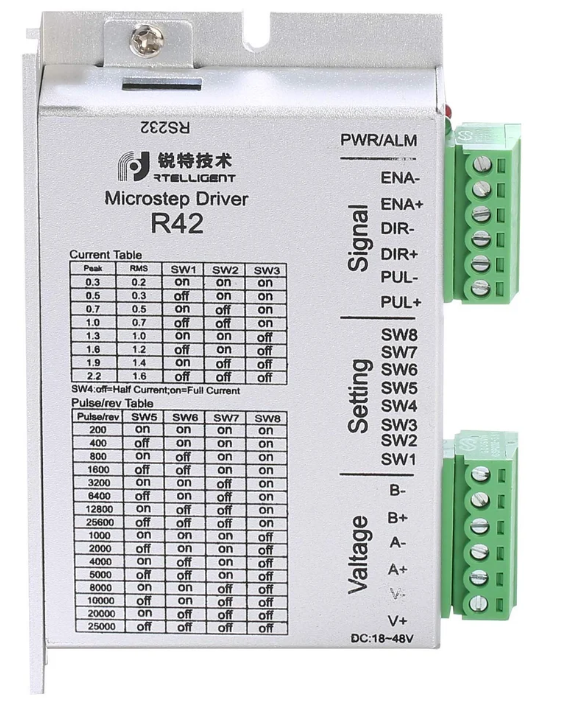

DIP SW1, SW2, SW3 are used to set current which is output from driver to motor.
Generally, the current is set to the rated current of the motor. If your system has high request to the heating, please decrease the current properly to lower the motor’s heating, but at the same time, the output torque will be lower. If you don’t need the motor running continuous, you can increase the current to higher the torque. But be minded that the current can not be 1.5times over than the rated current.

The setting of pulse per revolution

DIP SW5, SW6, SW7, and SW8 are used to set the pulse per revolution required by the motor.
Motor speed = command pulse frequency / per revolution pulse
Motor stroke = number of command pulses / pulse per revolution

Half / full flow selection

DIP SW4 is used to set the static current value when the motor is stopped
Off means that when the driver’s power-on pulse stops, the driver switches the current output to the motor to half (half current) when it is rotating;
On means that when the driver’s power-on pulse stops, the driver maintains the same current output to the motor as the rotation (full current) ). In general use, SW4 should be set to off, so that the heat of the motor and driver is reduced, and the reliability is improved.

Driver working status LED indication

LED status		Driver status
	Green indicator is on for long time	Driver not enabled
	Green indicator is flickering	Driver working normally
	One green indicator and one red indicator	Driver overcurrent
	One green indicator and two red indicators	Driver input power overvoltage
	One green indicator and three red indicators	The internal voltage of the driver is wrong

Common faults and troubleshooting

Guarantee clause

Warranty period: 12 months

We provide quality assurance for one year from the date of delivery and free maintenance service for our products during the warranty period.

Exclude the following:

• Improper connection, such as the polarity of the power supply is reversed and insert/pull the motor connection when the power supply is connected.

• Beyond electrical and environmental requirements.

• Change the internal device without permission.

Maintenance process

For maintenance of products, please follow the procedures shown below:

1. Contact our customer service staff to get the rework permission.

2. The written document of the driver failure phenomenon is attached to the goods, as well as the contact information and mailing methods of the sender. Mailing address: Post code: Tel.:

Troubleshooting

While the R42 is designed for reliable and hassle-free operation, here are some common issues and solutions to keep in mind:

• Overheating: Ensure that the R42 is properly ventilated and that input voltage is within the recommended range. If issues persist, consider reducing the driver's current control settings.
• Stalling: Check that the stepper motor is correctly wired and that the R42's current control settings match the motor's specifications. If issues continue, consider reducing the microstepping resolution or increasing input voltage.
• Communication errors: Ensure that the R42's communication interface is correctly configured and that all connections are secure. If problems persist, try resetting the driver and reconfiguring the communication settings.
