Introduction

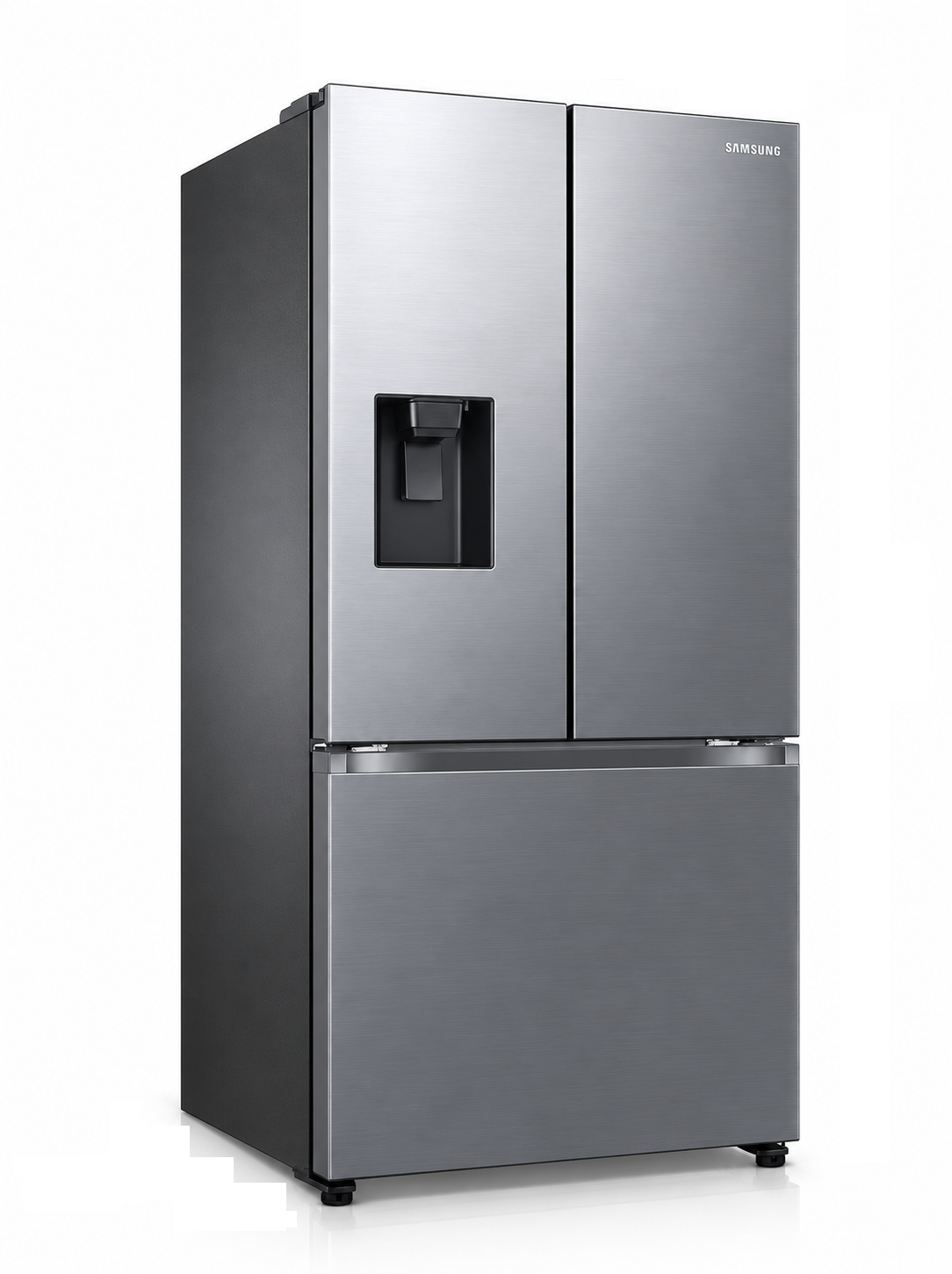

The Samsung French Door Refrigerator RF67VB combines modern design with advanced features to enhance your kitchen experience. With a spacious interior and flexible storage options, it allows for easy organization of groceries and beverages. The refrigerator includes a water and ice dispenser, ensuring chilled drinks at your fingertips. Energy-efficient and equipped with smart technology, it helps you monitor food freshness. The Samsung RF67VB is priced at approximately $2,199.00.

Names and basic functions

NAME OF EACH COMPONENT

1. Fridge Light
2. Door Bin
3. Glass Shelf
4. Vegetable & Fruit Drawer
5. Pull Out Drawer
6. Freezer Drawer Bin
7. Moving Tray (Location is adjustable)
8. Door Bin
9. Bottle Bin
10. Freezer Light

Detailed Specifications

The Samsung French Door Refrigerator RF67VB boasts several key features that make it a standout in its category:

• Capacity: 36 cu. ft.
• French door design with bottom freezer
• Through-the-door ice and water dispensers
• Adjustable shelves and storage bins
• Multi-air flow technology for consistent cooling
• Energy Star certified for energy efficiency
• Twin Cooling Plus system to maintain optimal humidity levels
• LED interior lighting for better visibility
• Smart Home integration with Samsung SmartThings

Product Features

Surround Multi Flow
A center-positioned fan and ducts with multiple flow effluences provide uniform cooling for each shelf and fresh food compartment corners.

Twin Cooling System
The refrigerator and the freezer have two evaporators.
Given this independent system, the freezer and the refrigerator are cooled individually and more efficiently.
Food odor from the refrigerator does not affect food in the freezer due to separate air flow circulation.

Easy Handle System
The freezer door is more user-friendly and convenient.

Moving Tray
The Deli Drawer can be moved side to side for easier access.

Digital Display & Temperature Control
Digital Display & Temperature Control enable easy setting of your refrigerator.

Installation Space

Selecting the best location for the Refrigerator

• A Location with easy access to the water supply.
• A Location without direct exposure to sunlight.
• A Location with level (or nearly level) flooring.
• A Location with enough space for the Refrigerator doors to open easily.
• Allow sufficient space for air circulation of the internal cooling system.
  If the Refrigerator does not have enough space, the internal cooling system may not work properly.

First thing! Make sure that you can easily move your Refrigerator to its final location by measuring doorways (both width and height), thresholds, ceilings, stairways, etc.
The following chart details the exact height and depth of the Samsung French Door Refrigerator.

• Allow clearance to the right, left, back and top when installing.
  This will help reduce power consumption and keep your energy bills lower.
• If you install the Refrigerator where is below 10ºC, it may not function optimally.
• Do not locate the refrigerator where the wet condition.

FLOORING

CAUTION
For proper installation, this refrigerator must be placed on a level surface of hard material that is the same height as the rest of the flooring. This surface should be strong enough to support a fully loaded refrigerator, or approximately 106kg. To protect the finish of the flooring, cut a large section of the cardboard carton and place under the refrigerator where you are working. When moving the refrigerator, be sure to pull it straight out and return it to position by pushing it straight in.

Description

The RF67VB features a sleek and modern exterior with a stainless steel finish, complementing any kitchen decor. The interior is equally impressive, with adjustable shelves and storage bins that allow for customizable storage solutions. The through-the-door ice and water dispenser is a convenient feature that eliminates the need to open the doors frequently, helping to maintain the internal temperature and reduce energy consumption.

The Twin Cooling Plus system ensures that both the refrigerator and freezer compartments maintain optimal temperature and humidity levels, keeping your food fresh for longer. Additionally, the multi-air flow technology distributes cold air evenly throughout the refrigerator, preventing hot spots and ensuring consistent cooling.

Operating your French Door Refrigerator

USING THE CONTROL PANEL

1. Ice Off Button
   When the Ice Off Button is pressed, ice will not be produced. Use this function only when it is needed.
2. Power Freeze Button
   Press this button to freeze food quickly.
   (Power Freeze will last 72 hours.)
3. Freezer Button
   Freezer temperature set button.
   Press this button to set the Freezer temp between -14ºC and -22ºC.(At initial power on, the default setting is -19ºC.)
4. Fridge Button
   Fridge temperature set button.
   Press this button to set the Fridge temperature in 1ºC intervals between 7ºC and 1ºC.(At initial power on, the default setting is 3ºC.)
5. Power Cool Button
   Press this button to cool the food in the fridge quickly.
   (Power Cool will shut off when -4ºC is reached or after 2 and a half hours.
6. E.Saver Button
   Press the Energy Saver button for better energy efficiency.
   If water drops appear on the doors, turn the Energy Saver function off.

CONTROLLING THE TEMPERATURE

Setting the freezer temperature
If you want to control the freezer temperature, follow as below.

• Press the Freezer Button (Refer to the picture)
  The temperature can be set in 1ºC interval between -22ºC and -14ºC.



When selecting the temperature, the set temperature is displayed initially for 5 seconds, then the actual temperature is displayed.
( There may be slight difference between the set temperature and displayed actual temperature, but it will be corrected to the set temperature automatically.)

• The Freezer temperature will change depending on the number of door openings, quantity of food, ambient temperature, etc.
• The temperature display will blink when freezer temperature increases due to frequent door opening, keeping warm food, etc.
  ( Blinking will stop when the refrigerator reaches normal temperature.
  If for some reason it does not stop after a long period of time, contact a Samsung service center.)

Setting the fridge temperature
If you want to control the fridge temperature, follow as below.

• Press the Fridge Button (Refer the picture)
  The temperature can be set in 1ºC interval between 1ºC and 7ºC.

When selecting the fridge temperature, the set temperature is displayed initially for 5 seconds, then the actual temperature is displayed.
( There may be slight difference between the set temperature and displayed actual temperature, but it will be corrected to the set temperature automatically.)

• The Fridge temperature will change depending on the number of door openings, quantity of food, ambient temperature, etc.
• Temperature of each shelf or container in the fridge may be different.
• The temperature display will blink when fridge temperature increases due to frequent door opening, keeping warm food, etc.
  ( Blinking will stop when the refrigerator reaches normal temperature.
  If for some reason it does not stop after a long period of time, contact a Samsung service center.)

If you want to make ice faster (controlling the Power Freeze)

• Press the Power Freeze Button. (Refer to the picture.)
  The Power Freeze light on the display comes on (see the arrow mark) and this function begins to operate regardless of the set freezer temperature.

• Press the Power Freeze Button again to cancel this function.
  The light goes off and it operates at the set freezer temperature again.



TIP: The Power Freeze function operates for 72 hours regardless of the set temperature.

If you want to speed up the cooling in the Fridge (Power Cool)

• Press the Power Cool Button. (Refer to the picture.)
  The Power cool light on the display comes on (see the arrow mark) and this function begins to operate regardless of the set fridge temperature.

• Press the Power Cool Button again to cancel this function.
  The light goes off and it operates at the set fridge temperature again.



TIP: The Power Cool function operates for 2 and a half hours regardless of the set temperature.

Exhibition Mode (“OF & OF” code on the display)

TIP: This function is for store display refrigerators. It is not for customer use.

In Exhibition Mode, the refrigerator works but doesn’t make cool air. To cancel this mode, press the Power Freeze and Freezer buttons at the same time for 3 seconds until a “Ding-dong” sound is heard. The unit will now cool.

Setup Guide

To set up your Samsung French Door Refrigerator RF67VB, follow these steps:

1. Unpack the refrigerator carefully and remove all packaging materials.
2. Place the refrigerator in its designated location, ensuring it is level and stable.
3. Connect the water supply lines to the ice maker and water dispenser if applicable.
4. Plug in the refrigerator and allow it to cool down for a few hours before loading food.
5. Configure the shelves and storage bins according to your needs.
6. Pair the refrigerator with your Samsung SmartThings app for smart home integration if desired.

Troubleshooting

Pros & Cons

Pros

• Spacious interior with customizable storage solutions
• Advanced cooling technology for consistent temperatures
• Energy-efficient design with Energy Star certification
• Convenient through-the-door ice and water dispensers
• Sleek and modern design that complements any kitchen
• Smart Home integration capabilities

Cons

• Higher price point compared to other models
• Some users report issues with the ice maker and water dispenser
• Requires regular maintenance to ensure optimal performance

Customer Reviews

Customers have generally praised the Samsung French Door Refrigerator RF67VB for its spacious interior, advanced cooling features, and sleek design. However, some users have reported issues with the ice maker and water dispenser, such as occasional clogs or slow dispensing. Despite these minor complaints, the overall consensus is that this refrigerator offers excellent value for its price.

Common complaints include

• Icemaker issues such as clogs or slow production
• Noise from the compressor or ice maker
• Higher than expected energy consumption in some cases
