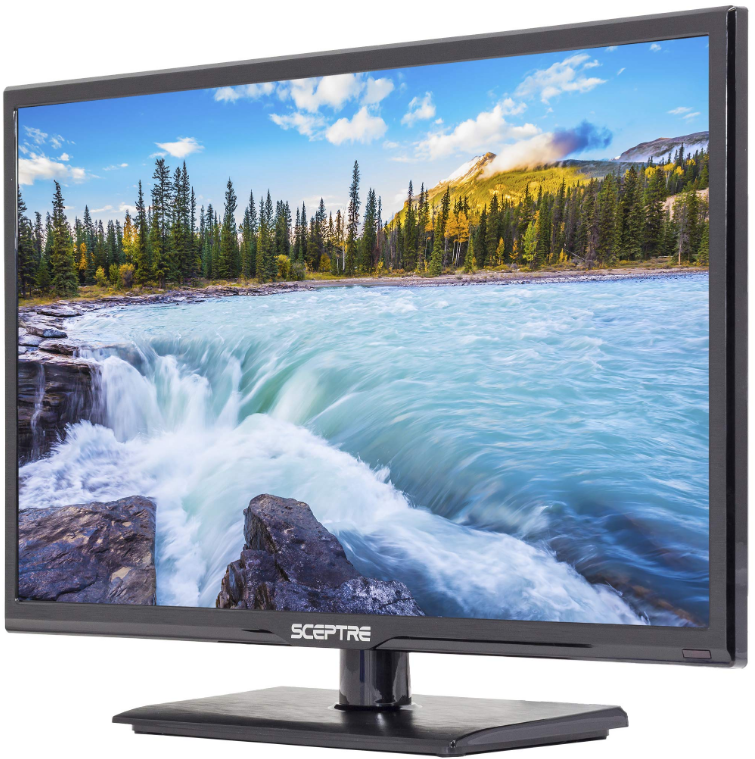

Introducing the Sceptre 24 Inch LED TV HD Display E246

Sceptre 24-inch LED TV offers a compact yet vibrant viewing experience, perfect for small spaces like bedrooms or kitchens. With a resolution of 1920 x 1080, this TV delivers sharp images and rich colors, enhancing your favorite shows and movies. It features multiple connectivity options, including HDMI and VGA ports, allowing for versatile use with gaming consoles and computers. The E246 is priced at approximately $149.99, making it an affordable choice for quality entertainment.

Package Contents

• SCEPTRE Display x 1
• Display Base x 1
• Display Neck x 1
• Screws x 6 (ST3 x 10mm)
• Display Remote Control (AAA Batteries included) x 1
• User Guide x 1 Complete manual available online at https://sceptre.com

Specification

• The product’s specifications may change without notice or obligation.
• This manual’s pictures and words are for reference only and are subject to change without notice or obligation. Sceptre Inc.. is not liable for the misuse or misinterpretation of this manual.

Installation

Please read the user manual carefully before performing the installation. Please use the power cord designated for the product. When an extension cord is required, use one with the correct power rating. The cord must be grounded and the grounding feature must not be defeated. The product should be installed on a flat surface to avoid tipping. Space should be maintained between the back of the product and the wall for proper ventilation. If you would like to mount the Display onto the wall, please be sure to read all instructions provided by the display mounting company and this manual. Avoid installing the product in the kitchen, bathroom, or other places with high humidity dust, or smoke, so as not to shorten the service life of the electronic components. Please ensure the product is installed with the screen in landscape orientation. Any 90° clockwise or counterclockwise installation may induce poor ventilation and successive component damage.

Attaching or Removing the Base

1. Insert the neck into the base and screw in the 3 screws at the bottom of the base.
2. Insert the neck/base assembly onto the back of the display. Screw in the 3 screws as indicated to secure the installation.

3. To finalize your installation of the Display, please read the following:



   1. If you are placing the Display on a stand, we would recommend you to use a Display safety strap (not included) to minimize the possibility of the Display toppling over.
   2. If you are mounting the Display on the wall
   3. Make sure the wall is structurally safe for the weight of the Display
   4. Make sure the wall mount kit is compatible with the Display
   5. Read and follow all instructions provided by the wall mounting kit.
   6. Securely install all screws and connections.

Identifying Front and Rear Panel

Front View

INDICATOR LIGHT
The light is red when power is plugged in but the Display is not turned on. The light turns blue when the Display is turned on. The Display might take 10 – 12 seconds to power on. This is considered to be normal.
REMOTE SENSOR
The remote sensor receives all the commands from the remote control.

Rear View Mounting Pattern

Mounting Specification: 200mm x 100mm using screw size M4 Length of screw should not exceed 6mm.

Please Note: The 6mm length of the screw refers to how deep the screw can go inside the mounting holes. When you’re buying screws, you should add the original 6mm to the thickness of your mounting plate to get the total screw length.

Side Control Buttons

1. VOL(+) – This button increases the Display’s volume. If a sub-menu is active, pressing this button will move the select right.
2. VOL(-) – This button decreases the Display’s volume. If a sub-menu is active, pressing this button will move the selection left.
3. CH(▲) – This button changes the Display channel up. If the OSD is active, this button functions as up for the menu.
4. CH(▼) – This button changes the Display channel down. If the OSD is active, this button functions as down for the menu.
5. This button activates the On Screen Display (OSD). If a sub-menu is active, pressing this button will exit the OSD.
6. This button switches between all the different sources of the Display. When the OSD is active, this button acts as the enter button and confirms the menu selection.
7. Turn on the Display by pressing the button once. Press the button again to turn off the Display.

DVD Drive Buttons

1. EJECT
   Press this button to eject the DVD.
2. PLAY / PAUSE
   Press this button to play the DVD or to pause the DVD.

Rear View Connections

1. HEADPHONE
   This connection is for headphones to be attached to the Display.
2. SPDIF
   This connection port is used for sending out digital audio signals to digital surround sound receivers. The orange (Coaxial SPDIF OUT) connector sends out either a bit-stream or PCM digital sound signal to a home theater receiver with digital coaxial input.
3. YPbPr/AV
   This connection port is for DVD players or satellite /cable set-top boxes that use component cables. From left to right, connect green, blue, and red for video, and then connect white for left channel audio, and red for right channel audio. This port also doubles as a composite AV port. Connect the yellow RCA jack to the green and then the red/white RCA jack for audio.
4. VGA
   This connection port connects to a PC for video using a VGA cable. Be sure to connect your audio cable to the VGA Stereo input if you want sound out of the VGA video source.
5. Audio In
   This connection port is for people who want to provide audio to the Display when using a PC or a DVI video device. The sources use a 3.5mm mini-jack audio cable.
6. HDMI
   HDMI connects to devices that use HDMI cables, such as Blu-ray or HD DVD players, or HD cable/satellite set-top boxes. This connection port receives pure digital audio and high-definition signal through one single cable. This port also can accept an HDCP video device for video.
7. DT (Optional)
   This connection is for analog cable without the cable box or over-the-airwave antennas. The tuner is a hybrid tuner that tunes to both analog and digital channels. This connection uses a coaxial RF cable. For over-the-airwave digital stations please check http://www.antennaweb.org  This tuner DOES NOT support QAM. For digital cable, you WILL need a cable box.
8. USB
   USB connects to USB flash drives for playing music and pictures. The USB port is also used for updating the Display’s firmware.

Please Note

• This Display features a power-saving function that will turn off the Display automatically after 10 minutes of idling on a connection with no signal. This feature is present on all connections.
• This Display does NOT support QAM under the Display tuner.
• TV Tuner is optional. It may not be equipped in your product. Please check with the seller, authorized distributor,, or Sceptre Customer Services.

SCEPTRE Remote Control

This remote control follows SONY’s universal remote code. To find the actual code you need to consult your cable or satellite tech support.

GENERAL FUNCTION BUTTONS

1. POWER – Turns the display on or off.
2. INFO – Shows the display info.
3. NUMBER BUTTONS (0-9) – Press 0-9 to select a TV channel directly when you are watching the display. The channel will change after 2 seconds.
4. (-) – Inserts the dash for selecting digital channels directly.
5. R – Returns to the previous channel.
6. VOL(+)/VOL(-) – Press the VOL buttons to increase or decrease the sound level.
7. ▲/▼/◄/►/ENTER – These directional buttons allow you to move around in the display’s menu. Press the ENTER button when you want to select a particular option.
8. CH(+)/CH(-) – Press the CH buttons to switch to the next or switch to the previous channel.
9. MENU – Brings up the main display menu on the screen.
10. GUIDE – Opens the current digital channel information guide (antenna only).
11. EXIT – Exit the main display menu on the screen.
12. SOURCE – Press this button to cycle through the INPUT source.
13. PICTURE – Select various preset picture settings.
14. MUTE – Turns the sound off from the display. To un-mute either press VOL(+) or press the MUTE button again.
15. FAV – Gives you your list of favorite channels.
16. F.ADD/DEL – Adds or Deletes current channel from the favorite list.
17. HOME / MHL – No function.
18. REWIND – No function.
19. PLAY / PAUSE – No function.
20. FAST FORWARD – No function.
21. STAR (*) – No function.
22. CC – Cycles between different closed captioning modes.
23. SLEEP – Turns the TV off at a specific set of times depending on your selection.
24. HDMI – This button switches the source to HDMI. If pressed repeatedly, this button will cycle through all the HDMI sources.
    The following buttons are functions designed to work with the optional, Sceptre Sound Bar.
25. POWER – This button turns on the soundbar.
26. SOURCE – This button selects the sound bar’s source.
27. MODE – This button selects the sound bar’s sound modes.
28. VOL(-) – This button decreases the volume of the soundbar.
29. VOL(+) – This button increases the volume of the soundbar.

Please Note: Buttons encircled by the word SOUND BAR are to be used with a Sceptre’s sound bar only.

SCEPTRE *DVD Remote Control

This remote control follows SONY’s universal remote code. To find the actual code you need to consult your cable or satellite tech support.

GENERAL FUNCTION BUTTONS **optional DVD remote

1. POWER – Turns the display on or off.
2. INFO – Shows the display info.
3. NUMBER BUTTONS (0-9) – Press 0-9 to select a TV channel directly when you are watching TV. The channel will change after 2 seconds. For switching DVD chapters over 100 the 0 button acts as the 100 button, so press the 0 button twice to get that chapter.
4. (-) – Inserts the dash for selecting digital channels directly.
5. R – Returns to the previous channel. For switching DVD chapters over 100 the R button acts as the 100+ button, so press the R button and the number you want to switch to. For example,, for chapter 125 you would press R and 2 and 5 for the combination of 125.
6. VOL(+)/VOL(-) – Press the VOL buttons to increase or decrease the sound level.
7. ▲/▼/◄/►/ENTER – These directional buttons allow you to move around in the TV’s menu and the DVD’s menu. Press the ENTER button when you want to select a particular option.
8. CH(+)/CH(-) – Press the CH buttons to switch to the next or switch to the previous channel.
9. MENU – Brings up the main display menu on the screen.
10. GUIDE – Opens the current digital channel information guide (antenna only).
11. EXIT – Exit the main display menu on the screen.
12. SOURCE – Press this button to cycle through the INPUT source.
13. PICTURE – Select various preset picture settings.
14. MUTE – Turns the sound off from the display. To un-mute either press VOL(+) or press the MUTE button again.
15. AUTO EJECT – Press this button to open or close the DVD player.
16. D. MENU – Shows the menu of the DVD.
17. D.SETUP – Press this button to set up the disc in DVD mode.
18. PREVIOUS CHAPTER – Press this button to select the DVD’s previous chapter.
19. REWIND – Press this button to reverse the DVD movie to a previous scene.
20. FAST FORWARD – Press this button to fast-forward the DVD to the next scene.
21. NEXT CHAPTER – Press this button to select the DVD movie’s next chapter.
22. ►/║ – Play/pause button in DVD mode.
23. ■ – Stop button in DVD mode.
24. REPEAT – Press this button to repeat the program.
    The following buttons are functions designed to work with the optional, Sceptre Sound Bar.
25. POWER – This button turns on the soundbar.
26. SOURCE – This button selects the sound bar’s source.
27. MODE – This button selects the sound bar’s sound modes.
28. VOL(-) – This button decreases the volume of the soundbar.
29. VOL(+) – This button increases the volume of the soundbar.

Please Note:

• To insert, or eject a disc from the DVD player, to use any functions on the DVD you must press the DVD button first.
  This display does not support the QAM function. You need to have a digital cable box to receive cable channels.
• The remote picture might be different from the actual remote. Please refer to the user manual on our website http://www.sceptre.com.

Installing Batteries to the Remote Control
Please insert two AAA batteries into the remote control. Make sure that you match the (+) and (-) symbols on the batteries with the (+) and (-) symbols inside the battery compartment. Afterward, re-attach the battery cover.

Please note:

• Only use AAA batteries.
• Do not mix new and old batteries. This may result in cracking or leakage that may pose a fire risk or lead to personal injury.
• Inserting the batteries incorrectly may also result in cracking or leakage that may pose a fire risk or lead to personal injury.
• Dispose of of the batteries by local laws and regulations.
• Keep the batteries away from children and pets.
• If the remote control is not used for a long time, remove the batteries.
• Keep the remote control away from moisture, sunlight, and high temperatures.

Connection Suggestions (OPTIONAL)

If You Have Antenna…

1. Make sure the power of the Sceptre HD Display is turned off.
2. Connect the Coaxial RF cable from your antenna to the DT port on the back of your HD Display.
3. Turn on the HD Display.
4. Follow the first-time on-screen instructions.

Please Note:

• Not all broadcasts are in Full High Definition (HD). Please refer to your local broadcasting stations for more information.
• The HD Display’s tuner is designed for HD Display and therefore requires a stronger signal than normal Displays. If you cannot achieve that signal level with your antenna or cable, your HD Display might lose picture or sound.

Connecting DVD Player with Component YPbPr…

1. Make sure the power of the HD Display and your DVD player is turned off.
2. Obtain a Component Cable. Connect the green color connector to both your DVD player and YPbPr’s green connector port on the back of your HD Display.
3. Connect the blue color connector to both your DVD player and YPbPr’s blue connector port on the back of your HD Display.
4. Connect the red color connector to both your DVD player and YPbPr’s red connector port on the back of your HD Display.
5. Obtain a RCA Audio Cable. Connect the white color connector to both your DVD player and YPbPr’s white connector port on the back of your HD Display.
6. Connect the red color connector to both your DVD player and YPbPr’s red connector port on the back of your HD Display.
7. Turn on the HD Display and your DVD player.
8. Use the remote control’s source button or the source button on the Display to switch to YPbPr.

Please Note:

• Sometimes DVD players will not automatically output to YPbPr.You will need to configure your DVD player with an AV connection first then switch to YPbPr.Please reference the DVD player’s manual, to make sure the DVD player is configured to output correctly to the Display.
• This source shares audio & video jacks with AV video.

Description

The slender and elegant appearance of the Sceptre E246 makes it ideal for any environment. Enhancing the whole viewing experience, the LED lighting guarantees vibrant and brilliant colors. It is appropriate for fast-paced material, such as action films and sports, because of its 5 ms reaction time, which reduces motion blur. Although customers may prefer external speakers for a more immersive experience, the built-in speakers offer respectable audio quality.

Along with several other connectivity choices, the TV has two HDMI connectors, one USB port, and extra AV and VGA inputs. Because of its adaptability, users may connect many devices at once, including a computer, DVD player, and game console.

Switching Sources

1. Press the button on the side of the Display or the SOURCE button on the remote control and you will see the picture above.
   **TV Source is optional. It may not equipped in your product. Please check with the seller, distributor,, or Sceptre Customer Services.

Ready to Watch Some TV? (OPTIONAL)

Starting up the HDTV

1. Make sure your power cable is connected and the standby red light in the front of the TV is lit up.
2. Check all your connection cables off the side or the back of your TV and also your AV devices. Make sure they are all connected securely.
3. Turn on your TV and other AV devices if necessary.
4. Select the correct source according to the Connecting pages.

If You’ve Connected Antenna to the TV…
If an antenna or cable (without a cable box) is connected to your TV’s tuner, you will need to go through an INITIAL SETUP process to watch the TV.

1. Press MENU to open the menu

2. Use the ◄ or ► button to select the CHAANNEL icon and press ENTER.



3. Use the ▲ or ▼ buttons to highlight the signal type and press ◄ or ► to select your connection either AIR or CABLE.
4. Use the ▲ or ▼ buttons to select AUTO CHANNEL SEARCH and press ENTER to scan for channels.
5. Once the scanning finishes, you can begin to watch TV.

OSD (On Screen Display) Controls

Via Remote Control

To adjust most of the options inside the On Screen Display (OSD), the picture below shows all the buttons used on the remote control.

• This button opens the OSD and also exits the OSD by going to the previous level of the OSD.
• This button exits the OSD entirely.

▲– This button functions as anassanimationn in the OSD.
▼– This button functions as a downdirection in the OSD.
◄– This button functions as a direction in the OSD.
►– This button functions as the direction in the OSD.

ENTER – This button changes the channel in conjunction with the number pad and also functions as ENTER for selecting options in the OSD.

Via TV Side Panel Buttons
To provide more than one type of OSD control buttons, the side panel’s buttons have also been made functional for adjusting the OSD.

1. VOL(+/-) – These buttons function in the left/right direction in the OSD or increase/decrease the value of an option.
2. CH(▲/▼) – These buttons function as up/down directions in the OSD.
3. This button opens the OSD and also exits out of the menus.
4. This button acts as the enter button to enter each function or option.

Aspect Ratio Explained
The display is widescreen, but most TV programs are still broadcasting in a square format, therefore the Display offers multiple ways of viewing videos. There are mainly two types of signal format, Full (16:9 format), and Normal (4:3 format), while others offer a novelty ways to view the Display. Simply use the ASPECT button on the Display’s remote control to cycle between the multiple modes.

1. NORMAL
   Most analog TV channels have 4:3 signal formats. If the original 4:3 aspect ratio (1.33:1 source) is preserved, black bars are added to the left and right of the display image. This aspect keeps that aspect ratio and shows you the black bars on the side.
2. WIDE
   This mode will stretch the picture to a widescreen ratio. If you have a perfect 16:9 ratio picture you will not see any black bars. If you are watching a widescreen movie in a 1.85:1 or 2.35:1 ratio, you will still get black bars on the top and bottom of the screen. If you use this mode on 4:3 pictures they will be stretched and distorted horizontally.
3. CINEMA
   This mode cuts off all 4 sides to try to make a widescreen movie fit better on the Display screen.
4. ZOOM
   When watching a 4:3 aspect ratio Display or movie, this mode zooms in to cut off most of the black bars on the side while preserving the 16:9 ratio. Because of the zoom, the top and bottom are cut off as well.
5. DOT BY DOT
   This mode is only available on PC. It will map dot by dot to the screen. Any resolution will be proportionate.
6. FULL 100%
   Full 100% does not crop any video from the source.

Setup Guide

To set up the Sceptre E246,

1. Start by unboxing the TV and placing it on a flat surface or mounting it on a wall using the included wall mount kit.
2. Connect the power cord to a nearby outlet and turn on the TV. Use the remote control to navigate through the on-screen menu and select your preferred language and country settings.
3. Next, connect your devices such as a Blu-ray player or gaming console via the HDMI ports.
4. Ensure that the TV is set to the correct input source using the remote control. You can also connect a USB device to play media files directly through the TV.
5. For optimal viewing, adjust the picture settings according to your preference.
6. The TV also supports automatic channel scanning for tuning in broadcast channels if you have an antenna connected.

How do I clean the Display

IMPORTANT

1. The power cable has to be removed from the socket before cleaning the Display.
2. Do not use volatile solvents (alcohol, rosin, and toluene) to clean the Display. These types of chemicals might damage the housing and the LCD glass.

Cleaning the bezel and remote control

1. Use a 100% cotton cloth or micro-fiber cloth for cleaning.
2. If the remote control or bezel is dirty to the point where you cannot simply dry wipe it, please lightly dampen the wiping material (the wiping material cannot be dripping wet, because if water drips into the panel it will cause malfunction and possibly permanent damage to the panel which will not be covered under the warranty) with clean water and wipe again. Wipe the display with a dry micro-fiber cloth or 100% cotton cloth afterward.

Please Note:
Make sure you wring the water out of the cloth before cleaning the bezel or remote to prevent water from penetrating into the electronics.

Cleaning the Screen

1. Use a 100% cotton cloth or micro-fiber cloth for cleaning.
2. The LCD screen glass is extremely fragile. Do not scrape it with any material. Do not press or tap the screen to avoid cracking. When the screen is dirty to the point where you cannot simply dry wipe it, please lightly dampen the wiping material with clean water and wipe again. Wipe the display with a dry micro-fiber cloth or 100% cotton cloth afterward.

Troubleshooting

The following table contains the common problems and the solutions to these problems. Please check this list before you contact the technicians.

Pros & Cons

Pros

• Affordable price point
• Compact and lightweight design
• Multiple connectivity options (HDMI, USB, VGA, AV)
• Energy Star certified for low power consumption
• Good picture quality with a clear HD display

Cons

• Limited viewing angles compared to larger screens
• Built-in speakers may not provide optimal audio quality
• No smart TV features or built-in streaming apps
• No 4K resolution support

Customer Reviews

The Sceptre E246 is well-liked by customers because of its affordability, small size, and simplicity of setup. Particularly for gaming and streaming, several users have commended its responsiveness and visual quality. But some customers have complained that there is no support for smart TV functions and that the built-in speakers should be better.

Although the absence of sophisticated capabilities like 4K resolution and integrated streaming applications is a frequent grievance, the TV is generally praised for its ease of use and efficiency as a bedroom or auxiliary TV.

Warranty

Please read this warranty card carefully, it is a “ONE-YEAR LIMITED WARRANTY” on parts and labor (90 days for commercial use) and is only valid when purchased from an Authorized Reseller, only on the new and non-refurbished product, and available to customers in the Continental US, Alaska, Hawaii,, and Puerto Rico. See below for the SCEPTRE Extended Service warranty.

SCEPTRE’s Responsibility
SCEPTRE units purchased from an authorized SCEPTRE U.S. Reseller in the United States and that are used in the fifty (50) United States or Puerto Rico and Canada are warranted to be free from manufacturing defects in materials and workmanship for a period of one (1) year from the date of their original retail purchase (or a period of ninety (90) days for commercial use). If the unit fails to conform to this warranty, we will service the units using new or refurbished parts. If the part required for replacement is no longer in production and/or is obsolete, SCEPTRE will repair or replace the unit with similar or like parts of equal value. If a similar or like part is not available, a charge may be incurred to the owner, for any upgraded parts substituted.
