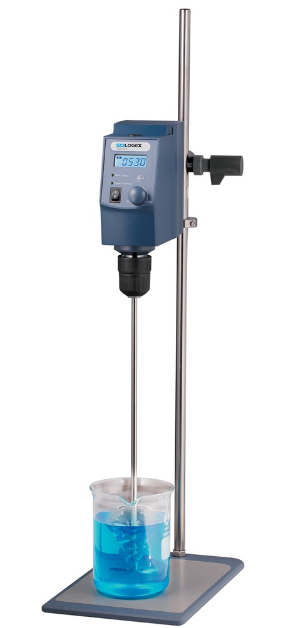

Introduction of Scilogex Overhead Stirrers SCI40-Pro

Scilogex Overhead Stirrers SCI40-Pro is a powerful and precise laboratory tool designed for mixing and stirring a wide range of liquids and viscous materials. The SCI40-Pro is suitable for various applications, including chemical and biological research, pharmaceutical production, and industrial manufacturing. The estimated price of the SCI40-Pro is around $3,500, and it was launched in 2020.

SCILOGEX Overhead Stirrers can accomplish the most demanding tasks and provide high safety and increased performance. They are widely used in chemical synthesis, pharmaceutical synthesis, physical and chemical analysis,petrochemical industries, etc.

Accessories

Universal plate stand

• Dimension (W x D x H): 200x310x780mm
• Material: Stainless steel

Propeller stirrer

• Shaft length: 400mm
• Stirrer diameter: 50mm
• Material: 316L stainless steel
• Application: Standard stirring element used at medium and high speeds

Straight stirrer

• Shaft length: 40cm
• Stirrer diameter: 6cm
• Material: 316L stainless steel
• Application: Ideal for the mixing of low viscosity media at medium and high speeds

Paddle stirrer

• Shaft length: 40cm
• Stirrer diameter: 6.8cm
• Material: 316L stainless steel
• Application: Suitable for samples needing gentle processing at low and medium speeds

Centrifugal stirrer

• Shaft length: 40cm
• Stirrer diameter: 9cm
• Material: 316L stainless steel
• Application: Two-bladed stirrer whose blades open with increasing speed. Perfect for stirring in round vessels with narrow necks. Medium to high speeds required.

Propeller stirrer

• Shaft length: 35cm
• Stirrer diameter: 6.5cm
• Material: PTFE coated
• Application: Standard stirring element, used at medium and high speeds

Straight stirrer

• Shaft length: 35cm
• Stirrer diameter: 7cm
• Material: PTFE coated
• Application: Ideal for the mixing of low viscosity media at medium and high speeds

Paddle stirrer

• Shaft length: 35cm
• Stirrer diameter: 6.8cm
• Material: PTFE coated
• Application: Suitable for samples needing gentle processing at low and medium speeds

Centrifugal stirrer

• Shaft length: 35cm
• Stirrer diameter: 8.5cm
• Material: PTFE coated
• Application: Two-bladed stirrer whose blades open with increasing speed. Perfect for stirring in round vessels with narrow necks. Medium to high speeds required.

Specifications

Features of LCD Digital Overhead Stirrer

SCI20-Pro

SCI40-Pro

• High reliability and outstanding performance
• LCD display for precise monitoring of set and actual speeds, a wide range of speed from 50 to 2200rpm with control accuracy of ±3rpm
• Brushless DC motor for long life, maintenance free
• Torque trend display for real-time information on viscosity changes
• Safety circuits allow for safe stop function in anti-stall or overload conditions
• Smooth operation prevents accidental spillage and splashing
• Provides constant speed even with changes in viscosities of the samples
• Remote function provide PC control and data transmission
• Availability of auto-restart function in case of power loss for overnight operations.

Instructions

1. LCD display
2. Torque display
3. Speed adjusts with change in viscosity
4. Wide range of accessories

Specifications

Features of LED Overhead Stirrer

SC120-S

SC120-Pro

• High reliability and outstanding performance
• A wide range of speed from 50 to 2200rpm
• Brushless DC motor for long life, maintenance free and
• LED screen for monitoring actual speed
• Safety circuits allow for safe stop function in anti-stall or overload conditions

Instructions

• Wide range of accessories

Scilogex Overhead Stirrers SCI40-Pro Description

The SCI40-Pro is a motor-driven stirrer that can be used for mixing and stirring liquids in flasks, beakers, and other containers. It has a maximum speed of 2000 RPM and a torque of up to 4 Nm, making it ideal for stirring viscous materials and large volumes. The SCI40-Pro features a compact and lightweight design, making it easy to move and install in any laboratory. It also has an intuitive digital interface that allows users to set the stirring speed, time, and direction with ease.

Setup Guide

Setting up the SCI40-Pro is a straightforward process that involves the following steps:

1. Place the stirrer on a stable surface and connect it to a power source.
2. Insert the stirring shaft into the motor unit and secure it with the provided screws.
3. Attach the stirring paddle to the shaft and adjust its height according to the volume and type of liquid to be stirred.
4. Connect the stirrer to a computer or laptop using a USB cable and launch the Scilogex software.
5. Select the desired stirring parameters (speed, time, direction) and start the stirring process.

Troubleshooting

Some common problems and solutions related to the SCI40-Pro include:

• Problem: The stirrer is not responding to the software commands.
  Solution: Check the USB connection and ensure that the software is up-to-date.
• Problem: The stirring paddle is not rotating smoothly.
  Solution: Check the shaft and paddle for any obstructions or damages and replace them if necessary.
• Problem: The stirrer is overheating.
  Solution: Allow the stirrer to cool down and reduce the stirring speed and time.

Pros & Cons

Pros

• Powerful and precise stirring performance
• Compact and lightweight design
• Intuitive digital interface
• Suitable for various applications and viscous materials
• Customizable stirring parameters

Cons

• Expensive compared to other stirrers in the market
• Requires a computer or laptop for full functionality
• May overheat with prolonged use

Customer Reviews about Scilogex Overhead Stirrers SCI40-Pro

Customers who have used the SCI40-Pro generally praise its performance and precision, stating that it is easy to use and maintain. However, some customers have reported issues with the software and USB connection, as well as the high price point. The most common complaint is the lack of a physical control panel, which makes it difficult to use the stirrer without a computer.
