Introduction

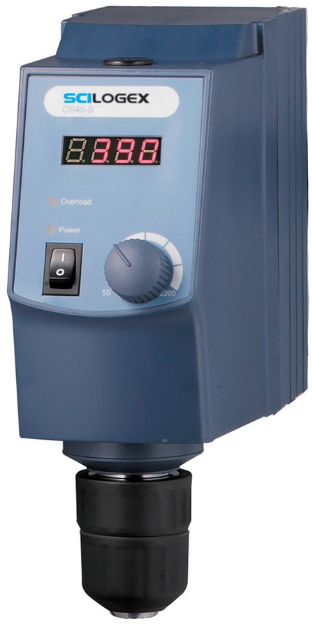

Designed for the combining of large volumes of liquid, the Scilogex SCI40-S LED Overhead Stirrer is a high-performance laboratory instrument with a maximum capacity of 40 liters. It is equipped with a resilient brushless DC motor that provides a broad speed range of 50 to 2200 RPM, ensuring that it is both precise and efficient at stirring various applications. The LED display is equipped with safety features such as overcharge and overheating protection, and it offers clear visibility of the speed and time settings. This agitator is well-suited for continuous operation in industrial and research settings.

Listing of Items

Specifications

Accessories

Description

The Scilogex SCI40-S LED Overhead Stirrer is a stirring system that is both high-performance and equipped with a diverse array of features to satisfy the needs of contemporary laboratories. It is equipped with a robust motor that can generate stirring velocities of up to 2000 RPM, guaranteeing consistent and thorough mixing. The mixing process is easily monitored due to the exceptional visibility provided by the LED illumination system. The stirrer is also equipped with a digital display that enables users to easily modify the speed and monitor the current speed. It is an optimal choice for laboratories with restricted space due to its lightweight construction and compact design, which facilitates movement and storage.

System Assembly

Install stand

The stand must be assembled according to the following instructions. Adjust the height of the main unit and the distance from the main unit to the support holder by rotating the locking device. The anti-drop protector can be adjusted up or down; ensure the locking position is suitable for fixing the main unit, and then attach the main unit to the stand.

Install stirring impeller

Plug the stirring impeller into the drill chuck, and adjust the depth of the stirring impeller into the vessel. Rotate the drill chuck with your fingers to fix the stirring impeller, and then tighten the drill chuck clockwise evenly using the chuck key.

Note

1. The overhead stirrer is a high-speed running device. The system requires securely locking the corresponding components in each step of the assembly to avoid any movement of the main unit or stirring impeller, which could cause harm or damage to peripheral instruments and personnel.
2. The stand is a support device for the overhead stirrer. The corresponding components need to be locked securely to avoid any movement that could cause harm or damage.
3. When installing the main unit and anti-drop protector, take care of your fingers to avoid injury.

Trial Running

SCI20-Pro & SCI40-Pro

• Ensure the required operating voltage and power supply voltage match.
• Ensure the socket is reliably earthed.
• Connect the power cable, ensure the power is on, and begin self-checking.
• Rotate the stirring button and set the stirring speed.
• Press the stirring button to start stirring.
• Press the stirring button again to stop stirring.

SCI20-S & SCI40-S

• Ensure the required operating voltage and power supply voltage match.
• Ensure the socket is reliably earthed.
• Counter-clockwise rotate the speed control button to the end before switching on the instrument.
• Connect the power cable, ensure the power is on, and begin self-checking.
• Clockwise rotate the speed control button to the target speed value and start the stirring function.
• Counter-clockwise rotate the speed control button to stop the stirring function.

If these operations are normal, the instrument is ready to operate. If not, the instrument may be damaged during transportation. Please contact the technical support of the manufacturer/supplier.

Note: Do not touch components of the high-speed running instrument during operation to avoid damage and harm.

Function

Control

Digital Overhead Stirrer

Display

Overload Protection

The overhead stirrer works continuously; the motor current is electronically limited to achieve security stall and overload protection. When the torque reaches a limited value, the overload protection function will start. At the same time, the overload protection light flashes.

• Starts overload protection
  • When the setting speed value does not match the current medium viscosity, overload protection starts.
  • When the motor output shaft is stuck, motor protection starts.

Interface and Output (LCD Digital)

• The OS40(20)-Pro Overhead Stirrer makes use of special accessories and cables to connect to external devices. A standard 9-pin interface is used to connect to the PC.
• The cable between the overhead stirrer and PC is selected from the specified communication line of the EIA-standard RS232C, corresponding with DIN66020.
• Transmission method: Asynchronous signal transmission in start-stop-operation.
  • Mode of transmission: Fully Duplex. 1 start bit; 7 character bits; 1 stop bit.
  • Transmission speed: 9600 bit/s
• Data communication from the laboratory instrument to the computer is only possible on demand from the computer.

Note: Do not insert or remove the RS232C communication line when the instrument is switched on!

Scilogex SCI40-S LED Overhead Stirrer bFaults

SCI20/40-Pro

• Instrument cannot be powered ON when starting the stirring function
  • Check whether the power cable is connected.
• Speed cannot reach the set point
  • The setting speed value does not match the current medium viscosity; please reduce the speed, then restart.
• Stirring function suddenly stops
  • Overload protection light changes to red, and the display area shows "Er 03," indicating the current failure is "overload protection." When the setting speed value does not match the medium viscosity that caused overload protection, press the speed control button to stop the stirring function. Restart stirring after lowering the setting speed value. If overload protection continues starting, then repeat the process and gradually reduce the speed.
  • Overload protection light changes to red, and the display area shows "Er 04," indicating the current failure is "motor protection." When the motor output shaft is stuck, causing motor protection, press the speed control button to stop the stirring function, remove the block material, and then reset the original setting speed value to start the stirring function.

SCI20/40-S

• Instrument cannot be powered ON when starting the stirring function
  • Check whether the power cable is connected.
• Stirring function suddenly stops
  • Overload protection light changes to red, and the display area shows "Er 03," indicating the current failure is "overload protection." When the setting speed value does not match the medium viscosity that caused overload protection, switch off the instrument. Switch on the instrument after lowering the setting speed value. If overload protection continues starting, then repeat the process and gradually reduce the speed.
  • Overload protection light changes to red, and the display area shows "Er 04," indicating the current failure is "motor protection." When the motor output shaft is stuck, causing motor protection, switch off the instrument, remove the block material, and then switch on the instrument to start the stirring function.

Ordering Information

Setup Guide

Setting up the Scilogex SCI40-S LED Overhead Stirrer is a straightforward process. Here are the steps to follow:

1. Place the stirrer on a stable surface and connect it to a power source.
2. Attach the stirring shaft to the motor using the provided coupling.
3. Insert the stirring bar into the sample container.
4. Place the sample container on the magnetic base of the stirrer.
5. Use the digital display to set the desired stirring speed.

Maintenance and Cleaning

• Proper maintenance can keep the instrument working properly and lengthen its lifetime.
• Do not spray cleanser into the instrument when cleaning.

• Do not remove the power line when cleaning. Only use recommended cleansers:

  Material	Compatible Solutions
  Dyes	Isopropyl alcohol
  Construction	Water containing tenside, Isopropyl alcohol
  Cosmetics	Water containing tenside, Isopropyl alcohol
  Foodstuffs	Water containing tenside
  Fuels	Water containing tenside

• Before using other methods for cleaning or decontamination, the user must ascertain with the manufacturer that this method will not damage the instrument. Wear proper protective gloves during cleaning of the instrument.

Note

• Electronic devices cannot be cleaned with cleansers.
• If you require maintenance service, the instrument must be cleaned in advance to avoid pollution of hazardous substances, and it should be sent back in its original packing.
• If the instrument will not be used for a long time, please switch it off and place it in a dry, clean, room temperature, and stable location.

Safety Instructions

Warning

• Read the operating instructions carefully before use.
• Ensure that only trained staff works with the instrument.
• Protective ground contact!
  • Ensure the socket must be grounded (protective ground contact) before use.
• When working, wear personal safety guards to avoid the risk of:
  • Splashing liquids
  • Broken glass containers
• Follow the safety instructions, guidelines, and accident prevention regulations.
• Do not touch the running parts; moving instrument care not rolling your fingers.
• Set up the instrument in a spacious area on a stable, clean, non-slip, dry, and fireproof surface. Do not operate the instrument in explosive atmospheres, with hazardous substances, or underwater.
• Please note the vessel when setting up the speed to avoid splashing the sample. If the instrument does not run smoothly, please decrease the motor speed.
• Firmly secure the accessories and vessels in place to avoid damage or risk.
• Preparation of samples may lead to dangerous flammable conditions. Only process samples that will not react dangerously.
• Use the standard accessories listed in the "accessories" section, and follow the instructions to use accessories to ensure safety. Please switch off the power before assembly of accessories, confirm the instrument and accessories are intact before switching on each time.
• The instrument should only be opened by an expert. Please switch off before use.
• The voltage stated on the nameplate must correspond to the mains voltage.
• Do not cover the instrument during running. Prevent collision and extrusion to the instrument and accessories.
• Keep away from high magnetic fields.

Proper Use

The instrument is designed for mixing sticky substances in schools, laboratories, or factories. It can be installed on a variety of impellers for different viscosities of the medium. This instrument is not suitable for use in residential areas or other constraints mentioned in Chapter 1. Do not use accessories not recommended by the manufacturer, or failure to follow the instructions, may cause unsafe situations.

Inspection

Receiving Inspection

Unpack the instrument carefully and check for any damages that may have occurred during transport. If it happens, please contact the manufacturer/supplier for technical support.

Note: If there is any apparent damage to the system, please do not connect it to the power line.
