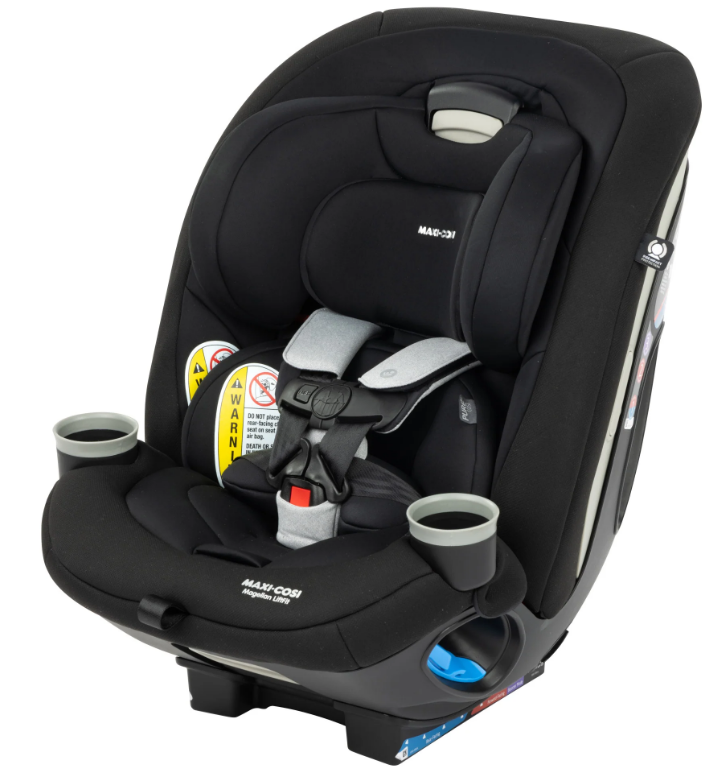

Dorel Juvenile Magellan Convertible Car Seat CC280FGQ

The Dorel Juvenile Magellan Convertible Car Seat CC280FGQ is a versatile and innovative car seat designed to grow with your child from infancy to their toddler years. This convertible seat supports three modes of use: rear-facing, forward-facing, and booster, accommodating children from 5 to 120 pounds. With features like an easy-to-adjust harness system, side impact protection, and a machine-washable seat cover, the Magellan ensures both safety and comfort. Priced at $399.99, it offers excellent value for families seeking a long-lasting car seat solution.

Parts of the Car Seat

Harness System Detail

Side View

Back View

Detailed Specifications

The Dorel Juvenile Magellan Convertible Car Seat comes with the following key features:

• Rear-facing mode for children 5-45 pounds
• Forward-facing mode for children 22-65 pounds
• Booster mode for children 40-100 pounds
• 10-position headrest and harness
• Side impact protection
• 6-position recline
• LATCH system for easy installation
• Cup holders and storage pockets
• Machine-washable fabric
• FAA-approved for use on airplanes

Description

The Dorel Juvenile Magellan Convertible Car Seat CC280FGQ is a top-of-the-line car seat that provides ultimate safety and comfort for your child. The 10-position headrest and harness ensure a custom fit for your child, while the side impact protection provides added peace of mind. The Magellan also boasts a 6-position recline, making it easy to find the perfect angle for your child. With cup holders and storage pockets, this car seat is perfect for long road trips or daily commutes. The LATCH system makes installation a breeze, and the machine-washable fabric makes cleanup a snap.

Preparing Car Seat for Child Fit

1. Fully Loosen Harness Straps
   Push down on harness release lever (through opening in pad) while pulling out on harness straps as shown.
2. Unbuckle Harness
   Press in towards the top of the red button to release the buckle tongues.

3. Release Chest Clip
   Hold each side of the chest clip and press on the release button with your thumb and pull apart.



4. Place Harness Straps Out  of the Way
   Slide the buckle tongues into the Easy-Out Harness Holders as shown.

5. Place Child in Car Seat to Determine Proper  Harness Fit
   The child’s bottom and back should be fl at against the car seat.



Setup Guide

Setting up the Dorel Juvenile Magellan Convertible Car Seat is straightforward and easy.

1. Begin by determining the correct mode for your child's weight and age.
2. Then, adjust the headrest and harness to the appropriate position.
3. Next, use the LATCH system to secure the car seat to the vehicle, making sure to follow the manufacturer's instructions.
4. Finally, adjust the recline to the appropriate position and double-check that the car seat is secure.

Lap/Shoulder Belt Use

1. Raise the Adjustable  Torso to Position 3
2. Place Booster Seat  Forward-Facing in  Back Seat
   You must use the fully  upright purple position.
   NOTE: If your vehicle seat has a headrest that inter-feres with achieving a fl ush car seat fi t, check your vehicle owner’s manual to see if it can be removed, adjusted, or if there are other possible seating locations.

3. Have Child Sit in  Booster Seat



4. Position Lap Belt on Child
   Route the lap belt portion of the vehicle belt through the booster belt path as shown.
   The lap belt should lay snugly across the child’s hips and not on their stomach
5. Buckle Vehicle Belt
   Pull up on lap belt to tighten.

6. Position Shoulder Belt on Child
   Pull up on shoulder belt to tighten.
   The shoulder belt should lay snugly across the center of the child’s shoulder and across the chest and not on their face  or neck.
   Only use the shoulder belt-positioning guide in the headrest if necessary to help position the shoulder belt correctly on the child.



Removing Car Seat Pads for Cleaning

1. Undo Seat Pad Tabs
   On the sides of the car seat above the Rear-Facing Belt Path, there are tabs that keep the seat pad in place.
   Place your thumb over  the tab and pull it down to release it from the keyhole in the car seat.
   Repeat for other side.
2. Undo Pad Fasteners  That Connect Headrest  Pad and Seat Pad

3. Pull Seat Pad Off the Front of the Car Seat and Remove it from the Shell
   It may be easier to lift up the pad if you remove the cupholders



Removing Torso Pad

1. Undo Torso Pad Tabs
   On the sides of the car seat, there are tabs that keep the torso pad in place.
   Place your thumb over  the tab and pull it down to release it from the keyhole in the car seat.
   Repeat for other side.
2. From Back of Seat, Remove the Torso Pad Flap That is Tucked into the Shell

3. Remove Torso Pad from Car Seat



Removing Headrest Pad

1. Undo Fasteners on Headrest Pad

2. Gently Pull Headrest Pad Off of Headrest
   Make sure headrest airbags stay in place.



Troubleshooting

1. If the child restraint buckle or harness release lever sticks or you cannot get the straps tight enough around child:
   DO NOT LUBRICATE. Check around lever and retractor for dropped food, sticky spilled drinks, dirt, leaves, etc. Clean with warm water and/or remove object with tweezers. If you cannot get the harness to adjust and remain tight with the buckle securely locked, do not use the child restraint.
2. If your harness twists:
   Straighten the harness each time you put your child in the child restraint to help prevent twisting. Lock the buckle and tighten harness so it will be ready for next use.

Warranty

Dorel Juvenile Group, Inc. (DJG) warrants this product to the original retail purchaser as follows: This product is warranted against defective materials or workmanship for one year from the date of original purchase.

Dorel Juvenile Magellan Convertible Car Seat Pros & Cons

Pros

• Versatile and suitable for children from birth to 10 years of age
• Custom fit with 10-position headrest and harness
• Side impact protection for added safety
• Easy installation with LATCH system
• Comfortable and convenient with 6-position recline, cup holders, and storage pockets

Cons

• Expensive compared to other car seats
• May be difficult to clean as fabric is not removable
• On the heavier side, making it less portable

Customer Reviews

Customers have praised the Dorel Juvenile Magellan Convertible Car Seat for its versatility, safety features, and ease of installation. However, some have noted that the car seat is on the heavier side and may be difficult to clean as the fabric is not removable. Overall, the Magellan is a top-rated car seat that provides ultimate safety and comfort for your child.
