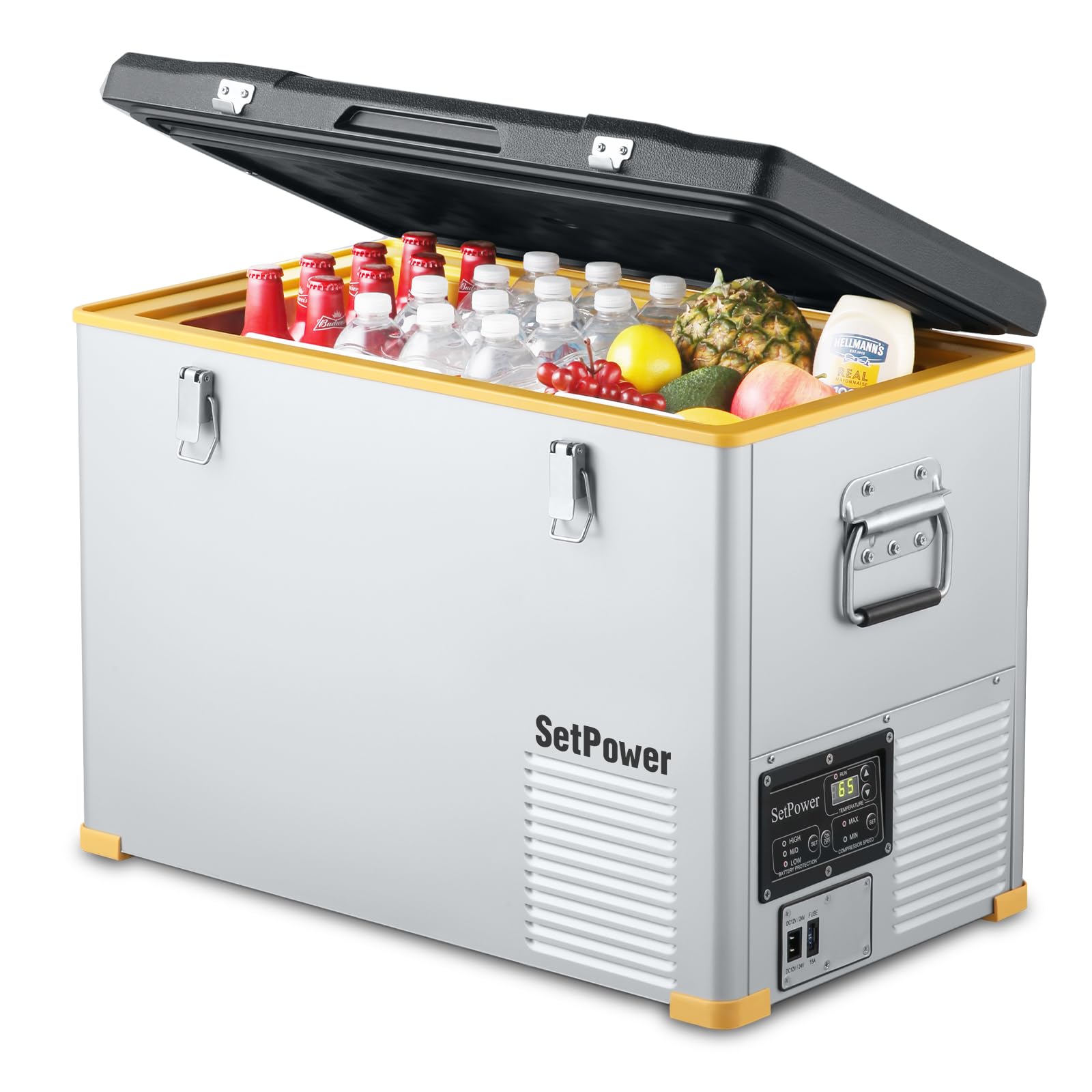

Setpower Portable Refrigerator RV45S: The Ultimate Cooling Solution for Your Adventures

Introducing the Setpower Portable Refrigerator RV45S, a powerful and versatile cooling companion designed to meet your needs on the go. With a spacious 45-quart capacity, this portable fridge can store all your favorite foods and drinks, ensuring that you stay refreshed and energized during your outdoor excursions. The Setpower Portable Refrigerator RV45S is perfect for road trips, camping, fishing, boating, and any other activity that takes you away from home. Priced at around $500, this portable refrigerator offers excellent value for money, considering its robust features and exceptional performance.

Detailed Specifications

The Setpower Portable Refrigerator boasts several key features that make it a standout product in its category:

• Capacity: 45 quarts (42 liters)
• Temperature Range: -4°F to 68°F (-20°C to 20°C)
• Power Source: AC 110-120V/DC 12V/DC 24V
• Insulation: CFC-free high-density foam insulation
• LED Light: Interior LED light for easy visibility
• Built-in Battery Protection: Prevents battery discharge
• Carry Handles: Built-in ergonomic handles for easy transport
• Dimensions: 26.4 x 15 x 19.7 inches (67 x 38 x 50 cm)
• Weight: 44.1 lbs (20 kg)

DESCRIPTION

1. Lid Handle
2. Control Panel
3. Carry Handle
4. Power Input Panel
5. 12V/24V DC Power Cable 6 110-120V AC Adapter

GETTING STARTED

Installation

Please check whether the parts of Fridge/Freezer are complete after unpacking.
Note

• Place the unit in a dry place which is protected against splashing water. Do not place directly adjacent to
  sources of heat (heating, gas ovens, hot water, pipes or under the blazing sun).
• The normal operation of the appliance requires heat to be radiated away from the condenser located at the
  end of the cabinet. Adequate airflow is required around the compressor at all times. (Fig. 1).
• The cooling system has been designed to operate correctly when the appliance is positioned on angles up
  to 30 degrees. It is recommended that the time the of unit is exposed to angles over 30 degrees is limited
  to a maximum of four (4) hours continuous operation. (Fig. 2).

Application and Operative Cooling Range

The cooling compartment has varying temperature zones. The values indicated on the digital display are related to the middle of the cabinet. The Single Zone Fridge/Freezer is designed to either refrigerate or freeze food. The Fridge/Freezer may be used for outdoor, use such as for camping purposes.The Fridge/Freezer is designed to operate in ambient temperatures from -18°C to +10°C(0°F to 50°F) in a maximum air humidity of 90%. The Fridge/Freezer can operate continuously at an angle of 30° maximum.

Power Requirements

The Fridge/Freezer is designed to operate on AC or DC voltage.

• Connect with 110-120V via AC adapter
• DC input 12V or 24V DC (e.g. car cigarette lighter or car battery)
• If the Fridge/Freeze is operating when the vehicle ignition switched OFF, the Fridge/Freezer will switch OFF automatically when the power source voltage falls below the Battery Monitor cut-out setting.
• The Fridge/Freezer will automatically switch back ON when the vehicle is re-started and the power source voltage reaches the Battery Monitor cut-in setting.

Operating your Fridge/Freezer with 12/24V DC

• Plug the 12V/24V DC power cable into the DC POWER socket (as circled) on the end of the Fridge/ Freezer and then connect to the vehicle cigarette lighter s ocket or a suitable 12V or 24V DC power source.
• The refrigerator has a memory function. If you do not actively turn off the power, the Fridge/Freezer will  automatically turn on after reconnecting the power, there is no requirement to switch the appliance on.
• The display will automatically show the current internal cabinet temperature.
• For optimum performance and efficiency, it is important that the Fridge/Freezer has a reliable DC power source. It is recommended that connect the battery in directly and reduce the risk of voltage dropping to the appliance.
• Use only the 3.5m DC power cable supplied with the Fridge/Freezer.

IMPORTANT

• If a DC extension cable is required we recommended use of a 6mm dia. (AWG11) 4.58mm TwinSheath Two Core cable with direct connection to the positive and negative battery terminals with 15A inline fuse protection.
• The Fridge/Freezer is equipped with an electronic control system that will prevent polarity reversal. In the event that the battery connection is reversed the unit will not start or operate. The power input socket is fitted with a 15A blade fuse for protection.

12/24V DC Power Requirements

If your Fridge/Freezer is cutting out prematurely, it could be due to:

1. The low voltage protection being set too high on the Battery Monitor.
2. DC power cable and/or connections are not suitable to carry the required current. Check the power cable and all connections and adjust the Battery Monitor on the control panel.
   • The Fridge/Freezer is equipped with a multi-level Battery Monitor that protects your vehicle battery against excessive discharging when the Fridge/Freezer is connected to 12V or 24V DC power source.
     IMPORTANT: When using the Fridge/Freezer with DC power supply, we recommended setting the Battery Monitor to LOW (L).
     NOTE: A battery charger may only be connected to the battery when the Fridge/Freezer has been disconnected from the DC power source.
   • Over-voltage may cause damage to the electronics of the Fridge/Freezer.
   • Your Fridge/Freezer is equipped with reverse polarity protection. It protects your Fridge/Freezer against reverse battery connection and short circuit.
   • As a protection for your battery, the Fridge/Freezer switches OFF automatically if the power source voltage is insufficient.
     NOTE: It is important that the correct cable size and gauge is used for the installation of the DC supply as over distance the voltage can decrease if the incorrect cable size and gauge cable is being used.
   • Always consult a qualified automotive electrician when using a DC extension cable.

Operating your Fridge/Freezer with 110/120V(100-240V) AC

• Pulg the 110-120V(100-240V）with AC adapter.
• Keep pressing the ON/OFF button for 3 seconds to switch the appliance on.
• The display will automatically show the current internal cabinet temperature.
• The power input socket is fitted with a 15A blade fu se for protection.

OPERATION OF SINGLE ZONE SERIES (RV45S)

OPERATION OF RV45S

BATTERY MONITOR

• The device is equipped with a multi-level battery monitor that protects your vehicle battery against excessive discharging when the appliance is connected to 12/24V supply.
• If the appliance is operated when the vehicle ignition switched off, the appliance switches off automatically as soon as the supply voltage falls below a set level.
• The appliance will switch back on once the battery has been recharged to the cut in voltage level. Push, hold and release SET button until the desired setting is reached

CUT IN / CUT OUT

• Your fridge has built in battery protection and needs a minimum 10.9 V to start and 9.6 V to continue operating.
• During operation a load is placed on the power supply and voltage can drop by as much as 2 V, especially if the wiring in insufficient (less than 6mm direct to battery) or if there is a loose connection somewhere.
• If this occurs when you try and start your SetPower and the power supply drops under 10.9 V it will not start. If this occurs when your SetPower is running and the power supply drops below 9.6 V it will stop.

COMMON 12V POWER SUPPLY ISSUES

Wiring
Often the standard wiring from the car battery to the 12V outlet is too small.
A minimum 6mm automotive wiring should be used and the earth should bewired directly back to the battery.
Battery
The car battery could be old, undersized or have a dead cell causing too much voltage drop.
Connections
The 12 V plug, car 12 V socket or any of the connections between the fridge and the battery could be faulty or have come loose since installation.

POWERING ON

Connect to the desired input voltage and press the button to turn the unit on, the display show the current internal cabinet temperature.

TEMPERATURE CONTROLLER

The Temperature Controller provides the ability to set the desired temperature level and displays information on the cabinet and set temperature.

When your appliance is first connected to AC or DC input the digital read out will show the current cabinet temperature, to adjust the temperature follow these steps:
To increase the cabinet temperature press  and to decrease press until the desired level is reached.
Once selected the display will flash a number of times before returning to the current temperature. The electronic controller has been programmed to maintain an average of the set temperature. The compressor will start up when the internal cabinet temperature increases 0.5 to 1.5 degrees above that selected and will run until the temperature is 0.5 to 1.5 degrees below the set temperature.

TEMPERATURE CONVERSION OF RV45S SERIES

When the appliance is on, press theand SET buttons at the same time to switch back and forth between Celsius and Fahrenheit.

ECO/MAX FUNCTION

This fuction allows the compressor speed to be slowed down to increase operating efficiencies (ECO) or increase the compressor speed to provide “quick” cool down times (MAX).

• To operate press the SET  button to commence the “economy” operation mode, the ECO indicator will illuminate.
• Press the SET button again to select the MAX operating mode. The MAX indicator red light will illuminate.

ENERGY SAVING TIPS

• Choose a well ventilated installation location which is protected from direct sunlight and allows air to circulate around the cabinet.
• Allow hot food to cool down first before you place it into the cabinet.
• Do not open or leave the lid open more often than necessary.
• If ice forms on the internal walls or lid defrost the appliance.
• Select the desired cabinet temperature in relation to the intended use, avoid setting unnecessarily low temperatures.

MAINTENANCE

Before carrying out any maintenance operation on the refrigerator,take  of its socket.

CLEANING

• Regularly clean the inside and outside of the refrigerator using only warm water and a neutral detergent.
• Subsequent to washing, rinse with clean water and dry thoroughly using a soft cloth.
• Do not use the following: special glass and mirror cleaning products, liquid, powder, or spray detergents, alcohol, ammonia or abrasive products.
• If you are not using the refrigerator, we suggest cleaning it well inside and leaving the door ajar to ventilate the interior.

SUGGESTIONS

Should the device fail to work or work badly, before referring to our after-sales service, make sure that

1. the feeding voltage is not missing;
2. the voltage is the same as the one shown on the plate;
3. the connections and the polarities are right;
4. the airing grids are not covered over;
5. the refrigerator unit is not near any heat source;
6. the fuse of the feeding line is not blown.

GENERAL SAFETY MESSAGES

Failure to obey the following warnings could result in death or serious injury

• ELECTRICAL  SHOCK HAZARD. Do not  immerse the product in water, or use it in an area that is excessively muddy.
• Do not use the cooler for any purpose other than as a mobile cooling device.

FALL HAZARD . Do not stand on the cooler. Doing so could damage the unit or cause minor to moderate injury.

NOTICE
Failure to obey the following notices could result in property damage

• Keep sand or dirt away from the cooling system ventilation area.
• Do not leave the cooler on the deck of a boat for an extended period. Salt water damage to the cooling system, electronics, or metal hardware could occur
• Do not expose the cooler to extreme heat.
• Only use mild soap and water to clean the cooler.
• Do not use a DC extension cord.
• Do not use a power strip or two-way splitter.
• Do not use power cord adapters of any kind other than those provided by the manufacturer.
• Do not use ice cubes or fill the cooler with water. If ice does accumulate at the bottom of the cooler, defrost the unit and use the drain plug to drain the water.
• Do not modify the unit in any way.
• Do not place hot materials (75 °F or higher) in the cooler. Allow materials to cool (50 °F or less) before placing them inside the cooler.
• Do not tip or store the cooler at an angle greater than 30° for extended periods. Compressor oil contamination of the cooling system could occur.
• Allow 2–4 inches of space around the cooler at all times for proper ventilation of the cooling system.
• The cooler must be secured at all times using straps or a mounting plate, especially in mobile applications.

FAULTS

Quality Service Guarantee

This product is warranted for 2 years on the compressor and 1 year for all other parts from the date of purchase. Our goods come with guarantees that cannot be excluded under the Local Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure. Warranty does not cover products that have not been used in accordance with user guide or are outside the warranty terms and conditions.
Official Website: https://setpowerusa.com/

Troubleshooting and Warnings

Here are some common issues you may encounter and how to resolve them:

• Problem: The refrigerator doesn't cool properly.
  Solution: Ensure that the power source is working correctly and that the temperature setting is adjusted accordingly. Also, check for any obstructions in the air vents and ensure proper insulation.
• Problem: The battery drains quickly.
  Solution: Use the battery protection feature to prevent excessive discharge. Additionally, consider using a secondary battery or power source to avoid draining your vehicle's battery.
• Warning: Do not operate the refrigerator in hazardous or damp environments, as it may pose safety risks.

 SAFETY INFORMATION

Please read this operating manual carefully before starting the appliance. Keep it in a safe place for future reference. If the appliance is passed on to another person, this instruction manual must be handed over to the user along with it.
The manufacturer cannot be held liable for damage resulting from improper usage or incorrect operation.
WARNING

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Children should be supervised that they do not play with the appliance.
• Cleaning and user maintenance shall not be carried out by children without supervision.
• Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
• Do not use this appliance near direct heat sources, for example, a cooker, radiator or exposing it to direct sunlight.
• The appliance shall not be exposed to rain. Place the refrigerator on a dry, protected surface, away from edges.

NOTICE

• No responsible for the damage by ignoring the safety instructions SetPower.
• The use of accessories that are not recommended by SetPower can cause injuries and will invalidate any warranty that you may have.
• Place the products so that they do not collide against each other or break when the appliance is in motion.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• Disconnect the power cable from the plug before carrying out any maintenance.
• Do not place carbonated drinks and gaseous drinks under 0°C(32°F) in this appliance.

INTENDED TO USE
This appliance is intended to be used in household and similar applications such as

• Staff kitchen areas in shops, offices and other working environments;
• Farm houses and by clients in hotels, motels and other residential type environments;
• Bed and breakfast type environments;
• Catering and similar non-retail applications.

CAUTION

• Keep ventilation openings, clear of obstruction in the appliance enclosure or in the built-in structure.
• Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by SetPower.
• Do not place ice or liquids which are not sealed in containers within the refrigerator.
• Do not place hot products or hot food in this appliance.

CORRECT DISPOSAL OF THIS PRODUCT
To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the recovery systems or contact the retailer that they can take this product for environmentally safe recycling.
DANGER

• Risk of child entrapment. Before you throw away your old refrigerator or freezer:
• Take off the doors.
• Leave the shelves in place so that children may not easily climb inside.

DATA SHEET

Pros & Cons Of Setpower Portable Refrigerator RV45S

Pros

• Spacious capacity
• Wide temperature range
• Multiple power sources
• Built-in battery protection
• Ergonomic design and handles

Cons

• Heavier than some competing models
• May consume more power than smaller refrigerators

Customer Reviews

The Setpower Portable Refrigerator has received positive feedback from customers, with many praising its spacious capacity, temperature consistency, and versatile power options. However, some customers have reported issues with the battery protection feature, while others have noted that the unit can be heavy to carry for extended periods.
