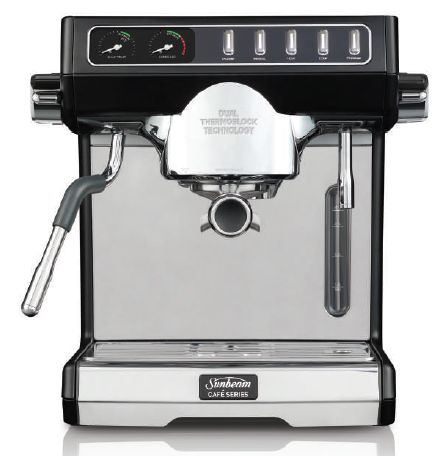

Sunbeam Espresso Machine EMM7200

Introduction

The Sunbeam Espresso Machine EMM7200 is a sleek and powerful addition to any coffee enthusiast's kitchen. Designed to deliver high-quality espresso shots with ease, this machine is perfect for those who want to bring the coffee shop experience home. The EMM7200 features a modern design that complements any kitchen decor and is equipped with advanced features to ensure optimal performance.

The Sunbeam Espresso Machine EMM7200 is intended for home use, making it an excellent choice for both beginners and experienced baristas. With its user-friendly interface and automatic temperature control, it simplifies the process of brewing espresso. The estimated price of the Sunbeam Espresso Machine EMM7200 is around $200-$300, making it an affordable option compared to other high-end espresso machines on the market. The product was launched in recent years, catering to the growing demand for home espresso machines.

Specifications

• 15-Bar Pump Pressure: Ensures optimal extraction for rich and creamy espresso.
• Automatic Temperature Control: Maintains the ideal temperature for brewing espresso.
• Manual Frothing System: Allows for customizable froth and milk texturing.
• Removable Water Tank: Holds up to 1.25 liters of water for continuous use.
• Stainless Steel Boiler: Durable and resistant to corrosion.
• Compact Design: Fits easily on most kitchen countertops.
• Indicator Lights: Signals when the machine is ready to use or when maintenance is needed.

Sunbeam’s Safety Precautions

 FOR YOUR SUNBEAM CAFÉ SERIES DUO ESPRESSO MACHINE:

• Always place the unit on a flat, level surface.
• Do not operate whilst placed in a cabinet.
• Do not operate without water in the water tank. Fill the water tank with filtered water. Observe that the maximum filling volume is 3 litres.
• Do not remove the group handle during the espresso pour or water flow, as the unit is under pressure. Removing the group handle during either of these operations can lead to a scalding or injury.
• The steam wand and hot water tap become very hot during milk texturing and water flow. This may cause burns in case of contact. Therefore, avoid any direct contact with the steam wand.
• Do not allow the power cord to come into contact with the hot parts of the machine, including the warming plate and steam wand.
• Do not place hands directly under the steam, hot water, or espresso pour as this can lead to a scalding or injury.
• The temperature of accessible surfaces may be high when the appliance is operating. Even after use, the heating element surface is subject to residual heat after use.
• Always switch off and unplug at the power outlet before cleaning the espresso machine.
• Children should not perform cleaning and user maintenance without supervision.
• Always switch off and unplug at the power outlet if there is any problem during the coffee-making process.
• Do not use an appliance for any purpose other than its intended use. Injury could occur from misuse.

Sunbeam’s Safety Precautions

Sunbeam is very safety-conscious when designing and manufacturing consumer products,  but it is essential that the product user also exercises care when using an electrical appliance. Listed below are precautions that are essential for the safe use of an electrical appliance:

• Read carefully and save all the instructions provided with the appliance.
• Always turn the power off at the power outlet before you insert or remove a plug. Remove by grasping the plug - do not pull on the cord.
• Turn the power off and remove the plug when the appliance is not in use and before cleaning.
• Do not use your appliance with an extension cord unless this cord has been checked and tested by a qualified technician or service person.
• Always use your appliance from a power outlet of the voltage (A.C. only) marked on the appliance.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory, or mental capabilities, or a lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.
• The temperature of accessible surfaces may be high when the appliance is operating.
• Never leave an appliance unattended while in use.
• Do not place on top of any other appliance.
• Do not use an appliance for any purpose other than its intended use.
• Do not place an appliance on or near a hot gas flame, electric element, or on a heated oven.
• Do not let the power cord of an appliance hang over the edge of a table or benchtop or touch any hot surface.
• Do not operate any electrical appliance with a damaged cord or after the appliance has been damaged in any manner. If damage is suspected, return the appliance to the nearest Sunbeam Appointed Service Centre for examination, repair,r or adjustment.
• For additional protection, the appliance should be supplied through a residual current device (RCD) having a rated residual operating current not exceeding 30 mA;
• Do not immerse the appliance in water or any other liquid unless recommended.
• Appliances are not intended to be operated by means of an external timer or separate remote control system.
• This appliance is intended to be used in household and similar applications such as: staff kitchen areas in shops, offices, and other working environments; farm houses; by clients in hotels, motels,s and other residential-type environments; bed and breakfast type environments.

If you have any concerns regarding the performance and use of your appliance, please visit the Sunbeam Website or contact Sunbeam Consumer Care - details are on the back page. Ensure the above safety precautions are understood.

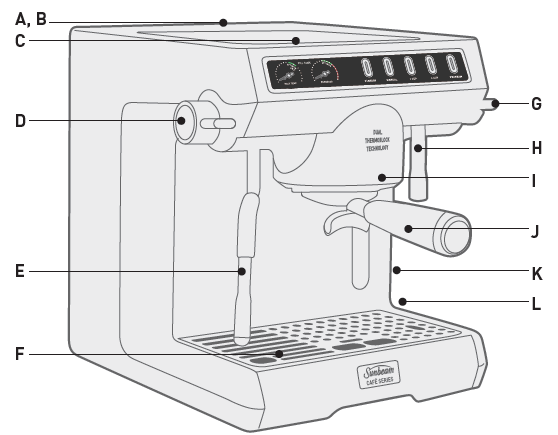

Features of your Sunbeam Café Series Duo

Features of your Sunbeam Café Series Duo

• A. Accessories storage home
  Accessories underneath the water tank lid: 1 and 2 cup single-wall filter baskets, 1 and 2 cup dual-wall filter baskets, cleaning disc, and cleaning pin.
• B. 3L water tank
  Top-fill removable 3L water tank with integrated anti-calc water filter.
• C. Warming plate
  Preheats cups and glasses, which helps to retain the essential characteristics of true espresso aroma and a rich, sweet taste.
• D. Steam lever
  Rotate for instant and continuous steam.
• E. 60° swivel steam wand
  Ball joint movement with silicone cover. Allows movement of the steam wand to the desired position without burning fingers.
• F. Removable drip tray and grill
  Includes a water level indicator that floats through the stainless steel grill to indicate when the drip tray is full and requires emptying.
• G. Hot water lever
  Rotate to start and stop the flow of hot water from the hot water tap.
• H. Hot water tap
  Delivers hot water for long blacks and pre-heating cups.
• I. Group head - 58mm commercial size
  The wider size allows for more even extraction of the tamped coffee grinds.
• J. Group handle - 58mm commercial size
  The wider size ensures the coffee grinds are more evenly spread.
• K. Stainless steel and die-cast design
  The wider size ensures the coffee grinds are more evenly spread, and easier to tamp.
• L. Cord storage
  Conveniently stow excess cord by pushing the cord inside the machine to keep the benchtop tidy.

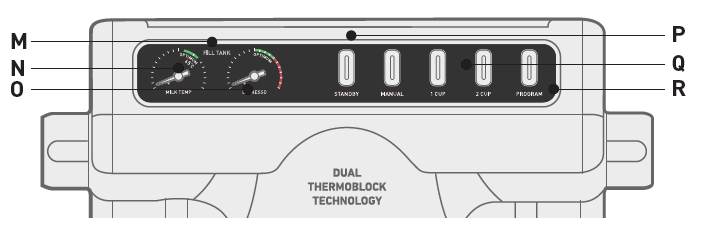

• M. Low water indicator
  When the machine is low on water, the FILL TANK light will be illuminated and the machine will let you know by beeping.
• N. Milk temperature gauge
  Provides feedback and guides you to the perfect velvety-smooth café milk. Suitable for all milk types.
• O. Espresso pressure gauge
  Provides feedback for espresso extraction pressure.
• P.  STANDBY button
  Press the button to turn on the machine. The light will illuminate and pulse to indicate it is heating up. The machine will automatically enter eco mode after 1 hour of non-use. To reactivate the machine, press any button on the control panel. After a further 4 hours of non-use, the machine will beep once and then turn off.
• Q. MANUAL, 1 CUP and 2 CUP buttons
  With preset single-shot and double-shot volumes. For manual extraction, press the MANUAL button to start extraction. When the desired volume is reached, press the button again to stop. Automatically stops after 240mL.
• R.  PROGRAM button
  Allows the shot volume, pre-infusion, espresso, and steam thermoblock temperature to be manually adjusted.

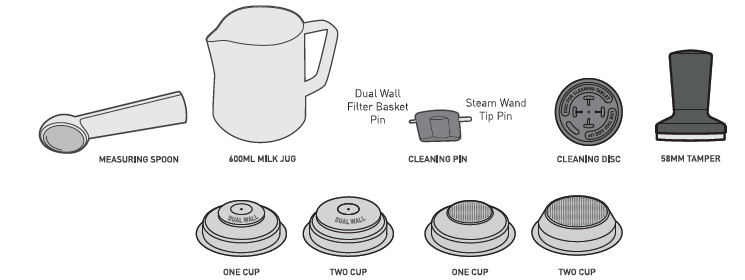

Accessories

• Stainless steel milk jug
• Tamper
• Measuring spoon
• 1 and 2 cup 58mm single-wall filter baskets – for freshly ground coffee grinds
• 1 and 2 cup 58mm dual wall filter baskets – for pre-ground coffee grinds
• Cleaning disc
• Cleaning pin

More details about your Sunbeam Café Series Duo

Dual Thermoblock Technology
Dual Thermoblock ensures fast heat up, and simultaneous espresso extraction and milk steaming. Only the required amount of water is heated for speed and efficiency. The Thermoblock heats water so that espresso extracts at 92°C for the optimum extraction of oils from the tamped coffee grinds. Temperatures above or below will result in burnt/bitter or weak-tasting espresso.

Advanced PID controller
The PID monitors and controls the Thermoblock to ensure water is always delivered to tamped coffee grinds at the precise temperature needed.

Gentle pre-infusion
Small amounts of water are gently introduced onto the tamped coffee grinds before the steady flow of water, for a richer flavoured espresso. 58mm commercial size group  head and handle

Extract the maximum amount of flavour.
The group head and the group handle are 58mm commercial-sized, just like the local café.

• The wider size ensures the coffee grinds are more evenly spread in the filter baskets. The coffee grinds are easier to fill, tamp, and remove after use.
• The 58mm group handle allows a more even extraction of the tamped coffee grinds, resulting in an authentic café-quality coffee.

Auto Shot and customisable volumetric control
The right quantity of espresso in your cup

• Auto Shot is the easiest way to create a great espresso. Press the 1 CUP or 2 CUP buttons to pour the right amount.
• All extraction buttons can be customised to deliver the shot volumes preferred. For more information, see pages 20 – 21.

Customisable extraction and steam temperature
Temperature, the way you like it .

• Water temperature can be changed from the recommended 92°C, in 2°C increments, to cater to personal preferences. For more information, see pages 22-23).
• Steam temperature can be changed in increments of 5°C. Steam pump rate can also be customised for a wetter or drier steam. For more information, see page 23).

Temperature-sensing steam wand
The 4 BAR steam pump produces instant, constant steam pressure for texturing milk. An important factor when texturing milk is temperature. The steam wand integrates a patented temperature-sensing device that relays the temperature of the milk to the milk temperature gauge. It will guide you to the perfect velvety-smooth café milk and let you know when your textured milk is ready. Suitable for all milk types.

Coffee styles to try

Espresso (Short Black)
Espresso is a concentrated, full-bodied coffee with a stable layer of crema on top. An espresso is the foundation of all café coffee.

• Espresso glass (90mL)
• Single or double shot of espresso (30mL-60mL)

Ristretto
A ristretto is an extremely short espresso, distinguished by its intense flavour, aftertaste, and its thin crema on top.

• Espresso cup (30mL)
• Half a single shot of espresso (15mL)

Long Black (Americano)
A standard espresso with hot water added. The hot water is added first so that the crema is maintained.

• Cup (190mL)
• Hot Water (to preference)
• Single or double shot of espresso (30mL-60mL)

Con Panna
Con Panna, Italian for ‘with cream’, is made up of an espresso topped with lightly whipped cream. It can also be dusted with cinnamon or drinking chocolate.

• Cup (190mL)
• Single or double shot of espresso (30mL-60mL)
• Lightly whipped cream - dusted cinnamon.

Macchiato
Macchiato, Italian for ‘to stain or mark’. Traditionally served as a standard espresso with a dash of cold or textured milk and a small dollop of textured foam into the middle of the crema.

• Espresso glass (90mL)
• Single or double shot of espresso (30mL-60mL)
• Dash of cold or textured milk and a small dollop of textured foam.

Flat White
An espresso with textured milk and a thin layer of textured foam milk on top. The wider cup will create a slim layer of foam, the signature of the flat white.

• Wide cup (190mL)
• Single or double shot of espresso (30mL-60mL)
• Textured milk and foam.

Latte
An espresso with textured milk and a finger-width layer of textured foam milk on top. The narrower cup will create a thicker layer of foam.

• Glass or Cup (220mL)
• Single or double shot of espresso (30mL-60mL)
• Textured milk and foam.

Cappuccino
An espresso with ⅓ steamed textured milk, topped with ⅓ creamy foam and a dusting of chocolate.

• Cup (190-240mL)
• Single or double shot of espresso (30mL-60mL)
• ⅓ Textured milk, ⅓ textured foam - dusted with chocolate.

Mocha
Made similarly to a cappuccino, but with the addition of drinking chocolate. Simply stir the chocolate into the espresso before adding the steamed textured milk and foam.

• Cup or tall glass (190-240mL)
• Single or double shot of espresso (30mL-60mL)
• Drinking chocolate (to preference)
• ⅓ Textured milk, ⅓ textured foam.

Babyccino
Steamed textured milk with a layer of foamed milk. It can also be dusted with chocolate.

• Small cup (90mL)
• No shot of espresso
• Textured milk and textured foam - dusted with chocolate.

Descaling cycle

Note: One of two things will happen:

• If the machine has been recently used, the temperature of the steam thermoblock may need to be cooled before the descaling cycle can start. Water will flow through the steam wand until the steam thermoblock has cooled to the appropriate temperature.
• OR if the machine starts to beep, it means it is ready to start the descaling cycle.

Step 1. Start Descaling cycle

Important: Ensure the steam lever is still in the ON position.

• To activate the descaling cycle, press the 1 CUP button once.
• The pumps for both espresso and steam will start to pump through the descaling solution for approximately 15 seconds.
• Both pumps will stop and wait for approximately 1 minute to allow the descaling solution to take effect.
• The machine will repeat the pumping and rest cycles for 13 times for the espresso and steam Thermoblocks. This will take approximately 17 minutes.
• After the 14 cycles, the machine will start to beep, and the 1 CUP button will flash.

Step 2. Preparing for purge

• The group head and steam wand now need to be purged clean with fresh water to remove the descaling solution.

Rinse the water tank.

• Remove the water tank and rinse thoroughly under running water, ensuring that all traces of the descaling solution have been removed.

Fill the water tank

• Fill the water tank with filtered water and insert it into position.

Empty container

• Empty the water from the container and place the  bit back into position
• Move to Step 3.

Step 3. Start purge

• To activate the descaling process by pressing the 1 CUP button once.
• The pumps for espresso and steam will start to pump clean water through for approximately 1 – 2 minutes.
• The lights on the control panel will start to chase from left to right.
• To indicate the completion of the descaling cycle, the machine will beep 4 times and will go into the READY state.

Descaling cycle clean up.

• Empty the water from the containers and rinse thoroughly to ensure that all traces of the descaling solution have been removed.

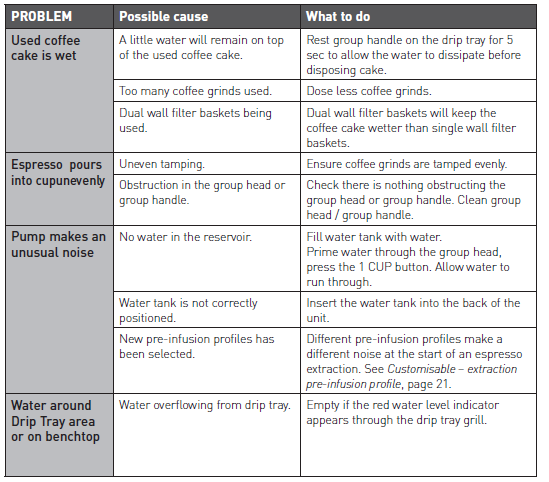

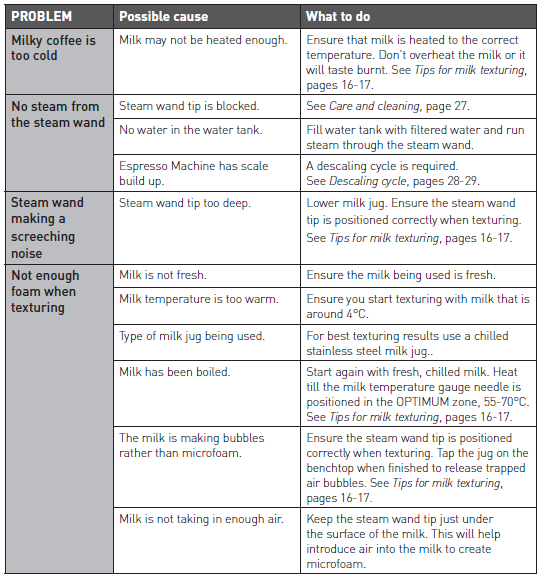

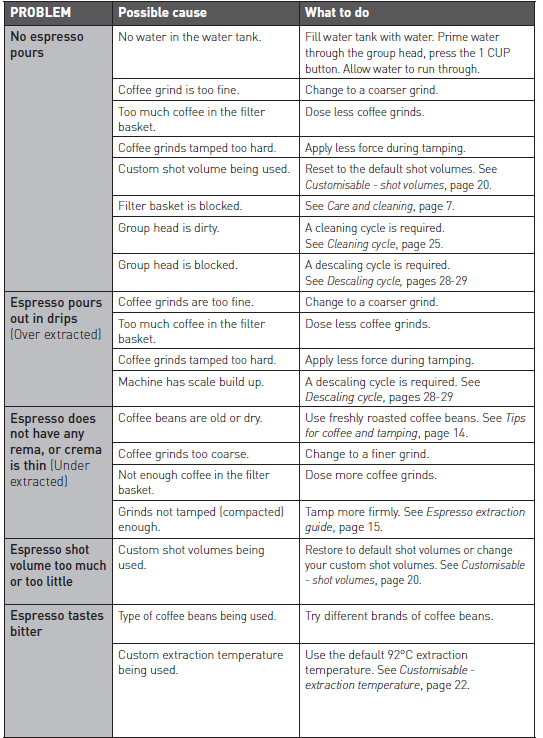

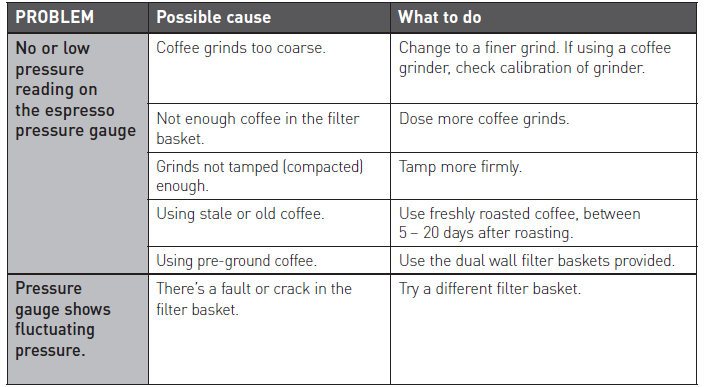

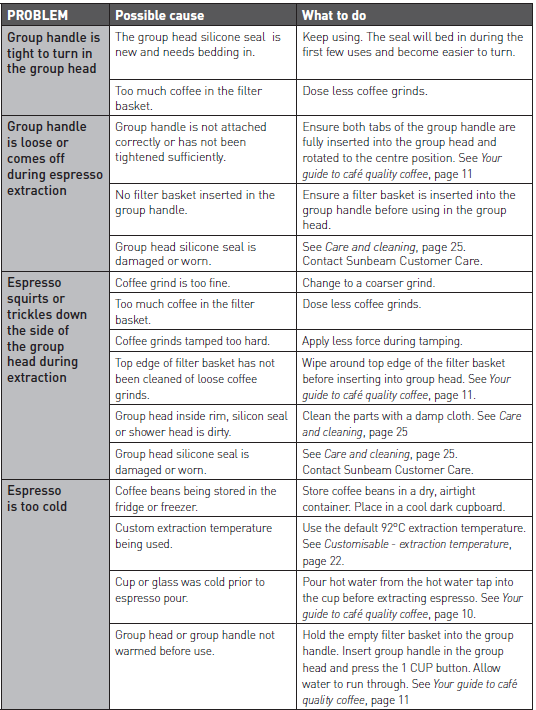

Troubleshooting guide

If your Sunbeam Espresso Machine EMM7200 is not turning on, check if it is properly plugged in and if there are any tripped circuit breakers. If the machine is leaking water, ensure that all connections are secure and there are no blockages in the water tank or pipes. For issues with temperature control, refer to the user manual for calibration instructions. Always follow the cleaning and maintenance guidelines provided in the user manual to prevent any buildup or clogging.

Instructions and Warnings: Always use fresh water to avoid mineral buildup. Do not leave the machine unattended while it is in operation. Regularly clean and descale the machine to maintain its performance and longevity.

A guide to checking the espresso pressure gauge is working

• Insert the 2-CUP dual-wall filter basket in the group handle.
• Insert the cleaning disc inside the filter basket.

• Insert the group handle inside the group head.
• Press the  2 CUP button.

• If the espresso pressure gauge shows a reading, the pressure gauge is in good working order.

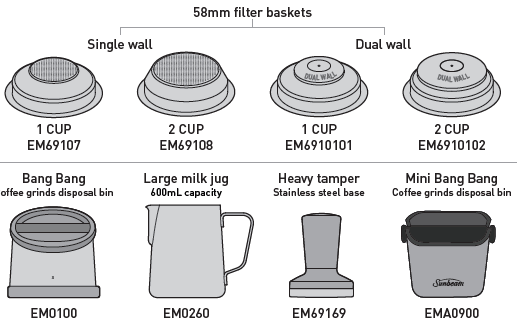

Accessories available for purchase

CONTACT SUNBEAM CUSTOMER CARE:

• AUS: 1300 881 861
• NZ: 0800 786 232

Cleaning & Descaling

Warranty

This Sunbeam product is covered by a 12-month repair warranty, which is in addition to your rights under the Australian Consumer Law (if your product was purchased in Australia) or the New Zealand Consumer Guarantees Act (if your product was purchased in New Zealand)

• Upon receipt of your claim, Sunbeam will seek to resolve your difficulties or, if the product is defective. Advise you on how to obtain a replacement or refund.
• To assist us in managing warranty claims, we recommend you register your product as soon as practicable after purchase by creating a MySunbeam account on our website and uploading a copy of your original receipt.
• To claim our warranty, you must have the original proof of purchase documentation for the product and present it when requested (if not already uploaded to our website). Should your product develop any defect within 12 months of purchase because of faulty materials or workmanship, we will replace or repair it, at our discretion, free of charge. A product presented for repair may be replaced by a refurbished product of the same type rather than being repaired.
• Refurbished parts may be used to repair the product.
• Our replacement or repair warranty only applies where a defect arises as a result of faulty material or workmanship during the warranty period. Your warranty does not cover misuse or negligent handling (including damage caused by failing to use the product in accordance with this instruction booklet), accidental damage, or normal wear and tear.

Your warranty does not:

• Cover freight or any other costs incurred in making a claim, and consumable items. Accessories that by their nature and limited lifespan require periodic renewal (such as filters and seals) or any consequential loss or damage; or

Cover damage caused by:

• power surges, power dips, voltage supply problems, or use of the product on incorrect voltage;
• servicing or modification of the product other than by Sunbeam or an authorised Sunbeam service centre;
• Use of the product with other accessories, attachments, and product supplies. parts or devices that do not conform to Sunbeam's specifications or
• exposure of the product to abnormally corrosive conditions; or extend beyond 3 months if the product is used in commercial, industrial, educational, or rental applications.

The benefits given to you by our warranty are in addition to other rights and remedies under law in relation to the product. Warranties are in addition to other rights and remedies under law in relation to the product.

In Australia, our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and for compensation for any other foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.

Our goods also come with guarantees that cannot be excluded under the New.

Zealand Consumer Guarantees Act. If your warranty claim is not accepted. We will inform you and, if requested to do so by you, repair the product, provided you pay the usual charges for such repair.

You will also be responsible for all freight and other costs.

Should your product require repair or service after the warranty period, contact your nearest Sunbeam service centre.

For a complete list of Sunbeam's service centres, visit our website or call our customer care line for advice on 1300 881 861 in Australia, or 0800 786 232 in New Zealand.

Visit the Sunbeam website to see the full Espresso Machine range & accessories available.

• www.sunbeam.com.au
• www.sunbeam.co.nz

Pros & Cons

Pros:

• User-Friendly Interface: Easy to operate even for beginners.
• Compact Design: Fits well in most kitchens without taking up too much space.
• Manual Frothing System: Allows for customizable milk texturing.
• Affordable Price: Priced competitively compared to other high-end espresso machines.
• Durable Construction: Stainless steel boiler ensures longevity.

Cons:

• No Built-In Grinder: Requires a separate coffee grinder.
• No Automatic Frothing: Manual frothing can be time-consuming and requires some skill.
• Limited Capacity: The water tank holds only 1.25 liters, which may need frequent refilling for heavy users.
• Noisy Operation: Some users find the machine to be somewhat loud during operation.

Customer Reviews

Customers have generally praised the Sunbeam Espresso Machine EMM7200 for its ease of use and the quality of the espresso it produces. Many appreciate its compact design and durable construction. However, some users have noted that it requires regular maintenance and can be a bit noisy during operation. Overall, it is considered a good value for its price.

Most Common Complaints: Some users have reported issues with the steam wand's performance and the need for frequent descaling.
