Document Revision History

Revision

Date

Pages affected and Description of change

Rev. A

07/19/2016

Initial release.

Rev. B

09/06/2016

6 & 8: Changed Weight (typical) to Weight (max)

13: Removed '2004/108/EC (Until 19th April, 2016) and' & '(From 20th April, 2016)' 13: Modified EMC Standard from EN55022 to EN55032

13: Added Korean text for Class B device warning

Rev. C

10/10/2016

fc: Applied BarraCuda logo and Added model numbers 10: Added bullets to Section 2.8.1 Power consumption 10: Updated Table 4 DC Power Requirements

13: Updated to MSIP Korean text for Class B device warning

Rev. D

11/17/2016

5: Revised bullet list

6 & 8: Revised Data transfer rate = 140MB/s 6 & 10: Start-up current = 1.2A

10: Updated Section 2.8.1

11: Added Section 2.8.4

This manual describes the functional, mechanical and interface specifications for the following: Seagate® BarraCuda® model drives:

Standard models
ST5000LM000	ST4000LM024	ST3000LM024

These drives provide the following key features:

128MB buffer.
5400-RPM spindle speed.
650 Gs of non-operating shock and 300 Gs of operating shock.
Full-track multiple-sector transfer capability without local processor intervention.
High instantaneous (burst) data-transfer rates (up to 6Gb/s).
MTC TechnologyTM, proprietary data flow management.
Native Command Queuing (NCQ) with command ordering.
Quiet operation with Fluid Dynamic Bearing (FDB) motor.
SeaToolsTM diagnostic software performs a drive self-test that eliminates unnecessary drive returns.
Shingled magnetic recording with perpendicular magnetic recording heads/media.
State-of-the-art cache and on-the-fly error-correction algorithms.
Support for Read Multiple and Write Multiple commands.
Support for S.M.A.R.T. drive monitoring and reporting.
Worldwide Name (WWN) capability uniquely identifies the drive.

About the Serial ATA Interface

The Serial ATA interface provides several advantages over the traditional (parallel) ATA interface.

The primary advantages include:

Easy installation and configuration with true plug-and-play connectivity. It is not necessary to set any jumpers or other configuration options.
Thinner and more flexible cabling for improved enclosure airflow and ease of installation.
Scalability to higher performance levels.

In addition, Serial ATA makes the transition from parallel ATA easy by providing legacy software support. Serial ATA was designed to allow users t o install a Serial ATA host adapter and Serial ATA disk drive in the current system and expect all of the existing applications to work as normal.
The Serial ATA interface connects each disk drive in a point-to-point configuration with the Serial ATA host adapter. There is no master/slav e relationship with Serial ATA devices like there is with parallel ATA. If two drives are attached on one Serial ATA host adapter, the host operating system views the two devices as if they were both “masters” on two separate ports. This essentially means both drives behave as if they are Device 0 (master) devices.

Note: The host adapter may, optionally, emulate a master/slave environment to host software where tw o devices on separate Serial ATA ports are represented to host software as a Device 0 (master) and Device 1 (slave) accessed at the same set of host bus addresses. A host adapter that emulates a master/slav e environment manages two sets of shadow registers. This is not a typical Serial ATA environment.

The Serial ATA host adapter and drive share the function of emulating parallel ATA device behavior to provide backward compatibility with existing host systems and software. The Command and Control Block registers, PIO and DMA data transfers, resets, and interrupts are all emulated.
The Serial ATA host adapter contains a set of registers that shadow the contents of the traditional device registers, referred to as the Shadow Register Block. All Serial ATA devices behave like Device 0 devices.

Specifications

Unless otherwise noted, all specifications are measured under ambient conditions, at 25°C, and nominal power. For convenience, the phrases th e drive and this drive are used throughout this manual to indicate the following drive models:
The specification summaries listed in the following tables are for quick reference.

Specification Summary

Table 1 Drive Specifications Summary

Drive Specification	ST5000LM000	ST4000LM024	ST3000LM024
Formatted capacity 1	5000GB	4000GB	3000GB
Guaranteed sectors	9,767,541,168	7,814,037,168	5,860,533,168
Heads	10	10 / 8	8
Disks	5	5 / 4	4
Bytes per sector	512 (logical) / 4096 (physical)
Recording density	2254 Kb/in
Track density	580 Ktracks/in avg
Areal density	1307 Gb/in2 avg
Spindle speed	5400 RPM
Data transfer rate (up to)	140 MB/s
Interface	SATA 6Gb/s
ATA data-transfer modes supported	PIO modes 0–4 Multiword DMA modes 0–2 Ultra DMA modes 0–6
Cache buffer	128 MB
Height	15.0 +0.5/- 0.25 mm (0.59 +0.002/-0.010 in)
Width	69.85 +/- 0.25 mm (2.750 +/- 0.010 in)
Length	100.35 +0.20 / -0.25 mm (3.951 +0.008 / -0.010 in)
Weight (max)	190 g (0.42lb)
Average latency	5.6 ms
Startup current, Max (+5V)	1.2A
Voltage tolerance (including noise)	5V ± 5%
Operating temperature	0° to 60°C
Non-operating temperature (Ambient)	–40° to 70°C
Temperature gradient (max)	20°C per hour max (operating) 35°C per hour max (non-operating)

Relative humidity	5% to 95% (operating) 5% to 95% (non-operating)
Relative humidity gradient	20°C per hour max (operating) 30°C per hour max (non-operating)
Wet bulb temperature (max)	37.7°C max (operating) 40.0°C max (non-operating)
Altitude, operating	–304.8 m to 3048 m (–1000 ft to 10,000+ ft)
Altitude, non-operating (below mean sea level, max)	–304.8 m to 12,192 m (–1000 ft to 40,000+ ft)
Operational Shock	300 Gs at 2 ms max
Non-Operational Shock	650 Gs at 1 ms max
Vibration, operating	5–500 Hz: 0.7 Grms
Vibration, non-operating	5–500 Hz: 3.52 Grms
Nonrecoverable read errors	1 per 1014 bits read
Rated workload	Average annualized workload rating: <55 TB/year. The AFR specification for the productassumes the I/O workload does not exceedthe average annual- ized workload rate limit of 55 TB/year. Workloads exceeding the annualized rate may degrade the product AFRand impact reliability as experienced by the particular application. The averageannual- ized workload ratelimit is in units of TB per calendar year.
Warranty	To determine the warranty for a specific drive, use a web browser to access the following web page: http://www.seagate.com/support/warranty-and-replacements/. From this page, click on the “Is my Drive under Warranty” link. The following are required to be pro- vided: the drive serial number, model number (or part number) and country of purchase. The system will display the warranty information for the drive.
Load-unload cycles	600,000 at 25°C, 50% rel. humidity
Supports Hotplug operation per the Serial ATA Revision 3.2 specification	Yes

One GB equals one billion bytes when referring to hard drive capacity. Accessible capacity may vary depending on the operating environment and formatting.

Formatted Capacity

Model	Formatted Capacity1	Guaranteed Sectors	Bytes per Sector
5TB models	5000 GB	9,767,541,168	512 (logical) / 4096 (physical)
4TB models	4000 GB	7,814,037,168
3TB models	3000 GB	5,860,533,168

One GB equals one billion bytes when referring to hard drive capacity. Accessible capacity may vary depending on the operating environment and formatting.

LBA mode

When addressing these drives in LBA mode, all blocks (sectors) are consecutively numbered from 0 to n–1, where n is the number of guaranteed sectors as defined above.
Refer to Unpacking, Configuring and Mounting the Drive on page 17 (words 60-61 and 100-103) for additional information about 48-bit addressing support of drives with capacities over 137 GB.

Physical organization

Drive model	Read/write heads	Number of discs
5TB models	10	5
4TB models	10 / 8	5 / 4
3TB models	8	4

Recording and Interface Technology

Interface	Serial ATA (SATA)
Recording method	Perpendicular
Recording density	2254 Kb/in
Track density	580 Ktracks/in avg
Areal density	1307 Gb/in2 avg
Spindle speed	5400 RPM
Data transfer rate (up to)	140 MB/s
Interface	SATA 6Gb/s

Physical Characteristics

All models	Height	15.0 +0.5/- 0.25 mm (0.59 +0.008/-0.010 in)
	Width	69.85 +/- 0.25 mm (2.750 +/- 0.010 in)
	Length	100.35 +0.20 / -0.25 mm (3.951 +0.008 / -0.010 in)
	Weight (max)	190 g (0.42lb)
	Cache buffer	128 MB (129,536 KB)

Seek time

Seek measurements are taken with nominal power at 25°C ambient temperature. All times are measured using drive diagnostics. The specifications in the table below are defined as follows:

Average seek time is determined by averaging the time to complete 1,000 seeks of random length.
Average latency is the time required for the drive to rotate 1/2 of a revolution and on average is incurred after a seek completion prior to reading or writing user data.
Startup time is the time elapsed between the supply voltages reaching operating range and the drive being ready to accept all commands.
Actual rotational speed can be different a little.
Performance specification is limited to the room temperature & normal voltage condition.

Table 2: Typical seek times

Typical seek times (ms)	Read/Write
Average	14.0/14.0
Average latency	5.6

Note: Seek time is defined as the time from the receipt of a read, write or seek comman d until the actuator has repositioned and settled on the desired track with the drive operating at nominal DC input voltages and nominal operating temperature.

Start/stop times

Table 3: Start/stop times

Capacity	5TB, 4TB and 3TB models
Typical seek times (ms)	Typical
Power-on to ready (sec)	7.5
Standby to ready (sec)	6.5

Power Specifications

The drive receives DC power (+5V) through a native SATA power connector (refer to1).

Power consumption

Power requirements for the drives are listed in the table in Table 4. Typical power measurements are based on an average of drives tested, unde r nominal conditions, at 25°C ambient temperature. These power measurements are done with DIPM enabled.

Spinup current is measured from the time of power-on to the time that the drive spindle reaches operating speed.
Read/Write current is measured with the heads on track, based on three 64 sector read or write operations every 100 ms.
The drive supports two idle modes: Active Idle mode and Low Power Idle mode.

Table 4: DC Power Requirements

Power Dissipation	5TB, 4TB & 3TB models +5V input average (25° C)
Spinup (max)	1.2A
Write average	2.10W
Read average	1.90W
Idle, low power mode	0.85W
Standby1	0.18W
Sleep	0.18W

Standby power is measured at steady state (after 200ms from transition)

Conducted noise
Input noise ripple is measured at the host system power supply across an equivalent 15-ohm resistive load on the +5 volt line.

Using 5-volt power, the drive is expected to operate with a maximum of 100 mV peak-to-peak square-wave injected noise at up to 20 MHz.

Note: Equivalent resistance is calculated by dividing the nominal voltage by the typical RMS read/write current.

Supply Voltage

Allowable voltage	5V ± 5%
Allowable noise/ripple	100 mV p-p max, 0-30 MHz
Allowable supply rise time	1-100 ms
Allowable supply fall time	<5 s

Power-management modes

The drive provides programmable power management to provide greater energy efficiency. In most systems, users can control power management through the system setup program.

The drive features the following power-management modes:

Power modes	Heads	Spindle	Electronics
Active	Tracking	Rotating	Full Power
Idle, Active	Floating	Rotating	Partial Power
Idle, Low Power	Parked	Rotating	Partial Power
Standby	Parked	Stopped	Low Power
Sleep	Parked	Stopped	Low Power

Active mode
The drive is in Active mode during the read/write and seek operations.
Idle mode
The electronics remain powered, and the drive accepts all commands and returns to Active mode when disk access is necessary.
Standby mode
The drive enters Standby mode immediately when the host sends a Standby Immediate command. If the host has set the standby timer, the drive enters Standby mode automatically after the drive has been inactive for a specifiable length of time. The standb y timer delay is established using a Standby or Idle command. In Standby mode, the electronics are in low power mode, the heads are parked and the spindle is at rest. The drive accepts all commands and returns to Active mode when disk access is necessary.
Sleep mode
The drive enters Sleep mode after receiving a Sleep command from the host. In Sleep mode, the electronics are in low power mode, the heads are parked and the spindle is at rest. The drive leaves Sleep mode after it receives a Hard Reset or Soft Reset from the host. After receiving a reset, the drive exits Sleep mode and enters Standby mode.

Environmental Specifications

This section provides the temperature, humidity, shock, and vibration specifications for Seagate BarraCuda drives. Ambient temperature is defined as the temperature of the environment immediately surrounding the drive. Above 1000 feet (305 meters), the maximum temperature is derated linearly by 1°C every 1000 feet.

Table 5: Environmental specifications

Parameters	Operating	Non-Operating
Ambient temperature	0° to 60°C (32° to 140°F)	-40° to 70°C (-40° to 158°F)
Temperature gradient	20°C per hour (68°F per hour) max, without condensation	35°C per hour (95°F per hour) max, without condensation
Humidity	5% to 95% non-condensing (30% per hour)	5% to 95% non-condensing (30% per hour)
Wet bulb	37.7°C (99.8°F) max	40°C (104°F) max
Altitude	-304.8m to 3048m (-1000ft to 10,000ft)	-304.8m to 12,192m (-1000ft to 40,000ft)

Note

The recommended storage period:

1 year under controlled conditions of 34°C 90%RH or less
90 days in uncontrolled storage conditions

Shock

All shock specifications assume that the drive is mounted securely with the input shock applied at the drive mounting screws. Shock may be applied in the X, Y, or Z axis.
Operating shock
These drives comply with the performance levels specified in this document when subjected to a maximum operating shock of 300 Gs based on half-sine shock pulses of 2 ms. Shocks should not be repeated more than one time per axis. Shocks should not be repeated more than one time per axis. There must be a minimum delay of 3 seconds between pulses.
Non-operating shock
The non-operating shock level that the drive can experience without incurring physical damage or degradation in performance when subsequently put into operation is 650 Gs based on a non-repetitive half-sine shock pulse of 1 ms duration.
Vibration
All vibration specifications assume that the drive is mounted securely with the input vibration applied at the drive mounting screws. Vibration may be applied in the X, Y, or Z axis.
Operating vibration
The maximum vibration levels that the drive may experience while meeting the performance standards specified in this document are specified below.

5-500 Hz, Sequential 0.7 Grms

Non-operating vibration
The maximum non-operating vibration levels that the drive may experience without incurring physical damage or degradation in performance when subsequently put into operation are specified below.

5-500 Hz, Random 3.52 Grms

Acoustics

Drive emission of sound is measured consistent with the ECMA-74 and its referenced standards. Testing is conducted at room temperatur e (approximately 25°C). Emission levels are reported as the total A-weighted sound power levers for steady state, idle, and active seeks modes of operation.
Table 6: Drive A-weighted Sound Power Levels (SWL, BA)

	Idle1	Performance Seek
5TB, 4TB & 3TB models	2.6 bels (typ)	2.7 bels (typ)

During periods of drive idle, some offline activity may occur according to the S.M.A.R.T. specification, which may increase acoustic and power to operational levels.

Test for prominent discrete tones (PDTs)
Seagate follows the ECMA-74 standards for measurement and identification of PDTs. An exception to this process is the use of the absolut e threshold of hearing. Seagate uses the lower limit for the threshold curve* to discern tone audibility and to compensate for the inaudibl e components of sound prior to computation of tone ratios according to Annex D of the ECMA-74 standards.

Defined as the median curve given by ISO 389-7 (Tf curve) minus 10dB at all frequencies.

Electromagnetic Immunity
When properly installed in a representative host system, the drive operates without errors or degradation in performance when subjected to the radio frequency (RF) environment as defined in Table 7.

Table 7 Radio Frequency Environments

Test	Description	Performance Criteria	Reference Standard
Electrostatic discharge	Contact, HCP, VCP: ± 4 kV; Air: ± 8 kV	B	EN 61000-4-2: 95
Radiated RF immunity	80 to 1GHz, 3 V/m, 80% AM with 1 kHz sine 900 MHz, 3 V/m, 50% pulse modulation @ 200 Hz	A	EN 61000-4-3: 96 ENV 50204: 95
Electrical fast transient	± 1 kV on AC mains, ± 0.5 kV on external I/O	B	EN 61000-4-4: 95
Surge immunity	± 1 kV differential, ± 2 kV common, AC mains	B	EN 61000-4-5: 95
Conducted RF immunity	150 kHz to 80 MHz, 3 Vrms, 80% AM with 1 kHz sine	A	EN 61000-4-6: 97
Power Frequency H-field immunity	1 A/m, 50Hz/60Hz, 3 axes	A	EN 61000-4-8: 97
Voltage dips, interrupts	30% Reduction for 25 cycles >95% Reduction for 250 cycles >95%, 0.5 cycles	C C B	EN 61000-4-11: 94

Reliability

Nonrecoverable read errors	1 per 1014 bits read, max
Load/Unload (U/UL) 25°C, 50% relative humidity	600,000 software-controlled power on/off cycles 20,000 hard power on/off cycles
Rated workload	Average annualized workload rating: <55 TB/year. The AFR specification for the product assumes the I/O workload does not exceed the average annualized workload rate limit of 55 TB/year. Workloads exceeding the annualized rate may degrade the product AFR and impact reliability as experienced by the particular application. The average annualized workload rate limit is in units of TB per calendar year.
Warranty	To determine the warranty for a specific drive, use a web browser to access the following web page: http://www.seagate.com/support/warranty-and-replacements/. From this page, click on the “Is my Drive under Warranty” link. The following are required to be provided: the drive serial number, model number (or part number) and country of purchase. The system will display the warranty information for the drive.

Description

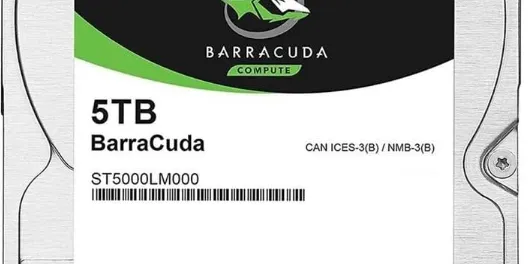

The Seagate Barracuda 2.5 SATA ST5000LM000 is built with reliability and performance in mind. Its 5TB storage capacity allows users to store thousands of hours of video, tens of thousands of photos, and countless documents. The drive's 5400 RPM spindle speed and 128MB cache ensure fast data transfer rates, making it suitable for demanding applications such as video editing and gaming.

The drive's compact 2.5-inch form factor makes it compatible with most laptops and mobile devices, providing an easy upgrade path for those needing additional storage. Seagate's robust design and manufacturing process ensure that the drive can withstand the rigors of daily use.

Unpacking, Configuring, and Mounting the Drive

This chapter describes how to unpack, mount, configure and connect a BarraCuda. It also describes how to install the drive in systems.

Handling and Static-Discharge Precautions

After unpacking, and before installation, the drive may be exposed to potential handling and electrostatic discharge (ESD) hazards. Observe the following standard handling and static-discharge precautions.

CAUTION

Keep the drive in the electrostatic discharge (ESD) bag until ready for installation to limit the drive’s exposure to ESD.
Before handling the drive, put on a grounded wrist strap, or ground yourself frequently by touching the metal chassis of a computer that is plugged into a grounded outlet. Wear a grounded wrist strap throughout the entir e installation procedure.
Handle the drive by its edges or frame only.
The drive is extremely fragile—handle it with care. Do not press down on the drive top cover.
Always rest the drive on a padded, antistatic surface until mounting it in the computer.
Do not touch the connector pins or the printed circuit board.
Do not remove the factory-installed labels from the drive or cover them with additional labels. Removal voids the warranty. Some factory-installed labels contain information needed to service the drive. Other labels are used to seal out dirt and contamination.

Configuring the Drive

Each drive on the Serial ATA interface connects in a point-to-point configuration with the Serial ATA host adapter. There is no master/slave relationship because each drive is considered a master in a point-to-point relationships. If two drives are attached on one Serial ATA host adapter, the host operating system views the two devices as if they were both “masters” on two separate ports. Both drives behave as if they are Device 0 (master) devices.

Serial ATA Cables and Connectors

The Serial ATA interface cable consists of four conductors in two differential pairs, plus three ground connections. The cable size may be 30 to 2 6 AWG with a maximum length of one meter (39.37 in). Refer to Table 9 for connector pin definitions. Either end of the SATA signal cable can be attached to the drive or host.

For direct backplane connection, the drive connectors are inserted directly into the host receptacle. The drive and the host receptacle incorporate features that enable the direct connection to be hot pluggable and blind mateable. For installations which require cables, users can connect the drive as shown in1.

Figure 1 Attaching SATA Cabling


Each cable is keyed to ensure correct orientation. BarraCuda drives support latching SATA connectors.

Drive Mounting

Users can mount the drive in any orientation using four screws in the side-mounting holes or four screws in the bottom-mounting holes. Refer to2 and Figure 2 for drive mounting dimensions. Follow these important mounting precautions when mounting the drive:

Allow a minimum clearance of 0.030 in (0.76 mm) around the entire perimeter of the drive for cooling.
Use only M3 x 0.5 mounting screws.
Do not overtighten the mounting screws. Maximum torque: 4.0 in-lb (0.4519 N-m).
Four (4) threads (0.080 in, 2.032 mm) minimum screw engagement recommended.
Avoid excessive drive distortion when mounting. Refer to the following specifications for stiffness/deflection information:

Top cover stiffness/deflection
Operating: no performance degradation, emitted noise, mechanical damage, or hard errors	10 mm probe: 2.0kgf (typical)
Non-operating: no hard errors	10 mm probe: maximum 2.0kgf (instantaneous)

Figure 2 Mounting Dimensions (for 1-disk models)


Serial ATA (SATA) Interface

These drives use the industry-standard Serial ATA interface that supports FIS data transfers. It supports ATA programmed input/output (PIO) mode s 0–4; multiword DMA modes 0–2, and Ultra DMA modes 0–6. The drive also supports the use of the IORDY signal to provide reliable high-speed data transfers.

Hot-Plug Compatibility

BarraCuda drives incorporate connectors which enable users to hot plug these drives in accordance with the Serial ATA: High Speed Serialized A T Attachment specification revision 2.0. This specification can be downloaded from https://www.serialata.org This device requires a COMRESET from th e host after a hotplug event.

Serial ATA Device Plug Connector Pin Definitions

Table 9 summarizes the signals on the Serial ATA interface and power connectors. Refer to the Table Notes below.

Table 9 Serial ATA Connector Pin Definitions

Segment	Pin	Function	Definition
Signal	S1	Ground	2nd mate
	S2	A+	Differential signal pair A from Phy
	S3	A-	Differential signal pair A from Phy
	S4	Ground	2nd mate
	S5	B-	Differential signal pair B from Phy
	S6	B+	Differential signal pair B from Phy
	S7	Ground	2nd mate
Key and spacing separate signal and power segments
Power	P1	V33	3.3V power
	P2	V33	3.3V power
	P3	V33	3.3V power, pre-charge, 2nd mate
	P4	Ground	1st mate
	P5	Ground	2nd mate
	P6	Ground	2nd mate
	P7	V5	5V power, pre-charge, 2nd mate
	P8	V5	5V power
	P9	V5	5V power
	P10	Ground	2nd mate
	P11	Ground or LED signal	If grounded, drive does not use deferred spin
	P12	Ground	1st mate
	P13	V12	12V power, pre-charge, 2nd mate
	P14	V12	12V power
	P15	V12	12V power

Notes

All pins are in a single row, with a 1.27 mm (0.050 in) pitch.
The comments on the mating sequence apply to the case of backplane blindmate connector only. In this case, the mating sequences are:
- the ground pins P4 and P12.
- the pre-charge power pins and the other ground pins.
- the signal pins and the rest of the power pins.
There are three power pins for each voltage. One pin from each voltage is used for pre-charge when installed in a blind-mate backplane configuration.
All used voltage pins (Vx) must be terminated.

Supported ATA Commands

Table 10 lists Serial ATA standard commands that the drive supports. For a detailed description of the ATA commands, refer to the Serial AT A International Organization: Serial ATA (Revision 2.6). Refer to https://www.sata-io.org

Refer to S.M.A.R.T. commands on page 28 for details and subcommands used in the S.M.A.R.T. implementation.
Table 10 Supported ATA commands

ATA-standard commands names	Command code (in hex)
Device Configuration Restore	B1h/C0h
Device Configuration Freeze Lock	B1h/C1h
Device Configuration Identify	B1h/C2h
Device Configuration Set	B1h/C3h
Download Microcode	92h
Execute Device Diagnostics	90h
Flush Cache	E7h
Flush Cache Extended	EAh
Identify Device	ECh
Initialize Device Parameters	91h
Read Buffer	E4h
Read DMA	C8h
Read DMA Extended	25h
Read DMA without Retries	C9h
Read Long with Retries	22h
Read Long without Retries	23h
Read Multiple	C4h
Read Multiple Extended	29h
Read Native Max Address	F8h
Read Native Max Address Extended	27h
Read Sectors	20h
Read Sectors Extended	24h
Read Sectors without Retries	21h
Read Verify Sectors	40h

ATA-standard commands names	Command code (in hex)
Read Verify Sectors Extended	42h
Read Verify Sectors without Retries	41h
Seek	70h
Set Features	EFh
Set Max Address	F9h
Note: Individual Set Max commands are identified by the value	Address:	00H
placed in the Set Max Features register as defined to the right.	Password: Lock:
		01H 02H
	Unlock:
		03H
	Freeze Lock:
		04H
Set Max Address Ext	37h
Set Multiple Mode	C6h
S.M.A.R.T. Disable Operations	B0h/D9h
S.M.A.R.T. Enable/Disable Autosave	B0h/D2h
S.M.A.R.T. Enable Operations	B0h/D8h
S.M.A.R.T. Enable/Disable Auto Offline	B0h/DBh
S.M.A.R.T. Enable One Attribute Modification	B0h/E0h
S.M.A.R.T. Execute Offline	B0h/D4h
S.M.A.R.T. Free Fall Protection Host Interface	FEh
S.M.A.R.T. Read Attribute Thresholds	B0h/D1h
S.M.A.R.T. Read Data	B0h/D0h
S.M.A.R.T. Read Log Sector	B0h/D5h
S.M.A.R.T. Return Status	B0h/DAh
S.M.A.R.T. Save Attribute Values	B0h/D3h
S.M.A.R.T. Write Attribute Thresholds	B0h/D7h
S.M.A.R.T. Write Attribute Values	B0h/E1h
S.M.A.R.T. Write Log Sector	B0h/D6h
Trusted Receive	5Ch	(SED only)
Trusted Receive DMA	5Dh	(SED only)
Trusted Send	5Eh	(SED only)
Trusted Send DMA	5Fh	(SED only)
Write Buffer	E8h
Write DMA	CAh
Write DMA Extended	35h
Write DMA without Retries	CBh
Write Long with Retries	32h

ATA-standard commands names	Command code (in hex)
Write Long without Retries	33h
Write Multiple	C5h
Write Multiple Extended	39h
Write Sectors	30h, 31h
Write Sectors Extended	34h
ATA-standard power-management commands
Check Power Mode	E5h
Idle	E3h
Idle Immediate	E1h
Sleep	E6h
Standby	E2h
Standby Immediate	E0h
ATA-standard security commands
Security Set Password	F1h
Security Unlock	F2h
Security Erase Prepare	F3h
Security Erase Unit	F4h
Security Freeze Lock	F5h
Security Disable Password	F6h

Identify Device command

The Identify Device command (command code ECH) transfers information about the drive to the host following power up. The data is organized as a single 512-byte block of data, whose contents are shown in Table 11. All reserved bits or words should be set to zero. Parameters listed with an “x ” are drive-specific or vary with the state of the drive. Refer to Drive Specifications Summary on page 6 for default parameter settings.
The following commands contain drive-specific features that may not be included in the Serial ATA specification.
Table 11 Identify Device command

Word	Description	Value
0	Configuration information: Bit 15: 0 = ATA; 1 = ATAPI Bit 7: removable media Bit 6: removable controller Bit 0: reserved	0C5AH
1	Number of logical cylinders	16,383
2	Specific configuration	C837H
3	Number of logical heads	16
4	Retired	0000H
5	Retired	0000H
6	Number of logical sectors per logical track: 63	003FH
7–9	Retired	0000H
10–19	Serial number: (20 ASCII characters, 0000H = none)	ASCII
20	Retired	0000H
21	Retired	8000H
22	Obsolete	0004H
23–26	Firmware revision: (8 ASCII character string, padded with blanks to end of string)	x.xx
27–46	Drive model number: (40 ASCII characters, padded with blanks to end of string)	ST5000LM000 ST4000LM024 ST3000LM024
47	(Bits 7–0) Maximum sectors per interrupt on Read multiple and Write multiple (16)	8010H
48	Trusted Computing Feature set options	4001H
49	Standard Standby timer, IORDY supported and may be disabled	2F00H
50	Capabilities	4000H
51	PIO data-transfer cycle timing mode	0200H
52	Retired	0200H
53	Words 54–58, 64–70 and 88 are valid	0007H
54	Number of current logical cylinders	xxxxH
55	Number of current logical heads	xxxxH
56	Number of current logical sectors per logical track	xxxxH
57–58	Current capacity in sectors	xxxxH
59	Number of sectors transferred during a Read Multiple or Write Multiple command	xxxxH

60–61	Total number of user-addressable sectors This field contains a value that is one greater than the total number of user-addressable sectors. Themaximum value that shall be placed in this fieldis 0FFFFFFFh. The 0FFFFFFFh value applies to all capacities over 137GB (see Section 2.2, Formatted Capacity for related information).	ST5000LM000 = 0FFFFFFFh ST4000LM024 = 0FFFFFFFh ST3000LM024 = 0FFFFFFFh
62	Retired	0000H
63	Multiword DMA activeand modes supported (see note following this table)	xx07H
64	Advanced PIO modes supported (modes 3 and 4 supported)	0003H
65	Minimum multiword DMA transfer cycle time per word (120 ns)	0078H
66	Recommended multiword DMA transfer cycle time per word (120 ns)	0078H
67	Minimum PIO cycle time without IORDY flow control (240 ns)	0078H
68	Minimum PIO cycle time with IORDY flow control (120 ns)	0078H
69	Additional Supported bits Bit 4 means Device Encrypts All User Data on the device. Bit 7 means IEEE1667 protocol is supported.	xx1xH or xx9xH
70–74	ATA-reserved	0000H
75	Queue depth	001FH
76	Serial ATA capabilities	0D06H
77	ATA-reserved	0000H
78	Serial ATA features supported	0048H
79	Serial ATA features enabled	0048H
80	Major version number	01F0H
81	Minor version number	0029H
82	Command sets supported	746BH
83	Command sets supported	7D69H
84	Command sets support extension	61E3H
85	Command sets enabled	7469
86	Command sets enabled	BC49H
87	Command sets enable extension	61E3H
88	Ultra DMA support and current mode (see note following this table)	xx7FH
89	Security erase time	xxxxH
90	Enhanced security erase time	xxxxH
91	Current APM values	8080H
92	Master password revision code	FFFEH
93	Hardware reset value (see description following this table)	xxxxH
94	Auto acoustic management setting	xxxxH
95	Stream Min. Request Size	0000H

96	Streaming Transfer Time - DMA	0000H
97	Streaming Access Latency - DMA and PIO	0000H
98-99	Streaming Performance Granularity	0000H
100–103	Total number of user-addressable LBA sectors available (see Section 3.2, Configuring the Drive for related information) These words are required for drives that support the 48-bit addressing feature. Maximum value: 0000FFFFFFFFFFFFh.	ST5000LM000 = 9,767,541,168 ST4000LM024 = 3,907,029,168 ST3000LM024 = 1,953,525,168
104	Streaming Transfer Time - PIO	0000H
105	Reserved	0000H
106	Physical sector size / Logical sector size	6003H
107	Seagate reserved	0000H
108-111	The mandatory value of the world wide name (WWN) for the drive. NOTE: This field is valid if word 84, bit 8 is set to 1 indicating 64-bit WWN support.	Each drive will have a unique value.
112-118	ATA-reserved	0000H
119	Free Fall Protection support (bit 5)	1 = Free Fall Protection supported 0 = Free Fall Protection not supported
120	Free Fall Protection enable/disable (bit 5)	1 = Free Fall Protection feature is enabled 0 = Free Fall Protection feature is disabled
121–127	ATA-reserved	0000H
128	Security status	0021H
129–159	Seagate-reserved	xxxxH
160–221	ATA-reserved	0000H
222	Transport major version number	101FH
223–254	ATA-reserved	0000H
255	Integrity word	xxA5H

Table 12 Bit Descriptions

Description (if bit is set to 1)
Bit	Word 63
0	Multiword DMA mode 0 is supported.
1	Multiword DMA mode 1 is supported.
2	Multiword DMA mode 2 is supported.
8	Multiword DMA mode 0 is currently active.
9	Multiword DMA mode 1 is currently active.
10	Multiword DMA mode 2 is currently active.
Bit	Word 88
0	Ultra DMA mode 0 is supported.
1	Ultra DMA mode 1 is supported.
2	Ultra DMA mode 2 is supported.
3	Ultra DMA mode 3 is supported.
4	Ultra DMA mode 4 is supported.
5	Ultra DMA mode 5 is supported.
6	Ultra DMA mode 6 is supported.
8	Ultra DMA mode 0 is currently active.
9	Ultra DMA mode 1 is currently active.
10	Ultra DMA mode 2 is currently active.
11	Ultra DMA mode 3 is currently active.
12	Ultra DMA mode 4 is currently active.
13	Ultra DMA mode 5 is currently active.
14	Ultra DMA mode 6 is currently active.
Bit	Word 93
13	1 = 80-conductor cable detected, CBLID above VIH 0= 40-conductor cabledetected, CBLID belowVIL

Set Features command

This command controls the implementation of various features that the drive supports. When the drive receives this command, it sets BSY, check s the contents of the Features register, clears BSY and generates an interrupt. If the value in the register does not represent a feature that the drive supports, the command is aborted. Power-on default has the read look-ahead and write caching features enabled.
The acceptable values for the Features register are defined as follows:
Table 13 Set Features command values

02H	Enable write cache (default).
03H	Set transfer mode (based on value in Sector Countregister). Sector Count register values: 00H Set PIO mode to default (PIO mode 2). 01H Set PIO mode to default and disable IORDY (PIO mode 2). 08H PIO mode 0 09H PIO mode 1 0AH PIO mode 2 0BH PIO mode 3 0CH PIO mode 4 (default) 20H Multiword DMA mode 0 21H Multiword DMA mode 1 22H Multiword DMA mode 2 40H Ultra DMA mode 0 41H Ultra DMA mode 1 42H Ultra DMA mode 2 43H Ultra DMA mode 3 44H Ultra DMA mode 4 45H Ultra DMA mode 5 46H Ultra DMA mode 6
55H	Disable read look-ahead (read cache) feature.
82H	Disable write cache
AAH	Enable read look-ahead (read cache) feature (default).
C1H	Disable the Free Fall Protection feature (41H above enables the Free Fall Protection feature)
F1H	Report full capacity available

Note: At power-on, or after a hardware or software reset, the default values of the features are as indicated above

S.M.A.R.T. commands

S.M.A.R.T. provides near-term failure prediction for disk drives. When S.M.A.R.T. is enabled, the drive monitors predetermined drive attributes that are susceptible to degradation over time. If self-monitoring determines that a failure is likely, S.M.A.R.T. makes a status report available to the host. Not all failures are predictable. S.M.A.R.T. predictability is limited to the attributes the drive can monitor. For more information on S.M.A.R.T. commands and implementation, see the Draft ATA-5 Standard.
SeaTools diagnostic software activates a built-in drive self-test (DST S.M.A.R.T. command for D4H) that eliminates unnecessary drive returns. The diagnostic software ships with all new drives and is also available at: http://www.seagate.com/support/downloads/seatools/
This drive is shipped with S.M.A.R.T. features disabled. Users must have a recent BIOS or software package that supports S.M.A.R.T. to enable this feature. The table below shows the S.M.A.R.T. command codes that the drive uses.

Table 14 S.M.A.R.T. Commands

Code in features register	S.M.A.R.T. command
D0H	S.M.A.R.T. Read Data
D2H	S.M.A.R.T. Enable/Disable Attribute Autosave
D3H	S.M.A.R.T. Save Attribute Values
D4H	S.M.A.R.T. Execute Off-line Immediate (runs DST)
D5H	S.M.A.R.T. Read Log Sector
D6H	S.M.A.R.T. Write Log Sector
D8H	S.M.A.R.T. Enable Operations
D9H	S.M.A.R.T. Disable Operations
DAH	S.M.A.R.T. Return Status

Note: If an appropriate code is not written to the Features Register, the command is aborted and 0x 04 (abort) is written to the Error register.

Setup Guide

To set up the Seagate Barracuda 2.5 SATA ST5000LM000, follow these steps:

Shut down your laptop or device completely.
Locate the hard drive bay in your device. This is usually accessible from the bottom or side.
Remove any screws holding the bay cover in place and carefully pull out the existing drive (if applicable).
Connect the new drive to the SATA port on your motherboard, ensuring it is securely seated.
Replace any screws you removed to secure the drive in place.
Boot up your device and enter the BIOS settings (usually by pressing F2, F12, or Del during startup).
Recognize the new drive in the BIOS settings and save the changes.
Install an operating system if necessary or format the drive through your operating system's disk management tools.

Troubleshooting

If you encounter issues with your Seagate Barracuda 2.5 SATA ST5000LM000, here are some common problems and solutions:

Drive Not Recognized: Ensure the drive is properly connected to the SATA port and recognized by the BIOS. Check for loose connections.
Slow Performance: Check for disk fragmentation and run a disk defragmentation tool if necessary. Also, ensure that no other resource-intensive processes are running in the background.
Data Loss: Regularly back up your data to prevent loss. Use a reliable backup solution like an external hard drive or cloud storage.
Overheating: Ensure good airflow around your device to prevent overheating. Avoid placing the device on soft surfaces that may block air vents.

Seagate Barracuda 2.5 SATA ST5000LM000 Pros & Cons

Pros

High Storage Capacity: Offers 5TB of storage, ideal for large data sets.
Compact Design: The 2.5-inch form factor makes it compatible with most laptops.
Reliable Performance: 5400 RPM spindle speed and 128MB cache ensure smooth data access.
Energy Efficiency: Low power consumption helps extend battery life in mobile devices.

Cons

Speed Limitations: While adequate for most users, faster SSDs may outperform this HDD in certain tasks.
Physical Sensitivity: As with all mechanical drives, it can be sensitive to physical shocks and drops.
Noise Level: May produce more noise compared to solid-state drives due to its mechanical nature.

Customer Reviews

Customer reviews for the Seagate Barracuda 2.5 SATA ST5000LM000 have been generally positive, with many users praising its high storage capacity and reliable performance. However, some users have noted that it may not be as fast as solid-state drives and can be noisy during operation.

Common Complaints:

Some users have reported issues with compatibility in certain laptop models.
A few users have experienced slower write speeds compared to other hard drives.

Search Manuals in: 25-sata

Read More
