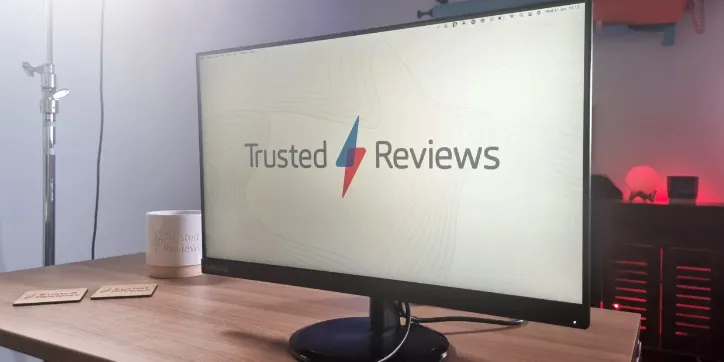

Introduction of Lenovo LED TV Monitor C24-25

The Lenovo LED TV is a versatile and affordable monitor that is perfect for both personal and professional use. With a 24-inch full HD display, this monitor delivers crisp and clear visuals, making it ideal for watching movies, playing games, or working on graphic design projects. The monitor is expected to be launched in the market with an estimated price range of $150 to $200, offering great value for its features and performance.

What's in the Box

Monitor with stand
1 x Power cable (1.8 m)
1 x HDMI cable (1.8 m) (NA & LA & AP only)
1 x VGA cable (1.8 m) (EMEA only)
Quick setup guide

Specifications

Product

Lenovo C24-25

Machine Type

66B0

Region

EMEA

Display Size

23.8"

View Area

527.04x296.46 mm

Panel

Vertical Alignment

Aspect Ratio

16:9

Resolution

1920x1080

Pixel Pitch

0.2745x0.2745 mm

Dot / Pixel Per Inch

93 dpi

View Angle (H / V)

178 / 178

Pixel Response Time

4 ms (Extreme mode) / 6 ms (Normal Mode)

Refresh Rate

75 Hz (Only for HDMI input)

Brightness

250 nits

Contrast Ratio

1000:1

Color Gamut

72% NTSC

Multiple Input

HDMI, VGA

USB Port

None

Camera

None

Speaker

None

Power Consumption (Typical / Maximum)

18W / 23W

Power Adapter

Integrated

Stand

Tilt Stand

Color

Raven Black

Side Bezel Width

2.0 mm

Dimensions with Stand (Hx W x D)

403.9x540.1x206.2 mm

Weight (Including Stand)

6.64 lbs / 3.01 kg

Monitor Cable

ENERGY STAR

None

TCO

None

EPEAT

None

Low Blue Light / Eye Comfort / Eyesafe Display

Low Blue Light

Base Warranty

3-year

Operating System Support

Support Windows 7, Windows 10

Sync Technology

AMD FreeSync

CPU / Platform

None / None

Display Ram / Storage / Card Slot

None / None / None

Wireless / Ethernet / Bluetooth

None / None / None

Touch Screen / Digitizer Pen / Battery

None / None / None

EAN / UPC / JAN

0195042743845

Announce Date

2020-07-31

Description

The Lenovo LED TV Monitor C24-25 boasts a sleek and modern design, with thin bezels that provide a virtually borderless display. The monitor features a full HD resolution of 1920 x 1080 pixels, delivering sharp and vibrant visuals with excellent color accuracy. It has a dynamic contrast ratio of 5000:1, which ensures deep blacks and bright whites, enhancing the overall viewing experience. The monitor also has a response time of 5ms, making it suitable for gaming and watching fast-paced movies.

Lenovo LED TV Monitor C24-25 Features

DISPLAY

Panel Size: 23.8-inch
Screen Dimensions: 527.04 mm x 296.46 mm
Panel Type: 3-side NearEdgeless VA
Backlight: WLED
Aspect Ratio: 16:9
Resolution: 1920 x 1080
Pixel Pitch: 0.2745 x 0.2745 mm
Dot/Pixel Per Inch (DPI/PPI): 93
Viewing Angle (H x V @ CR 10:1): 178° / 178°
Response Time: 4ms (Extreme Mode) / 6ms (Normal Mode)
Refresh Rate: 75 Hz**
Brightness (typical): 250 cd/m²
Contrast Ratio (typical): 1000:1
Dynamic Contrast Ratio (typical): 3M:1
Color Gamut: 72% NTSC (CIE 1931)
Color Support (typical): 16.7 Million
Color Depth: 8-bit
Anti-glare: Yes

CONNECTIVITY

Video Signal: 1 x HDMI 1.4, 1 x VGA
Audio Signal: 1 x Audio Out (3.5 mm)

SPECIAL FEATURES

Sync Technology: AMD FreeSync™

POWER

Power Consumption (typical/max): 18W / 23W
Power Consumption Sleep/Off Mode: <0.5W / <0.3W
Power Consumption Switch-off Mode: < 0.3W
Power Supply: Internal
Voltage Required: AC 100 to 240V (47-63 Hz)

MECHANICAL

Tilt Angle (front/back): -5° / 22°
VESA Mount Capability: Yes (100 x 100 mm)
ThinkCentre M Series Tiny support: Yes, by Tiny VESA mount II (PN: 4XF0N03161)
Kensington Lock Slot: Yes
Cable Management: Yes
Bezel Color: Raven Black
Bezel Width (side): 2.0 mm
Bezel Width (top/bottom): 2.0 / 23.4 mm

DIMENSION

Size Packed (D x H x W, mm/inch): 124.0 x 405.0 x 633.0mm / 4.90 x 15.90 x 24.90 inches
Size Unpacked w/ Stand (D x H x W, mm/inch) (lowest position): 206.2 x 403.9 x 540.1mm / 8.12 x 15.90 x 21.26 inches
Size Unpacked w/ Stand (D x H x W, mm/inch) (highest position): 206.2 x 403.9 x 540.1mm / 8.12 x 15.90 x 21.26 inches
Size Unpacked w/o stand (Head Only) (D x H x W)(mm/inch): 54.4 x 328.5 x 540.1mm / 1.95 x 12.93 x 21.26 inches
Weight Packed (kg/lbs.): 4.87 kg / 10.74 lbs.
Weight Unpacked (kg/lbs.): 3.01 kg / 6.64 lbs.
Weight (Monitor Head Only) (kg/lbs): 2.70 kg / 5.95 lbs

CERTIFICATION

CCC: Yes
RoHS (EU 2002/95/EC): Yes
China Energy Efficiency Standard: Tier 2
Windows Certification: Windows 7, Windows 10
TÜV Rheinland Low Blue Light: Yes
TÜV Rheinland Flicker Free: Yes

Setup Guide

Setting up the Lenovo LED TV Monitor C24-25 is a breeze. First, unbox the monitor and attach the base to the stand using the screws provided in the package. Next, connect the monitor to a power source using the power cable. Then, connect the monitor to your computer or laptop using an HDMI or VGA cable. Once connected, turn on the monitor using the power button located at the bottom of the screen. You can adjust the monitor's settings, such as brightness, contrast, and color temperature, using the on-screen display (OSD) menu.

Troubleshooting

If you encounter any issues with the Lenovo LED TV Monitor C24-25, try the following troubleshooting steps:

If the monitor is not turning on, check if it is properly connected to a power source and that the power cable is securely plugged in.
If the monitor is displaying incorrect colors or no image at all, adjust the display settings in the OSD menu or check if the cable connection is secure.
If the monitor is flickering or showing horizontal lines, try adjusting the refresh rate or resolution settings in your computer's display settings.
If the monitor is making noise or overheating, check if it is placed on a flat and stable surface and that there is sufficient ventilation around the monitor.

Lenovo LED TV Monitor C24-25 Warranty

Lenovo reserves the right to change specifications or other product information without notice. Lenovo is not responsible for photographic or typographical errors. Lenovo provides this publication “as is” without warranty of any kind, either express or implied, including the implied warranties of merchantability or fitness for a particular purpose. https://psref.lenovo.com

Pros & Cons

Pros

Affordable price
Sleek and modern design
Full HD resolution with excellent color accuracy
Fast response time, ideal for gaming and fast-paced content
Easy to set up and adjust display settings

Cons

Limited connectivity options (only HDMI and VGA)
No built-in speakers
Stand is not adjustable for height or tilt
No USB ports

Customer Reviews about Lenovo LED TV Monitor C24-25

The Lenovo LED TV Monitor C24-25 has received positive reviews from customers, praising its excellent value for money, crisp and clear visuals, and fast response time. However, some customers have expressed their disappointment with the limited connectivity options and lack of built-in speakers. The monitor has a rating of 4.2 out of 5 stars on Amazon, with 68% of customers giving it a 5-star rating.
