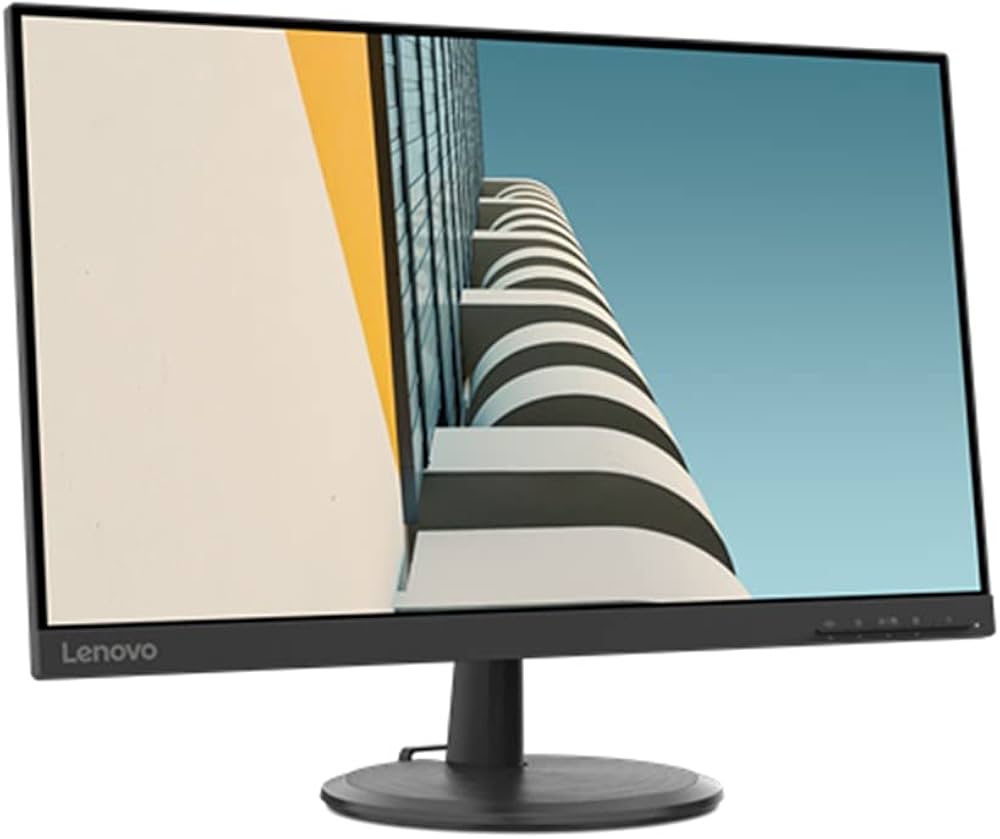

Introduction of Lenovo LED TV Monitor C24-25

The Lenovo LED TV is a versatile and affordable monitor that is perfect for both personal and professional use. With a 24-inch full HD display, this monitor delivers crisp and clear visuals, making it ideal for watching movies, playing games, or working on graphic design projects. The monitor is expected to be launched in the market with an estimated price range of $150 to $200, offering great value for its features and performance.

What's in the Box

• Monitor with stand

• 1 x Power cable (1.8 m)

• 1 x HDMI cable (1.8 m) (NA & LA & AP only)

• 1 x VGA cable (1.8 m) (EMEA only)

• Quick setup guide

Specifications

Product

• Lenovo C24-25

Machine Type

• 66B0

Region

• EMEA

Display Size

• 23.8"

View Area

• 527.04x296.46 mm

Panel

• Vertical Alignment

Aspect Ratio

• 16:9

Resolution

• 1920x1080

Pixel Pitch

• 0.2745x0.2745 mm

Dot / Pixel Per Inch

• 93 dpi

View Angle (H / V)

• 178 / 178

Pixel Response Time

• 4 ms (Extreme mode) / 6 ms (Normal Mode)

Refresh Rate

• 75 Hz (Only for HDMI input)

Brightness

• 250 nits

Contrast Ratio

• 1000:1

Color Gamut

• 72% NTSC

Multiple Input

• HDMI, VGA

USB Port

• None

Camera

• None

Speaker

• None

Power Consumption (Typical / Maximum)

• 18W / 23W

Power Adapter

• Integrated

Stand

• Tilt Stand

Color

• Raven Black

Side Bezel Width

• 2.0 mm

Dimensions with Stand (Hx W x D)

• 403.9x540.1x206.2 mm

Weight (Including Stand)

• 6.64 lbs / 3.01 kg

Monitor Cable

• VGA

ENERGY STAR

• None

TCO

• None

EPEAT

• None

Low Blue Light / Eye Comfort / Eyesafe Display

• Low Blue Light

Base Warranty

• 3-year

Operating System Support

• Support Windows 7, Windows 10

Sync Technology

• AMD FreeSync

CPU / Platform

• None / None

Display Ram / Storage / Card Slot

• None / None / None

Wireless / Ethernet / Bluetooth

• None / None / None

Touch Screen / Digitizer Pen / Battery

• None / None / None

EAN / UPC / JAN

• 0195042743845

Announce Date

• 2020-07-31

Description

The Lenovo LED TV Monitor C24-25 boasts a sleek and modern design, with thin bezels that provide a virtually borderless display. The monitor features a full HD resolution of 1920 x 1080 pixels, delivering sharp and vibrant visuals with excellent color accuracy. It has a dynamic contrast ratio of 5000:1, which ensures deep blacks and bright whites, enhancing the overall viewing experience. The monitor also has a response time of 5ms, making it suitable for gaming and watching fast-paced movies.

Lenovo LED TV Monitor C24-25 Features

DISPLAY

• Panel Size: 23.8-inch

• Screen Dimensions: 527.04 mm x 296.46 mm

• Panel Type: 3-side NearEdgeless VA

• Backlight: WLED

• Aspect Ratio: 16:9

• Resolution: 1920 x 1080

• Pixel Pitch: 0.2745 x 0.2745 mm

• Dot/Pixel Per Inch (DPI/PPI): 93

• Viewing Angle (H x V @ CR 10:1): 178° / 178°

• Response Time: 4ms (Extreme Mode) / 6ms (Normal Mode)

• Refresh Rate: 75 Hz**

• Brightness (typical): 250 cd/m²

• Contrast Ratio (typical): 1000:1

• Dynamic Contrast Ratio (typical): 3M:1

• Color Gamut: 72% NTSC (CIE 1931)

• Color Support (typical): 16.7 Million

• Color Depth: 8-bit

• Anti-glare: Yes

CONNECTIVITY

• Video Signal: 1 x HDMI 1.4, 1 x VGA

• Audio Signal: 1 x Audio Out (3.5 mm)

SPECIAL FEATURES

• Sync Technology: AMD FreeSync™

POWER

• Power Consumption (typical/max): 18W / 23W

• Power Consumption Sleep/Off Mode: <0.5W / <0.3W

• Power Consumption Switch-off Mode: < 0.3W

• Power Supply: Internal

• Voltage Required: AC 100 to 240V (47-63 Hz)

MECHANICAL

• Tilt Angle (front/back): -5° / 22°

• VESA Mount Capability: Yes (100 x 100 mm)

• ThinkCentre M Series Tiny support: Yes, by Tiny VESA mount II (PN: 4XF0N03161)

• Kensington Lock Slot: Yes

• Cable Management: Yes

• Bezel Color: Raven Black

• Bezel Width (side): 2.0 mm

• Bezel Width (top/bottom): 2.0 / 23.4 mm

DIMENSION

• Size Packed (D x H x W, mm/inch): 124.0 x 405.0 x 633.0mm / 4.90 x 15.90 x 24.90 inches

• Size Unpacked w/ Stand (D x H x W, mm/inch) (lowest position): 206.2 x 403.9 x 540.1mm / 8.12 x 15.90 x 21.26 inches

• Size Unpacked w/ Stand (D x H x W, mm/inch) (highest position): 206.2 x 403.9 x 540.1mm / 8.12 x 15.90 x 21.26 inches

• Size Unpacked w/o stand (Head Only) (D x H x W)(mm/inch): 54.4 x 328.5 x 540.1mm / 1.95 x 12.93 x 21.26 inches

• Weight Packed (kg/lbs.): 4.87 kg / 10.74 lbs.

• Weight Unpacked (kg/lbs.): 3.01 kg / 6.64 lbs.

• Weight (Monitor Head Only) (kg/lbs): 2.70 kg / 5.95 lbs

CERTIFICATION

• CCC: Yes

• RoHS (EU 2002/95/EC): Yes

• China Energy Efficiency Standard: Tier 2

• Windows Certification: Windows 7, Windows 10

• TÜV Rheinland Low Blue Light: Yes

• TÜV Rheinland Flicker Free: Yes

Setup Guide

Setting up the Lenovo LED TV Monitor C24-25 is a breeze. First, unbox the monitor and attach the base to the stand using the screws provided in the package. Next, connect the monitor to a power source using the power cable. Then, connect the monitor to your computer or laptop using an HDMI or VGA cable. Once connected, turn on the monitor using the power button located at the bottom of the screen. You can adjust the monitor's settings, such as brightness, contrast, and color temperature, using the on-screen display (OSD) menu.

Troubleshooting

If you encounter any issues with the Lenovo LED TV Monitor C24-25, try the following troubleshooting steps:

• If the monitor is not turning on, check if it is properly connected to a power source and that the power cable is securely plugged in.
• If the monitor is displaying incorrect colors or no image at all, adjust the display settings in the OSD menu or check if the cable connection is secure.
• If the monitor is flickering or showing horizontal lines, try adjusting the refresh rate or resolution settings in your computer's display settings.
• If the monitor is making noise or overheating, check if it is placed on a flat and stable surface and that there is sufficient ventilation around the monitor.

Lenovo LED TV Monitor C24-25 Warranty

Lenovo reserves the right to change specifications or other product information without notice. Lenovo is not responsible for photographic or typographical errors. Lenovo provides this publication “as is” without warranty of any kind, either express or implied, including the implied warranties of merchantability or fitness for a particular purpose. https://psref.lenovo.com

Pros & Cons

Pros

• Affordable price
• Sleek and modern design
• Full HD resolution with excellent color accuracy
• Fast response time, ideal for gaming and fast-paced content
• Easy to set up and adjust display settings

Cons

• Limited connectivity options (only HDMI and VGA)
• No built-in speakers
• Stand is not adjustable for height or tilt
• No USB ports

Customer Reviews about Lenovo LED TV Monitor C24-25

The Lenovo LED TV Monitor C24-25 has received positive reviews from customers, praising its excellent value for money, crisp and clear visuals, and fast response time. However, some customers have expressed their disappointment with the limited connectivity options and lack of built-in speakers. The monitor has a rating of 4.2 out of 5 stars on Amazon, with 68% of customers giving it a 5-star rating.
