Introduction

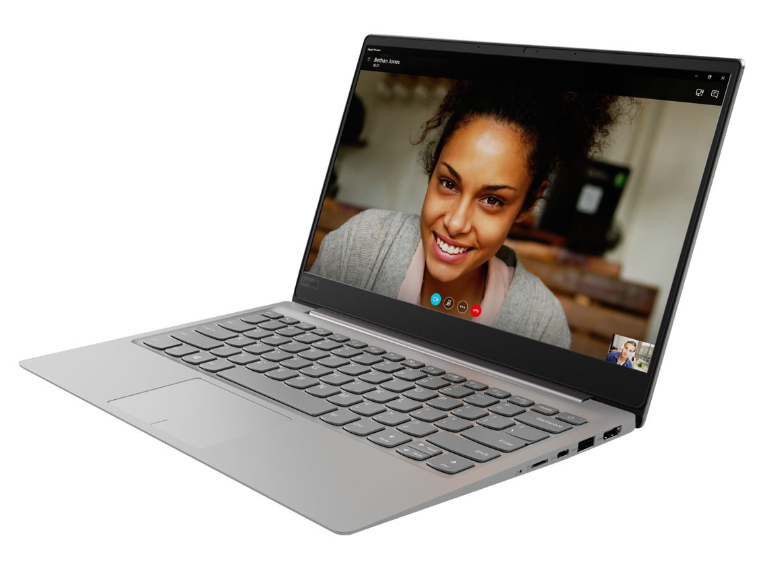

The Lenovo Ideapad 320S-13IKB is a sleek and stylish laptop designed for everyday use. With a 13-inch Full HD display, this laptop offers vibrant visuals and an immersive viewing experience. It is powered by an Intel Core i5 processor, 8GB of RAM, and 256GB of SSD storage, providing fast and efficient performance. The Ideapad 320S-13IKB is estimated to be priced around $700.

Getting to know your Lenovo Ideapad

Top view

Note: The dashed areas indicate parts that are not visible externally.

Attention

• Do not open the display panel beyond 170 degrees. When closing the display panel, be careful not to leave pens or any other objects in between the display panel and the keyboard. Otherwise, the display panel may be damaged.

1. Integrated camera: Use the camera for video communication.
2. Built-in microphone: Capture sound which can be used for video conferencing, voice narration, or audio recording.
3. Computer display: The LCD display with LED backlight provides brilliant visual output.
4. Wireless LAN antennas: Connect to a wireless LAN adapter to send and receive wireless radio signals.
5. Ventilation slots: Dissipate internal heat.
6. Power Key
   • Press this key to turn on/off the computer.
   • When the computer is on, press and hold this key for more than 1 second, the computer will enter sleep mode, press and hold it for more than 4 seconds, the computer will be turned off.
7. Touch pad: The touch pad functions as a conventional mouse.
   • Touch pad: To move the pointer on the screen, slide your fingertip over the pad in the direction in which you want the pointer to move.
   • Touch pad buttons: The functions of the left/right side correspond to those of the left/right mouse button on a conventional mouse.

Note: You can enable/disable the touch pad by pressing F6.

Using the Ideapad keyboard

Hotkeys
You can access certain system settings quickly by pressing the appropriate hotkeys.

Note: If you changed the Hotkey Mode from Enabled to Disabled in the BIOS setup utility, you will need to press the Fn key in combination with the appropriate hotkey.

Function key combinations
Through the use of the function keys, you can change operational features instantly. To use this function, press and hold Fn 1; then press one of the function keys 2.

The following describes the features of each function key.

• Fn + B: Activates the break function.
• Fn + P: Activates the pause function.
• Fn + C: Enables/Disables the scroll lock.
• Fn + Y: Activates the system request.
• Fn + S + V: Set the battery Ship Mode.
• Fn + Space (on select models): Adjusts the keyboard backlight.
• Default status: off

Left-side view

1. AC power adapter jack: Connects to the AC power adapter.
2. Battery/Charging status indicator

3. AC power adapter status	Indicator status	Meaning
   Disconnected	Off	The computer is in sleepmode or turned off; The battery has more than 20% charge.
   	Solid amber	The batteryhas between 5% and 20% charge.
   	Fast blinking amber	The batteryhas between 1% and 5% charge.
   Connected	Slow blinking amber	The battery is being charged. When battery charge reaches 20%, the blinking color changes to white.
   	Slow blinking white	The battery has between 20% and 80% charge and is still charging. When the battery reaches80% charge thelight will stop blinking.
   	Solid white	The battery has more than80% charge, charging willcontinue until thebattery is fully charged.

4. USB 2.0 port: Connects to USB devices.
5. Combo audio jack: Connects to headsets.
   Notes
   • The combo audio jack does not support conventional microphones.
   • The recording function may not be supported if third‐party headphones or headsets are connected, due to different industry standards.
6. Power status indicator

Connecting USB devices
You can connect a USB device to your computer by inserting its USB plug (Type A) into the USB port on your computer.

The first time you plug a USB device into a particular USB port on your computer, Windows automatically installs a driver for that device. After the driver has been installed, you can disconnect and reconnect the device without performing any additional steps.

Note: Typically, Windows detects a new device after it has been connected, and then installs the driver automatically. However, some devices may require you to install the driver before connecting. Check the documentation provided by the device’s manufacturer before connecting the device.

Before disconnecting a USB storage device, make sure your computer has finished transferring data to that device. Click the Safely Remove Hardware and Eject Media icon in the Windows notification area to remove the device before disconnecting.

Note: If your USB device uses a power cord, connect the device to a power source before connecting it. Otherwise, the device may not be recognized.

Right-side view

1. Novo button: When the computer is off, press this button to start the System Recovery or the BIOS setup  utility, or to enter the boot menu.
2. Memory card slot: Insert memory cards (not supplied) here.
3. Type-C port: Type‐C port supports:
   • USB 3.0
4. USB 3.0 port: Connects to USB devices.
   Notes
   • If the battery charge is more than 20%, the USB port with a mark supports charging of an external USB device, even when the computer is turned off.
5. HDMI port: Connects to devices with HDMI input such as a TV or a display.

Using memory cards (not supplied)
Your computer supports the following types of memory cards:

• Micro Secure Digital (SD) card

Notes

• Insert only one card in the slot at a time.
• This card reader does not support SDIO devices (e.g., SDIO Bluetooth, etc.).

Inserting a memory card
Insert the memory card until it touches the bottom of the slot.

Removing a memory card
Gently pull the memory card out of the memory card slot.
Note: Before removing the memory card, disable it by using the Windows safely remove hardware and eject media utility to avoid data corruption.

Bottom view

• Ventilation slots: Dissipate internal heat.
  Note: Make sure that none of the ventilation slots are blocked, or else overheating of the computer may occur.
• Speakers: Provide audio output.

Starting to use Windows 10

Configuring the operating system for the first time
You may need to configure the operating system when it is first used. The configuration process may include the procedures below:

• Accepting the end user license agreement
• Configuring the Internet connection
• Registering the operating system
• Creating a user account

Operating system interfaces

The return of the Start menu
Windows 10 comes with a powerful and useful start menu. To open the start menu, do one of the following:

• Select the Start button in the lower‐left corner, the Start menu is displayed.
• Press the Windows key on the keyboard.

The power button is on the Start menu, click it you can choose to shut down or restart the computer, or put the computer into sleep mode.

Through the Start menu, you can locate all the installed apps or view the frequently used apps.

The ACTION CENTER
Select the ACTION CENTER icon  on the taskbar and the ACTION CENTER is displayed.

From the ACTION CENTER, you can examine important notifications from Windows and your apps. Moreover, you can change common settings quickly.

Task View in taskbar
In Windows 10, you can add a new desktop and switch between different desktops.
To add a new desktop, do the following:

• Click the Task View icon in the taskbar area.



• Click New desktop.



• To switch between desktops, click the Task View icon , then select your desired desktop.

Putting the computer to sleep or shutting it down
When you have finished working with your computer, you can put it to sleep or shut it down.

Putting your computer to sleep

If you will be away from your computer for only a short time, put the computer to sleep.
When the computer is in sleep mode, you can quickly wake it to resume use, bypassing the startup process.
To put the computer to sleep, do one of the following:

• Close the display lid.
• Press and hold the Power key for about 1 to 5 seconds.
• Move the cursor to the lower‐left corner, and then select the Start button. Select Power Sleep.

Note: Put your computer to sleep before you move it. Moving your computer while the hard disk drive is spinning can damage the hard disk, causing loss of data.

To wake up the computer, perform the following:

• Press any key on the keyboard.

Shutting down the computer
If you are not going to use your computer for a long time, shut it down. To shut down your computer, do one of the following:

• Move the cursor to the lower‐left corner, and then select the Start button. Select Power Shut down.



• Right‐click the Start button in the lower‐left corner and select Shut down or sign out Shut down.

Lenovo Ideapad Detailed Specifications

The Lenovo Ideapad 320S-13IKB features a 13-inch Full HD (1920 x 1080) IPS display with anti-glare technology. It is powered by an Intel Core i5-1135G7 processor with a base clock speed of 2.4GHz and a turbo boost speed of up to 4.2GHz. The laptop comes with 8GB of DDR4 RAM and 256GB of SSD storage, providing fast and efficient performance. It also features an integrated Intel Iris Xe graphics card. The Ideapad 320S-13IKB runs on Windows 10 Home and has a battery life of up to 10 hours.

Description of Ideapad 320S-13IKB

The Lenovo Ideapad 320S-13IKB is a lightweight and portable laptop, making it an ideal choice for those who are always on the go. Its sleek design and compact form factor make it easy to carry around. The laptop features a full-size keyboard with a numeric keypad, making it comfortable to type on. The Ideapad 320S-13IKB also has a range of connectivity options, including USB 3.0, USB-C, HDMI, and a headphone/microphone combo jack. The laptop's fast and efficient performance, combined with its vibrant display, makes it a great choice for everyday use, whether you're browsing the web, streaming videos, or working on documents.

Troubleshooting

Pros & Cons

Pros

• Sleek and stylish design
• Fast and efficient performance
• Vibrant Full HD display
• Lightweight and portable
• Range of connectivity options

Cons

• No dedicated graphics card
• Limited storage capacity
• No optical drive
• No Ethernet port

Customer Reviews

Customers have praised the Lenovo Ideapad 320S-13IKB for its fast and efficient performance, as well as its vibrant Full HD display. Many have also commented on its sleek and stylish design, as well as its lightweight and portable form factor. However, some customers have expressed disappointment with the laptop's limited storage capacity and lack of a dedicated graphics card. Some have also noted that the laptop does not have an optical drive or an Ethernet port.
