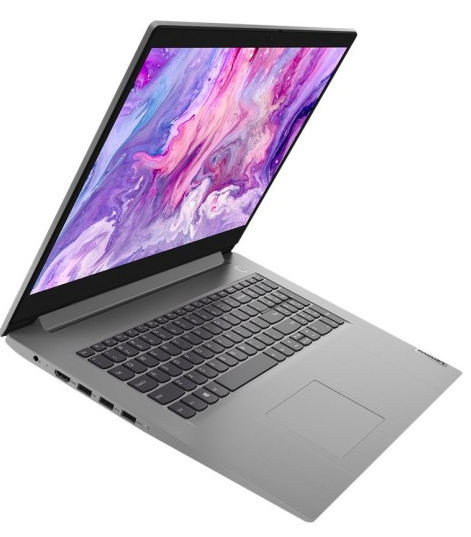

Lenovo IdeaPad 3 17ABA7

Introduction

The Lenovo IdeaPad 3 17ABA7 is a powerful laptop designed for both work and entertainment. With its large 17-inch display and high-performance features, it offers a great user experience.

PERFORMANCE

• Processor: AMD Ryzen™ 5 5625U (6C / 12T, 2.3 / 4.3GHz, 3MB L2 / 16MB L3)
• Graphics: Integrated AMD Radeon™ Graphics
• Chipset: AMD SoC Platform
• Memory: 8GB Soldered DDR4-3200
• Memory Slots: One memory soldered to the system board, one DDR4 SO-DIMM slot, dual-channel capable
• Max Memory: Up to 16GB (8GB soldered + 8GB SO-DIMM) DDR4-3200 offering
• Storage: 512GB SSD M.2 2280 PCIe® 3.0x4 NVMe®
• Storage Support: Model with 45Wh battery: one drive, 1x M.2 SSD
  • M.2 2242 SSD up to 512GB
  • M.2 2280 SSD up to 1TB
• Card Reader: 4-in-1 Card Reader
• Optical: None
• Audio Chip: High Definition (HD) Audio
• Speakers: Stereo speakers, 1.5W x2, Dolby® Audio™
• Camera: 720p with Privacy Shutter
• Microphone: 2x, Array
• Battery: Integrated 45Wh
• Max Battery Life: Model with 45Wh battery:
  • Mobile Mark® 2018: 10 hr
  • Local video (1080p) playback@150nits: 13 hr
• Power Adapter: 65W Round Tip (3-pin)

DESIGN

• Display: 17.3" FHD (1920x1080) IPS 300nits Anti-glare, 72% NTSC
• Touchscreen: None
• Keyboard: Non-backlit, German
• Case Color: Arctic Grey
• Surface Treatment: Painting
• Case Material: PC + ABS (Top), PC + ABS (Bottom)
• Dimensions (WxDxH): 399 x 274 x 19.9 mm (15.71 x 10.79 x 0.78 inches)
• Weight: 2.04 kg (4.49 lbs)

SOFTWARE

• Operating System: Windows® 11 Home 64, German
• Bundled Software: Office Trial

CONNECTIVITY

• Ethernet: None
• WLAN + Bluetooth®: Wi-Fi® 6 11ax, 2x2 + BT5.2
• Standard Ports
  • 1x USB 2.0
  • 1x USB 3.2 Gen 1
  • 1x USB-C 3.2 Gen 1 (support data transfer, Power Delivery 3.0, and DisplayPort™ 1.2)
  • 1x HDMI® 1.4b
  • 1x Card reader
  • 1x Headphone/microphone combo jack (3.5mm)
  • 1x Power connector

SECURITY & PRIVACY

• Security Chip: Firmware TPM 2.0
• Fingerprint Reader: Touch Style
• Other Security: Camera privacy shutter

SERVICE

• Base Warranty: 2-year, Depot
• Included Upgrade: <= 3 Months Premium Care (5WS1E19595)

CERTIFICATIONS

Green Certifications

• ENERGY STAR® 8.0
• ErP Lot 3
• RoHS compliant

MODEL

• Top Seller: Yes
• EAN / UPC / JAN: 196800882493
• Announce Date: 2022-03-29
• End of Support: 2028-04-19
