Lenovo IdeaPad Gaming 3 16ARH7 User Guide | Specifications
Content
Introduction

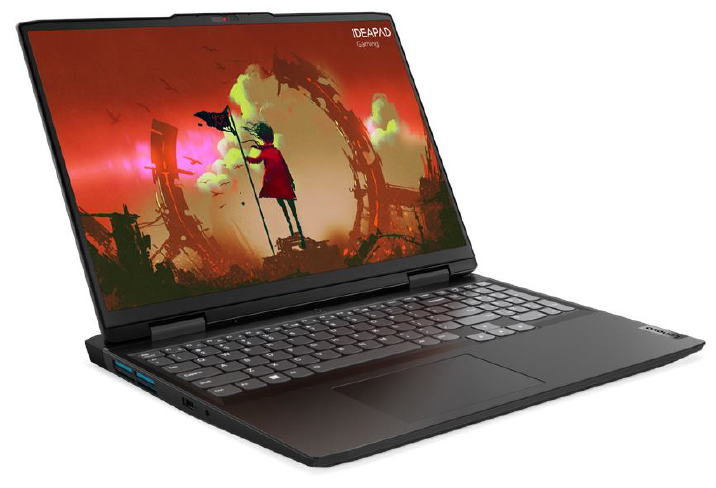

The Lenovo IdeaPad Gaming 3 16ARH7 is a powerful gaming laptop designed for gamers who want a high-performance machine without breaking the bank. With its AMD Ryzen processor and dedicated NVIDIA graphics, it delivers smooth gameplay and immersive visuals.
PERFORMANCE
- Processor: AMD Ryzen™ 5 6600H (6C / 12T, 3.3 / 4.5GHz, 3MB L2 / 16MB L3)
- Graphics: NVIDIA® GeForce RTX™ 3050 Ti 4GB GDDR6, Boost Clock 1695MHz, TGP 85W
- Chipset: AMD SoC Platform
- Memory: 1x 16GB SO-DIMM DDR5-4800
- Memory Slots: Two DDR5 SO-DIMM slots, dual-channel capable
- Max Memory: Up to 16GB DDR5-4800 offering
- Storage: 512GB SSD M.2 2242 PCIe® 4.0x4 NVMe®
- Storage Support: Up to two drives, 2x M.2 SSD
- M.2 2242 SSD up to 1TB
- M.2 2280 SSD up to 1TB
- Storage Slot: Two M.2 slots
- One M.2 2242 PCIe 4.0 x4 slot
- One M.2 2280 PCIe 4.0 x4 slot
- Card Reader: None
- Optical: None
- Audio Chip: High Definition (HD) Audio, Realtek® ALC3287 codec
- Speakers: Stereo speakers, 2W x2, Nahimic Audio
- Camera: FHD 1080p with Privacy Shutter
- Microphone: 2x, Array
- Battery: Integrated 71Wh
- Max Battery Life: MobileMark® 2018: 10.3 hr
- Local video (1080p) playback@150nits: 17.7 hr
- Power Adapter: 170W Slim Tip (3-pin)
DESIGN
- Display: 16" WUXGA (1920x1200) IPS 350nits Anti-glare, 100% sRGB, 165Hz, FreeSync™
- Touchscreen: None
- Keyboard: White Backlit, German
- Case Color: Onyx Grey
- Surface Treatment: Painting\
- Case Material: PC-ABS (Top), PC-ABS (Bottom)
- Dimensions (WxDxH): 359.6 x 277.8 x 20.9 mm (14.16 x 10.94 x 0.82 inches)
- Weight: Around 2.5 kg (5.5 lbs)
SOFTWARE
- Operating System: Windows® 11 Home, German
- Bundled Software: Office Trial
CONNECTIVITY
- Ethernet: 100/1000M (RJ-45)
- WLAN + Bluetooth®: Wi-Fi® 6, 11ax 2x2 + BT5.1
- Standard Ports
- 2x USB 3.2 Gen 1
- 1x USB-C® 3.2 Gen 2 (support data transfer, Power
- Delivery 3.0 and DisplayPort™ 1.4)
- 1x HDMI® 2.0
- 1x Ethernet (RJ-45)
- 1x Headphone / microphone combo jack (3.5mm)
- 1x Power connector
SECURITY & PRIVACY
- Security Chip: Firmware TPM 2.0
- Fingerprint Reader: None
- Other Security: Camera privacy shutter
MANAGEABILITY SERVICE
- Base Warranty: 2-year, Courier or Carry-in
- Included Upgrade: <= 3 Months Premium Care (5WS1E19595)
ACCESSORIES
- Bundled Accessories: None
CERTIFICATIONS
Green Certifications
- ErP Lot 3
- RoHS compliant
MODEL
- TopSeller: Yes
- Announce Date: 2022-06-25
- EAN / UPC / JAN: 196379892336
- End of Support: 2028-06-13
Premium Care - Advanced Support from Real People. Real Fast
REAL PERSON
Choose how you want to reach us - through the phone, chat or email - our expert technicians will take care of you.
HASSLE FREE
‘Getting started’ and ‘how-to’ assistance for hardware and software. Easy solutions that are simple to reach - that’s how Premium Care delivers you the ideal support experience.
REAL FAST
Highly trained technicians will provide you real-time solutions, whatever the issue, on your first contact. If needed, our team will schedule an onsite visit for the next business day.
PC HEALTH CHECK
Free annual PC Health Check that allows our experts to spot issues before you do so they can resolve them quickly and help you avoid PC problems.
Recommended Accessories
ThinkPad UltraSlim USB DVD Burner (4XA0E97775)
ThinkPad UltraSlim USB DVD Burner -- is a small form factor external portable DVD and CD recordable drive that can be attached to Notebooks with USB2.0 port or USB3.0 port. With 9.5mm UltraSlim engine, 20% slimmer
ThinkPad Hybrid USB-C with USB-A Dock (American Standard Plug Type B) 40AF0135US
The ThinkPad Hybrid USB-C with USB-A Dock expands the capabilities of most any laptop, new or old, making it perfect for enterprise customers with mixed-PC or shared-desk environments. Featuring enterprise-class manage. For a full list of accessories and services, please visit: https://smartfind.Lenovo.com
Accidental Damage Protection - Protection of your PC from the unexpected.
Experience shows that a significant portion of devices may be damaged (and not covered under warranty) in the first three years. Lenovo’s Accidental Damage Protection service covers accidents beyond the system warranty such as drops, spills, bumps and even electrical surges. Make sure your new device has maximum protection, avoid unplanned costs and get peace of mind.
Specifications
- Processor: AMD Ryzen 7
- Graphics: NVIDIA GeForce GTX 1650
- Display: 16-inch Full HD
- Memory: 8GB DDR4
- Storage: 512GB SSD
- Operating System: Windows 10
- Connectivity: Wi-Fi 6, Bluetooth 5.0
- Ports: 3 x USB, HDMI, Ethernet, Audio Jack
- Battery: Up to 6 hours
- Weight: 4.85 lbs (2.2 kg)
Description
The Lenovo IdeaPad Gaming 3 16ARH7 is built to deliver exceptional gaming performance. Its AMD Ryzen processor provides fast and efficient multitasking, while the NVIDIA GeForce GTX 1650 graphics card ensures smooth gameplay with stunning visuals. The 16-inch Full HD display offers immersive gaming experience, and the 8GB DDR4 memory allows for seamless multitasking and smooth operation of demanding applications.
With a 512GB SSD, the laptop offers ample storage space for your games, files, and multimedia. It runs on Windows 10, providing a familiar and user-friendly interface. The laptop also features Wi-Fi 6 and Bluetooth 5.0 for fast and reliable wireless connectivity. The multiple USB ports, HDMI, Ethernet, and audio jack provide convenient connectivity options for peripherals and external devices. With a battery life of up to 6 hours, you can enjoy gaming on the go without worrying about running out of power.
Faqs
Can I upgrade the RAM on the Lenovo IdeaPad Gaming 3 16ARH7?
Does the laptop IdeaPad Gaming 3 have a backlit keyboard?
What is the refresh rate of the display?
Can I connect an external monitor to the IdeaPad Gaming 3 laptop ?
Does the laptop have an optical drive?
Is the Lenovo IdeaPad Gaming 3 VR-ready?
Does the Lenovo IdeaPad Gaming 3 support fast charging?
Can I upgrade the storage on the Lenovo IdeaPad Gaming 3?
Does the Lenovo IdeaPad Gaming 3 have a webcam?
What is the warranty period for the Lenovo IdeaPad Gaming 3?
