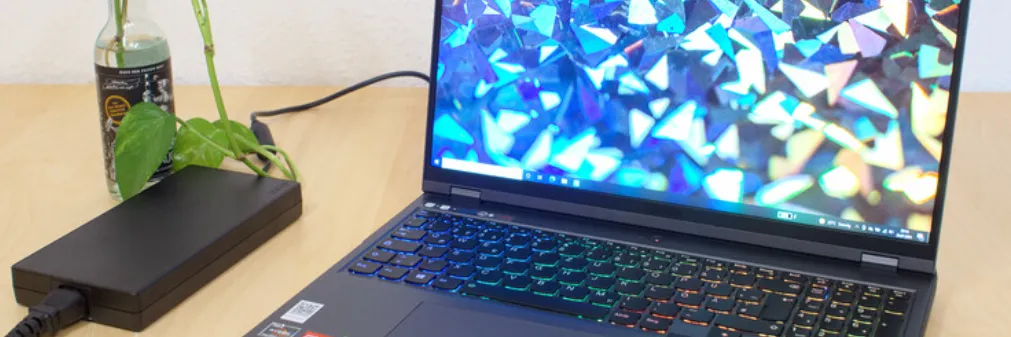

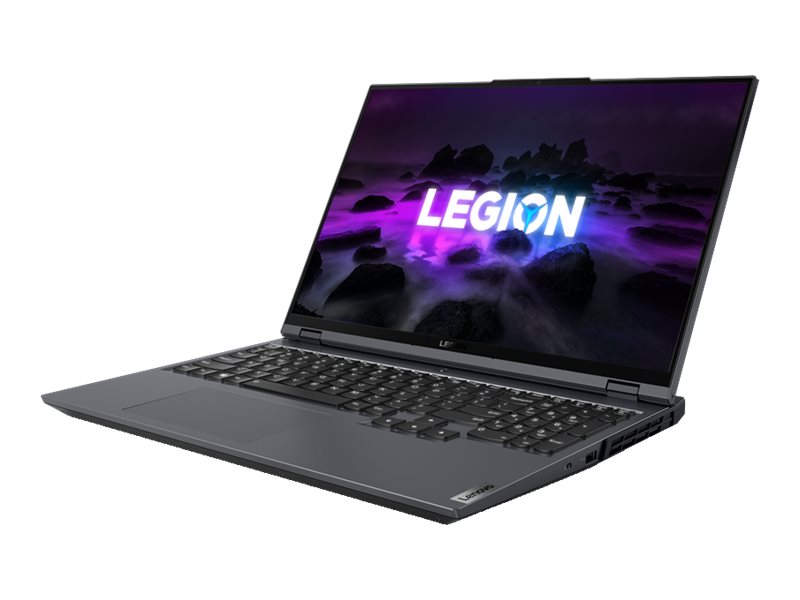

Introduction of Lenovo Legion 5 Pro 16ACH6H

The Lenovo Legion 5 Pro 16ACH6H is a high-performance gaming laptop designed for serious gamers and creative professionals. The laptop features a 16-inch WQXGA (2560 x 1600) IPS display with a 165Hz refresh rate, making it perfect for gaming and content creation. The laptop is powered by an AMD Ryzen 9 5900HX processor and NVIDIA GeForce RTX 3070 graphics card, providing smooth and fast performance for even the most demanding games and applications. The estimated price for the Lenovo Legion 5 Pro 16ACH6H is around $1,700, and it is expected to be launched in the second quarter of 2021.

Description

The Lenovo Legion 5 Pro 16ACH6H features a sleek and stylish design with a sturdy build quality. The laptop has a full-sized keyboard with a number pad and a dedicated set of media control keys. The keyboard is backlit, making it easy to use in low-light conditions. The laptop also features a large trackpad with multi-touch support, providing a smooth and responsive tracking experience. The laptop's 16-inch WQXGA display is bright and clear, with excellent color accuracy and viewing angles. The display also features a 165Hz refresh rate, providing smooth and fluid motion in games and videos.

PERFORMANCE

• Processor
  AMD Ryzen™ 7 5800H (8C / 16T, 3.2 / 4.4GHz, 4MB L2 / 16MB L3)
• Graphics
  NVIDIA GeForce RTX™ 3070 8GB GDDR6, Boost Clock 1560 / 1620MHz, TGP 140W
• Chipset
  AMD SoC Platform
• Memory
  2x 8GB SO-DIMM DDR4-3200
• Memory Slots
  Two DDR4 SO-DIMM slots, dual-channel capable
• Max Memory
  Up to 32GB DDR4-3200 offering
• Storage
  1TB SSD M.2 2280 PCIe 3.0x4 NVMe
• Storage Support
  Up to two drives, 2x M.2 SSD
  • M.2 2280 SSD up to 1TB
  • M.2 2242 SSD up to 512GB
• Card Reader
  None
• Optical
  None
• Audio Chip
  High Definition (HD) Audio, Realtek® ALC3306 codec
• Speakers
  Stereo speakers, 2W x2, Nahimic Audio
• Camera
  720p with E-camera Shutter
• Microphone
  2x, Array
• Battery
  Integrated 80Wh
• Max Battery Life
  MobileMark® 2018: 4.2 hr (discrete graphics), 8.1 hr (integrated graphics
• Power Adapter
  300W Slim Tip

DESIGN

• Display
  16" WQXGA (2560x1600) IPS 500nits Anti-glare, 165Hz, 100% sRGB, Dolby® Vision™, HDR 400, Free-Sync, G-Sync, DC dimmer
• Touchscreen
  None
• Keyboard
  4-Zone RGB LED backlit, GerDESIGNman
• Case Color
  Storm grey (top), Black (bottom)
• Surface Treatment
  Anodizing
• Case Material
  Aluminum (Top), Aluminium (Bottom)
• Dimensions (WxDxH)
  356 x 260.4-264.4 x 21.7-26.85 mm (14.02 x 10.25-10.41 x 0.85-1.07 inches)
• Weight
  2.45 kg (5.4 lbs)

SOFTWARE

• Operating System

  Windows® 10 Home 64, German

• Bundled Software
• Office Trial

CONNECTIVITY

• Ethernet
  100/1000M
• WLAN + Bluetooth™
  11ax, 2x2 + BT5.1
• Standard Ports
  • 1x power connector
  • 1x USB-C 3.2 Gen 2 (support data transfer, Power Delivery and DisplayPort™ 1.4)
  • 1x Ethernet (RJ-45)
  • 1x USB-C 3.2 Gen 2 (support data transfer and DisplayPort 1.4)
  • 1x headphone/microphone combo jack (3.5mm)
  • 1x HDMI® 2.1
  • 4x USB 3.2 Gen 1 (one Always On)

SECURITY & PRIVACY

• Fingerprint Reader
  None
• Other Security
  E-Camera shutter

SERVICE

• Base Warranty
  2-year, Depot
• Included Upgrade
  None

CERTIFICATIONS

Green Certifications

• ENERGY STAR® 8.0
• TUV Low Blue Light
• ErP Lot 3
• RoHS compliant

MODEL

• TopSeller : Yes
• EAN / UPC / JAN : 195713051378
• Announce Date : 2021-02-19
• End of Support : 2027-03-21

Battery life is an estimated maximum. Actual battery life may vary based on many factors, including screen brightness, active applications, features, power management settings, battery age and conditioning, and other customer preferences

Troubleshooting

Here are some common problems and solutions for the Lenovo Legion 5 Pro 16ACH6H:

• Problem: The laptop won't turn on.
• Solution: Make sure the laptop is charged and the power cord is securely connected. If the laptop still won't turn on, try resetting the BIOS by removing the battery and power cord, then pressing and holding the power button for 30 seconds.
• Problem: The keyboard is not responding.
• Solution: Make sure the keyboard is enabled in the BIOS settings. If the keyboard still doesn't work, try using an external keyboard to see if the issue is with the laptop's keyboard or the keyboard driver.
• Problem: The laptop is overheating.
• Solution: Make sure the laptop's vents are not blocked and the laptop is in a cool environment. You can also try using a laptop cooling pad to help keep the laptop cool. If the laptop continues to overheat, try reducing the graphics settings in games or using a lower-performance graphics driver.

Pros & Cons

Pros

• High-performance AMD Ryzen 9 5900HX processor and NVIDIA GeForce RTX 3070 graphics card
• Bright and clear 16-inch WQXGA (2560 x 1600) IPS display with a 165Hz refresh rate
• Stylish and sturdy design with a full-sized keyboard and large trackpad
• Excellent cooling system with dedicated vents and fans
• Long battery life and fast charging

Cons

• Expensive compared to other gaming laptops in its class
• Heavy and bulky, making it difficult to carry around
• No Thunderbolt 3 or USB-C ports
• No optical drive
• Limited customization options for the keyboard and trackpad

Customer Reviews

Customers have praised the Lenovo Legion 5 Pro 16ACH6H for its high-performance components, bright and clear display, and stylish design. However, some customers have criticized the laptop for its high price, heavy weight, and limited customization options. Some customers have also reported issues with the laptop's keyboard and trackpad, but these issues appear to be relatively rare.
