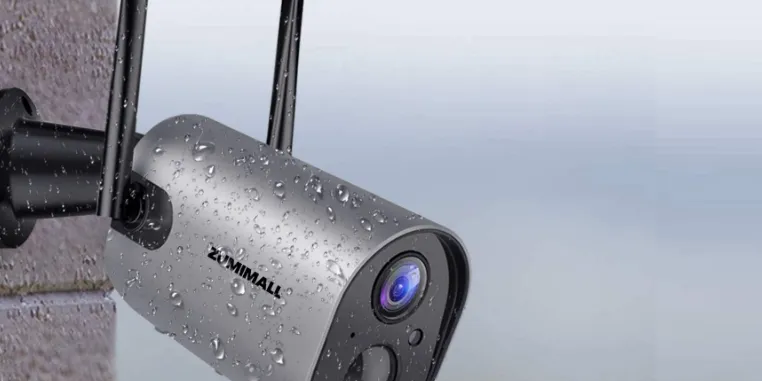

Introducing the Zumimall Battery Powered Camera GX1S

The purpose of this cutting-edge security camera is to offer dependable and adaptable home surveillance. The GX1S is a wire-free device that is simple to install and deploy anywhere in your house thanks to its rechargeable battery and design. To provide thorough surveillance day and night, it has motion detection, night vision, and high definition video quality. The camera also has two-way audio capabilities, which lets you talk to guests or scare off intruders. The Zumimall GX1S is a great option for improving your home security because it is weather-resistant, long-lasting, and suitable for both indoor and outdoor use. The price of the product is $49.99, and it is set to be launched on March 15, 2023.

What’s in the Box


ZUMIMALL Battery Camera*1
Outdoor Metal Mount*1
Quick User Guide*1
Screws Set*1
USB Cable*1

Detailed Specifications

The Zumimall Battery Powered Camera GX1S comes with a range of features that make it an excellent choice for anyone looking for a reliable security camera. Some of its key specifications include:

1080P Full HD resolution
130° wide-angle lens
IP65 waterproof rating
Night vision up to 33 feet
Motion detection and alerts
Two-way audio
Mobile app control
Up to 6 months battery life

Product Diagram

Camera Lens
IR
PIR Sensor
Antenna
Camera Mode Indicator
Microphone
Reset Button
Charging Indicator
Speaker
Power Button
SD Card Slot
USB Port

Button/Indicator	Action/Status
Power Button	Keep pressing for 5 seconds to power on/power off
Reset Button	Keep pressing for 5 seconds to reset and restart
Blinking slowly in Red	Awaiting Wi-Fi Connection, ready for adding devices
Blinking fast in Red	Wi-Fi Connecting
Red spot	Network Problem
Blue spot	Wi-Fi Connected, camera running normally
Blinking slowly in Blue	AP Mode

Description

It is possible to use the Zumimall Battery Powered Camera GX1S indoors or outdoors, making it a flexible security camera. Its tiny and stylish form makes it simple to install and transport, and its waterproof rating guarantees that it can resist even the worst weather. With a large field of vision and crystal clear images, the camera's 130° wide-angle lens and 1080P Full HD resolution make it simple to watch your house or place of business.
You can see up to 33 feet in total darkness with to the camera's night vision capability, and its motion detection and alerts system makes sure you're always aware of any potential threats. You can converse with anyone in close proximity to the camera thanks to its two-way audio capability, which makes it a great option for use as a pet or baby monitor.

Download & Install App

Download the CloudEdge APP from Google Play TM or APP Store. Or scan the QR codes as below, with your QR code scanner in your smart phone.
NOTE: Google PlayTM is a trademark of Google Inc. APP Storeis a service mark of Apple Inc.

Tips: Please turn on 2 permissions below when use this APP

Allow CloudEdge to access mobile cellular data and wireless LAN, or it will be failed to add IP camera.
Allow CloudEdge to receive pushed messages, or the smart phone will not receive notifications when motion detection or audible alarm is triggered.

Account Registration

New user needs to sign up ‘ZUMIMALL’ App with email. Click ‘Sign up’ to create a New Account and follow the steps to complete registration.

Camera Setup

Preparations for connection

Insert Mirco SD card (NOT included) when the camera is turned off, for saving videos caused by motion detection automatically. (Supports up to128GB,)
Camera only works with 2.4G Wi-Fi,not support 5G.

Connect Camera to App

Camera Installation

For wooden wall, it’s recommended to screw the bracket on.
For cement or ceramic tile wall, it’s recommended to drill holes in the wall and fasten with provided explosion screws;
Rotate the button counterclockwise to take off the camera.

Monitoring Area

It is not suggested to install the camera vertically towards the moving objects, otherwise it may not detect the motion events or cause delay.
It is suggested to make the angular between PIR and detected objects more than 10 degrees.

Important Notes for Reducing False Alarms

To reduce false alarms, please note that:

Do not install the camera in a position facing strong lights/mirror/window/swimming pool.
Do not place the camera too close to any angel with busy traffic.
Recommended distance between the camera and motion objects is within10M (32ft).
Stay away from the outlets, including air conditioner vents, humidifier outlets, the heat transfer vents of the projectors, etc.
Keep the camera at least 1 meter away from any wireless devices to avoid interference, such as microwave stove, Wi-Fi routers and etc.

Device Menu

Device List
Add Camera
Real-Time
Live View Button
Camera Name
History Playback
Cloud Storage
Messages
My Device List
Personal Homepage
Quit Live Viewing
Camera Setting
Battery Status
HD/SD Switch
Volume On/Off
Full Screen
Preview
Screenshot Button
Body Detection On/Off
Recording in SD Card
Cloud Storage
Record Video to Phone
Two-Way Talk
Zoom
Time Bar
History Screenshot
Alarm Record Album
Date of History Record

Camera Settings

PIR Body Detection

Body Detection Alarm Setting

PIR ’Body Detection‘ is default to be on ‘High’ level. But it is adjustable. Please refer to the pictures below.


Sensitivity
Detecting Distance (For moving and living objects)
Low
Up to 5 meters (16ft)
High
Up to 10 meters (32ft

Tips: Higher sensitivity offers longer detecting distance, but it would lead to more false alarms. You are advised to adjust to “Low” Level when you install the camera outside.

Alarm Notification

This camera is not designed for 7×24 full-day recording. It is only triggered when body motion is detected. Here are the system’s reactions:

Alarm notifications with sounds from App.
Pictures/videos are automatically stored in SD Card or Cloud.

Records/Playback/Delete

On the "MESSAGES" page, click ‘Alarm Messages’, and you can view all the records listed.
Click the following buttons to playback or delete.

Two-Way Audio

Step 1: Activate the audio option.
Step 2: Press and hold the intercom button to speak.
Step 3: Release the button to listen.

Battery Management

The camera has a built-in 10400 mAh 18650 battery, which can be used for 3-6 months, assuming the camera wakes up15 times per day and plays video for 10 minutes
Tips: The battery durability depends on how frequently the camera is woke up. The more it wakes up, the faster the battery level is consumed. It is recommended to lower down the “Body Detection” sensitivity or turn it off occasionally.
When the battery level is less than 20%, the APP will send you reminding messages0 for charging in time.
Charge the camera with DC 5V1A/2A phone charger, until it is fully charged after 8-16 hours.

PS: (Adapter Not included)

Multi-Device Management

Reset

Keep pressing to remove the device
Press the reset button for 3-5s,until hear the “Boogu” sound
Reconnect as before...

Troubleshooting

Here's the table as it is from the image:

No.	Description	Solution
1	Unable to connect	Check your Wi-Fi name and password Ensure your Wi-Fi is 2.4G. Not support 5G Ensure your camera and phone close to router for setup
2	Reset	Keep pressing the reset button for 3–5 seconds Hear “Boogy” LED blink slowly in Red
3	Change to a new network	Remove the camera in CloudEdge APP Press the reset button to factory setting Re-connection
4	Alarm picture without persons	It takes time for camera to wake up, or people move too fast. Some objects around 36℃ move around.
5	Frequent Alarm	Camera is trigger frequently. Suggest to adjust the installation angle. Adjust the camera alarm sensitivity to “Low”
6	Why is someone crossing without alarm	Make sure motion detection is turned on. Beyond the range of PIR monitoring area.
7	No Alarm Push	Make sure Notification is turned on from CloudEdge and phone
8	No alarm video	Make sure Micro SD card inserted / Cloud Storage activated
9	Device Offline	Check the camera if power off Make sure network is normal
10	Video Delay	Make sure network is normal
11	Battery Durability	Motion detection is trigger frequently / Two-Way Talk
12	Unable to charge	Charge at least 8-16 hours with 5V 1A/2A phone charger correctly. LED turns to be red means your camera is charging correctly. Make sure USB power cable and the phone charger both work well
13	CloudEdge APP Flashback	Phone system version is too low or too high
14	Unable to register account	Make sure to select correct country
15	Unable to add friend	Your account and friend’s account must be the same country, or the same area. For example, accounts in Europe and America cannot share to each other

Zumimall Battery Powered Camera GX1S Warranty Service

We will keep optimizing the product quality and enhancing your purchase experience as much as we can. Zumimall will provide you an excellent lifetime online service. If you meet any problems in using our products, please contact with us Soon by email as below. We will supply a best solution for you in 24 Hours. Any of your advice will be collected and we'll do our best to improve.

Pros & Cons

Pros:
- Long-lasting battery life
- Wide-angle lens and night vision
- Motion detection and alerts
- Mobile app control
- Waterproof and weather-resistant
Cons:
- No local storage option
- Limited zoom functionality

Customer Reviews

Customers who have purchased the Zumimall Battery Powered Camera GX1S have praised its easy setup, long battery life, and excellent image quality. Some have noted that the mobile app could be improved, but overall, the camera has received positive reviews.

The most common complaint about the camera is that it can take some time to connect to Wi-Fi, but once connected, the camera performs well. Some users have also noted that the motion detection feature can be overly sensitive, causing false alarms.
