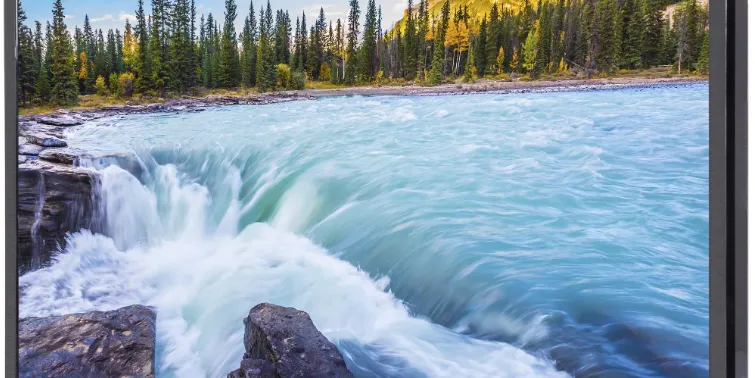

Introducing the Sceptre 24 Inch LED TV HD Display E246

Sceptre 24-inch LED TV offers a compact yet vibrant viewing experience, perfect for small spaces like bedrooms or kitchens. With a resolution of 1920 x 1080, this TV delivers sharp images and rich colors, enhancing your favorite shows and movies. It features multiple connectivity options, including HDMI and VGA ports, allowing for versatile use with gaming consoles and computers. The E246 is priced at approximately $149.99, making it an affordable choice for quality entertainment.

Package Contents

SCEPTRE Display x 1
Display Base x 1
Display Neck x 1
Screws x 6 (ST3 x 10mm)
Display Remote Control (AAA Batteries included) x 1
User Guide x 1 Complete manual available online at https://sceptre.com

Specification

Display panel
Item	Illustration
Active Area / Screen Size	Diagonal 23.6 inches
Aspect Ratio	Widescreen 16:9
Max. of Pixels (Resolution)	Full HD (1920 x 1080 pixels) resolution
Brightness	200 cd/m2
Contrast	8000:1 (Typical 3000:1) with Auto Contrast Enhancement
Response Time	8ms (gray to gray)
Viewing Angle	Typical 170 / 178 Degree (Horizontal/Vertical)
Lamp Life of Backlight	> 30,000hrs
TV DISPLAY
Dimension	21.8” x 14.7” x 5.7” (with stand) 21.8” x 12.8” x 2.8” (without stand)
Weight	5.39 lb (with stand) 4.89 lb (without stand)
Power input	100 – 240VAC, 60/50 Hz, 1.0A (Max.) 19W typical 40W max
Function
(1)Video
De-interlace	3D
Frame recover	3:2
Noise reducing core technology	3D
Aspect ratio	Full, Normal, Cinema, Zoom
Gamma	Fixed Gamma
Lamp adjust	Yes
Picture mode	Vivid / Standard / Mild / User
Video adjust	Brightness / Contrast / Color / Tint / Sharpness
(2)Audio
Sound Mode	Dynamic / Standard / Soft / User
Auto Volume Control	Yes
Tone	Bass / Treble / Balance
SPDIF Out	Yes (Coaxial)
Speakers	2x3 watt per channel

(3) General
Hybrid TV Tuner (OPTIONAL)	NTSC / ATSC
Channel auto scan (OPTIONAL)	Yes
Sleep timer	Off / 10mins / 20mins / 30mins / 40mins / 50mins / 60mins / 90mins / 120mins
Standby power	Under 1W
Timing support-Video	480i / 480p / 720p / 1080i / 1080/24p / 1080/60p
PC timing	1920 x 1080 @ 60Hz (Native & Max) 1360 x 768 @ 60Hz 1280 x 768 @ 60Hz 1024 x 768@60Hz 800 x 600 @60Hz
Multimedia Format	Audio: MP3 (32-48k Hz) Picture: JPEG (Baseline) up to 5000x5000 USB file system: FAT32/FAT16
(4)NTSC/ATSC
NTSC (OPTIONAL)	Sound: Mono / Stereo / SAP
	Favorite Channel
	V-chip
	Closed caption (CC1-CC4, Text 1-Text 4)
ATSC (OPTIONAL)	Favorite Channel
	V-chip
	Video input format: 1080i, 720p, 480p, 480i
	Analog closed caption: (CC1-CC4, Text 1-Text 4) Digital closed caption: (Service 1-Service 6)
(5)I/O
	1 input x TV Tuner (NTSC/ATSC, Optional) 1 input x YPbPr, 1 x inputs x HDMI/ MHL 1 input x VGA 1 input x VGA Audio In 1 input x USB 1 output x SPDIF (digital audio) coaxial out, 1 output x Headphone out

The product’s specifications may change without notice or obligation.
This manual’s pictures and words are for reference only and are subject to change without notice or obligation. Sceptre Inc.. is not liable for the misuse or misinterpretation of this manual.

Installation

Please read the user manual carefully before performing the installation. Please use the power cord designated for the product. When an extension cord is required, use one with the correct power rating. The cord must be grounded and the grounding feature must not be defeated. The product should be installed on a flat surface to avoid tipping. Space should be maintained between the back of the product and the wall for proper ventilation. If you would like to mount the Display onto the wall, please be sure to read all instructions provided by the display mounting company and this manual. Avoid installing the product in the kitchen, bathroom, or other places with high humidity dust, or smoke, so as not to shorten the service life of the electronic components. Please ensure the product is installed with the screen in landscape orientation. Any 90° clockwise or counterclockwise installation may induce poor ventilation and successive component damage.

Attaching or Removing the Base

Insert the neck into the base and screw in the 3 screws at the bottom of the base.
Insert the neck/base assembly onto the back of the display. Screw in the 3 screws as indicated to secure the installation.
To finalize your installation of the Display, please read the following:
1. If you are placing the Display on a stand, we would recommend you to use a Display safety strap (not included) to minimize the possibility of the Display toppling over.
2. If you are mounting the Display on the wall
3. Make sure the wall is structurally safe for the weight of the Display
4. Make sure the wall mount kit is compatible with the Display
5. Read and follow all instructions provided by the wall mounting kit.
6. Securely install all screws and connections.

Identifying Front and Rear Panel

Front View

INDICATOR LIGHT
The light is red when power is plugged in but the Display is not turned on. The light turns blue when the Display is turned on. The Display might take 10 – 12 seconds to power on. This is considered to be normal.
REMOTE SENSOR
The remote sensor receives all the commands from the remote control.

Rear View Mounting Pattern

Mounting Specification: 200mm x 100mm using screw size M4 Length of screw should not exceed 6mm.

Please Note: The 6mm length of the screw refers to how deep the screw can go inside the mounting holes. When you’re buying screws, you should add the original 6mm to the thickness of your mounting plate to get the total screw length.

Side Control Buttons

VOL(+) – This button increases the Display’s volume. If a sub-menu is active, pressing this button will move the select right.
VOL(-) – This button decreases the Display’s volume. If a sub-menu is active, pressing this button will move the selection left.
CH(▲) – This button changes the Display channel up. If the OSD is active, this button functions as up for the menu.
CH(▼) – This button changes the Display channel down. If the OSD is active, this button functions as down for the menu.
This button activates the On Screen Display (OSD). If a sub-menu is active, pressing this button will exit the OSD.
This button switches between all the different sources of the Display. When the OSD is active, this button acts as the enter button and confirms the menu selection.
Turn on the Display by pressing the button once. Press the button again to turn off the Display.

DVD Drive Buttons

EJECT
Press this button to eject the DVD.
PLAY / PAUSE
Press this button to play the DVD or to pause the DVD.

Rear View Connections

HEADPHONE
This connection is for headphones to be attached to the Display.
SPDIF
This connection port is used for sending out digital audio signals to digital surround sound receivers. The orange (Coaxial SPDIF OUT) connector sends out either a bit-stream or PCM digital sound signal to a home theater receiver with digital coaxial input.
YPbPr/AV
This connection port is for DVD players or satellite /cable set-top boxes that use component cables. From left to right, connect green, blue, and red for video, and then connect white for left channel audio, and red for right channel audio. This port also doubles as a composite AV port. Connect the yellow RCA jack to the green and then the red/white RCA jack for audio.
VGA
This connection port connects to a PC for video using a VGA cable. Be sure to connect your audio cable to the VGA Stereo input if you want sound out of the VGA video source.
Audio In
This connection port is for people who want to provide audio to the Display when using a PC or a DVI video device. The sources use a 3.5mm mini-jack audio cable.
HDMI
HDMI connects to devices that use HDMI cables, such as Blu-ray or HD DVD players, or HD cable/satellite set-top boxes. This connection port receives pure digital audio and high-definition signal through one single cable. This port also can accept an HDCP video device for video.
DT (Optional)
This connection is for analog cable without the cable box or over-the-airwave antennas. The tuner is a hybrid tuner that tunes to both analog and digital channels. This connection uses a coaxial RF cable. For over-the-airwave digital stations please check http://www.antennaweb.org This tuner DOES NOT support QAM. For digital cable, you WILL need a cable box.
USB
USB connects to USB flash drives for playing music and pictures. The USB port is also used for updating the Display’s firmware.

Please Note

This Display features a power-saving function that will turn off the Display automatically after 10 minutes of idling on a connection with no signal. This feature is present on all connections.
This Display does NOT support QAM under the Display tuner.
TV Tuner is optional. It may not be equipped in your product. Please check with the seller, authorized distributor,, or Sceptre Customer Services.

SCEPTRE Remote Control

This remote control follows SONY’s universal remote code. To find the actual code you need to consult your cable or satellite tech support.

GENERAL FUNCTION BUTTONS

POWER – Turns the display on or off.
INFO – Shows the display info.
NUMBER BUTTONS (0-9) – Press 0-9 to select a TV channel directly when you are watching the display. The channel will change after 2 seconds.
(-) – Inserts the dash for selecting digital channels directly.
R – Returns to the previous channel.
VOL(+)/VOL(-) – Press the VOL buttons to increase or decrease the sound level.
▲/▼/◄/►/ENTER – These directional buttons allow you to move around in the display’s menu. Press the ENTER button when you want to select a particular option.
CH(+)/CH(-) – Press the CH buttons to switch to the next or switch to the previous channel.
MENU – Brings up the main display menu on the screen.
GUIDE – Opens the current digital channel information guide (antenna only).
EXIT – Exit the main display menu on the screen.
SOURCE – Press this button to cycle through the INPUT source.
PICTURE – Select various preset picture settings.
MUTE – Turns the sound off from the display. To un-mute either press VOL(+) or press the MUTE button again.
FAV – Gives you your list of favorite channels.
F.ADD/DEL – Adds or Deletes current channel from the favorite list.
HOME / MHL – No function.
REWIND – No function.
PLAY / PAUSE – No function.
FAST FORWARD – No function.
STAR (*) – No function.
CC – Cycles between different closed captioning modes.
SLEEP – Turns the TV off at a specific set of times depending on your selection.
HDMI – This button switches the source to HDMI. If pressed repeatedly, this button will cycle through all the HDMI sources.
The following buttons are functions designed to work with the optional, Sceptre Sound Bar.
POWER – This button turns on the soundbar.
SOURCE – This button selects the sound bar’s source.
MODE – This button selects the sound bar’s sound modes.
VOL(-) – This button decreases the volume of the soundbar.
VOL(+) – This button increases the volume of the soundbar.

Please Note: Buttons encircled by the word SOUND BAR are to be used with a Sceptre’s sound bar only.

SCEPTRE *DVD Remote Control

This remote control follows SONY’s universal remote code. To find the actual code you need to consult your cable or satellite tech support.

GENERAL FUNCTION BUTTONS **optional DVD remote

POWER – Turns the display on or off.
INFO – Shows the display info.
NUMBER BUTTONS (0-9) – Press 0-9 to select a TV channel directly when you are watching TV. The channel will change after 2 seconds. For switching DVD chapters over 100 the 0 button acts as the 100 button, so press the 0 button twice to get that chapter.
(-) – Inserts the dash for selecting digital channels directly.
R – Returns to the previous channel. For switching DVD chapters over 100 the R button acts as the 100+ button, so press the R button and the number you want to switch to. For example,, for chapter 125 you would press R and 2 and 5 for the combination of 125.
VOL(+)/VOL(-) – Press the VOL buttons to increase or decrease the sound level.
▲/▼/◄/►/ENTER – These directional buttons allow you to move around in the TV’s menu and the DVD’s menu. Press the ENTER button when you want to select a particular option.
CH(+)/CH(-) – Press the CH buttons to switch to the next or switch to the previous channel.
MENU – Brings up the main display menu on the screen.
GUIDE – Opens the current digital channel information guide (antenna only).
EXIT – Exit the main display menu on the screen.
SOURCE – Press this button to cycle through the INPUT source.
PICTURE – Select various preset picture settings.
MUTE – Turns the sound off from the display. To un-mute either press VOL(+) or press the MUTE button again.
AUTO EJECT – Press this button to open or close the DVD player.
D. MENU – Shows the menu of the DVD.
D.SETUP – Press this button to set up the disc in DVD mode.
PREVIOUS CHAPTER – Press this button to select the DVD’s previous chapter.
REWIND – Press this button to reverse the DVD movie to a previous scene.
FAST FORWARD – Press this button to fast-forward the DVD to the next scene.
NEXT CHAPTER – Press this button to select the DVD movie’s next chapter.
►/║ – Play/pause button in DVD mode.
■ – Stop button in DVD mode.
REPEAT – Press this button to repeat the program.
The following buttons are functions designed to work with the optional, Sceptre Sound Bar.
POWER – This button turns on the soundbar.
SOURCE – This button selects the sound bar’s source.
MODE – This button selects the sound bar’s sound modes.
VOL(-) – This button decreases the volume of the soundbar.
VOL(+) – This button increases the volume of the soundbar.

Please Note:

To insert, or eject a disc from the DVD player, to use any functions on the DVD you must press the DVD button first.
This display does not support the QAM function. You need to have a digital cable box to receive cable channels.
The remote picture might be different from the actual remote. Please refer to the user manual on our website http://www.sceptre.com.

Installing Batteries to the Remote Control
Please insert two AAA batteries into the remote control. Make sure that you match the (+) and (-) symbols on the batteries with the (+) and (-) symbols inside the battery compartment. Afterward, re-attach the battery cover.

installing_batteries_to_the_remote_control_sceptre_24_inch_led_tv_hd_display_e246.png

Please note:

Only use AAA batteries.
Do not mix new and old batteries. This may result in cracking or leakage that may pose a fire risk or lead to personal injury.
Inserting the batteries incorrectly may also result in cracking or leakage that may pose a fire risk or lead to personal injury.
Dispose of of the batteries by local laws and regulations.
Keep the batteries away from children and pets.
If the remote control is not used for a long time, remove the batteries.
Keep the remote control away from moisture, sunlight, and high temperatures.

Connection Suggestions (OPTIONAL)

If You Have Antenna…

Make sure the power of the Sceptre HD Display is turned off.
Connect the Coaxial RF cable from your antenna to the DT port on the back of your HD Display.
Turn on the HD Display.
Follow the first-time on-screen instructions.

Please Note:

Not all broadcasts are in Full High Definition (HD). Please refer to your local broadcasting stations for more information.
The HD Display’s tuner is designed for HD Display and therefore requires a stronger signal than normal Displays. If you cannot achieve that signal level with your antenna or cable, your HD Display might lose picture or sound.

Connecting DVD Player with Component YPbPr…

Make sure the power of the HD Display and your DVD player is turned off.
Obtain a Component Cable. Connect the green color connector to both your DVD player and YPbPr’s green connector port on the back of your HD Display.
Connect the blue color connector to both your DVD player and YPbPr’s blue connector port on the back of your HD Display.
Connect the red color connector to both your DVD player and YPbPr’s red connector port on the back of your HD Display.
Obtain a RCA Audio Cable. Connect the white color connector to both your DVD player and YPbPr’s white connector port on the back of your HD Display.
Connect the red color connector to both your DVD player and YPbPr’s red connector port on the back of your HD Display.
Turn on the HD Display and your DVD player.
Use the remote control’s source button or the source button on the Display to switch to YPbPr.

Please Note:

Sometimes DVD players will not automatically output to YPbPr.You will need to configure your DVD player with an AV connection first then switch to YPbPr.Please reference the DVD player’s manual, to make sure the DVD player is configured to output correctly to the Display.
This source shares audio & video jacks with AV video.

Description

The slender and elegant appearance of the Sceptre E246 makes it ideal for any environment. Enhancing the whole viewing experience, the LED lighting guarantees vibrant and brilliant colors. It is appropriate for fast-paced material, such as action films and sports, because of its 5 ms reaction time, which reduces motion blur. Although customers may prefer external speakers for a more immersive experience, the built-in speakers offer respectable audio quality.

Along with several other connectivity choices, the TV has two HDMI connectors, one USB port, and extra AV and VGA inputs. Because of its adaptability, users may connect many devices at once, including a computer, DVD player, and game console.

Switching Sources

Press the button on the side of the Display or the SOURCE button on the remote control and you will see the picture above.
**TV Source is optional. It may not equipped in your product. Please check with the seller, distributor,, or Sceptre Customer Services.

Ready to Watch Some TV? (OPTIONAL)

Starting up the HDTV

Make sure your power cable is connected and the standby red light in the front of the TV is lit up.
Check all your connection cables off the side or the back of your TV and also your AV devices. Make sure they are all connected securely.
Turn on your TV and other AV devices if necessary.
Select the correct source according to the Connecting pages.

If You’ve Connected Antenna to the TV…
If an antenna or cable (without a cable box) is connected to your TV’s tuner, you will need to go through an INITIAL SETUP process to watch the TV.

Press MENU to open the menu
Use the ◄ or ► button to select the CHAANNEL icon and press ENTER.
Use the ▲ or ▼ buttons to highlight the signal type and press ◄ or ► to select your connection either AIR or CABLE.
Use the ▲ or ▼ buttons to select AUTO CHANNEL SEARCH and press ENTER to scan for channels.
Once the scanning finishes, you can begin to watch TV.

OSD (On Screen Display) Controls

Via Remote Control

To adjust most of the options inside the On Screen Display (OSD), the picture below shows all the buttons used on the remote control.

This button opens the OSD and also exits the OSD by going to the previous level of the OSD.
This button exits the OSD entirely.

▲– This button functions as anassanimationn in the OSD.
▼– This button functions as a downdirection in the OSD.
◄– This button functions as a direction in the OSD.
►– This button functions as the direction in the OSD.

ENTER – This button changes the channel in conjunction with the number pad and also functions as ENTER for selecting options in the OSD.

Via TV Side Panel Buttons
To provide more than one type of OSD control buttons, the side panel’s buttons have also been made functional for adjusting the OSD.

VOL(+/-) – These buttons function in the left/right direction in the OSD or increase/decrease the value of an option.
CH(▲/▼) – These buttons function as up/down directions in the OSD.
This button opens the OSD and also exits out of the menus.
This button acts as the enter button to enter each function or option.

Aspect Ratio Explained
The display is widescreen, but most TV programs are still broadcasting in a square format, therefore the Display offers multiple ways of viewing videos. There are mainly two types of signal format, Full (16:9 format), and Normal (4:3 format), while others offer a novelty ways to view the Display. Simply use the ASPECT button on the Display’s remote control to cycle between the multiple modes.

NORMAL
Most analog TV channels have 4:3 signal formats. If the original 4:3 aspect ratio (1.33:1 source) is preserved, black bars are added to the left and right of the display image. This aspect keeps that aspect ratio and shows you the black bars on the side.
WIDE
This mode will stretch the picture to a widescreen ratio. If you have a perfect 16:9 ratio picture you will not see any black bars. If you are watching a widescreen movie in a 1.85:1 or 2.35:1 ratio, you will still get black bars on the top and bottom of the screen. If you use this mode on 4:3 pictures they will be stretched and distorted horizontally.
CINEMA
This mode cuts off all 4 sides to try to make a widescreen movie fit better on the Display screen.
ZOOM
When watching a 4:3 aspect ratio Display or movie, this mode zooms in to cut off most of the black bars on the side while preserving the 16:9 ratio. Because of the zoom, the top and bottom are cut off as well.
DOT BY DOT
This mode is only available on PC. It will map dot by dot to the screen. Any resolution will be proportionate.
FULL 100%
Full 100% does not crop any video from the source.

Setup Guide

To set up the Sceptre E246,

Start by unboxing the TV and placing it on a flat surface or mounting it on a wall using the included wall mount kit.
Connect the power cord to a nearby outlet and turn on the TV. Use the remote control to navigate through the on-screen menu and select your preferred language and country settings.
Next, connect your devices such as a Blu-ray player or gaming console via the HDMI ports.
Ensure that the TV is set to the correct input source using the remote control. You can also connect a USB device to play media files directly through the TV.
For optimal viewing, adjust the picture settings according to your preference.
The TV also supports automatic channel scanning for tuning in broadcast channels if you have an antenna connected.

How do I clean the Display

IMPORTANT

The power cable has to be removed from the socket before cleaning the Display.
Do not use volatile solvents (alcohol, rosin, and toluene) to clean the Display. These types of chemicals might damage the housing and the LCD glass.

Cleaning the bezel and remote control

Use a 100% cotton cloth or micro-fiber cloth for cleaning.
If the remote control or bezel is dirty to the point where you cannot simply dry wipe it, please lightly dampen the wiping material (the wiping material cannot be dripping wet, because if water drips into the panel it will cause malfunction and possibly permanent damage to the panel which will not be covered under the warranty) with clean water and wipe again. Wipe the display with a dry micro-fiber cloth or 100% cotton cloth afterward.

Please Note:
Make sure you wring the water out of the cloth before cleaning the bezel or remote to prevent water from penetrating into the electronics.

Cleaning the Screen

Use a 100% cotton cloth or micro-fiber cloth for cleaning.
The LCD screen glass is extremely fragile. Do not scrape it with any material. Do not press or tap the screen to avoid cracking. When the screen is dirty to the point where you cannot simply dry wipe it, please lightly dampen the wiping material with clean water and wipe again. Wipe the display with a dry micro-fiber cloth or 100% cotton cloth afterward.

Troubleshooting

The following table contains the common problems and the solutions to these problems. Please check this list before you contact the technicians.

Problems	Solutions
NO PICTURE	Connect power cord correctly.
	Turn on power.
	Connect video cable correctly.
	Select the input signal source with proper cable connection with the source button.
ABNORMAL COLORS	Match the colors on the cables to the ports off the back of the television. I.E. red cable to red colored port.
PICTURE IS TOO DARK	Adjust your contrast, brightness and lamp settings from the OSD Menu. For adjust controls, refer to page 28.
AUDIO ONLY NO PICTURE	Make sure you have connected both your video and audio cables.
AUDIO ONLY NO PICTURE	The TV’s tuner signal must not be lower than 65%.(OPTIONAL)
PICTURE ONLY NO AUDIO	Make sure the audio cable is connected.
	Readjust your volume via the remote control.
	The Display’s tuner signal must not be lower than 65 %.
REMOTE CONTROL DOES NOT WORK	Turn off the Display, unplug it from the socket. Remove the batteries out of the remote for 30 seconds. Press the remote buttons and the power button randomly for a good 2 seconds, and then reinstall the batteries. Try the remote to see if it works. For battery removal instructions, refer to page 17.
REMOTE CONTROL DOES NOT WORK	The Display’s remote sensor is also housed in the same place as the power indicator light. Please make sure there is line of sight from the remote control’s front sensor to the remote sensor of the Display.
CANNOT RECEIVE SUFFICIENT CHANNELS THROUGH THE ATSC/NTSC TUNER (OPTIONAL)	The TV’s tuner signal must not be lower than 65 %. Change the direction of your antenna and rescan your channels. If you have cable call up your cable company and ask about signal strength of your local cable.
NO COLOR	Please adjust your picture setup and make sure the saturation and the RGB are not turned all the way down. For adjustment controls refer to page 28.

	The Display’s tuner signal must not be lower than 65 %.Check your signal.
WEAK SIGNAL OR NO PROGRAM SYMBOL ON SCREEN (OPTIONAL)	The TV’s tuner signal must not be lower than 65 %. Change the direction of your antenna and rescan your channels. If you have cable, call up your cable company and ask about signal strength of your local cable.
DISPLAY’S UNIVERSAL REMOTE CODE	This Display follows SONY’s universal remote code. To find the actual code you must read through your own universal remote’s guide book.
TV CHANNELS ARE BLOCKED (OPTIONAL)	Check your auto lock function’s settings inside the OSD. You may have locked up some channels but forgot about them. Refer to page 33 for more instructions.
THE Display TURNS ON OR OFF SLOWLY AND THE SCREEN SHOWS UP SLOWLY	This display is a High Definition liquid crystal display panel. It requires a few more seconds than normal Displays to power up and show the picture.
NO SOUND ON PC	Make sure you have a 3.5 mm mini-jack cable connected from your pc’s sound output to the Display’s VGA STEREO INPUT.
HDCP VIDEO SAYS NO HDCP SUPPORT	Reboot your HDCP video device but turning them off and unplugging the power cord. Wait up to 8 minutes to plug the power back in to see if it works or not.
HDCP VIDEO HAS NO AUDIO	Make sure you have a 3.5 mm mini-jack cable connected from your HDCP video device’s sound output to the Display’s VGA STEREO INPUT. If your HDCP video device uses RCA AUDIO jacks, you’ll need to obtain a RCA audio converted into 3.5 mm mini-jack cable.
CANNOT GET 1920X1080 ON PC VGA	Make sure the Display is recognized as plug and play monitor. Try updating your video card’s drivers as well. If that does not help, most likely you’ll need to upgrade your video card to a newer one.
PICTURE IS DISTORTED OR HAS ABNORMAL SOUND	This might be from interference from large electrical appliances, cars, motorcycles, or fluorescent lights. If the Display is close to the wall, try moving the Display to another room in your house to see if the problem still occurs.
PICTURE DOES NOT COVER THE ENTIRE SCREEN (OPTIONAL)	If you’re using HDMI or a Display digital channel make sure you use the ASPECT button to switch to 16:9 format. If you are using VGA, use the AUTO ADJUST function to adjust to the screen. Please Note : If you are using regular analog Display, AV, or component in 480i resolution, use the ASPECT button to switch to 16:9 in order to fill up the screen. Please Note : This note this feature will distort the picture.

PICTURE QUALITY IS HORRIBLE!!	For best image quality, view HD widescreen programs where possible. If HD content is not available view “Standard Definition” from a digital source. Standard, analog TV will always be noticeable inferior to HD because your display has video that is many times better than old TV’s and so you can see interference and deficiencies you did not KNOW you had.
PICTURE HAS PIXELS THAT ARE ALWAYS DISPLAYING THE SAME COLOR	Your Display is manufactured using an extremely high level of precision technology, however, sometimes some pixels of your Display may not display. Pixels defects within industry specifications are inherent to this type of product and do not constitute a defective product.
I CANNOT CHANGE THE TIME MANUALLY	Your display syncs time automatically according to your local TV channel.This function only works while the Display’s tuner is connected to an ANTENNA. (OPTIONAL)
BIG BLACK BOX IN THE MIDDLE OF SCREEN	You have turned on closed captioning and are using TEXT1 – TEXT4. Change the setting to CC1 or turn off closed captioning and the box will disappear. Refer to page 35 for more information.
SWITCHING A CHANNEL OR SOURCE CHANGES THE VOLUME	Different channels and inputs will sometimes have this effect because the channel signal’s own volume is already loud. There is no way remove this completely. The Display has an AUTO VOLUME LEVEL function that can combat this type of effect. Please make sure that function is turned on.
THERE IS NOISE OR TRASH PIXELS ON THE SCREEN	When your Display’s resolution is higher than the digital channel’s broadcast resolution, the signal is up-converted to match your Display’s resolution. Up-converting can cause this type of effect.
TIPS FOR LETTERBOX CONTENT USERS	Letterboxed (Widescreen) versions of DVD movies are most commonly formatted for standard 4:3 Displays. The Display has the capability of expanding this content so the entire screen is filled at the expense of the image proportion. To use this function press the aspect button on the remote control and cycle among the available options.
I CANNOT FIND THE VOLUME AND CHANNEL CHANGING BUTTONS	The buttons are represented by the ▲▼◄► buttons located on the remote control. ▲▼ changes the channels and ◄► changes the volume.
DISPLAY TURNS OFF AUTOMATICALLY AFTER 10 MINUTES	The Display features a power saving mode which will automatically turn off the Display, if there’s no signal provided for more than 10 minutes.
I HAVE DIGITAL CABLE AND AFTER SCANNING FOR CHANNELS I GOT NOTHING! (OPTIONAL)	This Display does not support QAM. You’ll need a cable box in order for the Display to work correctly. Make sure you have a HDMI cable connected to the cable box and to the display. Afterwards turn on the display and cable box and make sure your display’s source is HDMI.

Pros & Cons

Pros

Affordable price point
Compact and lightweight design
Multiple connectivity options (HDMI, USB, VGA, AV)
Energy Star certified for low power consumption
Good picture quality with a clear HD display

Cons

Limited viewing angles compared to larger screens
Built-in speakers may not provide optimal audio quality
No smart TV features or built-in streaming apps
No 4K resolution support

Customer Reviews

The Sceptre E246 is well-liked by customers because of its affordability, small size, and simplicity of setup. Particularly for gaming and streaming, several users have commended its responsiveness and visual quality. But some customers have complained that there is no support for smart TV functions and that the built-in speakers should be better.

Although the absence of sophisticated capabilities like 4K resolution and integrated streaming applications is a frequent grievance, the TV is generally praised for its ease of use and efficiency as a bedroom or auxiliary TV.

Warranty

Please read this warranty card carefully, it is a “ONE-YEAR LIMITED WARRANTY” on parts and labor (90 days for commercial use) and is only valid when purchased from an Authorized Reseller, only on the new and non-refurbished product, and available to customers in the Continental US, Alaska, Hawaii,, and Puerto Rico. See below for the SCEPTRE Extended Service warranty.

SCEPTRE’s Responsibility
SCEPTRE units purchased from an authorized SCEPTRE U.S. Reseller in the United States and that are used in the fifty (50) United States or Puerto Rico and Canada are warranted to be free from manufacturing defects in materials and workmanship for a period of one (1) year from the date of their original retail purchase (or a period of ninety (90) days for commercial use). If the unit fails to conform to this warranty, we will service the units using new or refurbished parts. If the part required for replacement is no longer in production and/or is obsolete, SCEPTRE will repair or replace the unit with similar or like parts of equal value. If a similar or like part is not available, a charge may be incurred to the owner, for any upgraded parts substituted.

Search Manuals in: hd-display

Read More
