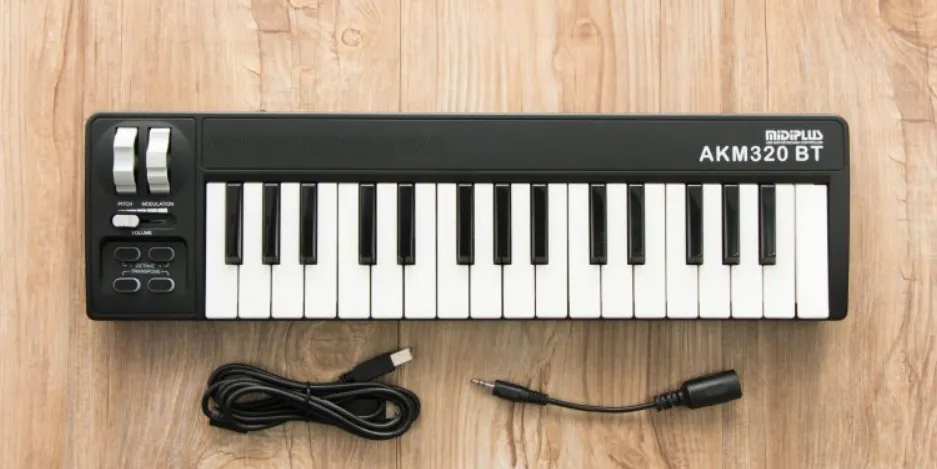

MIDIPLUS 32-Key Keyboard AKM320

The MIDIPLUS is an entry-level MIDI controller designed for beginners and musicians on a budget. Featuring 32 velocity-sensitive mini keys, it includes essential controls like pitch and modulation wheels, octave buttons, and a volume slider, making it suitable for various music production tasks. Its compact size and USB connectivity allow for easy portability and plug-and-play functionality with most DAWs. The cost of the MIDIPLUS AKM320 is approximately $35.00.

The AKM320 includes Pitch and Modulation wheels, MIDI Data Entry Slider, Octave buttons (Up & Down), Transpose Buttons (Up & Down) and Sustain pedal input. It's powered via a single USB cable and works instantly with computer building Mac OS X or Windows XP/Vista/7 system and above.

What’s in the Box?

The following items should be in your package

AKM320 velocity sensitive mid-size key keyboard USB MIDI Controller.
Owner’s Manual.
One standard USB Cable.

Keyboard Overview

Here are the features including in the AKM320 keyboard:

32 note velocity sensitive mid size key keyboard
Pitch Wheel.
Modulation Wheel.
MIDI Data Entry Slider
Octave Buttons (Up & Down)
Transpose Buttons (Up & Down)
Sustain Switch interface (sustain pedal does not include).
USB Port.

Detailed Specifications

The MIDIPLUS 32-Key Keyboard AKM320 comes with several key features that enhance its functionality:

32 velocity-sensitive keys
Pitch bend and modulation wheels
Octave up/down buttons
Transpose buttons
USB MIDI interface for plug-and-play connectivity
Compatible with Windows, macOS, and iOS devices
Compact and lightweight design
Includes a USB cable for easy connection

Description

The MIDIPLUS 32-Key Keyboard AKM320 is a compact MIDI controller that packs a punch in terms of functionality. With its 32 velocity-sensitive keys, this keyboard allows for expressive playing and control over virtual instruments. The inclusion of pitch bend and modulation wheels adds depth to performances, while the octave up/down and transpose buttons provide flexibility in key selection. Its USB MIDI interface ensures seamless connectivity to your computer or mobile device, making it a great tool for music production, live performances, and practice sessions.

Quick Start

Front panel Overview

Pitch Wheel
Modulation Wheel
Data Entry Slider
Octave Buttons (Up & Down)
Transpose Buttons (Up & Down)
Mid-size 32 Key Keyboard
Rear panel overview
Sustain Switch
USB 1.1 Interface

Minimum System Requirements

If you are using your AKM320 with a computer, the following minimum system requirements need

Windows

Mac OS

Pentium 3 800MHzor higher

Macintosh G3*800/G4*733MHz

or higher

CPU requirement may be higher

laptops

CPU requirement may be higher for

laptops

256 MB RAM

OS X 10.3.9with 256MB RAM

Direct X 9.0b or higher

OS X 10.4.2or greater with512 MB RAM

Windows XP(SP2) or higher

*G3/G4 accelerator cards are not

supported.

Windows 98,Me,NT or 2000 not supported

------------------------------------

(Attention: Window98/ME or 2000 are not supported) MIDIPLUS suggests that you connect directly to your comput er built in USB ports.

Installation

AKM320 do not need other driver to work with a computer, only needs the USB Audio Driver built in the system. The first time you connect AKM320 to your computer, it will automatically install the general USB-Audio Driver. After installation, the system will tell you the "new hardware" is ready to use.

Play with your Application Software

Generally, in PC or Mac, most MIDI software will have a MIDI port configuration or settings, sometimes it called “MIDI Devices” or “MIDI Setup”. You can choose and enable your MIDI input and output devices in it.
If the AKM320 driver is properly installed, and there is no other MIDI device connected, the MIDI In port of AKM320 In-1 (or “Port 1” on the Mac) will be selected as the first midi input, while the MIDI Out port of AKM320 Out-1 (or Port 1) will be selected as the first midi output.
If the MIDI software runs, and the MIDI-In and Out port in AKM320 are selected, the MIDI message will be received when playing the AKM320 keyboard. Also, the soft can send the midi message out to other device through the AKM320 “USB” MIDI OUT. You can connect this USB MIDI OUT port the other sound module or virtual instrument.

Power supply

Connect an USB cable from your computer to the AKM320. The unit will be powered by the computer USB, no additional power adaptor needed.

Sustain switch

This jack allows you to connect an optional Sustain Footswitch to the keyboard.

Setup Guide

Setting up the MIDIPLUS 32-Key Keyboard AKM320 is straightforward:

Connect the Keyboard: Plug the USB cable into your computer or compatible device.
Install Drivers (if necessary): Some systems may require MIDI drivers; check the manufacturer's website for specific instructions.
Configure Software: Open your music production software (e.g., Ableton Live, FL Studio) and configure the MIDI settings to recognize the AKM320.
Test the Keys: Play some notes to ensure that the keyboard is recognized by your software.

MIDIPLUS 32-Key Keyboard AKM320 Basic MIDI Control

Because AKM320 does not contain built-in soundcard, play the keyboard will only send MIDI data out including the midi message. A virtual instrument can change it into a track of your DAW software and creates the sound based on the MIDI message received from AKM320. For more details on using virtual instruments, please refer to the documentation in your DAW software.

Pitch Wheel

The Pitch wheel is used for raising or lowering the pitch of a voice during performance. The range of pitch values depends on the sound generator (sound card or module) being used.

Modulation Wheel

It is very common to use the modulation wheel to change the intensity of effects：Mainly vibrato (pitch change), tremolo (change the volume), and modulation (change the tone).The modulation wheel produces a vibrato effect shortly after the sound is generated. It is most effective for voice such as saxophone strings and Oboe.

Octave

The “Octave UP&DOWN” buttons can be used to enlarge the 32-key to 88-key or more. With it, you can play the note from –C1 to C9(128 notes). Some players want to play start with C2 not C3, He can change the Octave value to -1 easily.

Transpose

You can transpose the KEYBOARD, shifting it up or down in semitone intervals.

Troubleshooting

Common issues and solutions for the MIDIPLUS 32-Key Keyboard AKM320 include:

No Sound Output: Ensure that the MIDI settings in your software are correctly configured to recognize the AKM320.
Keys Not Responding: Check if the USB connection is secure and if any other MIDI devices are conflicting.
Warning: Avoid over-bending the pitch bend and modulation wheels as they can be fragile.

Pros & Cons

Pros

Compact and lightweight design
Velocity-sensitive keys for expressive playing
Pitch bend and modulation wheels for added control
Plug-and-play USB MIDI interface
Affordable price point

Cons

Limited key range (32 keys)
No built-in sounds; requires external software/instruments
Plastic construction may feel flimsy to some users

Customer Reviews

Customers generally praise the MIDIPLUS 32-Key Keyboard AKM320 for its value-for-money, ease of use, and portability. Some common complaints include the lack of built-in sounds and the limited key range, but overall, it is well-regarded as a reliable entry-level MIDI controller.
