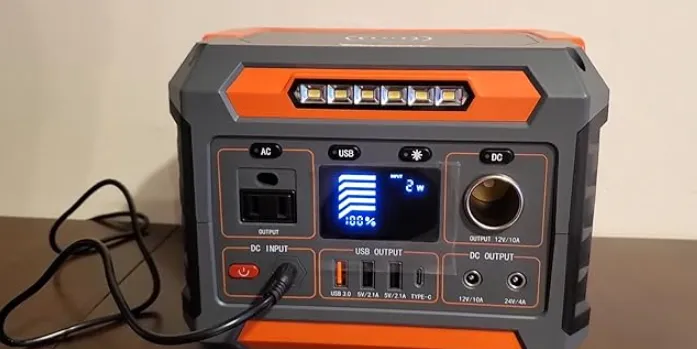

Progency Power Station Solar Generator P66

Introducing the Progency Power Station Solar Generator P66 is a versatile and reliable source of renewable energy. This eco-friendly generator is perfect for outdoor activities, home backup power, and emergency situations. With an estimated price range of $800 to $1,000 and a launching date set for Q2 2023, the P66 Solar Generator is a must-have for anyone looking to reduce their carbon footprint while ensuring a steady power supply.

What’s In The Box

1x P66 Portable Power Station
1x AC charging Adapter
1x Car Charger Cable
1x MC4 Adapter
1x Warranty Card
1x User Guide

Technical Specifications

Capacity	299Wh/ 80818mAh, Lithium-ion
Size	210×146×157mm(LWH)
Weight	3.2KG
Input	Adapter:DC15V/3A Solar Panel Charging: DC13V~22V/3A
DC Output	1x Cigarette Lighter Adapter 1x 5521 DC Output:12V/10A 1x 5525 DC Output:24V/4A
AC Output	110V 60Hz / 300W
2 x USB Output	5V/2A
USB-A QC Port	5V~ 9V/2A, 18W Max
USB-C QC Port	5V~9V/2A ,18W max
Cell Type	Lithium-ion Battery
Lifecycles	≥ 1000 times
Working Temperature	Charge Temperature: 0°C-40℃ Discharge Temperature: -10℃-45℃
Safety Protection	Overheating Protection, Over Current Protection, Over Voltage Protection, Short Circuit Protection

Button Definition

Power
AC switch
LED light
USB switch
LED switch
DC switch
AC output
LED display.
DC output
DC input
USB3.0 output
USB output
Type-c output
12V DC output
24V DC output

Progency Power Station Solar Generator P66 LED Display

INPUT	Shows the amount of power (watts) going into the P66 while charging.
AC OUTPUT	Shows the amount of power(watts) your AC devices are using while plugged into the P66
DC OUTPUT	Shows the amount of power(watts) your DC devices are using while plugged into the P66
BATTERY LEVEL	Shows 6 segments, approximating 10%-20%-40% 60%-80%-100% capacity. When charging your P66 you will notice a battery segment blinking, this indicates the current charge status. Once fully charged, all battery segments will be lit and remain solid.

Description

The Progency Power Station Solar Generator P66 is a powerful and environmentally friendly generator designed for a variety of applications. With its high-capacity lithium-ion batteries, the P66 can supply clean and stable power for extended periods, making it perfect for outdoor events, camping trips, or as a home backup power source. The stackable design allows for increased capacity, while the built-in LCD screen and Wi-Fi/Bluetooth connectivity make it easy to monitor and control your power supply.

Using Your P66

Press the main power button, the power station will be turned on.

Press POWER and Press the DC/USB/AC/LED button to turn on corresponding output port(when not using certain ports, make sure to turn them off to conserve power) You’ll know the output port is turned on when the green LED light on the button is illuminated

Press the “POWER” button to turn on/off the LED display

Notice

Please use this power station to power your device at temperatures ranging from -10°C~45°C
Before using, please check whether the power of your device exceeds the output range of this unit. This power station will enter protection mode if the power of your device exceeds the output range

USB OUTPUT

Press the main power button, and then press the “USB” power button, USB output and Wireless charging will be turned on, the green LED light on the button is illuminated.
Plug your devices into corresponding ports.
Main Power Button
USB Power Button

DC OUTPUT

press the main power button, and then press the “DC” power button, the DC output will be turned on, the green LED light on the button is illuminated.
Plug your devices into corresponding ports, you will see the amount of power(watts) your devices are using marks on the LED display
Main Power Button
DC Power Button

AC OUTPUT

press the main power button, and then press the “AC” power button, the AC output will be turned on, the green LED light on the button is illuminated.
Plug your devices into corresponding ports, you will see the amount of power(watts) your devices are using marks on the LED display
Main Power Button
AC Power Button

What it Powers

PROGENY P66 260W - AC OUTPUT - Television

PROGENY P66 260W - AC OUTPUT - Electric blanket

As the ambient temperature and battery usage times change, the using time of power station will change.
Please confirm the power of the device in the instruction manual or catalog of the device.
When the charging specification of the device exceeds the maximum value of this unit, this power station will enter automatic protection mode, the output will be turned off automatically. Before using, please ensure your electronic device is below 300W.

Charging Your P66

Charging from Solar

Place the solar panels in direct sunlight.
Please connect the DC output terminal of the solar panel to the charging. port of the power station, and the LED display will show the charging status. (Please charge at the temperature range of 0 °C ~ 40 °).
Remove the charging device from the solar panel and power station after fully charged.
- Sun
- Solar panel
- P66

Charging from AC Adapter

Insert the AC adapter into the socket, and then connect the other end to the DC input charging port of the power station. The LED display will show the charging status.
Remove the charging adapter from power station after fully charged.
- AC socket
- AC charging adapter
- P66

Charging from Car Charger(12V)

Connect the included car charging cable into car port.
Connect the other end of car charging cable into the charging port of the power station, and the LED display will show the charging status.
Remove the charging adapter from power station after fully charged.
- Car
- Car Charger Cable
- P66

Charging Indication

The battery indicator shows the remaining battery capacity.

The power marquee will be 10%-20%-40%-60%-80%-100%, displayed in 6 segments. When the battery capacity is below 10%, the power marquee could not show the specific remaining amount of capacity. At this time, please charge as soon as possible; when the battery capacity is below 10%, the power marquee will
flash.
In addition, if you do not use it for a long time, please charge the power supply every three months.

Setup Guide

To operate, assemble, and configure the Progency Power Station Solar Generator P66, follow these steps:

Unpack and assemble the generator following the provided instructions.
Connect the solar panels (not included) to the generator using MC4 connectors.
Charge the generator by placing the solar panels in sunlight or by using the AC charger (included).
Press the power button to turn on the generator and check the LCD screen for real-time power information.
Connect your devices to the generator using the AC outlets or USB ports.
To pair with your smartphone or tablet, download the Progency app and follow the in-app instructions.

SECURITY & MAINTENANCE

Do not short-circuit the unit. To avoid short-circuiting, keep the unit away from all metal objects (e.g. coins, hair-pins, keys, etc.).
Do not heat the unit, or dispose of it in fire, water or other liquids. Keep away from high temperatures. Do not expose the unit to direct sunlight.
Keep away from high humidity, dusty places.
Do not disassemble or reassemble this unit.
Do not drop, place heavy objects on, or allow strong impact to this unit.
This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
Children should be supervised to ensure that they do not play with the appliance.
Do not cover the device with towels, clothing and other item.
The unit may become hot when charging. This is normal. Use caution when handling.
Use the unit properly to avoid electronic shock.
Please deal with scrap products in accordance with the regulations, do not treatment the built-in battery as a household garbage, so as not to cause the explosion and pollution.
The product is only used for emergency power station, it can not replace the standard DC or AC power of household appliances or digital products

PRODUCT APPLICATION SKILLS

This product is built in high quality original lithium ion battery, it has no memory effect but high-capacity, and it is durable. However, we still recommend you to apply in the range of 10 °C ~30 °C, so as to obtain the optimal charging capacity;
When charging, in order to avoid interference, please stay away from TV, radio and other equipment
If the device has not been used for a long time, please disconnect the cable and store it
Some portable devices may need to be set in charge mode to charge, see the corresponding equipment use manual for more information
In order to extend the life of product (lithium battery), is better to charge within 3 months, and charge at least once within 6 months.

Battery information

Your device has and internal, non-removable, rechargeable battery. Do not attempt to remove the battery, as you may damage the device.
The battery can be charged and discharged over 1000 times, but it will eventually wear out

Pros & Cons

Pros

High-capacity lithium-ion batteries
Eco-friendly and renewable energy source
Stackable design for increased capacity
Integrated LCD screen and Wi-Fi/Bluetooth connectivity
Portable and easy to transport

Cons

Solar panels not included in the purchase
Higher price point compared to other generators

Customer Reviews

"The Progency Power Station Solar Generator P66 has been a game-changer for our camping trips. It's easy to transport, and the stackable design allows us to bring extra power when needed." - John D.

"As a professional photographer, I rely on the P66 to power my equipment during remote shoots. It's never let me down, and the clean power it provides ensures my gear is always protected." - Sarah K.

Common complaints include the higher price point and the need to purchase solar panels separately.

AC OUTPUT
Television	Electric blanket	Tablet
DC OUTPUT
Mini Fridge	LED light	Fan
USB OUTPUT
Phone	USB fan	GoPro
