Introduction of Rockville Car Headrest Monitors RTSVD961

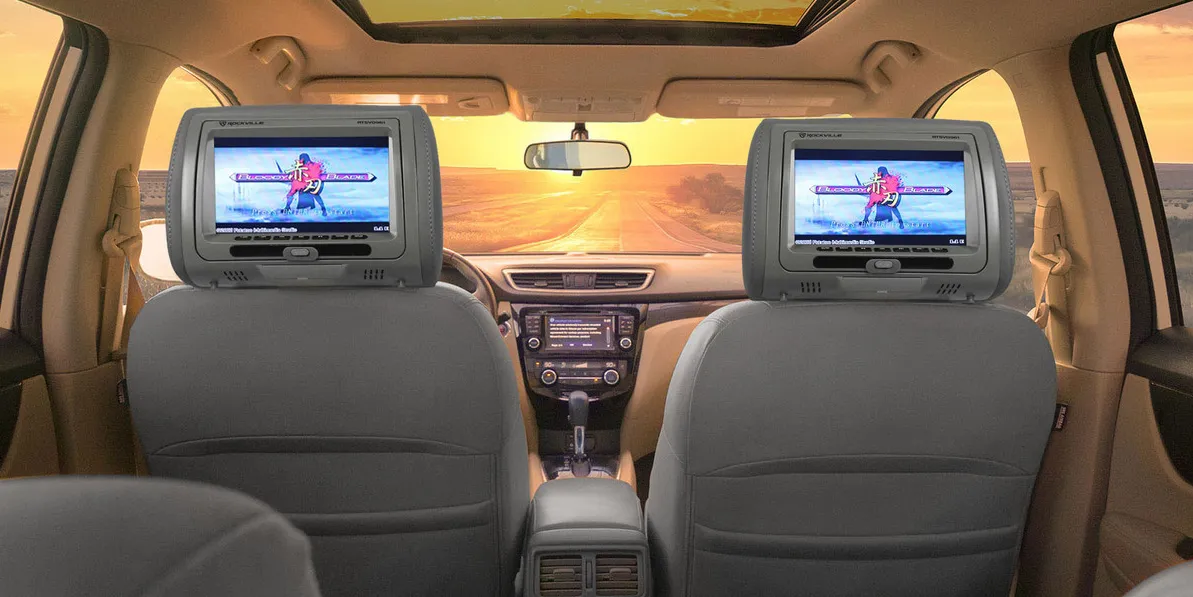

Introducing the Rockville Car Headrest Monitors RTSVD961, the ultimate entertainment solution for your vehicle. These headrest monitors are designed to keep your backseat passengers entertained, providing hours of fun on those long car rides. With a sleek and modern design, these monitors blend seamlessly into any car interior. The estimated price for the Car Headrest Monitors RTSVD961 is $200-$300, and they are now available for purchase.

Detailed Specifications

The Rockville Car Headrest Monitors come with a range of impressive features, including

10.1-inch HD LED screens
Built-in DVD player
USB and SD card ports
Wireless FM transmitter
Built-in games and media player
Adjustable brackets for easy installation
3.5mm headphone jack
Parental control function
AV input and output
Voltage: DC 12V

Description

The Rockville Car Headrest Monitors RTSVD961 are the perfect addition to any car, providing a range of entertainment options for your backseat passengers. The monitors feature a high-definition LED screen, ensuring clear and vibrant visuals. The built-in DVD player allows for easy movie playback, while the USB and SD card ports provide additional options for media playback. The wireless FM transmitter allows for easy connection to your car's sound system, ensuring high-quality audio. The monitors also come with built-in games and a media player, providing hours of entertainment. The adjustable brackets make for easy installation, and the 3.5mm headphone jack allows for private listening. The parental control function ensures that you can control what your children are watching, and the AV input and output allow for easy connection to other devices.
Powering the Unit

Turn the engine key to the "ACC" or "ON" position
Press and hold the power button for 3 seconds
The unit will turn on and the main screen will be displayed.
When the engine key is turned to the "OFF" position, the unit will turn off.
If the unit does not turn on, check to ensure all wires are connected properly. It is strongly suggested you seek out the help of a professional when installing.

RTSVD961

Feature	Description
Touch Screen	*Touch capabilities only available on the RTSVD961 unit.
Screen Size	9" TFT-LCD
Aspect Ratio	16:9
Resolution	800x480 pixels
DVD Player	Fully integrated with top loading DVD player
USB Slot	Audio, video, photo, e-book reader
HDMI Input	Audio and video
A/V Inputs	2.4 inputs (one on the front panel)
Video Input Level	1Vp-p, 75 ohm(composite)
Wired Headphone Input	On the front panel
IR Frequency (A Ch)	2.3 MHz/2.8 MHz
IR Frequency (B Ch)	3.2 MHz/3.8 MHz
FM Transmitter	87.7MHz, 88.1MHz, 88.5MHz, 88.9MHz, 107.1 MHz, 107.9 MHz
Post Diameter	10mm post with 12/12.5/12.7/13.8/14/16mm plastic inserts, 12mm metal inserts
Post Distance	Adjustable 110mm-190mm
3 Different Color Choices	Black, Beige, Gray
Power	DC 12V(9-15V)

Setup Guide of Rockville Car Headrest Monitors

Setting up the Rockville Car Headrest Monitors RTSVD961 is simple and straightforward. Begin by installing the adjustable brackets onto your car's headrests. Then, connect the power cable to your car's cigarette lighter socket. Next, insert a DVD into the built-in player or connect a USB or SD card to the relevant port. Finally, use the remote control to navigate the user-friendly interface and select your desired media. For wireless audio, simply tune your car's FM radio to the same frequency as the wireless FM transmitter.

Front Panel Operation

Remote

No.	Function	Description
1	Power	Turn unit on and off
2	TFT Menu	Access unit settings menu
3	PBC Menu	Setup playback settings
4	Title	Return to the title screen
5	Up Arrow	Navigate up when available
6	Mute	Mute audio
7	Program	Adjust unit functionality
8	Right Arrow	Navigate right when available
9	Enter	Select highlighted item
10	USB/SD	Switch between USB and SD devices
11	Down Arrow	Navigate down when available
12	Volume Up	Increase volume level
13	Fast Forward	Fast forward selected music or video
14	Volume Down	Decrease volume level
15	Next	Skip to next song, photo, page, or video
16	Zoom	Zoom in on media content
17	Slow	Decrease frame rate playback of videos
18	Audio	Change the audio channel
19	Subtitle	Toggle subtitles on/off when available
20	DVD/AV	(DVD function not available)
21	Number Pad	Enter digits 1-9. Use "10+" for faster input.
22	Previous	Skip to previous song, photo, page, or video.
23	Stop	Stop media playback
24	Rewind	Rewind selected music or video
25	Play/Pause	Play and pause media content
26	Setup	System Setup
27	Open	Opens the disc tray
28	Left Arrow	Navigate left when available
29	Repeat	Repeat current song or video in playlist
30	Display	Adjust Video display size
31	Game Start	For in game use
32	Game Select	For in game use
33	Game Input	For in game use
34	Game Movement	For in game use
35	Return	Return to the main menus.

Media Devices

Port	Description
AV2	Input for audio playback via a 3.5mm cable
HDMI	HDMI in for audio and video playback of supported devices
USB	USB port for media storage device (see pg.10 for information on browsing media devices)
Phone	Plug in headphones
SD	Use the provided USB adapter to access SD cards

Supported Video Types

AVI
DIVX
MPG
DAT
FLV
RMVB
VOB
MP4.
MOV
OGG
ASF

Supported Audio Types

Supported Game Types

Supported E-Book Types

• TXT

Supported Photo Types

DVD Operation

Popen to be aromatic
Insert disc into the slot with the label facing up To return to DVD playback press MODE on the unit front panel until
DISC is selected
Use the remote or the unit front panel to conrol playback
Supported Disc Types

DVD
S-VCD
VCD
Audio CD
MP3 Disc

Touch DVD Controls

Touch capabilities only available on the RTSVD961 unit.

No.	Feature	Description
1	Touch Points	While in DVD playback only the top and bottom areas are touch compatible
2	Top Menu	Return home, increase/decrease volume, access DVD settings, and mute
3	Playback Menu	The playback menu provides the basic playback options

Browsing Files

Select the type of media you'd like to browse
Audio/Photo/Games/Video/Books returns one retro fring them to see their contents or select to the previous list.
Select the desired file to begin playback (See pg.8s for a list of supported file types)

Settings

Fine-tune the display settings. Brightness, contrast, saturation, sharpness, hue, and orientation. Adjust manually or use one of the presets found under "Picture Mode".
Sound
Fine-tune the sound settings. Bass, Treble, Balance, FM Radio Frequency, IR Radio Frequency, Volume. Adjust manually or use one of the presets found under "Sound Mode".
System
Change system settings. Language, OSD Duration, Video Output, Reset. OSD Duration changes the amount of time the menu will wait before disappearing from inactivity. Reset and restore the factory default settings.
Player
Adjust disc playback options. TV system, screen save, aspect ratio, password, rating, resume, audio language. TV system switches between PAL and NTSC mode. Use password and rating to set parental restrictions for child use.

Wiring Diagram

Installation

Remove the existing headrest from the seat
Adjust the mountings poles of the Rockville headrest unit to fit in the vehicle's headrest sockets
Feed the wiring through the hole, down to the bottom of the seat (make sure none of the cables are pinched)
Once the wires are through, finish inserting the Rockville headrest unit unit it clicks into place
You can now adjust the height of the unit as you would the vehicle's factory headrest unit
Refer to the wiring guide for proper connection of wires


Troubleshooting

If you encounter any issues with the Car Headrest Monitors , try the following solutions

If the screen is not turning on, check that the power cable is securely connected to the monitor and to a working cigarette lighter socket.
If the sound is not working, check that the volume is turned up and that the 3.5mm headphone jack is not connected to the headphones. If using the wireless FM transmitter, ensure that your car's FM radio is tuned to the same frequency.
If the DVD player is not working, check that a DVD is inserted correctly and that the disc is compatible with the player.
If the monitors are not responding to the remote control, check that the remote is pointing directly at the monitors and that the batteries are fresh.

ISSUE	SOLUTIONS
Unit does not start up	- Check if the power cable is connected correctly
	- Use remote to turn on the unit, check if the battery in the remote control is installed correctly
No picture	- Check power
	- Check video connection wires
	- Check the vertical scanning frequency of VGA input
Picture showing abnormally	- Check power
	- Check video connection wires
	- Check the vertical scanning frequency of VGA input
Remote control not responding	- Replace the battery in the remote control

Pros & Cons of Car Headrest Monitors

Pros
- High-definition LED screen
- Built-in DVD player and media player
- Wireless FM transmitter
- Adjustable brackets for easy installation
- Parental control function
Cons
- May not be compatible with all car models
- Power cable may be too short for some cars
- Remote control batteries not included

Customer Reviews of Rockville Car Headrest Monitors

Customers have praised the Rockville Car Headrest Monitors for their high-quality visuals and audio, easy installation, and range of entertainment options. The wireless FM transmitter has been a particular hit, allowing for easy connection to car sound systems. The parental control function has also been appreciated by parents looking to control their children's media consumption. However, some customers have noted that the power cable may be too short for some cars, and that the remote control batteries are not included. Overall, the Car Headrest Monitors RTSVD961 have received positive reviews for their functionality and value for money.
