Introduction

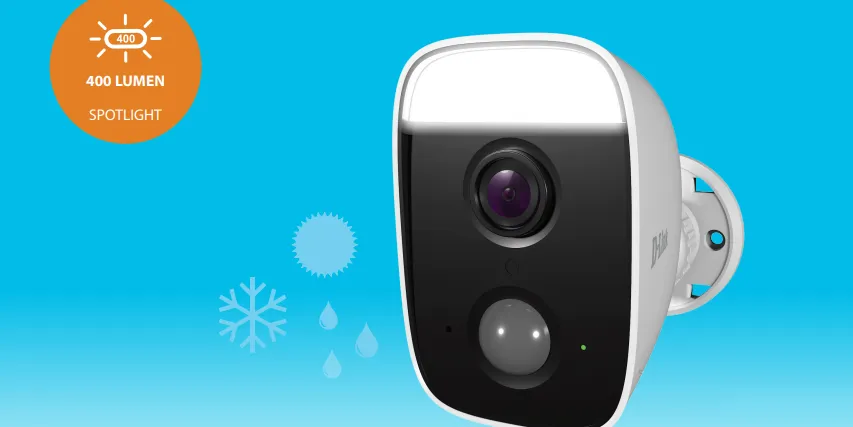

The D-Link HD Wi-Fi Spotlight Camera DCS-8627LH is an advanced outdoor security solution designed to enhance home protection. This camera features a 400-lumen spotlight that activates upon motion detection, providing clear color footage even at night. Equipped with AI-based person detection, it minimizes false alerts by distinguishing between humans and other moving objects. With a rugged IP65 weatherproof rating, it operates effectively in various weather conditions. Priced at $129.99, this camera combines robust features with user-friendly operation for comprehensive surveillance.

Specifications

Camera
Hardware Profile	1/2.9” Progressive CMOSsensor 7 m (23 ft) IR illumination distance Built-in Infrared-Cut Removable (ICR) Filter module Fixed length 2.7 mm Aperture F2.0	Angle of view (16:9): Horizontal: 123.8° Vertical: 65.4° Diagonal: 150° Built-in microphone and speaker
Image Features	Configurable image size Person Detection Motion Detection (1 zone)	Invert image Color Night Vision
Video Compression	H.264 format compression
Video Resolution	Max. Resolution: 1080p (1920 x 1080) at up to 30 fps
Audio Support	MPEG-2 AAC LC
Network
Connectivity	802.11n/g wireless with the latest industry-standard 128-bit wireless encryption Wi-Fi operates on 2.4 GHz band microSD card slot Supports up to 256 GB capacity	2T2R supports a maximum data rate of 150 Mbps (PHYrate) using 20MHzbandwidth 300 Mbps (PHYrate) using 40MHzbandwidth Bluetooth Low Energy 4.0
Network Protocols	IPv4, IPv6 DHCP/DHCPv6 Client Bonjour (mDNS and DNS-SD) ONVIF Profile S	RTSP RTCP RTP/SRTP HTTPS
System Integration
Event Management	Motion detection Person detection Sound detection Cloud recording SD card recording Glass Breaking sound detection	Push Notifications with a snapshot when the device detects motion/ people/sound Push Notifications with quick action buttons: Call up to 2 designated contact numbers Live view button
Device Management	mydlink app	mydlink Portal (for live view only)

Physical
Environment	For indoor and outdoor use	IP65 weatherproof rating
Weight	237 g (8.4 oz)
Power Adaptor	Input: 100 to 240 V AC, 50/60Hz Output: 12 V DC 1.0 A	Cable length 3 m (9.84 ft)
Power Consumption	Maximum 8 W ± 5%
Temperature	Operating: -25 to 45 °C (-13 to 113 °F)	Storage: -20 to 70˚ C (-4 to 158 ˚F)
Humidity	Operating: 20% to 90% non-condensing	Storage: 5% to 90% non-condensing
Certifications	CE LVD RCM	FCC Class B IC NCC/BSMI
Dimensions (L x W x H)	121.0 x 83.7 x 55.8 mm (4.8 x 3.3 x 2.2 in)

Product Overview

Package Contents

If any of the above items are missing, please contact your reseller.
Note: Using a power supply with a different voltage rating than the one included with your product will cause damage and void the warranty for this product.

Introduction

The mydlink DCS-8627LH Full HD Outdoor Wi-Fi Spotlight Camera boasts a wide-angle lens accompanied by a 400 lumen spotlight and color night vision, easily capturing your entire outdoor area in high-quality 1080p. This is the camera that takes intelligent home surveillance to a whole new level of smart.

System Requirements

Network Requirements

802.11n/g wireless network
AnInternet connection
A router connected to your broadband modem

mydlink™ App Requirements

iPhone, iPad,Android smartphone or tablet (please refer to themobile app's storepage to checkwhether your device is compatible)
Email account (for mydlink™ service registration)

Hardware Overview

Front

Spotlight	400 lumen spotlight.
IR LEDs	IR LEDs illuminate the device's field of view in low light environments.
Camera Lens	Records video of the surrounding area.
Light Sensor	The IR-Cut removable sensor monitors lighting conditions and switches between color and infrared accordingly.
Status LED	See LED Behavior on page 5 for more information.
PIRMotion Sensor	Passive Infrared (PIR) sensor for highly accurate motion detection that reduces false alarms.
Microphone	Picks up soundnear your camera.

Back

Reset Button	Push the recessed button to reset the camera to factory default settings.
microSD Card Slot	microSD card slot,supports up to256 GB.
Speaker/Siren	The speaker provides audio playback for the two-way audio feature. The 100 dB siren sounds to alertyou to a detection.

LED Behavior

Status LED	🟢	Connected to Wi-Fi and mydlink.
	🔴	Booting up.
		Ready for set up.
		Firmware being upgraded - do not power off.

Description

The D-Link HD Wi-Fi Spotlight Camera DCS-8627LH boasts a sleek and durable design, making it suitable for both indoor and outdoor installations. The camera’s full HD 1080p resolution ensures clear video quality, while the built-in spotlight illuminates dark areas, providing enhanced visibility at night. The motion detection feature sends alerts directly to your smartphone or tablet, keeping you informed of any activity around your home.

The camera is also integrated with voice assistants like Alexa and Google Assistant, allowing for seamless voice control. With its weather-resistant design and IP65 certification, the DCS-8627LH can withstand various environmental conditions, ensuring continuous performance.

Installation

Safety

Please read all of the safety and operating instructions before using device:

Do not open the device or attempt to repair it.
Make sure that the microSD card slot cover is securely closed before placing the camera outside.
Do not submerge the device in liquid or attempt to clean it with liquids or solvents. To clean the device, disconnect it from the power outlet and use a damp towel to gently wipe it down.
Heating of the exterior may occur if the spotlight is activated for long periods of time. This may occur if the live-view is used continuously for an extended period of time. Heating will not cause damage, premature failure or safety issues.

Before you Begin

Plan the location of your camera:

Verify that your camera is electrically rated to operate with the power available in your location.
Connect the camera's power adapter into an electrical outlet that is not controlled by a wall switch. This will help avoid accidentally turning off power to the device.
Be sure to plug the device into a properly grounded electrical outlet in order to help prevent against electrical shock.
Make sure that the device is securely mounted.

Wireless Installation Considerations
The DCS-8627LH Full HD Outdoor Wi-Fi Spotlight Camera lets you view video footage from virtually anywhere within the operating range of your wireless network. Keep in mind that the number, thickness and location of walls, ceilings, or other objects that the wireless signals must pass through may limit the range. Typical ranges vary depending on the types of materials and background RF (radio frequency) noise in your home or business. The key to maximizing wireless range is to follow these basic guidelines:

Keep the number of walls and ceilings between the camera and wireless access point to a minimum - each wall or ceiling can reduce your camera’s range from 1 to 30 meters (3 to 90 feet). Position your devices so that the number of walls or ceilings is minimized.
Be aware of the direct line between network devices. A wall that is 0.5 meters (1.5 feet) thick, at a 45-degree angle appears to be almost 1 meter (3 feet) thick. At a 2-degree angle it looks over 14 meters (42 feet) thick! Position devices so that the signal will travel straight through a wall or ceiling (instead of at an angle) for better reception.
Building materials make a difference. A solid metal door or aluminum studs may have a negative effect on range. Try
to position access points, wireless routers, and cameras so that the signal passes through drywall or open doorways. Materials and objects such as glass, steel, metal, walls with insulation, water (fish tanks), mirrors, file cabinets, brick, and concrete will degrade your wireless signal.
Keep your product away at least 1 to 2 meters (3 to 6 feet) from electrical devices or appliances that generate RF noise.

Mydlink App Camera Setup

Download the mydlink app from the App Store (iOS) or Google Play (Android) by scanning the QR code.
Note: Ensure that your device is wirelessly connected to the network that the DCS-8627LH will be in.
Launch the mydlink app and create a new account or sign in to your existing account.
Note: If you are asked about allowing the app to access your location or to send notifications, select Allow. Make sure location services and Bluetooth are turned on in your phone’s settings.
After logging in, tap the Menu button in the top-left corner.
Select Add a Device.
Follow the onscreen instructions to complete the device setup.

Device Placement

Place the camera 6.5 to 8 feet (2 - 2.5 meters) from the ground. Person Detection works best when the subject is between 6.5 to 23 feet (2 - 7 meters) away from the camera.

Mounting the Camera (Pole Mount)

Place the camera against a pole and hold it where you want it to be positioned.
Thread the plastic mounting ties through the slots on the base of the device. Face the rough side of the plastic mounting ties to the pole to avoid slippage.
Fasten the plastic mounting ties around the pole to secure the camera.

Mounting the Camera (Wall Mount)

Place the camera against the wall or ceiling where you want it to be positioned. Use a pencil to make two marks where the holes are located.
Use a 6 mm drill bit to drill two 26 mm deep holes over the pencil marks.
Hammer in the plastic wall anchors to support the screws.
Align the camera mount’s holes over the plastic anchors. Drive the screws into the anchors to secure the camera.
Twist the camera head to your desired position.

Mydlink

Using the mydlink App

Controlling Your Device

Note: Screenshots are representative only. The mydlink app is constantly being updated and so may appear different.
After setting up your DCS-8627LH Full HD Outdoor Wi-Fi Spotlight Camera with a mydlink account in the mydlink app, you will be able to remotely access your camera through the app. After signing into your mydlink account, you will see a screen similar to the one on the right.

If you have previously checked the Add to shortcut option while installing the camera, you will see a quick link to your camera directly on the home screen. Tap the shortcut link to your camera on the home screen and by default you will see a live video feed of your camera on the top half of the app.

To access the settings for your DCS-8627LH Full HD Outdoor Wi-Fi Spotlight Camera, tap menu> Devices > Camera > navigate to your camera on the carousel >.

Camera Options

On the bottom half of the app you will see control options for your camera.

	Snapshot	Tap this button to take a snapshot of the video stream.
	Options Toggle	Tap this icon to review various live video options such as microphone and video quality.
	Recording	Tap this button to enable video stream recording.

Tap to toggle the Options menu
Audio
Tapto disableaudio. Tapto enable audio.
Hold to Talk
Hold down the to send your voice to the camera's built-in speaker.

Spotlight
Tap to turn off the spotlight. Tapto turn on the spotlight. The spotlight will turn off
automatically after the timeout period has been
reached or when the session ends.

Siren
Tap to turn thesiren on andoff. The sirenwill turn off automatically afterthe timeout period has been reached.

720p
Video Resolution
Tap 720p to use 720p resolution video.Tap 1080p to use 1080p resolution video.

Device

To access the device page, either:

From the home page, tap > Devices > Camera > navigate to your camera on the carousel > or
In the camera control page, tap the button.
The device page contains several options for you to configure your camera.

Setup Guide

To set up the D-Link HD Wi-Fi Spotlight Camera DCS-8627LH,

Start by downloading and installing the mydlink app on your smartphone or tablet.
Follow the in-app instructions to create an account or log in if you already have one.
Next, connect the camera to a power source and wait for it to boot up.
Use the app to scan the QR code on the camera or manually enter the device’s MAC address.
Select your Wi-Fi network and enter the password to connect the camera to your network.
Once connected, you can configure settings such as motion detection zones, alert notifications, and cloud storage options through the app.

Instructions

1	Device Photo	Tapto adda customized photo ofthis device.
2	Device Name	Tap to changethe device’s name.
3	Device Location	Tapto change or adda newlocation forthis device.
4	Time Zone	Select the timezone to calibrate your device to.
5	Wi-Fi	Tap to change the wireless network this device will use to connect to the Internet. Note: The network must be the same as all your other mydlink devices thatyou wish to use thesame account for.
6	Designated Contact	Taphere to add,remove, or editdesignated contacts thatappear in the rich notification.
7	Camera Microphone	Tapto enable or disable picking up sound nearyour camera in live view and recordings.
8	Motion Setting	Tap to further configure sensitivity and the active area of motion detection.
9	Color Night Vision	Tapto enable Color Night Vision.
10	Spotlight	Setthe auto-off timerfor the spotlight. This setting willapply to manual operation and Automations.
11	Siren	Set the auto-off timer for the siren. This setting will apply to manual operation and Automations.
12	Anti-Flicker	Reduces flicker in the video. Tap 50 Hz or 60 Hz depending on the frequency of your lights.
13	Privacy Mode	Tap to enable. Privacy mode willdisable the camera feed.
14	Status LED	Disabling this will turn offthe LEDuntil youturn itback on.
15	Storage	Tap to change videoclips storage location from the microSD card to the cloud. You can also subscribe to mydlink Cloudfrom here and view your current subscription plan.
16	Firmware Update	Shows time of auto firmware update.Tap to enterthe update settings. You can choosethe most suitable time for automatic updates.
17	Current Firmware Version	This displays yourdevices’ firmware version.
18	Device ID	Identifies the device for support issues.
19	Remove Device	Tapthis button to disconnect this device from your mydlinkaccount.

Troubleshooting

What do I do if my device is not working properly?
Reset the device and reinstall it. To reset your device, use a paper clip to press and hold the recessed Reset button until the LED turns solid red.

During installation, ensure that:

your router is connected to the Internet and has Wi-Fi enabled
your mobile device has Bluetooth enabled
your mydlink device is in range of your Wi-Fi network

Why is there a white haze when viewing in night vision mode?
When viewing in night vision mode, the IR lights on your camera may be reflecting off a nearby surface. Try repositioning your camera to avoid glare from IR LEDs.

How can I use voice commands to control my device?
The device will work with both Amazon Alexa and the Google Assistant. For setup instructions on these services, visit the following websites:
Alexa: https://dlink.com/en/alexa

The Google Assistant: https://dlink.com/en/google-assistant

Why is my microSD card not working/not supported?
The microSD card must be formatted into the correct file system (FAT32) before it can be used with this product. This can be done in the mydlink app by selecting the Format function in the storage menu under the Device settings.

What is Color Night Vision and how does it work?
Color Night Vision is enabled by default and will turn on automatically in order to show color images while viewing the Live View in low light scenarios. To turn it off, select disable under the device settings page for your camera. Disabling Color Night Vision means enabling Night Vision (Auto), where the IR LEDs will be activated and the live feed in low-light scenarios will be displayed in black and white.

Why does my device get so hot?
The device has a timeout for trigger actions, however, heating of the exterior may occur if the spotlight is activated for a long period of time. This may occur if live-view is used continuously for an extended period of time. Heating will not cause any safety issues (eg. fire) however we do not recommend continuous viewing in Color Night Vision mode.

Why do the Spotlight and Siren turn off after a period of time?
After they have been triggered, the Spotlight and Siren alerts will automatically turn off after a period of time in accordance to what has been set under the Auto-off Timer in the Device settings. You can select between 30, 60 and 90 seconds. The Auto-off Timer applies to manual controls in the Live View and Automation rules.

Pros & Cons

Pros:

High-quality full HD video
Built-in spotlight for enhanced night vision
Weather-resistant design
Easy setup and configuration via mydlink app
Integration with voice assistants like Alexa and Google Assistant

Cons:

Requires a stable internet connection for optimal performance
No battery option; requires constant power supply
Some users report occasional lag in video feed
Cloud storage plans may incur additional costs

Customer Reviews

Customers have generally praised the D-Link HD Wi-Fi Spotlight Camera DCS-8627LH for its clear video quality, robust build, and effective motion detection. Many users appreciate the ease of setup and the intuitive mydlink app. However, some reviewers have noted occasional connectivity issues and lag in the video feed.

A common complaint is the lack of battery power, which limits installation flexibility. Despite these minor drawbacks, the camera remains a popular choice among home security enthusiasts due to its comprehensive features and competitive pricing.
