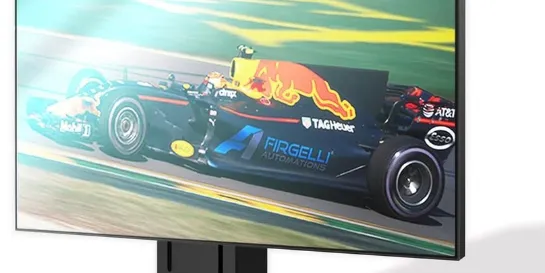

Introduction of Firgelli TV Lifting System TVL-170

The Firgelli TV Lifting System TVL-170 is a state-of-the-art solution for discreetly hiding and revealing your television with ease. With a weight capacity of 170 lbs, this lift system is designed to accommodate most televisions on the market. The estimated price of the TVL-170 is around $1,999.00, and it is currently available for purchase.

Overview

Column: FA-TVL-170
Control Box: FA-CB-170
Controls: RF and IR Control
Accessories: TJB2 Junction Box TSS Safety Switch (optional), and Concealed Switch Box

The FA-TVL-170 series columns are primarily designed for use as TV lifts, but can be used in other applications that require vertical movement using a remote control. Our steel constructed is available in three sizes depending on the requirements of the application. An extended height position can be programmed using our remote control.

Package Contents

No.	Description	Model Name	Qty
1	Lift Column	FA-TVL-170-24-X	1pc
2	Control Box	FA-CB-170	1 pc
3	Control	RF Control	1 pc
4	Control	IR Control	1 pc
5	Accessory	TJB2	1 pc
6	Accessory	Concealed switchbox	1 pc
7	Accessory	Power cord	1 pc
8	Accessory (optional)	TSS
9	Component Package	Refer to the following chartfor more details (page 9~10)	1 set

Appearance

Specifications

2D drawing of the FA-TVL-170 lifting column

Size	Retracted Length	Stroke	Fixing Hole Distance	Max. Load	Speed (mm/sec)	Recommended TV Size (inch) (Note)
FA-TVL-170-24-36	31.30”	35.98”	25.60”	135 lbs.	35 mm/s at no load 20 mm/s at full load	50” ~ 70”
FA-TVL-170-24-30	26.97”	30.71	21.46”			40” ~ 55”
FA-TVL-170-24-25	22.44”	25.60”	16.92”			32” ~ 43”

Other components

Component Package List

Installation of Firgelli TV Lifting System TVL-170

Important information

Prior to installation onto the FA-TVL-170, remove the stand which is attached to your flat screen TV. Carefully measure all dimensions of the television before proceeding with the installation.

Secure the TV
Lean the TV onto its edge, preferably against a soft surface to prevent scratches and or damage.
Install the Mounting Plates (Fig. 1 and 2)
Find the 4 mounting holes on the back of your TV and then choose the 4 screws from the component package that work best for your TV. Install the included TV mounting plates (2) onto the back of the TV.
Install the Mounting Brackets (Fig 3)
Fix the TV mounting brackets to the TV mounting plates.
Mount the TV to the FA-TVL-170 (Fig 4)
Install the TV, using the newly installed brackets, to the FA-TVL-170. Screw tight on the top of the brackets. Slowly release the TV to make sure it is installed securely. Plug in the FA-TVL-170 and raise it the full height so that it’s fully extended.

Getting started

Concealed Switch Box: Setting the desired maximum height

IR Control: Setting the lift height

RF Control: Setting the lift height




Operation

Once the memorized height of the FA-TVL-170 column is set, users can use either the RF or IR Control to control movement of the lifting system.

Press and hold the symbol to move the column upwards.
Press and hold the symbol to move the column downwards.
Release the button at▲ any time to stop the column’s movement.
The Concealed Switch ▼ Box serves as a back-up control, if both the RF and IR Controls are out of battery.

Safety (for end users)

Please adhere to the proper installation procedure as detailed in the installation instructions.
Safety precaution measures must be practiced at all times during installation of this product.
The entire installation instructions should be fully read and understood before beginning installation.
At least two people should be available to mount the TV on the lift mechanism. Please take care when handling your flat screen TV as injury and damage can result from dropping or mishandling of the TV.
TV’s should remain upright at all times. Never place screen face down on the floor. This could cause damage to the TV
The stand on your flat screen TV is removable. Please remove the stand prior to installing the TV on the lift mechanism. Consult your TV’s owner’s manual for instructions for removing the stand.
Carefully measure all dimensions of your LCD, PLASMA, or LED TV before proceeding. Then consult the Specification section of this manual for maximum acceptable TV size.
The TV Lift Mechanism contains moving parts. Please keep hands, arms, and fingers away from the lift and cabinet lid opening when the lift is in motion. Cables should be wire-tied or secured neatly so the lift does not contact them during operation.
About the TSS Safety Strip accessory. The TSS safety strip is an optional accessory which can be installed onto the bottom of the TV. To avoid the risk of personal injury, the TSS will stop the lift column once the strip is pressed.

Description of Firgelli TV Lifting System TVL-170

The Firgelli TVL-170 TV Lifting System features a powerful electric motor that allows for smooth and quiet operation. The system is designed to be installed within a cabinet or other furniture piece, with the TV mounted on the lift mechanism. Once installed, the TV can be raised and lowered with the touch of a button, making it perfect for creating a streamlined and clutter-free home entertainment space. The TVL-170 is also equipped with a built-in safety stop, ensuring that the TV remains securely in place when raised to the desired height.

Setup Guide

To install the Firgelli TVL-170 TV Lifting System, you will need to follow these steps:

Determine the desired location for the lift system within your furniture piece.
Cut a hole in the back or bottom of the furniture piece to accommodate the lift mechanism.
Install the lift mechanism into the hole, ensuring that it is level and secure.
Mount your television onto the lift mechanism, following the manufacturer's instructions for proper mounting.
Connect the lift mechanism to a power source and test the TVL-170 to ensure that it is operating smoothly and quietly.

Firgelli TV Lifting System Troubleshooting

If you experience any issues with your Firgelli TVL-170 TV Lifting System, be sure to check the following:

Ensure that the lift mechanism is properly connected to a power source.
Check that the TV is securely mounted to the lift mechanism.
Verify that the safety stop is engaged and functioning properly.
Check for any obstructions that may be preventing the lift mechanism from operating smoothly.
If the lift mechanism still does not operate properly, contact Firgelli customer support for further assistance.

Pros & Cons about Firgelli TV Lifting System TVL-170

Pros

Effortless operation, with the ability to raise and lower your TV with the touch of a button
Powerful electric motor for smooth and quiet operation
Built-in safety stop for added peace of mind
Can accommodate televisions up to 170 lbs
Sleek and discreet design for a streamlined home entertainment space

Cons

Expensive compared to other TV lift mechanisms on the market
Requires professional installation for best results
May not be suitable for very large or heavy televisions
Not compatible with all types of TV mounts
