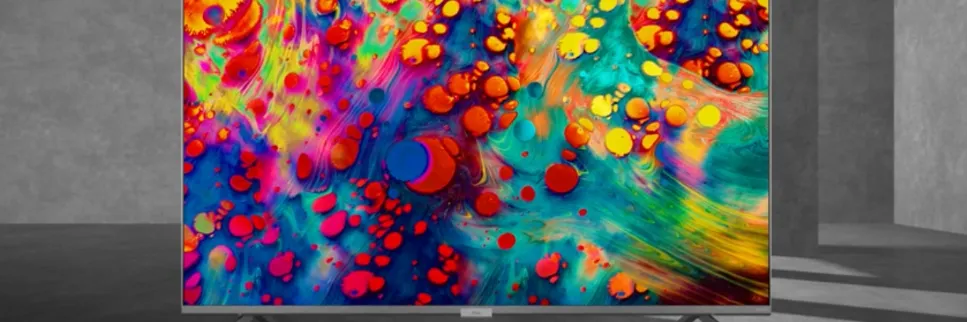

Introducing the TCL Roku TV R635

Experience stunning 4K UHD picture quality and immersive audio with the TCL Roku TV R635, a cutting-edge smart TV designed to deliver an unparalleled home entertainment experience. With a sleek, modern design and user-friendly interface, the R635 is the perfect addition to any living space. This TV is available now, with an estimated price range of $700 to $1,000, depending on the screen size.

What’s in the box

What you need

TCL Detailed Specifications

The TCL Roku TV R635 boasts impressive technical specifications, including:

• 4K Ultra HD resolution (3840 x 2160 pixels)
• Dolby Vision HDR for vibrant colors and contrast
• Auto Game Mode for smooth, lag-free gaming
• Smart TV capabilities with the Roku OS
• Compatibility with Alexa and Google Assistant
• Available in 55", 65", and 75" screen sizes

Key things to know

A paid subscription or other payments may be required for some streaming channels. Channel availability subject to change and varies by country.

Set up your TV

Remove your TV from the box
Be careful, it’s heavy! To mount your TV on a wall, skip to page 6.

To use the stand

• A.To prevent damage to the screen, carefully place your TV on a soft, cushioned surface.

• B. Put the column of the stands into the TV, align the stands with the screw holes located on the TV. Secure the stands to the TV with four (4) screws.

Optional
For 65” and 75” models, you have another option to mount the stands to the middle of the TV bottom.

Warning:
Never place a television set in an unstable location. A television set may fall, causing serious personal injury or death. Many injuries, particularly to children, can be avoided by taking simple precautions such as:

• Using cabinets or stands recommended by the manufacturer of the television set.

• Only using furniture that can safely support the television set.

• Ensuring the television set is not overhanging the edge of the supporting furniture.

• Not placing the television set on tall furniture (for example, cupboards or bookcases) without anchoring both the furniture and the television set to a suitable support.

• Not placing the television set on cloth or other materials that may be located between the television set and supporting furniture.

• Educating children about the dangers of climbing on furniture to reach the television set or its controls.

If your existing television set is being retained and relocated, the same considerations as above should be applied.

Optional – To mount on a wall

(wall mount not included)
To mount on a wall
Preparation must be done before mounting your TV on a wall.

If you are mounting your TV to the wall, don’t attach the stands

The VESA number is the horizontal and vertical measurement of the mounting holes. For example, 300X300 refers to the fact that the mounting measurements are 300mm horizontally and 300mm vertically.
Follow the instructions that come with the wall mount.
Your wall mount must be able to bear a minimum of five times the TV’s net weight to avoid causing damage.

TCL Roku TV R635 Power up

1. In this step, we’ll make sure all systems are GO!

2. Power your TV remote by inserting the included batteries.

3. Connect your power cable to the TV, then plug it in to the wall outlet.

4. Connect other devices by referencing port label and descriptions on the bottom of page 8.



Power Tip!
Always replace depleted batteries with two same brand-new batteries from the same manufacturer. Never use damaged batteries.

Grab your remote

The TV remote should feel right at home in your hand. We designed it to be incredibly intuitive for watching TV and navigating on-screen menus. Here’s a fun-fact about your Roku TV enhanced remote. Using your remote’s voice search feature lets you search through the widest selection of channels  by actor, title, or director.

Here’re some buttons you should know about

Tip! The button gives you easy access to picture settings, display options, and more. Try it on every screen!

1. A. POWER

2. B. BACK: Return to previous screen

3. C. HOME:  Return to Roku Home screen

4. D. VOLUME:  Raise and lower volume

5. E. INSTANT REPLAY:  Replay the last few seconds of streaming video

6. F. OPTIONS:  View more options

7. G. RWD SCAN:  Rewind streaming video, scroll left one page at a time

8. H. FWD SCAN:  Fast forward streaming video, scroll right one page at a time

9. I. VOICE SEARCH:  Search content through your voice by holding down the microphone button and waiting for the TV to prompt “Speak Now”

Get to know your TV

1. A. STATUS LIGHT:  Glows when the TV is in standby, flashes when the TV is busy, flashes once with each button press of the remote control.
   IR RECEIVER Receives signal from the TV remote.

2. B. POWER and OPTIONS BUTTON: Press once to open the menu. Press and hold to turn off the TV.

3. C. POWER PORT:  Connect your TV to the power source with the included power cable.

4. D. ETHERNET:  Connect an Ethernet cable to your home Internet router or switch.

5. E. RESET BUTTON:  Press once to restart your TV.
   Press and hold for factory reset, and be careful, you will lose all your settings!

6. F. HDMI PORT:  Highest quality audio/video connection. Connect cable box, Blu-ray player, gaming console, or other devices to your TV  using HDMI cables.

7. G. GHDMI eARC/ARC PORT:  Connect HDMI eARC/ ARC (audio return channel) capable audio devices like sound bars or AV receivers.

8. H. ANTENNA/CABLE IN:  Connect an outdoor VHF/UHF antenna or Cable TV feed.

9. I. USB PORT:  Connect a USB device to access photos, music and movies.

10. J. AV IN adapter:  AV Input (analog audio/video). The AV Input can be used to connect older devices that use analog audio/video outputs. Compatible adapter (not included) connectsto the RCA cable (video – yellow and audio -white and red) that you normally use to connect to that device.

11. K. HEADPHONE OUT: Connect headphones or other external speakers.

12. L. OPTICAL (DIGITAL AUDIO OUT): Connect an optical cable to an external digital audio system.

Complete guided setup and activation

It’s the final stretch—hurray!
Let’s Connect
Your TV will automatically detect wireless networks in your area. Have your network name and password handy and follow the easy on-screen instructions.
Your Roku account: Activate your TCL Roku TV using your computer, smartphone, or tablet to link to a Roku account. You need a Roku account to activate your TV and access entertainment across thousands of streaming channels.
IMPORTANT: Roku doesn’t charge for activation support – beware of scams. Roku accounts are free and while a valid credit card number is not required to create a Roku account, saving your credit card information makes renting, purchasing, and subscribing to entertainment from the Roku Channel Store fast and convenient.
Once connected to your account, your TV will automatically update with the latest software, and you can start streaming immediately. If you aren’t ready to connect your TV to a wireless network, you can still use it as a regular TV.

Viewing 4K Ultra HD Content of TCL

• 4K Spotlight Channel
  The Roku 4K UHD Spotlight channel features many movies and TV shows available in 4K UHD resolution from streaming services such as Netflix, Prime Video, VUDU, and more.

• Next Generation 4K HDR Devices
  With HDMI inputs supporting the latest HDMI standards, connect next-gen game systems, Ultra HD Blu-ray and more to enjoy the highest-quality 4K high dynamic range sources.

• Upscale 1080p HD to 4K Ultra HD
  Enjoy your favorite shows upscaled to near 4K Ultra HD quality with TCL Creative Pro upscaling.

Connecting brings out your TV’s full potential!

Access thousands of streaming channels:

1. Make any night a movie night
   Access more than 500,000 movies and TV episodes across major streaming services like Netflix,Choose from free, rental, and subscription services.Google Play, VUDU, and more.

2. Stream live news and sports
   Choose from over 140 sports channels like ESPN and WWE Network. And stay up to date with live news from channels like ABC News.

3. Explore your passions
   In addition to popular streaming channels like SHOWTIME® and ESPN, your TCL Roku TV alsooers hundreds of streaming channels to fuel your passions – including fitness, cooking, religion, outdoors, international programming, and much more.

4. Free movies, TV and more
   Stream hit movies, shows, live news, and more for free.Plus, add Premium Subscriptions like SHOWTIME®,STARZ and dozens more on The Roku Channel. Subscription or other payment may be required to access certain channels. Content may not be available in all areas in which the TCL Roku TVs are sold and channel availability is subject to change.

Broadcasting & Operating Environment

Product Description of TCL Roku TV R635

The TCL Roku TV R635 offers a cinematic viewing experience, thanks to its 4K UHD resolution, high dynamic range (HDR), and Dolby Vision technology. The TV's Auto Game Mode minimizes input lag for a smoother, more responsive gaming experience. With built-in Roku OS, you can stream your favorite shows and movies from popular services like Netflix, Hulu, and Disney+ with ease. The R635 is also compatible with Alexa and Google Assistant, allowing you to control your TV with voice commands.

TCL Setup Guide

Setting up the TCL Roku TV R635 is simple and intuitive. After unboxing, follow these steps to get started:

1. Connect the TV to a power source using the provided power cable.
2. Connect your cable or satellite box, Blu-ray player, or gaming console to the TV's HDMI ports.
3. Turn on the TV and follow the on-screen instructions to connect to Wi-Fi and sign in to your Roku account.
4. Navigate the Roku OS menu to customize settings, such as display preferences and voice control.

Important Information

CAUTION: RISK OF ELECTRIC SHOCK. DO NOT OPEN.

1. This symbol indicates that this product incorporates double insulation between hazardous main voltage and user-accessible parts. When servicing, use only identical replacement parts.

Caution: To reduce the risk of electric shock, do not remove cover (or back). No user-serviceable parts inside. Refer servicing to qualified service personnel.

1. This symbol indicates “dangerous voltage” inside the product that presents a risk of electric shock or personal injury.

2. This symbol indicates important instructions accompanying the product.

WARNING: To reduce the risk of fire or electric shock, do not expose this product to rain or moisture. This product should not be exposed to dripping or splashing. No objects filled with liquids, such as vases, should be placed on the apparatus.
WARNING: The TV is unstable if it is not properly attached to the base or mounted to the wall. Please follow the base or wall mounting instructions provided in the User’s Guide to ensure your safety.
Warning: The batteries shall not be exposed to excessive heat such as sunshine, fire or the like. Refer to the identification/rating label located on the back panel of your product for its proper operating voltage.

Cable TV Installer

This reminder is provided to call your attention to Article 820-40 of the National Electrical Code (Section 54 of the Canadian Electrical Code, Part 1) which provides guidelines for proper grounding and, in particular, specifies that the cable ground should be connected to the grounding system of the building as close to the point of cable entry as practical.
Important: This television is a table model and is designed to sit on a firm, flat surface. Don’t place the TV on soft carpeting or similar surface because the ventilation slots on the bottom of the unit will be blocked, resulting in reduced lifetime from overheating. To assure adequate ventilation for this product, maintain a spacing of 1 inch from the top and side of the TV receiver and 2 inches from the rear of the TV receiver and other surfaces.
Also, make sure the stand or base you use is of adequate size and strength to prevent the TV from being accidentally tipped over, pushed off, or pulled off. This could cause personal injury and/or damage to the TV. Refer to the Important Safety Instructions on the next page.
The Power button on this TV and your remote control puts the TV into a very low-power standby mode but will not completely turn the power off. In order to completely shut the power off, you will need to disconnect the power cord from the outlet. The mains plug/appliance coupler is used to completely turn off the device. If you prefer to completely turn off the device, you should install the TV in a manner that allows you to disconnect the power cord when desired.

Product Information

Keep your sales receipt to obtain warranty parts and service and for proof of purchase. Attach it here and record the serial and model numbers in case you need them. These numbers are located on the product.
Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Keep the apparatus at least 8 inches away from the human body.

Important Safety Instructions

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with dry cloth.

7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.

8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

9. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

10. WARNING: Please refer the information on exterior bottom enclosure for electrical and safety information before installing or operating the apparatus.

11. WARNING: The mains plug is used as a disconnect device, the disconnect device shall remain readily operable.

12. When not in use and during movement, please take care of the power cordset, e.g. tie up the power cordset with cable tie or something like that. It shall be free from sharp edges and the like that can cause abrasion of the power cordset. When put into use again, please make sure the power cordset being not damaged. If any damages found, please look for the service person to replace the power cordset specified by the manufacturer or have the same characteristics as the original one.

13. No naked flame sources, such as lighted candles, should be placed on the apparatus.

14. Unplug this apparatus during lightning storms or when unused for long periods of time.

15. Only use attachments/accessories specified by the manufacturer.

16. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

17. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

18. For safe operation of the apparatus, observe these installation requirements:
    Keep at least 2 inches of ventilation space between the rear cover of the apparatus and the wall.
    Keep at least 1 inch of ventilation space between the apparatus and all other surfaces. Do not allow any of the apparatus’ ventilation openings to be blocked by objects that might obstruct them, such as newspapers, curtains, tablecloths or any other objects. Do not expose the apparatus to any external heat sources. Do not place any heat sources such as candles, lamps, etc. on the apparatus. Do not expose the device to high levels of humidity or to any possible sources of moisture. When disposing of used batteries from the remote control, consult local regulations regarding proper disposal.

19. If an outside antenna or cable system is connected to the product, be sure the antenna or cable system is grounded so as to provide some protection against voltage surges and built-up static charges. Section 810 of the National Electrical Code, ANSI/NFPA No. 70-2011 (Section 54 of Canadian Electrical Code, Part 1) provides information with respect to proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna-discharge unit, size of  grounding conductors, location of antenna discharge unit, connection to grounding electrodes, and requirements for the grounding electrode. See following example:



Battery Caution & Disposal Information

1. For best results, use alkaline-type batteries.

2. Install only new batteries of the same type in your product.

3. Failure to insert batteries in the correct polarity, as indicated in the battery compartment, may shorten the life of the batteries or cause batteries to leak.

4. Do not mix old and new batteries.

5. Do not use Rechargeable (Nickel Cadmium or Nickel Metal Hydride) batteries.

6. Do not mix Alkaline, Standard (Carbon-Zinc) or Rechargeable (Nickel Cadmium or Nickel Metal Hydride) batteries.

7. Batteries should be recycled or disposed of as per state and local guidelines.

8. Do not dispose of batteries in fire.

TCL Roku TV R635 Troubleshooting

Having trouble completing the guided setup? Don’t worry, it’s usually an easy fix.

4K Picture Quality

• 4K picture quality is largely dependent on the Make sure your source content is 4K.

• To stream 4K, we recommend a broadband speed of 25Mbps for optimum

• For Cable, Satellite, Gaming Consoles, and Blu-Ray players, we recommend using “High-Speed HDMI cables.”

My picture is too small (black bars on the side)

• Play your movie/video and press the C) asterisk

• Select Picture Size, select the picture size of your preference.

How to install the Remote Control Mobile App

The free Roku app allows you to use your mobile device as a full functioning remote control with voice search & keypad.

• Download the Roku app to your phone or tablet through Google Play or iTunes.

• Simply search for “Roku App” and choose the Roku app by Roku Inc.

• Follow the onscreen prompts and you’re on your way!

How do I turn the Text-to-Speech (TTS) audio guide on or off?

• Press “*” key on the remote controller four times to turn the audio guide on or off.

  • Select “Settings” at home screen

  • Select “Accessibility”

  • Select “Audio Guide” and turn it on or off

Cannot connect to wireless network (WiFi)

• Select the correct wireless network name and verify the password entered (case sensitive).

• Relocate the router from objects that interfere with performance (cordless phones, baby monitors, etc.).

• Reboot the router by disconnecting the power for more than 2 minutes and reconnect.

Problems connecting my cable/satellite box or antenna through a coax cable

• For best performance, use the HDMI connection. If not available, then:

• Make sure the cable connections to the TV and your device are securely fastened.

• Select cable/satellite box or antenna TV

• Select “start finding channels” and follow the on-screen instructions to perform a full channel scan.

What is the remote code for programming my Universal or Cable/Satellite box remote control

TCL Roku TV R635 Warranty

The TCL Roku TV R635 comes with a one-year limited warranty. Extended warranties are available for purchase. Some states do not allow the exclusion or limitation of incidental or consequential damages, or limitations on how long an implied warranty lasts, so the above limitations or exclusions may not apply to you. This warranty gives you specific legal rights, and you also may have other rights that vary from state to state.

Pros & Cons

Pros

• Stunning 4K UHD resolution and HDR support
• User-friendly Roku OS
• Voice control compatibility with Alexa and Google Assistant
• Affordable price compared to competitors

Cons

• Limited app selection compared to other smart TV platforms
• No HDR10+ support
• Remote lacks advanced features like a built-in microphone for voice control

Customer Reviews and Common Complaints about TCL Roku TV R635

Customers generally praise the TCL Roku TV R635 for its excellent picture quality, user-friendly interface, and affordability. However, some users have noted that the app selection is limited compared to other smart TV platforms, and the remote lacks advanced voice control features. The most common complaint is about the TV's audio quality, which some users find underwhelming.
