Introduction

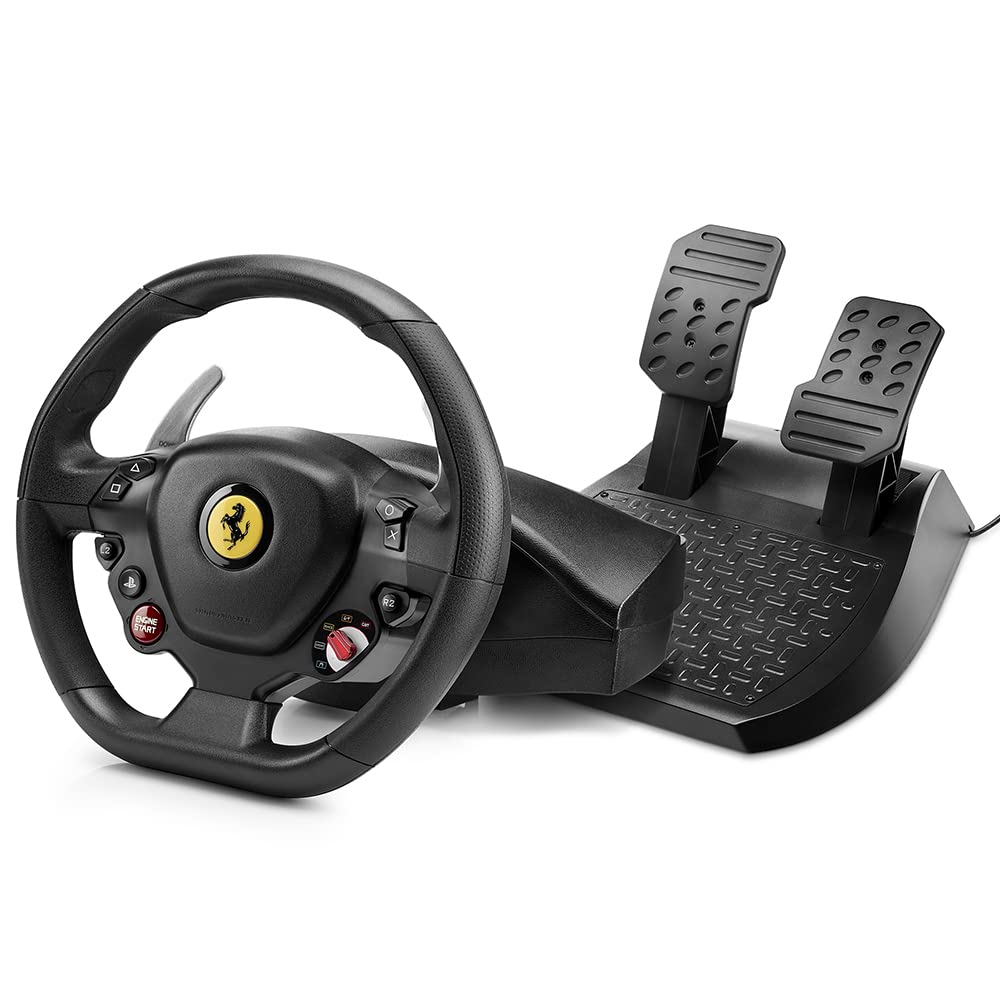

The Thrustmaster PlayStation Ferrari 488 GTB Edition Racing Wheel is an officially licensed racing wheel designed for PlayStation 4 and PC. This 8:10 scale replica of the Ferrari 488 GTB wheel features a 28 cm diameter with textured rubber cladding for superior grip. It includes a 2-pedal set, 11 action buttons, a D-pad, and metal paddle shifters for an immersive gaming experience. Priced at approximately $99.99, it offers a great balance of realism and affordability for racing enthusiasts.

Specifications

TECHNICAL FEATURES

1. 2 digital gearshift levers (UP and DOWN)
2. LED
3. Action buttons
4. D-Pad
5. “SE” and “ST” buttons:
   • For Select and Start
   • For programming
6. “Home” button for PlayStation®3
7. USB selector (“PC” / “PS3”)
8. Pedal cable
9. RJ45 connector for pedal set
10. Table clamp
11. Clamp screw
12. USB connector (for PC and PlayStation®3)
13. Pedal set

Description

This racing wheel is engineered to deliver an authentic driving experience with its robust construction and precise controls. The leather-wrapped wheel offers a premium feel, while the dual paddle system allows for seamless gear shifts. The T-LCM Pedals are designed for realism, featuring progressive resistance that mimics real-world braking and acceleration. The product also includes a base unit with a motor that provides smooth and silent operation.

INSTALLING THE WHEEL

Fixing the Wheel in Place

1. Place the wheel on a table or other flat surface.
2. Place the clamp screw (11) in the table clamp (10) and screw the clamping unit into the hole on the underside of the wheel until firmly fixed in place. Do not overtighten, as this may damage the clamping unit and/or the table.

Connecting the Pedal Set

1. Connect the pedal cable (8) to the wheel’s RJ45 connector (9).

Safety Note: For safety reasons, never use the pedal set with bare feet or while wearing only socks on your feet.
THRUSTMASTER® DISCLAIMS ALL RESPONSIBILITY IN THE EVENT OF INJURY RESULTING FROM USE OF THE PEDAL SET WITHOUT SHOES.

INSTALLATION ON PLAYSTATION3

1. Set the wheel’s USB selector (7) to the “PS3” position.
2. Connect the USB connector (13) to a USB port on your console.
3. Turn on your console.
4. Launch the game.
   You are now ready to play!

USING THE “HOME” BUTTON (6)

The “Home” button allows you to exit games and access your PlayStation®3 system’s menus.

IMPORTANT NOTES ON PLAYSTATION®3:

• The wheel’s USB selector (7) must always be set to the “PS3” position before connecting your wheel.
• In “1 Player” mode: If your official gamepad is turned on, you will have to switch it to “controller port 2” for your wheel to function.
• On PlayStation®3, the wheel is only compatible with PlayStation®3 games (it will not function with PlayStation®2 games).
• In certain racing games, test out your wheel’s two sensitivity modes to optimize precision and responsiveness.

"Gran Turismo® PS3™" Configuration Procedure for the "Ferrari Racing Wheel: Red Legend Edition"

By default in this game, acceleration and braking are not assigned to the "R2/L2" buttons and switching gears is not assigned to the "R1/L1" buttons (which is the case for the pedals and Up/Down levers on the "Ferrari Racing Wheel: Red Legend Edition" racing wheel).

Procedure to Configure and Optimize the Wheel:

(This procedure only needs to be carried out once, as the changes will then be saved in the game)

1. Start up your game.
2. Go to the OPTION menu.
3. Go to the CONTROLLER SETUP menu (by clicking the symbol representing the gamepad and the D-Pad).
4. Configure your controller as follows:
   • Accelerate on R2
   • Brake on L2
   • Shift Up on R1
   • Shift Down on L1
   • Rear View on L3 and/or R3
   • Left & Right View on D-Pad Left & Right
5. Click OK (in the lower right part of your screen).
6. Return to the main menu to access the track of your choice.
   You are now ready to play!

Note: The steering wheel on your "Ferrari Racing Wheel: Red Legend Edition" features 2 sensitivity modes (normal or high). To achieve optimal precision in "Gran Turismo® PS3™", we recommend enabling high sensitivity mode.

PC

Installation on PC

1. Set the wheel’s USB selector (7) to the “PC” position.
2. Go to Thrustmaster Support to download the drivers and the force feedback software for PC. Click Racing Wheels / Ferrari Racing Wheel Red Legend Edition, then select Drivers.
3. Connect the USB connector (13) to one of your computer’s USB ports. Windows® will automatically detect the new device.
4. Driver Installation
   Drivers are installed automatically. Follow the on-screen instructions to complete the installation.
5. Click Start/Settings/Control Panel and then double-click Game Controllers (or Gaming Options, depending on your operating system).
   The Game Controllers dialog box displays the wheel’s name with OK status.
6. In the Control Panel, click Properties to configure your wheel:
   • Test device: Allows you to test and visualize the buttons, D-pad, and axes of the wheel and pedal set.

You are now ready to play!

IMPORTANT NOTES ON PC

• The wheel’s USB selector (7) must always be set to the “PC” position before connecting your wheel.
• Your wheel and pedals automatically self-calibrate upon connection of the USB connector. In the event of any problems, you can also manually calibrate by downloading the Thrustmaster Calibration Tool software, available at Thrustmaster Support.

ADVANCED FUNCTIONS

Adjusting the Wheel’s Sensitivity

Your wheel’s steering has 2 sensitivity modes:

• Normal sensitivity (the default mode)
• High sensitivity (must be set)

Setting “High Sensitivity” Mode:

Your wheel’s steering is now more sensitive.
(This procedure must be repeated each time you restart or disconnect your wheel.)

Setting “Normal Sensitivity” Mode (default mode):

Your wheel’s steering has now returned to normal sensitivity (the default mode).

Programming the Wheel and Pedals

Your wheel is fully programmable:

• All buttons as well as the D-Pad can be switched between themselves.
• All buttons as well as the D-Pad can be programmed onto the 2 pedals.

Examples of Possible Applications:

• On PS3: Programming L2/R2 or L3/R3 onto the 2 UP and DOWN digital levers (L1/R1).
• Programming a button(s) onto one or both pedals.
• Switching different buttons for greater accessibility.

Programming Procedure

Your programming has now taken effect.
(You must repeat this procedure each time you restart or disconnect your wheel.)

Erasing Your Programming

Your programming has now been erased.

Thrustmaster Setup Guide

To set up the Thrustmaster PlayStation Ferrari 488 GTB Edition Racing Wheel,

1. Start by connecting the wheelbase to your console or PC using the provided USB cable.
2. Next, attach the pedals to the wheelbase and ensure they are securely positioned. Install any necessary drivers or software if using on PC.
3. Pair the wheel with your console by following the on-screen instructions.
4. Finally, calibrate the wheel in your chosen game to optimize performance.

Configuring the Pedals on PlayStation3

On PlayStation®3, your wheel’s accelerator and brake controls are in “separate” mode by default, meaning that the pedals function on independent axes:

• Accelerator = “R2” trigger
• Brake = “L2” trigger

For a different type of control (to limit skidding, for example), you can switch your wheel to “combined” (2 axes) mode: The pedals then function on a single axis.

• Accelerator and Brake = Up/Down direction on Right mini-stick

Setting “Combined Pedals” Mode

Action	LED color
Simultaneously press and release: the 2 pedals(14) + the “Home” button(6)	GREEN

Your pedals are now combined.
(You must repeat this procedure each time you restart or disconnect your wheel.)

To Return to “Separate Pedals” Mode (the default mode)

Action	LED color
Simultaneously press and release: the 2 pedals(14) + the “Home” button(6)	RED
On PlayStation®3

Your pedals have now returned to the default mode: Separate

Configuring the Pedals on PC

Your wheel’s accelerator and brake controls are in “separate” (3 axes) mode by default, meaning that the pedals function on independent axes.
3 axes mode allows you to considerably improve the precision of your driving.

If your game does not support 3 axes mode, your wheel’s pedals will not function properly. You will then have to exit the game and select “combined” (2 axes) mode instead.

• Selecting Axes via Software
  • This setting will be saved even after you restart or disconnect your wheel.
    On page 1 of the Control Panel: Select the mode you wish to use, then click OK.
• Selecting Axes via Hardware
  • This setting will not be saved: It must be repeated each time you restart or disconnect.
    (Allows you to select your mode directly in your game’s “Controls” options.)

Simultaneously press and release: the 2 pedals (14) + the Home button (6).

TROUBLESHOOTING AND WARNINGS

My wheel doesn’t function correctly or appears to be improperly calibrated:

• Switch off your computer or console, completely disconnect your wheel including all cables, then reconnect the wheel and restart your game.
• If the problem persists on PC, download the “Thrustmaster Calibration Tool” manual calibration software available at the following address: http://support.thrustmaster.com
• Never move the wheel or pedals when connecting your wheel in order to avoid any calibration problems.

My pedal set does not work correctly

• Reconfigure your wheel in your game’s controller options section.
• If the problem persists on PC, exit the game and switch the pedals to “combined” (2 axes) mode. You can then return to your game to reconfigure the wheel with the new axes.

I can’t configure my wheel

• On PS3: In your game’s Options / Controller / Gamepads menu, select the most appropriate configuration.
• On PC: In your game’s Options / Controller / Wheels menu, select the most appropriate configuration.
• Please refer to your game’s user manual or online help for more information.
• You can also use your wheel’s programming function to resolve this type of problem.

On PC or PS3, my wheel does not work correctly:

• Exit your game, disconnect your wheel, verify that the PC/PS3 USB selector (7) is in the proper position, then reconnect everything and try again.

On PC, my game’s menus scroll by themselves:

• Exit the game and switch the pedals to “combined” (2 axes) mode. Then return to your game to reconfigure the wheel with the new axes.

My wheel’s steering is not responsive enough

• Switch your wheel to high sensitivity mode

Warranty Information

Thrustmaster products shall be free from defects in materials and workmanship for a warranty period which corresponds to the time limit to bring an action for conformity with respect to this product. In the countries of the European Union, this corresponds to a period of two (2) years from the delivery of the Thrustmaster product.

Pros & Cons

Pros

• Authentic Design: The wheel's design is a precise replica of the Ferrari 488 GTB, offering an immersive experience.
• Advanced Controls: Features 14 action buttons and a dual paddle system for intuitive control.
• High-Quality Materials: Leather-wrapped rim and robust construction ensure durability.
• Realistic Pedals: T-LCM Pedals provide progressive resistance for a realistic driving experience.

Cons

• Costly: Priced higher than some other gaming wheels on the market.
• Space Requirements: Needs significant space for setup, including room for the pedals.
• Compatibility Issues: Some users may experience compatibility issues with certain games or systems.

Customer Reviews

Customers have generally praised the Thrustmaster PlayStation Ferrari 488 GTB Edition for its realism and build quality. Many appreciate the authentic feel of the leather-wrapped wheel and the precision of the dual paddle system. However, some reviewers have noted that it can be quite expensive and may require significant space for setup. Common complaints include occasional connectivity issues and compatibility problems with certain games.
