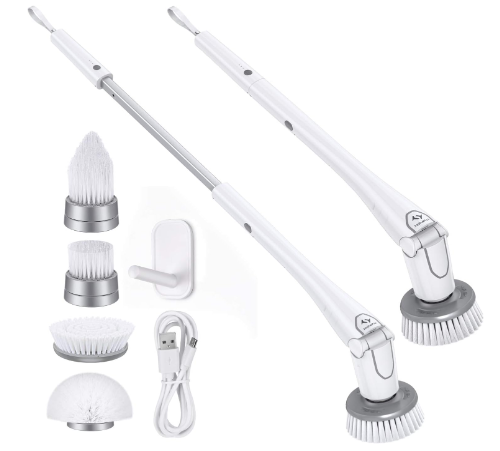

Tiswall Electric Spin Scrubber QXJ-M1

Introducing the tiswall Electric Spin Scrubber QXJ-M1, a revolutionary cleaning tool that makes scrubbing effortless and enjoyable. With its powerful motor and oscillating head, this electric spin scrubber can tackle even the toughest stains and grime in your bathroom, kitchen, and other surfaces. The QXJ-M1 is expected to be launched soon, and its estimated price is around $50-$60, making it an affordable and practical solution for every household.

Detailed Specifications

The tiswall Electric Spin Scrubber QXJ-M1 boasts the following features:

  • Powerful 2.2lbs motor that spins at 300RPM
  • Three interchangeable brush heads for different surfaces
  • Waterproof and cordless design with a rechargeable battery
  • LED light for better visibility in dark corners
  • Ultra-quiet operation
  • Ergonomic handle and lightweight design
  • Overcharge and discharge protection

Tiswall Electric Spin Scrubber QXJ-M1  Description

The tiswall Electric Spin Scrubber QXJ-M1 is a cordless and waterproof cleaning device that can handle various surfaces such as tiles, bathtubs, sinks, showers, and more. Its oscillating head and stiff bristles can remove stubborn stains and grime without much effort, while its LED light helps illuminate dark corners and crevices. The spin scrubber is lightweight and easy to maneuver, thanks to its ergonomic handle and compact design. It also comes with three interchangeable brush heads to suit different cleaning needs, such as a flat brush for large surfaces, a corner brush for edges and corners, and a round brush for delicate surfaces.

Basic Parameters

ParameterValue
Battery Voltage3.7V DC
Battery TypeLithium battery
Charging Time3-4 hours (via 5V/2A charger)
Charging Voltage/Current5V/1-2A (USB)
Charger Input Voltage100-240V AC
Operating Noise<70dB

Assembly

When the brush head is installed, align the triangular shaft and the concave position of the brush head then rotate positively; rotate the brush head reversely when disassembling.

Brush head replacement

Align the triangular shaft and insert the brush head and rotate 60° positively for assembly in place and rotate 60° reversely to take out.


Usage Instructions

  1. Turn ON/OFF
    • Press the power button to turn it on, the indicator will light white and the rotate speed is 230rpm; if the battery is too low, it will turn off automatically.
    • Note: Do not overuse. It will turn off automatically due to circuit protection when it is blocked, please turn it on again for reuse.
  2. Waterproof Instruction
    • The part under the telescopic button can be used in water for a short time. The part above the telescopic button is splash-proof and cannot be submerged into water. Please mind the water depth when using.

  3. Rotation Shaft
    • Rotation shaft can be adjusted from 0-80°, please adjust it according to your use.
  4. Extension Rod Operation
    • Press the extension release button on both sides of the handle, then pull the handle to extend; push the handle to withdraw.

  5. Safe Recharging
    • The charging port is on the back of the handle. When charging, the white indicator light flashes. When the battery is fully charged, the three white indicators are all on. Please unplug the charger.
    • Plug the USB cable into the port on the back of the handle for charging (data cable and USB port can be used for charging).


Attentions

  1. The product can be used for household cleaning work, don't use it in industry or harsh environments.
  2. For this product, only the brush head part is waterproof; the other parts are only splash-proof and cannot be submerged into water.
  3. Please turn off the power when it gets stuck.
  4. Turn it off when you change the brush head.
  5. The product is not suitable for children and disabled people to avoid dangers.
  6. Don't aim at any people or animals to avoid injury.
  7. Turn it off after cleaning work.
  8. Don't use any other batteries and adapters.
  9. Don't disassemble it to repair by yourself.
  10. Do not place the charger near a heat source (such as a heater).
  11. If the charger’s housing or cable is damaged or broken, stop using it immediately.
  12. If you don't use it for a long time, please fully charge it and place it in a cool dry place; and charge it every 6 months to avoid over-discharging.
  13. Please use the product according to this manual. If any damages and hurts caused by misuse, the user takes all responsibilities.

Setup Guide

Setting up the tiswall Electric Spin Scrubber QXJ-M1 is straightforward and quick. Follow these steps to start using your new cleaning tool:

  1. Charge the device for at least 4 hours before using it for the first time.
  2. Attach the appropriate brush head for your cleaning task.
  3. Press the power button to turn on the device, and select your desired speed using the + and - buttons.
  4. Wet the surface and apply your preferred cleaning solution.
  5. Move the device slowly and steadily over the surface, applying gentle pressure as needed.
  6. Rinse the surface thoroughly after cleaning, and wipe it dry with a towel.

Important Safety Instructions and Guidelines

WARNING! RISK OF BATTERY EXPLOSION!

  • Do not charge the battery if it is wet or shows signs of corrosion.
  • Do not submerge any area of the scrubber above the main unit in water or other liquids.
  • Do not place or store the scrubber where it can fall or be pushed into the water.
  • Do not place the charging cable and your charger in water or other liquids.
  • Do not charge the scrubber near sinks or tubs.

Keep device out of reach of children

  • It is recommended to charge the device with the original charging cable.
  • When changing accessories, please make sure to turn off the device first.
  • Do not operate in the presence of explosives and/or other flammable fumes or liquids.
  • Keep the device away from heat sources.
  • Do not modify the device under any circumstances.
  • Do not use this device if any parts are damaged.
  • Only qualified technicians should perform repairs.

Disconnect the charging cable after charging and before use.

Troubleshooting of Tiswall Electric Spin Scrubber QXJ-M1

IssueSolution
Unable to power onLow power, please charge it before using.
Unable to chargeThe charging indicator light is off, please check the charging plug is well inserted.
Brush assemblyThe brush head doesn’t work or takes off during using, please check the brush head is well locked.
Doesn’t work after power onPlease check whether it’s in charging status. Unplug the charger and restart it.
Stop workingIf it stops working suddenly, please restart it or check the power battery is enough or not.

Hazardous Material Contents and Names


Pros & Cons

Pros

  • Effortless and effective cleaning
  • Versatile and durable
  • Affordable and easy to use
  • Waterproof and cordless
  • Compact and lightweight

Cons

  • Limited battery life
  • Not suitable for heavy-duty cleaning
  • May not fit in narrow or tight spaces
  • May require frequent brush head replacements

Customer Reviews

Customers who have used the tiswall Electric Spin Scrubber QXJ-M1 have praised its performance and ease of use, with many noting how it saved them time and effort in their cleaning routines. However, some have criticized its battery life and limited range, as well as the need to replace the brush heads frequently. Overall, the QXJ-M1 has received positive feedback and is a recommended choice for those looking for a convenient and efficient cleaning solution.

Faqs

What surfaces can the Tiswall Electric Spin Scrubber QXJ-M1 clean?

Tiswall Electric Spin Scrubber QXJ-M1 can clean various surfaces such as tiles, bathtubs, sinks, showers, and more.

How long does the battery last Tiswall Electric Spin Scrubber QXJ-M1?

The battery lasts for up to 60 minutes on a single charge, depending on the speed and intensity of use Tiswall Electric Spin Scrubber QXJ-M1.

Can the device be used in the Tiswall Electric Spin Scrubber QXJ-M1?

Tiswall Electric Spin Scrubber QXJ-M1 is waterproof and can be used in the shower or other wet environments.

How often do the brush heads need to be replaced Tiswall Electric Spin Scrubber QXJ-M1?

The frequency of brush head replacement depends on the usage and intensity of cleaning, but they are recommended to be replaced every 3-6 months.

Does the Tiswall Electric Spin Scrubber QXJ-M1 come with a warranty?

Tiswall Electric Spin Scrubber QXJ-M1 comes with a 12-month manufacturer's warranty that covers defects and malfunctions.

How long does it take to charge the Tiswall Electric Spin Scrubber QXJ-M1?

Tiswall Electric Spin Scrubber QXJ-M1 takes 4-5 hours to charge fully, and the LED light on the charger will turn off when it is done.

Can the Tiswall Electric Spin Scrubber QXJ-M1 be used with cleaning solutions?

Tiswall Electric Spin Scrubber QXJ-M1 can be used with your preferred cleaning solution or water only.

Is the Tiswall Electric Spin Scrubber QXJ-M1 suitable for heavy-duty cleaning?

Tiswall Electric Spin Scrubber QXJ-M1 is not recommended for heavy-duty cleaning or scrubbing, and it may not be effective on extremely dirty surfaces.

What is the weight and size of the Tiswall Electric Spin Scrubber QXJ-M1?

Tiswall Electric Spin Scrubber QXJ-M1 weighs around 2.65 pounds and has a compact and ergonomic design, making it easy to handle and maneuver.

How many speed settings does the Tiswall Electric Spin Scrubber QXJ-M1 have?

Tiswall Electric Spin Scrubber QXJ-M1 has three speed settings that allow you to adjust the intensity and power according to your cleaning needs.
