Titan Clamp-On Pallet Forks Bar Instructions

Content

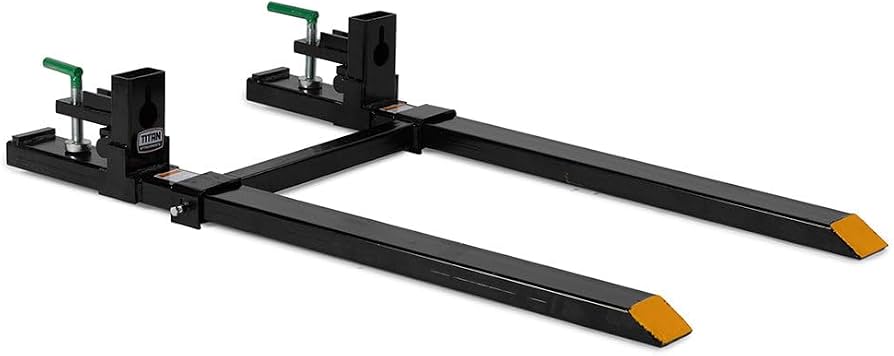

Titan Clamp-On Pallet Forks Bar

The Clamp-On Pallet Forks Bar is a versatile and durable attachment for your forklift that allows you to handle pallets with ease. With its robust construction and easy-to-use design, this product is a must-have for any warehouse or manufacturing facility. The estimated price of the Titan Clamp-On Pallet Forks Bar is $800, and it is now available for purchase.

Detailed Specifications

The Titan Pallet Forks Bar is made of heavy-duty steel and features a clamp-on design that allows for easy installation and removal. It has a load capacity of up to 4,500 pounds and is compatible with most forklift models. The overall dimensions of the product are 55 inches in length, 14 inches in width, and 7 inches in height. The weight of the product is 90 pounds.

Description

The Clamp-On Pallet Forks Bar is designed to provide a safe and efficient way to handle pallets in your warehouse or manufacturing facility. The clamp-on design allows for easy installation and removal, and the heavy-duty steel construction ensures durability and longevity. With a load capacity of up to 4,500 pounds, this product can handle even the heaviest pallets with ease. The product is also compatible with most forklift models, making it a versatile solution for your material handling needs.

Setup of Clamp-On Pallet Forks Bar

Setting up the Titan Clamp-On Pallet Forks Bar is a straightforward process. First, ensure that your forklift is turned off and in a safe location. Next, position the pallet forks under the clamp-on brackets and secure them using the provided bolts. Finally, adjust the clamp arms to the desired width and tighten the locking screws. Your Clamp-On Pallet Forks Bar is now ready for use.

OPERATING PALLET FORKS

Verify load weight, and confirm that it will no exceed lift capacity.
Come to a complete stop prior to positioning the pallet forks at the correct height.
Check for overhead obstructions
Be sure the load is balanced, secure and not too high.
Center the forks under the pallet to distribute the weight of the load evenly.
Move forward under the load utilizing as much of the forks lift area as possible.
Slightly tilt the load back.
Safe traveling height is about 3-5 inches above the floor, and allows for maximum view.

TRAVELING WITH A LOAD

Keep the forks low, just a few inches from the ground is best.
If utilizing a backstop, slightly tilt the forks back to brace the load against the backstop.
Be aware of everything around you. Avoid obstructions and always give pedestrians the right of way.
Drive at a safe speed at all times. Take it easy around corners and avoid quick stops.
Travel in reverse if the load obstructs your view.
When possible, move straight up and down inclines, keeping the load on the "up-hill" side of the machine.
Avoid adjusting the height of a load while in motion.
Always be aware of changes in terrain. When working on inclines, declines, or on a hill-side, do not raise the load too high.
Always use a "spotter" with heavier loads, or when the operator's view is obstructed. The spotter must be positioned at a safe distance from the load and machine.

LOAD PLACEMENT

Slowly move load into position.
Make sure load is square and straight.
Always come to a complete stop before placing a load.
Be sure load is tilted forward to level.
Place load and relieve all weight from forks.
Scan area and be sure no pedestrians or obstructions are behind you
Once load is settled, slowly back out.
Do not turn machine until both forks have cleared the pallet.
Lower forks to a safe traveling height before moving again. Three to five inches is best.

FORK MOUNTING

Set the bucket on blocks or raise with your machine.
Attach the forks to the bucket and secure the clamps.

OPTIONAL STABILIZER BAR INSTALL (ADDITIONAL PURCHASE)

Adjust the width of the stabilizer bar using the bolt located on the cross bar.
Position the stabilizer bar on the forks and secure by tightening the bolts on the outer side of the forks.

NOTE: Stabilizer bars are not always necessary but are available as an option to provide maximum stability to your forks.


OPTIONAL CHAIN INSTALL (LOCAL STORE PURCHASE)

Set the bucket on blocks or raise with your machine.
Run a chain around the back side of your bucket and hook in the proper mounting holes located on the top and bottom of the fork and tighten with a ratchet binder.
Repeat the above step with a separate chain when securing multiple forks.

NOTE: Chains are not always necessary. However, inserts on the forks provide the option to utilize additional hardware to deliver extra support when moving heavy loads.


OPTIONAL BACKSTOP INSTALL (LOCAL STORE PURCHASE)

Use a 2x4 that is at least 30 inches long for an upright backstop.
The 2x4’s used on the COFLW (1500lb) model will need to be cut to 2 6/8” width for the lower 7” length of the 2x4.
The 2x4 backstops for the COFMD (4000lb) and COFHD (6000lb) model forks can be used without any width modifications.

NOTE: Backstops are not always necessary. However, 2x4s can be utilized to provide optimal protection and stability when moving an unbalanced load.


GENERAL SAFETY PRECAUTIONS

WARNING! READ MANUAL PRIOR TO INSTALLATION Improper installation, operation, or maintenance of this equipment could result in serious injury or death. Operators should read and understand this manual as well as the prime mover’s manual thoroughly before beginning installation, operation, or maintenance. FOLLOW ALL SAFETY INSTRUCTIONS IN THIS MANUAL.
KNOW YOUR EQUIPMENT
Know your equipment’s capabilities, dimensions, and operations before operating. Visually inspect your equipment before you start, and never operate equipment that is not in proper working order with all safety devices intact. Check all equipment to ensure it is properly installed and secured.
WARNING! SAFELY OPERATE EQUIPMENT
Do not operate equipment until you are completely trained by a qualified operator in how to use the controls, know its capabilities, dimensions, and all safety requirements. See your machine’s manual for these instructions.

Be sure the Clamp on Pallet Forks are full installed, clamp screws are in proper working order and clamped tightly to the bucket.
In all instances, verify the load's weight prior to lifting. Never exceed the "maximum lift capacity" of the Clamp on Forks or the machine.
Lower the Clamp on Pallet Forks completely to the ground prior to dismounting from the machine. Understand and comply with the manufacturer's recommendations for dismounting and parking your machine.
Always evenly load and secure pallets in such a way that they will not shift, tilt or fall.

NOTICE

Misuse of the Pallet Forks can damage the forks and the bucket, and can cause bodily injury or death.
Do not use Clamp on Pallet Forks for digging, pushing or pulling objects.
It is recommended that all objects be secured and lifted on pallets. Unsecured loads can cause damage to the forks and/or bucket.
Be sure that loads are evenly distributed and centered. Rated capacity is based on no more than 1/2 load per fork. Use the entire lifting area of the forks, and avoid lifting loads more than half-way out from the bucket. Lifting loads that are unevenly distributed, or using less than both fork's lifting area can cause damage to the forks and/or bucket.
Keep load slightly tilted back to distribute weight towards the base of the forks.
Do not lift loads that exceed the back height of the bucket.
Backstops are highly recommended. They not only act as roll-back protection, but can also provide a reference point for the fork location on the bucket. Use a 2x4 at least 30" in length.

TROUBLESHOOTING

PROBLEM	POSSIBLE CAUSE	REMEDY
Can't lift pallet	Load exceeds lift capacity	Reduce load on pallet<br>Use alternate machine
	Single fork overload	Redistribute load weight evenly<br>Secure with chains
	Bucket bending	Tighten clamps<br>Reduce load on pallet<br>Use alternate bucket<br>Shim under clamps with 1/2" steel plate
Rear tire slipping	Tractor is too small	Reduce load on pallet<br>Use bigger machine<br>Add weight to rear
	Not enough traction	Add weight to rear<br>Check tire pressure<br>Replace tires
Bent or damaged bucket	Pallet forks are loose	Tighten clamps<br>Use shim plate
	Load is too heavy	Lessen the load<br>Secure with chains
	Bucket is in poor condition	DO NOT use bucket!
	Single fork overload	Spread the forks further apart.<br>Redistribute load weight evenly.

PROBLEM	POSSIBLE CAUSE	REMEDY
Bent or damaged forks	Load exceeds fork capacity	Reduce load on pallet.<br>Secure with chains.
	Load is picked up using less than half of the fork	Move forks further under the pallet.
	Single fork overload	Distribute load weight evenly.<br>Tighten clamps/secure with chains.
	Pallet frozen or partially buried	Re-stack on new pallet.

Pros & Cons

Pros

Heavy-duty steel construction for durability and longevity
Clamp-on design for easy installation and removal
Compatible with most forklift models
High load capacity of up to 4,500 pounds

Cons

May be too heavy for some users to lift and install
May not be compatible with all forklift models

Customer Reviews of Titan Clamp-On Pallet Forks Bar

Customers have praised the Clamp-On Pallet Forks Bar for its durability and ease of use. Many have noted that the product is well-made and can handle even the heaviest pallets. However, some have noted that the product is quite heavy and may require two people to install. The most common complaint is that the product is not compatible with all forklift models.

Faqs

How can I fasten my tractor to the Titan Clamp-On Pallet Forks?

It's simple to install: line up the forks with the bucket edge of your tractor and use the included tightening screws to secure them. Before using, make sure they are well fastened.

Is it possible to modify the Titan Pallet Forks to fit varying pallet sizes?

Indeed, these pallet forks are versatile enough to handle a range of pallet sizes thanks to their adjustable widths.

Which kind of loaders and tractors work with Titan Pallet Forks?

Although the majority of tractor and loader buckets are intended to be generally compatible with these pallet forks, it's still vital to confirm compatibility with your particular equipment model before making a purchase.

How can I use Titan Pallet Forks to make sure my load is safe?

To ensure stability when hauling items, distribute the weight evenly between the two forks, drive slowly, and don't go above the weight limit.

What are the materials composition and durability of the Titan Clamp-On Pallet Forks Bar?

Titan Pallet Forks are made of heavy-duty steel, which guarantees longevity and good performance under normal operating circumstances.

If the Titan Pallet Forks Bar is not clamping firmly, what should I do?

Look for any debris or clamping area damage. To guarantee a tight fit, replace any damaged parts or adjust the tension screws as needed.

When not lifting cargo, can the Titan Pallet Forks be left in place?

Although the forks can be left in place, it is advised to take them out when not in use to prevent wear and guarantee safety.

What precautions should be taken to keep the Titan Pallet Forks from rusting and corrosion?

When not in use, store the forks in a dry, protected area and periodically treat or spray the metal surfaces to prevent rust.

How is the quality of Titan's Clamp-On Pallet Forks Bar guaranteed?

Titan maintains high standards for its pallet forks by putting in place strict quality control methods, including as material and construction inspections.

What warranty does the Titan Pallet Forks come with, and how can I make a claim for it?

Titan's customer service with evidence of purchase and a description of the problem in order to claim it.
