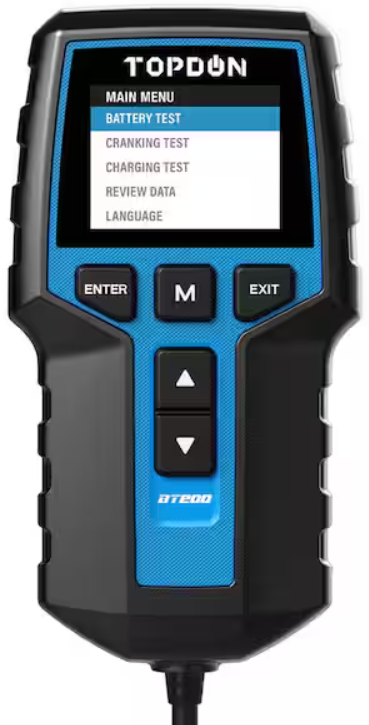

Topdon BT200 12V Battery Tester

Introduction

The Topdon BT200 12V Battery Tester is an essential diagnostic tool designed for automotive battery and charging system evaluation. Engineered for accuracy and ease of use, this tester offers fast, reliable insights into the health and performance of 12V batteries, including Regular Flooded, AGM, GEL, EFB, and VRLA types. Its robust design, featuring a 2.4-inch color LCD screen, provides clear visual results that help users make informed decisions about battery replacement or maintenance.

Ideal for car owners, mechanics, battery dealers, and DIY enthusiasts, the BT200 supports not only battery testing but also cranking and charging system assessments for both 12V and 24V systems. This functionality enables users to detect issues such as voltage drops during engine start or alternator failures before they escalate. The tester works efficiently in extreme temperatures from -4°F to 140°F, making it dependable year-round.

The device is compact and portable, with premium clamps and a heavy-duty enclosure to withstand workshop environments. Operating without the need for external power—drawing directly from the battery under test—it supports capacities ranging from 100 to 2000 Cold Cranking Amps (CCA). The Topdon BT200 is competitively priced in the mid-range segment, typically available between $60 to $80 online and through automotive retailers, offering excellent value for its advanced features.

WHAT'S INCLUDED

1. TOPDON Battery Tester BT200
2. User Manual

SPECIFICATIONS

• Working Voltage
  • DC 9V~30V
• Working Temperature
  • -20°C ~60°C (-4°F~140°F)
• Storage Temperature
  • -20°C~70°C (-4°F~158°F)
• Dimension
  • 7 × 3.72 × 1.3"'
• Weight
  • 15.52 oz

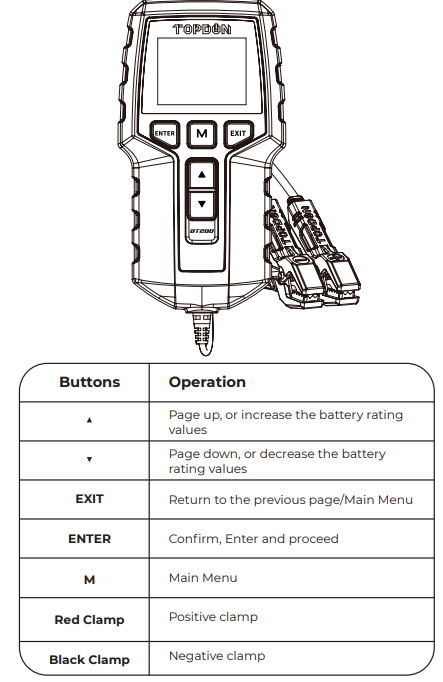

PRODUCT OVERVIEW

HOW TO USE

 Battery Test (12V Only)

TOPDON BT200 will test each battery according to the selected actual system standard and rating marked on the battery, to get the accurate results.

 Before Test
The engine and all other accessory loads must be OFF to have accurate results. Turn on the vehicle headlamps for 2~3 minutes until the battery voltage drops back to the normal value if the battery is just fully charged.

Steps

1. The RED (+) Positive Battery Clamp is connected to the (+) positive battery terminal, and the BLACK (-) Negative Battery Clamp is connected to the (-) negative battery terminal. Ensure that the clamps have a firm, secure grip on the battery terminals for accurate results.

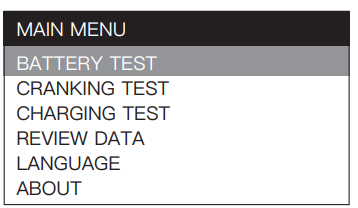

2. The device will jump to the in menu automatically after 3 seconds, select "BATTERY TEST" and then press "ENTER" to continue.



3. Press "▲" or "▼" to select the "BATTERY TYPE" (specified on the battery rating label), then press "ENTER" to continue.



4. Press "▲" or "▼" to select the correct testing standard  (specified on the battery rating label), then press "ENTER" to continue.



5. Hold "▲" or "▼" to select the battery rating values  (specified on the battery rating label).
6. Press "ENTER" to start the battery test.

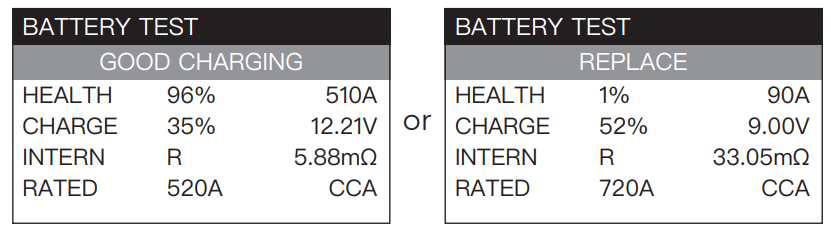

7. The test result is as follows:
   For 12V Battery

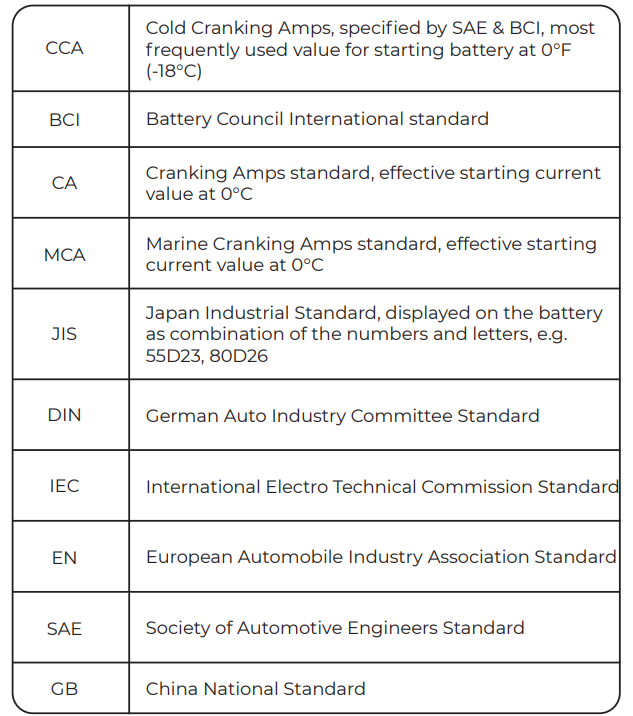

BATTERY SYSTEM STANDARD DESCRIPTION

WARRANTY

TOPDON One-Year Limited Warranty

• The TOPDON Company warrants to its original purchaser that TOPDON products will be free from defects in material and workmanship for 12 months from the date of purchase (Warranty Period). For the defects reported during the Warranty Period, TOPDON will, according to its technical support analysis and confirmation, either repair or replace the defective part or product.
• The TOPDON shall not be liable for any incidental or consequential damages arising from the use, misuse, or mounting of the device. Some states do not allow limitations on how long an implied warranty lasts, so the above limitations may not apply to you.

This limited warranty is void under the following conditions:

• Misused, disassembled, altered, or repaired by a non-TOPDON technical repair specialist.
• Careless handling and violation of he operation.
• Notice: All information in this manual is based on the latest information available at the time of publication,, and no warranty can be made for its accuracy or completeness.
• Topdon reserves the right to make changes at any time without notice.

Troubleshooting the Topdon BT200 12V Battery Tester

While the Topdon BT200 offers reliable performance, users might encounter some common issues:

• No Display or Power: Confirm battery voltage is above 9V. The tester requires a minimum of 9 volts to operate. If below, the battery likely needs replacement.
• Reverse Polarity Error: The unit provides built-in reverse polarity protection, but ensure clamps are correctly connected to battery terminals (red to positive, black to negative) to avoid errors.
• Inaccurate or No Readings: Clean battery terminals and clamps to ensure good contact. Replace worn clamps if needed,, as they are the only replaceable parts.
• Error Codes: Common error messages relate to low voltage or connection issues; the user manual provides specific guidance for each.

Preventive measures include storing the tester in a dry place, avoiding exposure to extreme moisture, and regularly inspecting clamps and cables. The product typically comes with a one-year manufacturer's warranty covering defects and performance issues. For expert support or warranty claims, users should contact Topdon’s official customer service via their website or authorized dealers.

Pros & Cons of the Topdon BT200 12V Battery Tester

Pros:

• Accurate and Fast Testing: Provides detailed battery health, charge percentage, and CCA ratings within seconds.
• Versatile Testing: Supports multiple battery types (AGM, GEL, VRLA, EFB, Flooded) and tests both 12V and 24V systems for cranking and charging.
• Clear Display: The 2.4-inch color LCD screen offers easy-to-read, intuitive results and multilingual menu options.
• Robust Build: Heavy-duty clamps and enclosure ensure durability in various conditions, with operation possible down to -4°F.
• Plug-and-Play Operation: No smartphone or app required, simplifying battery diagnostics for new users.

Cons:

• No Bluetooth or Wireless Connectivity: Unlike some competitors, it cannot connect to apps for data logging or remote monitoring.
• Limited to 12V Batteries: Cannot test lithium-ion batteries or 24V battery packs directly.
• Non-Removable Battery Leads: Although clamps are replaceable, the fixed cables may affect long-term serviceability.
• No Software Updates: The device does not support firmware upgrades, limiting future feature enhancements.

Overall, the Topdon BT200 offers excellent value for money, balancing accuracy and simplicity, especially when compared to app-dependent testers or more expensive professional tools.

Customer Reviews of the Topdon BT200 Battery Tester

Users consistently praise the Topdon BT200 12V Battery Tester for its straightforward operation and reliable results. Many highlight its quick diagnostics and clear LCD as major advantages, noting that it helps them avoid unexpected battery failures. The device's compatibility with multiple battery types and support for cranking and charging system tests receive positive feedback from both DIYers and mechanics.

Common complaints involve the lack of wireless connectivity and the fixed cable length, which some users find restrictive in tight engine bays. A few mention the absence of software updates, expressing a desire for enhanced features over time. Despite these minor issues, the product maintains an average rating of around 4.5 out of 5 stars across major retailers.

Many recommend the Topdon BT200 as a reliable, affordable battery tester for personal use or small workshops, emphasizing its accuracy and ease of use as key reasons to purchase.
