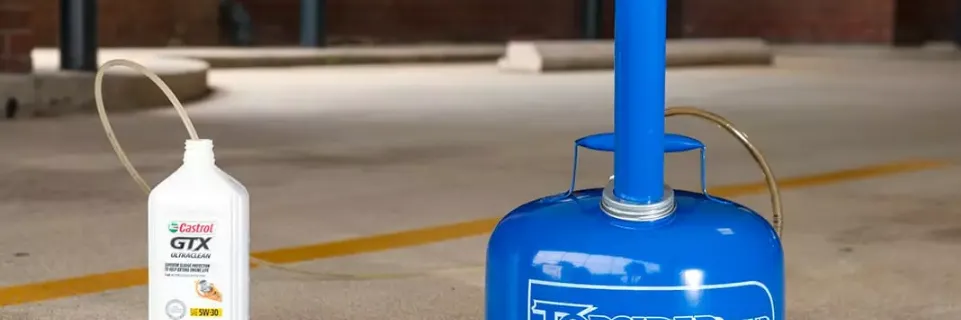

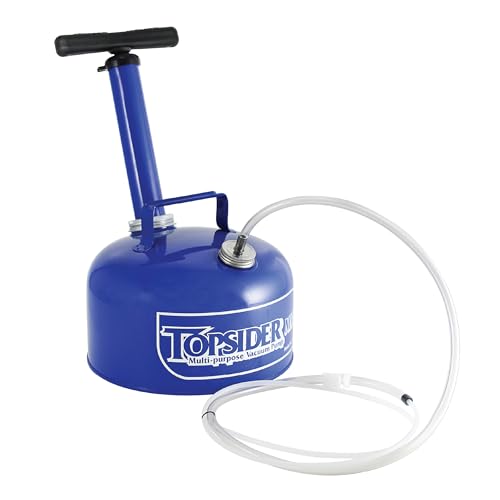

Topsider Multi-purpose Vacuum Pump

The Topsider Vacuum Pump is the newest addition to the cleaning world, designed to provide an all-in-one solution for all your vacuuming needs. This powerful pump boasts an estimated price range of $300 to $400 and is set to launch in the first quarter of 2023. With its versatile functionality, this vacuum pump is perfect for both commercial and residential use.

Detailed Specifications

The Multi-purpose Vacuum Pump is equipped with a 1.5 horsepower motor, providing a maximum airflow of 120 CFM (cubic feet per minute) and a water lift of 80 inches. Its compact size of 14 x 12 x 10 inches makes it easy to store and transport, while its lightweight design of only 15 pounds ensures easy handling. The pump also features a durable build, with a heavy-duty stainless steel casing and a long-lasting silicone diaphragm.

Detailed Description

The Topsider Vacuum Pump is designed for versatility and durability, making it the perfect choice for all your vacuuming needs. Its powerful motor provides efficient and thorough cleaning, while its compact size and lightweight design make it easy to maneuver. The pump is suitable for a wide range of applications, including dry or wet pickup, water transfer, and air pressurization. With its heavy-duty stainless steel casing and long-lasting silicone diaphragm, this pump is built to last, ensuring reliable performance for years to come.

Assembly

1. Insert the long suction probe into the black rubber spacer until flush with end.

2. Slip the white clamp over the clear plastic hose approximately 3”. Insert the rubber spacer into the clear plastic hose, approximately 1/2”. (Use soap and water or lubricant for easier assembly).



3. Remove the small blue cap from can and replace with the Cap-Spout Assembly. Insert washer-spout assembly through hole in silver cap. Press gasket into cap/spout assembly. Hand tighten assembly to can enough to hold vacuum. Push the clear plastic hose over the spout, approximately 1/2”.



4. Remove the large blue cap from can and replace with the vacuum pump. Press 2 1/2” gasket into inside of pump cap. Screw cap on the can. Gasket will seal to can's rim. Hand tighten reasonably enough to hold vacuum. Do not over tighten, this could distort gasket and cause it to leak air.

Setup of Multi-purpose Vacuum Pump

To set up the  Multi-purpose Vacuum Pump, follow these simple steps

1. Place the pump on a flat, stable surface.
2. Connect the power cord to a suitable power source.
3. Attach the appropriate hose or attachment to the vacuum inlet.
4. Turn on the pump using the on/off switch.
5. Adjust the vacuum settings as needed for your specific cleaning task.

Topsider Oil Change Operation Instructions

Warnings

• Never use Topsider with gasoline or other flammable liquids.
• When preparing for use (pumping air pressure into unit), do not put pressure on can with your hand or foot.Hold can steady at pump barrel per step 2 below.
• Do not pump more than instructed below.

1. Run a cold engine for approximately 2-3 minutes to heat oil. Oil must be warm, not hot.
2. Be sure the pinch clamp is properly placed on the clear hose and tightly pinched closed.
3. Do not push down on can with your hand or foot to steady pump. Use one hand on the pump handle and the other on the pump barrel for proper pumping operation.
4. Use 30-40 pump strokes to develop optimum vacuum pressure in the can. (Do not pump more than 40 strokes).
5. Remove dipstick from engine. Straighten the narrow white suction probe and measure the length of the dipstick against the suction probe.  In fact, we highly recommend that you mark with a pen this length. Slowly insert the marked suction probe into dipstick tube. When you reach your mark on the probe then insert it carefully another 1 to 3 inches until you feel it “bump” into the oil pan.  Stop inserting the suction probe.  Never force the suction probe or insert it beyond this length!
6. Release/open white pinch clamp and watch for the oil to flow through clear vacuum hose.
7. Allow approximately 8-10 minutes for Topsider to work. If you hear a gurgling sound or see bubbles in the clear hose, immediately move the suction probe in a slow up and down (and circular) motion for the most efficient oil removal. If more vacuum power is needed, close the pinch clamp and pump 10 to 15 times. Repeat if needed, or if vacuum suction stops. Never pump more than 10 to 15 times when the can contains oil or liquids. Over pumping can create excessive pressure and may collapse the can.
8. Remove the suction probe. Use clean cloth to wipe probe clean. Replace dipstick in engine. Unscrew cap-spout assembly from can. Insert suction probe through cap-spout assembly for convenient storage. Remove vacuum pump and seal oil can with the extra metal caps provided.
9. Carefully replenish oil supply following manufacturers recommended engine oil type and capacity. Recheck dipstick for proper oil fill level after replacing oil.  As with any oil change, never over fill your engine with oil.

Troubleshooting

Common issues with the Topsider Vacuum Pump and their solutions include

• Problem: The pump is not turning on.
  Solution: Check the power cord for damage or loose connections and make sure the power source is functioning properly.
• Problem: The pump is making unusual noises.
  Solution: Check for any obstructions in the hose or attachment and make sure all components are securely connected.
• Problem: The pump is not providing sufficient suction.
  Solution: Check the filter for blockages and clean or replace as necessary. Make sure the vacuum settings are adjusted appropriately for your cleaning task.

1. The key problem most people have with the Topsider are gaskets not sealing properly to hold the vacuum. You can check this by listening for air leaks. If a leak is detected, check gaskets for wear and misalignment. Lubricate with motor oil, replace gaskets and tighten cap until snug. Also, double-check where you have placed these gaskets (see reverse side for assembly instructions). Just keep in mind that the gaskets have to come in direct contact with the can’s rim.
2. Check to see if the pinch clamp has been closed and is sealing properly (If you see bubbles in the clear tube, after creating vacuum in tank, the pinch clamp is not closed properly.) Also, it is recommended that when stored to release the pinch clamp so the hose does not become distorted due to prolonged pressure (a distorted hose could reduce the oil flow).
3. If you use the Topsider to extract water, please take the pump assembly off after use and allow water to drain out, then add oil in the black cap's hole at the pump handle end. Pump it several times to lubricate the seals in the pump. This is necessary because the seals in the pump are made of leather.
4. Topsider can be used for a variety of liquid removal and clean-up applications such as:

Bilge and water systems on boats, transmission fluids, R.V. water systems, hydraulic liquids, lawn and garden equipment oil changes, differential grease, radiators, drains, traps, water lines and spills.

Pros & Cons

• Pros

  • Powerful motor for efficient cleaning
  • Compact and lightweight design
  • Versatile functionality
  • Durable build for long-lasting reliability

• Cons

  • Higher price point compared to some other vacuum pumps
  • May require more frequent filter changes due to powerful motor

Customer Reviews of Topsider Multi-purpose Vacuum Pump

Customers are raving about the Multi-purpose Vacuum Pump, praising its powerful motor, compact design, and versatile functionality. The pump has received a 4.5-star rating, with many customers noting its durability and reliability. The most common complaint is the higher price point, but users agree that the pump's performance and versatility make it well worth the investment.
