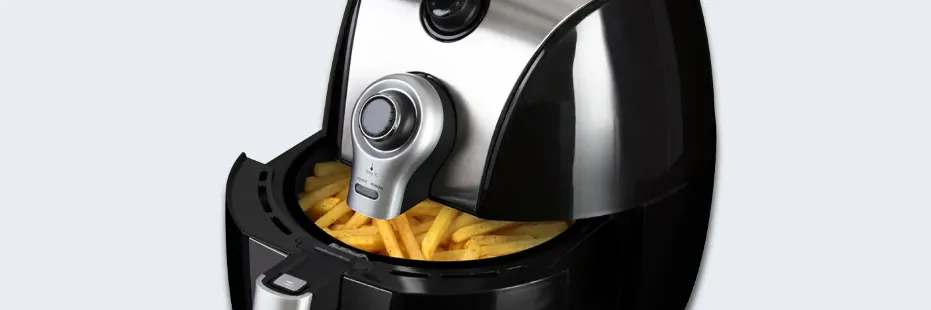

Tower Air Fryer T17022 Introduction

The Tower Air Fryer T17022 is a compact and efficient kitchen appliance designed for healthier cooking by utilizing rapid air circulation technology. With a generous 4.3-liter capacity, it allows users to prepare a variety of meals with up to 80% less fat than traditional frying methods. The air fryer features simple controls for easy operation and a sleek design that fits seamlessly into any kitchen. The cost of the Tower Air Fryer T17022 is approximately $79.99.

Specifications

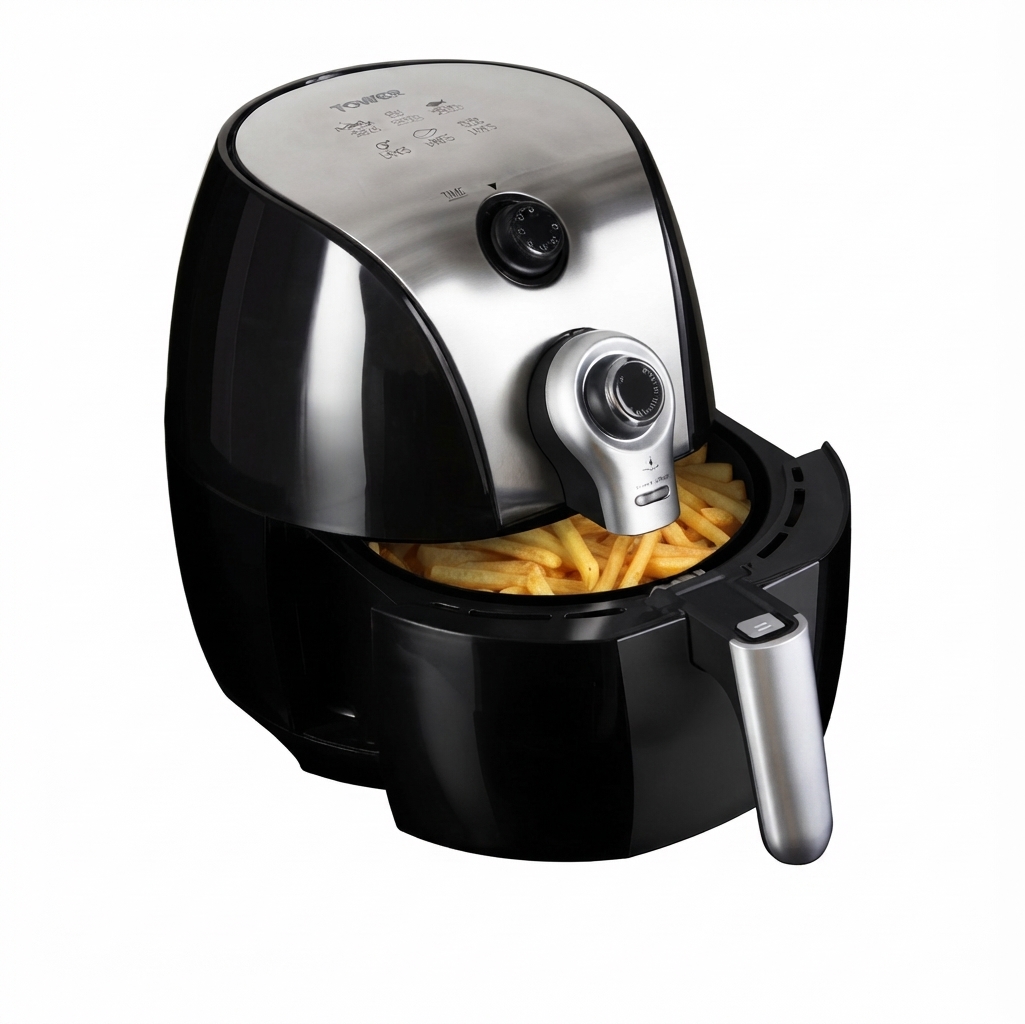

Structure of your appliance

1. Basket handle
2. Basket release button
3. Power-on light
4. Temperature control dial
5. Timer dial
6. Air outlet (rear)
7. Basket (not pictured)
8. Pan
9. Power Cable (rear)

Technical Data

• Model:
  4.3L Air Fryer T17022
• Rated Voltage:
  220 - 240V 50/60Hz
• Power Consumption:
  1500W

Documentation

We declare that this product conforms to the following product legislation in accordance with the following directive(s):

• 2014/30/EU Electromagnetic Compatibility Directive
• 2014/35/EU Low Voltage Directive
• 2011/65/EU Restriction of Hazardous Substances Directive
• 1935/2004/EC Materials & Articles in Contact With Food (LFGB section 30 & 31)

RK Wholesale LTD Quality Assurance, United Kingdom

Should you encounter problems or require a replacement part, contact the Tower Customer Support Team: +44 (0) 333 220 6066

Some spare parts may be ordered from the Tower website.
Your warranty becomes void should you decide to use non-Tower spare parts. Spare parts can be purchased from the manufacturing website.

Guarantee for Spare Parts:

The spares and accessories are guaranteed for 1 year from the date of purchase. The main body and housing are guaranteed for the extended free warranty, subject to registration.

If any defect arises due to faulty materials or workmanship, the faulty products must be returned to the place of purchase within 12 months from the date of purchase.
Refund or replacement is at the discretion of the retailer.

Important Safety Information

Please read these notes carefully BEFORE using your Tower appliance.

• Check that the voltage of the main circuit corresponds with the rating of the appliance before operating.
• Please ensure that the appliance is used on a stable, level, and heat resistant surface.
• DO NOT immerse cords, plugs or any part of the appliance in water or any other liquid.
• DO NOT leave the appliance unattended while it is operating.
• Close supervision is necessary when any appliance is used by or near children or pets.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
• Children should not play with the appliance.
• Cleaning and user maintenance shall not be made by children without supervision.
• Switch off at the wall socket then remove the plug from the socket when not in use or before cleaning.
• If the supply cord or appliance is damaged, stop using the appliance immediately and seek advice from the manufacturer or its service agent or a similarly qualified person.
• DO NOT let the cord hang over the edge of a table or counter or let it come into contact with any hot surfaces.
• The use of accessory attachments is not recommended by the appliance manufacturer apart from those supplied with this product. DO NOT use extension cords with the appliance.
• DO NOT pull the plug out by the cord as this may damage the plug and/or the cable.
• DO NOT use this product for anything other than its intended use.
• This appliance is for household use only.
• DO NOT carry the appliance by the power cord.
• DO NOT use the appliance outdoors.
• The iron should always be turned to “min” before plugging or unplugging from the mains outlet. Never pull the cord to disconnect from the mains: instead, hold the plug and pull to disconnect.
• Always disconnect the iron from the electrical outlet when filling with water or emptying and when not in use.
• DO NOT leave the iron unattended when connected to the mains or on an ironing board.
• Burns can occur from touching hot metal parts, hot water or steam. Use caution when you turn a steam iron upside downthere may be hot water in the reservoir.
• Your iron is designed to rest on the soleplate. DO NOT place the iron on an unprotected surface.
• In the unlikely event the appliance develops a fault, stop using it immediately and seek advice.

Before First Use

1. Remove any stickers, protective foil or storage cover from the soleplate.
2. Before filling ensure that the anti-calc filter has been taken out of the tank and the plug is removed from the wall socket.
3. When cool, remove the water tank from the base and empty any water that is been left inside, then place the funnel in the opening to the tank.
4. Measure 0.5 litres (500ml) of water into an appropriate container, then pour into the tank and replace it onto the unit base.
5. Once the tank is full, lift the iron from its base and hold it in your hand. Be careful to hold the iron at a lower height than the base, as this will help make the next few steps easier and more effective.
6. With the iron held low, press and hold the steam trigger for up to 30 seconds.
7. The pump will vibrate and there will be a rumbling sound as it fills up with water.
8. When this sound becomes less pronounced and steam starts coming out of the iron, let go of the steam trigger.
9. Your iron is now ready for normal use.
   NOTE: On first use, we recommend cleaning the soleplate with a soft piece of scrap cloth to ensure any residue from the manufacturing process is removed from it.
10. After filling the steam station, ensure it is placed on a flat, level and stable surface.
11. Plug the power cord into an unobstructed wall socket then switch it on at the wall.
12. Set the temperature dial on the iron to the correct temperature for the fabric that is to be ironed (as shown in the temperature guide) then switch on the steam generator and the iron via the switches on the base.
13. When the correct temperature is reached for the fabric, the light on the iron may cycle on and off. This is normal and shows that the thermostat is operating normally
14. Ensure all switches are in the ‘off’ position when you are finished using the appliance.
15. Dispose of the packaging in a responsible manner.

Description

The Tower Air Fryer T17022 is designed with user convenience in mind. Its sleek and compact design fits well on most kitchen countertops, while its intuitive interface makes it easy to navigate and use. The air fryer features a digital touchscreen display that allows you to set the temperature and timer with ease. The non-stick basket and pan are dishwasher safe, making cleanup a breeze.

The air fryer also comes with a recipe book to help you get started with your cooking journey. Whether you're a novice cook or an experienced chef, the Tower Air Fryer T17022 offers the flexibility and versatility you need to explore a wide range of recipes.

Before First Use

1. Remove your appliance from the packaging.
2. Check that there is no damage to the cord or any visible damage to the body.
3. Dispose of the packaging in a responsible manner.
4. Remove any stickers or labels from the appliance
5. Thoroughly clean the basket and pan with hot water, some washing-up liquid and a non- abrasive sponge.
6. Wipe the inside and the outside of the appliance with a moist cloth.
7. Do not fill the pan with oil or frying fat. This is an oil-free fryer that works on hot air. Note: This appliance uses very little or no oil.

Using Your Appliance

Automatic Switch Off

The Tower Air Fryer has a built-in timer, which will automatically shut down the Air Fryer when the timer reaches zero. You can manually switch off the unit off by turning the timer dial anti-clockwise to 0

Air Fryer Drawer Safety Switch

For your safety, this air fryer contains a safety switch in the drawer designed to keep if from accidentally turning on when the frying basket and drawer are not properly situated inside the appliance and the timer is not set. To use the air fryer, please ensure the basket is correctly fitted inside of the drawer, the drawer is fully closed, and the cooking timer has been set.

Removing The Frying Basket

The pan and frying basket can both be removed fully from the Air Fryer. Pull on the handle to slide the pan and frying basket out of the Air fryer. There is a small button on the top of the handle. Push it down and lift upwards to remove the frying basket from the pan.

Preparing For Use

1. Place the appliance on a stable, horizontal and even surface. Do not place the appliance on a non-heat resistant surface.
2. Place the basket in the pan.
3. Pull the cord from the storage compartment which is located on the bottom of the appliance.
4. Do not fill the pan with oil or any other liquid.
5. Do not put anything on top of the appliance, as this could disrupt the airflow and affect your final result.

Tower Air Fryer T17022 Air Frying

1. Connect the mains plug into an earthed wall socket.
2. Carefully pull the pan out of the Air Fryer.
3. Put the ingredients in the basket.
   Tip: If you have a separator (NOT SUPPLIED) to separate items when you will be able to prepare different ingredients at the same time. Place the separator in the basket and fill up each side of the basket with the ingredients. Make sure you check the preparation time and the temperature required for the different ingredients before you start to prepare them. Potato cubes and schnitzel, for example, can be prepared simultaneously because they require the same settings. Please note that the maximum amount for each of the ingredients is half the normal amount.
4. Slide the pan back into the Air Fryer making sure to carefully align with the guides in the body of the fryer.
5. Never use the pan without the basket in it.
   Caution: Do not touch the pan immediately after use, as it gets very hot. Allow plenty of time for it to cool. Only hold the pan by the handle.
6. Determine the required preparation time for the ingredient (refer to the ‘Settings’ section below.)
7. To switch on the appliance, turn the timer dial to the required preparation time.
8. Turn the temperature control dial to the required temperature. Refer to the ‘Settings’ section below as a guide when determining the right temperature. Add 3 minutes to the preparation time when the appliance is cold.
   Note: If you wish, you can also preheat the appliance without any ingredients inside. In this case, turn the timer dial to a time higher than 3 minutes and wait until the heating-up light goes out. Then fill the basket and turn the timer dial to the required preparation time.
   1. The timer will begin counting down the set preparation time.
   2. During the hot air frying process, the working light will come on and go out from time to time. This indicates that the heating element is switching itself on and off to maintain the set temperature.
   3. Excess oil from the ingredients is collected on the bottom of the pan.
9. Some ingredients require shaking halfway through the preparation time (refer to the “Settings” section below for more information on this). To shake the ingredients, pull the pan out of the appliance by the handle and shake it. Then slide the pan back into the fryer. Caution: Be careful not to press the basket release button on the handle while shaking your ingredients.
   Tip: To reduce the weight, you can remove the basket from the pan and shake the basket only. To do so, pull the pan out of the appliance, place it on a heat-resistant surface and press the button of handle and lift the basket out of the pan.
   If you set the timer to half the preparation time, the timer bell will sound when you have  to shake the ingredients. However, this means that you have to set the timer again to the remaining preparation time after shaking.
10. When you hear the timer bell, the set preparation time has elapsed. Pull the pan out of the appliance and place it on a suitable work surface.
    Note: You can also switch off the appliance manually. To do this, turn the time control dial to 0.
11. Check if the ingredients are ready. If the ingredients are not ready yet, simply slide the pan back into the appliance and set the timer to a few extra minutes.
12. To remove ingredients (e.g. fries), pull the pan out of the Air Fryer and place it on a suitable surface, then press the basket release button and lift the basket out of the pan. Do not turn the basket upside down with the pan still attached to it, as any excess oil that has collected on the bottom of the pan will leak onto the ingredients. Both the pan and ingredients will be very hot. Depending on the type of ingredients in the fryer, steam may escape from the pan so care is needed.
13. Empty the basket into a bowl or onto a plate.
    Tip: To remove large or fragile ingredients, lift the ingredients out of the basket with a pair of tongs.
14. Whenever a batch of ingredients finishes cooking, the Air Fryer will be ready for preparing another batch straight away.

Timer

The Air Fryer has a 60 minute manual timer with a bell. Turn the dial to set the required cooking time. When the cooking time has elapsed, a bell will sound to indicate that the cooking has finished.

Settings

The table on the next page will help you to select the basic settings for the ingredients.
Note: Keep in mind that these settings are indications. As ingredients differ in origin, size, shape and brand, we cannot guarantee the best settings for your ingredients. Also note that the Rapid Air technology instantly reheats the air inside the appliance, so pulling the pan briefly out of the appliance during hot air frying will barely disturb the process.

Tips

• The preparation time will depend on the size of your ingredients. Smaller sizers may require a shorter cooking time.
• Shaking smaller ingredients halfway through the cooking time optimises the end result and can help prevent unevenly fried ingredients.
• Add some oil to fresh potatoes for a crispy result. Fry your ingredients in the Hot-air fryer within a few minutes after you added the oil.
• Be cautious of using extremely greasy ingredients such as sausages in the air fryer.
• Snacks that can be prepared in a oven can also be prepared in the air fryer
• The optimal amount for preparing crispy fries is 500 grams.
• Use pre-made dough to prepare filled snacks quickly and easily. Pre-made dough also requires a shorter preparation time than home-made dough.
• Place a baking tin or oven dish in the air fryer basket if you want to bake a cake or quiche, or if you want to fry fragile ingredients or filled ingredients.
• You can also use the air fryer to reheat ingredients. To reheat ingredients, set the temperature to 150°C for up to 10 minutes.

Setup Guide

To operate the Tower Air Fryer T17022, follow these steps:

1. Unbox and wash the basket and pan before first use.
2. Place the basket into the air fryer and plug it in.
3. Set the desired temperature using the digital touchscreen display.
4. Choose a preset setting if available or manually set the timer.
5. Add your food to the basket, ensuring it is not overcrowded.
6. Close the basket and start the cooking process.
7. Once the timer goes off, remove the food and serve.

Cleaning & Care

WARNING! DO NOT IMMERSE THE APPLIANCE IN WATER OR ANY OTHER LIQUID.

Clean the appliance after every use.

1. Remove the mains plug from the wall socket and let the appliance cool down. Note: Removing the pan allows the Air Fryer to cool down quicker.
2. Wipe the outside of the appliance with a moist cloth.
3. Clean the pan and basket with hot water, some washing-up liquid and a non-abrasive sponge.
4. You can use degreasing liquid to remove any remaining dirt.
   Note: the pan and basket are hand-wash only. DO NOT place any part of this appliance in the dishwasher.
   Tip: If dirt is stuck to the basket or the bottom of the pan, fill the pan with hot water and a touch of washing-up liquid. Put the basket in the pan and let the pan and the basket soak for approximately 10 minutes.
5. Clean the inside of the appliance with hot water and a non-abrasive sponge.
6. Clean the heating element with a cleaning brush to remove any food residues.

To store your appliance:

• Ensure that the appliance is cool, clean and dry before you store it.
• Store the appliance in a cool and dry place.

Weights & Measures

Check these charts for basic imperial to metric conversions of weights.

Food Allergies
Important Note: Some of the recipes contained in this document may contain nuts and/ or other allergens. Please be careful when making any of our sample recipes that you ARE NOT allergic to any of the ingredients. For more information on allergies, please visit the Food Standards Agency’s website.

Recipes

Homemade Fries

Ingredients

• 2 large potatoes
• ½ tbsp. paprika
• Pinch of salt
• Pinch of pepper
• 1 tbsp. sunflower oil

Method

1. Wash, peel and slice the potatoes.
2. Dry with kitchen paper.
3. Cut the potatoes into your desired length and thickness.
4. Bring a large pot of water to the boil with a pinch of salt. Add the chips and allow to part boil for 10 minutes.
5. Strain the fries and immediately run under cold water to stop them from cooking any more.
6. Pour the oil in a bowl, with the paprika, salt and pepper. Put the fries on top and mix until all the fries are coated.
7. Remove the fries from the bowl with your fingers or kitchen utensil so that the excess oil stays behind in the bowl.
8. Place the fries in the air fryer food basket, and then set the time & temperature as shown on the reference table.

Variations: Try replacing ½ tbsp. of paprika with ½ tbsp. garlic powder, or ½ tbsp. of grated parmesan cheese.

Bacon and Egg Breakfast Muffin

Ingredients

• 1 free range egg
• 1 strip of bacon
• 1 English muffin
• Cheese to slice
• Pinch of pepper and salt to taste

Method

1. Crack the egg into a small ramekin or oven proof dish.
2. Cut the English muffin in half and layer cheese on one half.
3. Place the muffin, bacon and egg (in the ramekin) into the Air Fryer food basket.
4. Turn the Air Fryer to 200°C for 6 minutes.
5. Once it’s cooked, assemble your breakfast muffin and enjoy.
   Tip: Try adding some mustard on the muffin for extra flavour.

Prosciutto and Mozzarella Sandwich

Ingredients

• 2 slices of bread
• 2 slices of prosciutto
• 2 slices of tomato
• 2 slices of mozzarella cheese
• 2 basil leaves
• ½ pinch of salt & pepper
• 1 tsp. of olive oil

Method

1. Lay prosciutto and mozzarella cheese on top of one slice of bread. Add the second slice of bread on top, making a sandwich.
2. Put the sandwich into your Air Fryer for 5 minutes at 200°C
3. Once the timer bell has rung, carefully remove the sandwich.
4. Remove the top slice of bread and drizzle the tsp. of olive oil over the mozzarella.
5. Add the pinch of salt and pepper to season and top with tomato and basil.
6. Put the second slice of bread on top and serve.

WIRING SAFETY FOR UK USE ONLY

IMPORTANT: As the colours in the  mains lead of this appliance may not  correspond with the  coloured markings  identifying the terminals  in your plug, please  proceed as follows:
The wires in the mains lead are coloured in accordance with the following code:

Blue neutral [N] Brown live [L]
Green/Yellow [EARTH]

• Plug Fitting Details (Where Applicable).
• The wire coloured blue is the neutral and must be connected to the terminal marked [N].
• The wire coloured brown is the live wire and must be connected to the terminal marked [L].
• The wire coloured green/yellow must be connected to the terminal marked with the letter [E].
• On no account must either the brown or the blue wire be connected to the [EARTH] terminal .
• Always ensure that the cord grip is fastened correctly.
• The plug must be fitted with a fuse of the same rating already fitted and conforming to BS 1362 and be ASTA approved.
• If in doubt consult a qualified electrician who will be pleased to do this for you.

Non-Rewireable Mains Plug

• If your appliance is supplied with a non-rewireable plug fitted to the mains lead and should the fuse need replacing, you must use an ASTA approved one (conforming to BS 1362 of the same rating).
• If in doubt, consult a qualified electrician who will be pleased to do this for you.
• If you need to remove the plug - disconnect it from the mains - and then cut it off the mains lead and immediately dispose of its safely. Never attempt to reuse the plug or insert it into a socket outlet as there is a danger of an electric shock.

Troubleshooting

Tower Air Fryer T17022 Warranty

One of our fantastic products, we are offering you an extra 2 years peace of mind in addition to your 1 year guarantee.  To receive your extra 2-year guarantee, register your appliance online within 28 days of purchase by visiting the manufacturing website. This product is guaranteed for 12 months from the date of original purchase. If any defect arises due to faulty materials of workmanship, the faulty products must be returned to the place of purchase. Refund or replacement is at the discretion of the retailer.

This guarantee is valid in the UK and Eire only.
The standard one-year guarantee is only extended to the maximum available for each particular product upon registration of the product within 28 days of purchase. If you do not register the product with us within the 28-day period, your product is guaranteed for 1  year only.

Pros & Cons

Pros

• Healthier Cooking Option: Reduces fat intake compared to traditional deep-frying methods.
• Easy to Use: Intuitive interface and preset settings make it user-friendly.
• Large Capacity: Can cook for multiple people at once.
• Easy Cleaning: Non-stick basket and pan are dishwasher safe.

Cons

• Noisy Operation: Some users report that the air fryer can be quite noisy during operation.
• Non-Detachable Cable: The power cord is fixed to the unit, which can limit its placement options.

Customer Reviews

Customers have generally praised the Tower Air Fryer T17022 for its ease of use and the quality of food it produces. Many have appreciated the large capacity and the variety of preset settings. However, some have noted that the air fryer can be noisy and that the non-detachable cable can be inconvenient.

Common complaints include issues with the air fryer's durability over time and some minor difficulties with cleaning the exterior.
