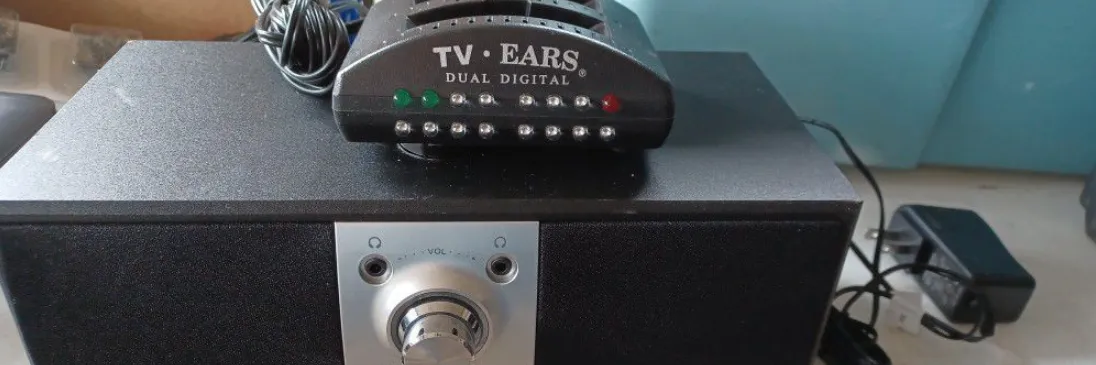

Introduction of TV Ears Wireless Speaker

Introducing the Wireless Speaker, a revolutionary product designed to enhance your TV viewing experience. This speaker allows you to listen to your favorite shows and movies at your preferred volume, without disturbing others in the room. The TV Ears Wireless Speaker is compatible with most TV brands and models, and is expected to launch in the market with an estimated price range of $150 to $200.

Specifications

System

• Modulation Infrared, Mono
• Carrier frequencies 2.3MHz
• Range 600 sq. ft (55 m2 )
• Audio frequency response 100-16,000 Hz
• THD (Total Harmonic Distortion) < 1%
• Signal to Noise Ratio 90 dB

Speaker

• Weight 3.5 lbs (1.59 kg)
• Height 4.25” x 6.5” x 10.75” (10.8cm x 16.5cm x 27.3cm)

Transmitter

• Audio / Microphone connection
• Power Supply DC Power Supply 12v, 200mA
• Weight 3 oz (85g)
• Dimensions (H x W x D) 1.4” x 4.12” x 3.4” (3.6cm x 10.5cm x 8.6cm)

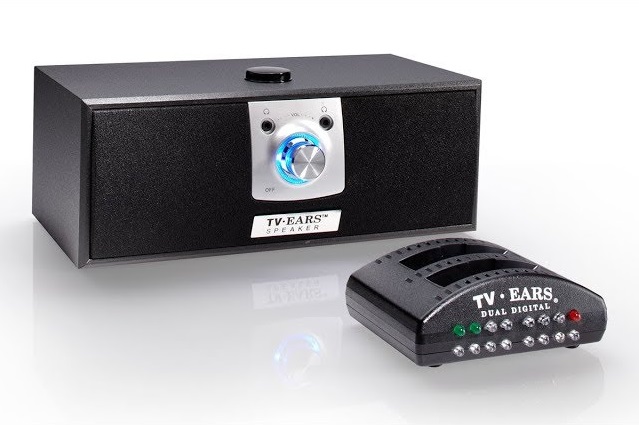

Description of Wireless Speaker

The TV Ears Speaker is a lightweight and portable device that can be placed near the viewer for optimal sound quality. It uses advanced wireless technology to connect to your TV Ears Wireless Speaker, and features a rechargeable battery that can last up to 10 hours on a single charge. The speaker also has built-in volume control, allowing you to adjust the sound level to your liking. With its sleek and modern design, the TV Ears Wireless Speaker is a stylish addition to any home entertainment setup.

Overview of Wireless Speaker

1. On / Off and Volume
2. Control Music In jack
3. Headphone jack
4. 12V DC (power port)
5. Aux In port
   Transmitter & Cords
6. Charging Indicator Light
7. Infrared Diodes
8. Charging Cradles
9. Audio Port
10. 12V port
11. Ridged AC Adapter for speaker
12. Smooth AC Adapter for transmitter
13. Audio Cord
14. 25 ft. Extender Cord
15. 3 ft. Auxiliary Cord
16. Ear Buds

Included in Box

• Wireless Speaker & Power Adapter
• 2.3 Transmitter & Power Adapter
• Audio Cord
• 25 ft. Extender Cord
• 3 ft. Auxiliary Cord
• Ear Buds

Installation Instructions

Plug in the Audio Cord
For best results, plug the audio cord into your television’s analog (RCA) audio out ports.

1. Plug the dual end of the audio cord 13 (red and black male plugs) into the analog (RCA) audio out ports on the back of the television. *
2. Plug the single end of the audio cord into the Audio jack 9 on the back of the TV Ears transmitter.

If audio out ports are not available on the back of your television: use the audio out ports on your cable or satellite box.
If outside the U.S. and audio out ports are not available on the back of your television: use a SCART to RCA signal out adapter.
To use a DVD player or VCR when the audio cord is plugged into a cable or satellite box

1. Take the dual end of the audio cord 13 (red and black male plugs); gently pull apart the red and black plugs.
2. Insert the red plug into the analog (RCA) audio out port of the cable or satellite box.
3. Insert the black plug into the analog (RCA) audio out port of the DVD player or VCR.

4. Plug the single end of the audio cord into the



Audio jack on the back of the TV Ears transmitter. When installed this way, you must turn off whichever device is not in use. Turn off the cable/satellite box when watching a DVD or video. Turn off the DVD/VCR player when watching TV.

Installation Tips

• Ports on the front of TVs are usually audio in ports and will not send sound to your TV Ears.
• Fixed/Variable audio setting: See the Troubleshooting Guide on page 11.
• TV Ears does not work with digital audio out ports without the TV Ears DAC (Digital Analog Converter). For information on the DAC see page 8.
• When receiving a signal from the transmitter or plugging the audio cord into the back of the speaker, the sound will be mono. For stereo sound, see Using the Speaker with Music Devices.

To Extend the Audio Cord
You may extend the audio cord to move the transmitter further away from the television or to plug the audio cord directly into you speaker.

1. Plug the single end of the audio cord into one of the female ends of the 25 ft. extender cord 14.
2. Plug one of the male ends of the 3 ft. auxiliary cord 15 into the opposite female end of the extender cord.
3. Plug the remaining end of the auxiliary cord into the Audio jack 8 on the back of the TV Ears transmitter.

Power and Place the TV Ears Transmitter

The transmitter lights must be in direct line of sight with the speaker.

1. Place the transmitter on a flat surface 3-5 feet off the ground.
2. Point the front of the transmitter towards the seating area where the speaker will be used. Plug the end of the smooth AC adapter 12 into the 12V jack 10 on the back of the transmitter.
3. Plug the smooth AC adapter into a standard electrical outlet or surge protector.

Note: The transmitter must remain plugged in to transmit the infrared signal.
Power and Place the Wireless Speaker
The transmitter sends the audio via an infrared signal to the speaker.

1. Place the speaker on a flat surface 3-5 feet off the ground.
2. Plug the end of the ridged AC adapter 11 into the 12V jack 10 on the back of the transmitter.
3. Plug the ridged AC adapter into a standard electrical outlet or surge protector.

Functions

• ON and Volume: Turn on the volume knob 1 clockwise to turn the speakers ON and adjust the volume to your preference. The blue light ring will illuminate when the speaker is ON.
• OFF: Turn the volume knob 1 couter clockwise until you feel or hear it click OFF. The blue light ring will turn OFF when the speaker if OFF.

Private Mode
The included earbuds or another headset of your choice can be plugged into the Headphone jack 3 on the front of the speaker. This will turn the sound to the speaker OFF and only send sound to the headphones.


Using the Speaker with Music Devices

1. Plug one end of the auxiliary cord 15 into the headphone jack of the music player.
2. Plug the opposite end of the auxiliary cord into the Music In jack 2 on the front of the speaker.
3. Turn the music player ON and set it to 3/4 of the full volume.
4. Turn the speaker ON and adjust the volume to your preference level.

Note: When the audio signal is received through the Music In jack on the front of the speaker, the speaker will play stereo sound. If the auxiliary cord is being used to extend the audio cord, unplug the auxiliary cord to use it with the music device and reconnect it when finished.

Accessories

Available Accessories and replacements for your TV Ears system. Additional Wireless Speaker: The transmitter can send the infrared signal to more than one speaker at a time. Add another speaker to create a surround sound effect.

• 2.3 Headset: The transmitter can also send the infrared signal to a wireless headset for personal listening. The transimtter will also charge your new headset so it is always ready for use when the rest of the house wants the TV to be quite.
• Seat Side Charger: This charger keeps your headset charged right next to your seating area. The charger does not transmit an infrared signal.
• Alternate Installation Kit: This kit includes a power microphone, extender cord, and headphone jack adapter. This kit can be used if you cannot access or there is no analog (RCA) audio out ports on your television, cable, or satellite box.
• DAC (Digital Analog Converter): This converter allows you to connect your TV Ears transmitter to a digital audio out port when analog audio out ports are not available.

Important Safety Instructions

1. Read all instructions completely and heed all warnings. Install in accordance with TV Ears, Inc.’s instructions.
2. Keep these instructions in a safe place for future reference.
3. Do not use or submerge TV Ears products near water, moisture, or other liquids.
4. Clean with a dry cloth.
5. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
6. For safety purposes, do not deface the prongs on the AC adapters. If the provided plug does not fit into your outlet, purchase the correct adapter or consult an electrician for replacement of the obsolete outlet.
7. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where the cord exits from the transmitter.
8. TV Ears recommends using a surge protector to protect your TV Ears from power surges.
9. Only use attachments and accessories specified by TV Ears, Inc. with your TV Ears system.
10. Refer all servicing to qualified service personnel. Servicing is required when the TV Ears product has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the TV Ears product, the TV Ears product has been exposed to rain or moisture, does not operate normally, or has been dropped, cracked, or broken.

WARNINGS

• To reduce the risk of fire or electric shock, do not expose the TV Ears product to rain or moisture. The TV Ears product should not be exposed to dripping or splashing liquids.  Do not place objects filled with liquid such as vases on or near the TV Ears product.
• Keep batteries out of reach of children. Discard the battery faceplate (leave batteries installed in faceplate) appropriately and carefully.  If swallowed, call:
• The magnetic field emitted by the TV Ears ear tip speakers is minimal. When used as indicated, TV Ears headsets should not cause magnetic interference with pacemakers
  or internal defibrillators. The magnetic field strength of the speakers is less than 1 Gauss when within 1 inch (3 cm) of the pacemaker or internal defibrillator. It is recommended that the user keep the ear tips at least an inch away from any pacemaker or internal defibrillator.
• We have not had any customers indicate a problem using TV Ears in the presence of a pacemaker or internal defibrillator. We recommend not placing the ear tip ends
  of the headsets (where the speakers are) on your chest or directly in the vicinity of a pacemaker or defibrillator. If you have concerns, we recommend you contact your physician.

Troubleshooting

WARRANTY OF Wireless Speaker

Warranty - 90 Days from date of purchase For a period of 90 days from the date of purchase, TV Ears guarantees this product against defects in material and workmanship. The TV Ears speaker, transmitter, and all parts (excluding the disposable ear tips) are under warranty and will be replaced at no charge to the owner. The proof of purchase (POP) is required at the time of return.

Pros & Cons of Wireless Speaker

Pros

• Wireless connectivity for added convenience
• Adjustable volume control for personalized sound
• Compatible with most TV brands and models
• Lightweight and portable design
• Long-lasting rechargeable battery

Cons

• May require pairing with the TV, which can be a complex process for some users
• Limited range of wireless connectivity
• May not work well with TVs that have low audio output
• Higher price point compared to traditional wired speakers

Customer Reviews of TV Ears Wireless Speaker

Customers have praised the TV Ears Speaker for its excellent sound quality and ease of use. Many have noted that the wireless connectivity is a game-changer, allowing them to watch TV at their preferred volume without disturbing others. However, some have reported issues with pairing the speaker with their TV, and others have noted that the range of wireless connectivity is limited. Overall, the TV Ears Wireless Speaker has received positive reviews from customers who are looking for a personalized and convenient TV viewing experience.
