Startup: Veleco Draco Electric Mobility Scooter User Manual

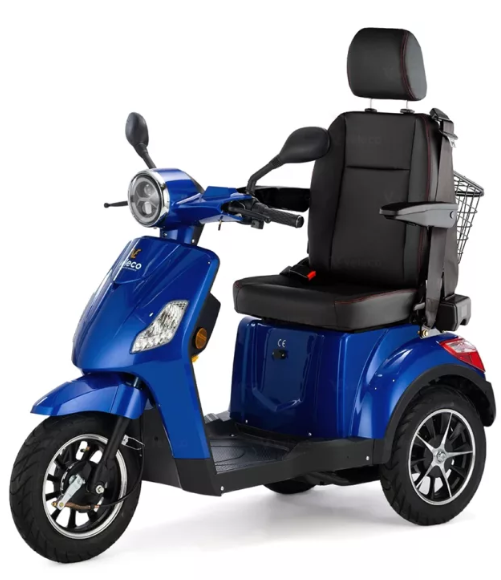

Veleco Draco Electric Mobility Scooter

Introduction

The Veleco Draco Electric Mobility Scooter is a cutting-edge mobility solution designed to enhance the independence and mobility of individuals with limited mobility. This scooter is engineered with advanced technology and user-friendly features, making it an ideal choice for both indoor and outdoor use. The Veleco Draco is expected to launch in the summer of 2023, with an estimated price range of $1,200 to $1,500, depending on the retailer and any additional features or accessories.

The primary purpose of the Veleco Draco is to provide reliable and efficient mobility for individuals who need assistance with walking or navigating various terrains. It is perfect for short trips around the neighborhood, visiting local shops, or enjoying outdoor activities. The scooter's robust design and sturdy frame ensure stability and comfort, making it a valuable investment for those seeking enhanced mobility.

First contact with the scooter

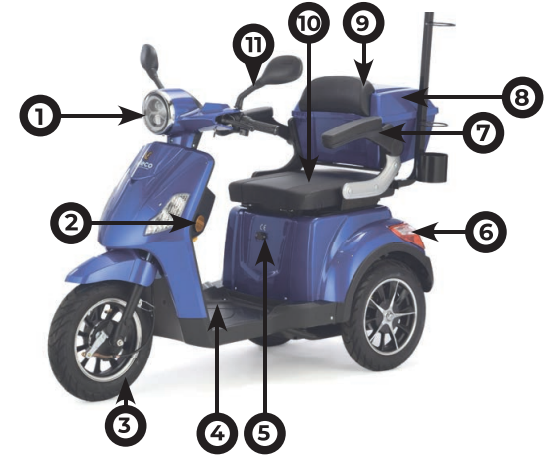

Outside elements of the scooter

• Front light
• Front lower indicator lights
• Front wheel
• Footrest
• Charging socket
• Rear lights
• Adjustable armrests
• Rear storage compartment
• Backrest
• Seat
• Mirrors
• Stop light
• Inner storage compartment lock
• Place for the registration plate
• Engine
• Plate with the identification
• (VIN/chassis) number
• Cup holder
• Ignition switch

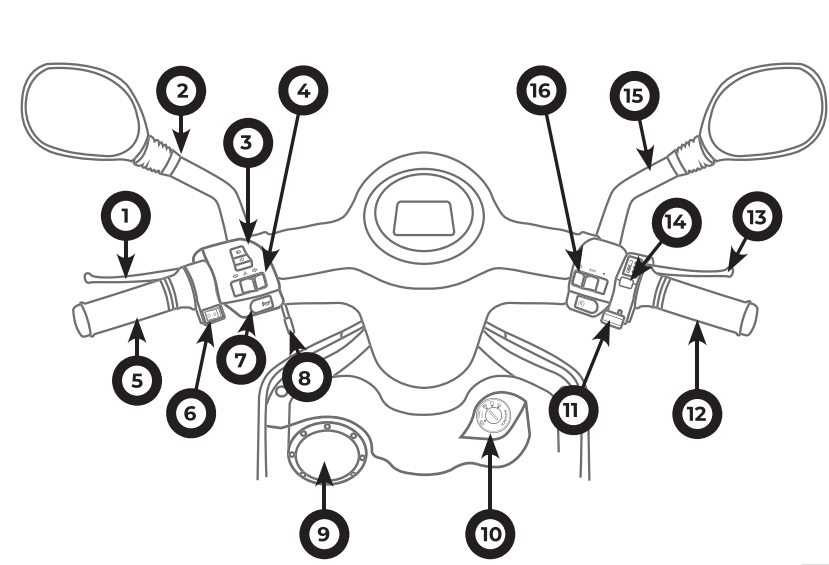

Dashboard

• Left brake lever
• Left mirror
• Light switch - high and low beam (p. 21)
• Switch - direction indicators and hazard lights (p. 22)
• Left handle
• Drive mode switch (D - forward, R - reverse) (p. 21)
• Horn
• Parking brake
• Cup holde
• Ignition switch
• Acceleration button® Right handle
• Right brake lever
• Gear change switch (double-click)
• Right mirror
• 1 Light switch - driving light and parking light (p. 25)

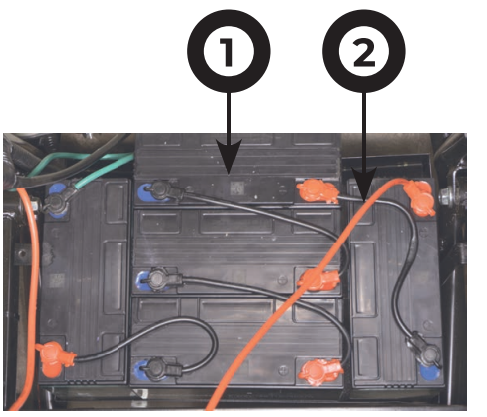

Batteries

• Lead-acid/Lithium-Ion battery
• Battery cables

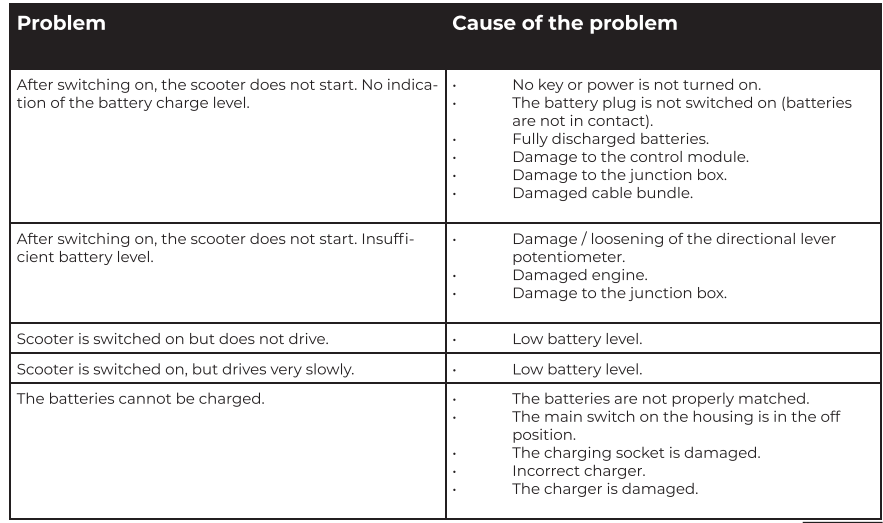

Possible problems.

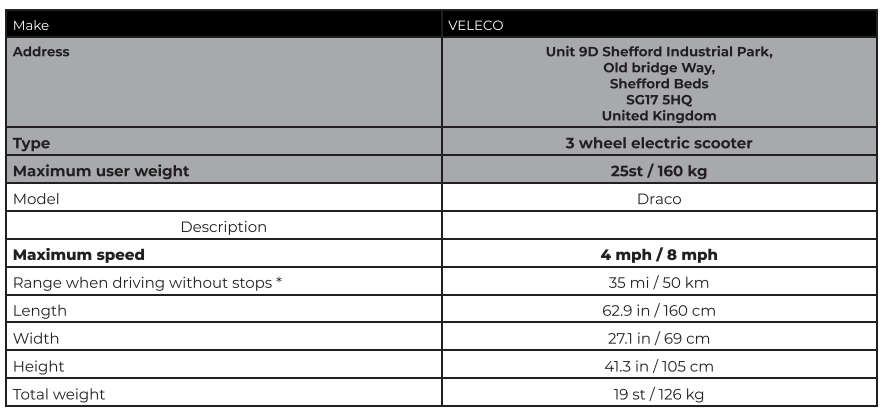

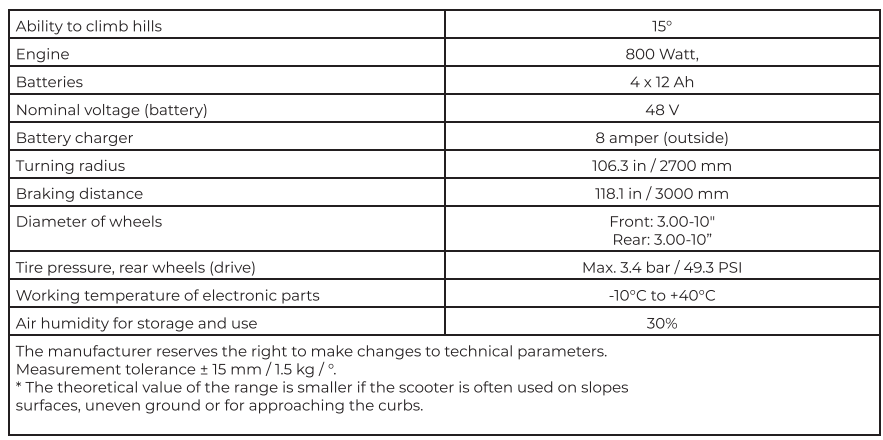

Specification

Maintenance

The life of the scooter depends on its use, storage, regular maintenance, servicing and cleaning.

Before each drive:

• Check and clean tires. Replace the tire if necessary.
• Check the tire pressure and inflate it if necessary (applies only to inflated tires).
• Check the condition of the upholstery trim.
• Check the brakes.
• Check that all screws are tight well.
• Check the battery level after switching on the engine.
• Clean dirt located under the rear part of the chassis, as it may corrode the plugs.

Storage

• Provide a suitable cover or packaging to protect the scooter against rust and pollutants (eg salt water, sea air, sand, dust).
• Make sure that the control panel is turned OFF ("OFF") at the end of the journey.
• The plugs and sockets must be protected against corrosion.
• Store batteries only in dry and well-ventilated rooms at temperatures between + 5 ° C and + 40 ° C. Preferred storage temperature: + 20 ° C).
• Protect batteries from excessive discharging. Recharge the batteries fully.
• If you have additional questions, please consult your dealer who will be happy to help you with issues related to battery storage and servicing

Cleaning and Care

Seat and backrestWhen cleaning the cushions, please follow the instructions below:

• Clean the seat and backrest with a cloth moistened with hot water. Do not soak the seat and backrest.
• Use sensitive, commercially available detergents to remove dirt.
• Stains can be removed with a sponge.
• Do not use strong cleaning liquids, such as solvents or hard brushes.
•  Never clean with steam and / or pressure equipment.
• The manufacturer is not responsible for damage caused by use of unsuitable cleaning products.

Plastic parts

• All plastic parts of the scooter should be cleaned with commercially available cleaners for plastics.
• Use only soft brushes or sponges. Please read the information on the product.

Electronic parts

• The steering module should be wiped with a cloth moistened with a few drops of household detergent available for sale. Do not use abrasive or pointed polishing tools, such as a wire brush or a metal brush, as they may scratch the surface of the steering module. Be careful not to wet the electronic components with water

Troubleshooting

If you encounter any issues with your Veleco Draco Electric Mobility Scooter, here are some common problems and solutions:

• No Power: Check if the battery is fully charged and ensure the key switch is in the correct position.
• Slow Speed: Ensure the scooter is not overloaded and check for any blockages in the wheels.
• Braking Issues: Inspect the brake pads for wear and tear, and clean any debris from the braking mechanism.

Instructions and Warnings: Always wear safety gear, including a helmet, and follow local traffic laws. Avoid using the scooter in extreme weather conditions or on steep inclines.

Pros & Cons

Pros:

• Lightweight and Portable: Easy to fold and transport.
• Long Battery Life: Up to 15 miles on a single charge.
• Comfortable Design: Ergonomic seat and adjustable handlebars.
• Robust Construction: Durable aluminum frame.

Cons:

• Limited Weight Capacity: Maximum weight limit of 265 lbs.
• No Suspension System: May not handle rough terrains smoothly.
• No Additional Storage: No basket or storage compartment included.

Customer Reviews

Customers have praised the Veleco Draco for its ease of use, comfort, and reliability. Here are some common reviews:

"The Veleco Draco has been a game-changer for my mobility. It's so easy to use and maneuver, and the battery life is impressive." - John D.

"I was skeptical at first, but the scooter's performance on different terrains has exceeded my expectations." - Sarah K.

However, some users have noted that the lack of suspension can make the ride a bit bumpy on rough surfaces.
