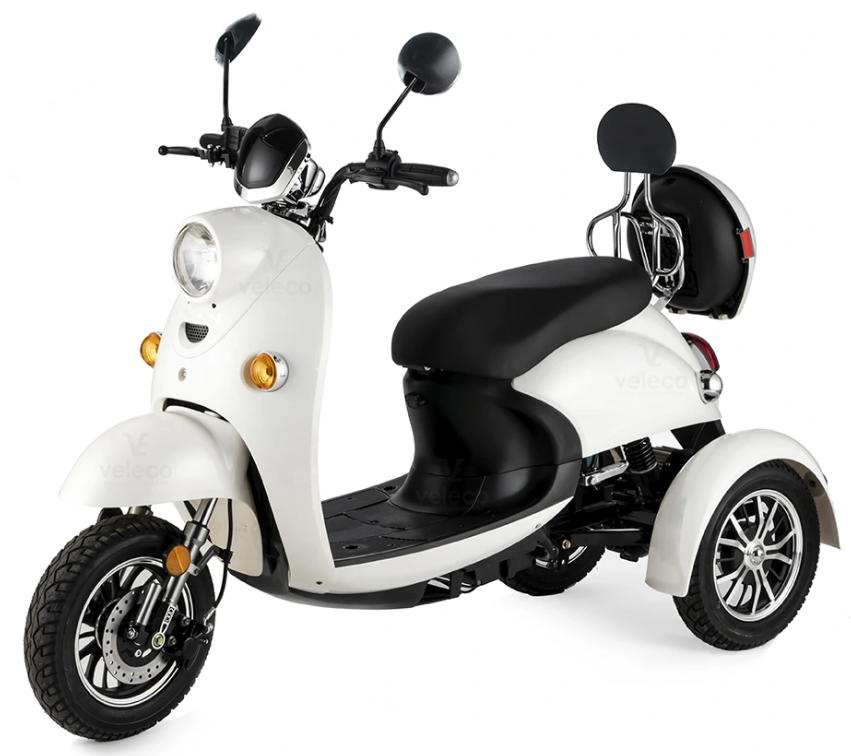

Veleco Luxury Electric Scooter ZT63

Introduction

The Veleco Luxury Electric Scooter ZT63 is a high-end, feature-rich electric scooter designed for those who demand both style and performance. This scooter is tailored for urban commuters, enthusiasts, and anyone looking to elevate their daily travel experience. With its sleek design, robust build, and advanced technology, the ZT63 promises a smooth, efficient, and enjoyable ride.

The Veleco ZT63 is expected to launch in the first quarter of 2024, with an estimated price range of $1,500 to $2,000. This pricing reflects the scooter's premium materials, advanced features, and superior performance. Whether you're navigating through crowded city streets or enjoying a leisurely ride in the park, the ZT63 is poised to become your go-to mode of transportation.

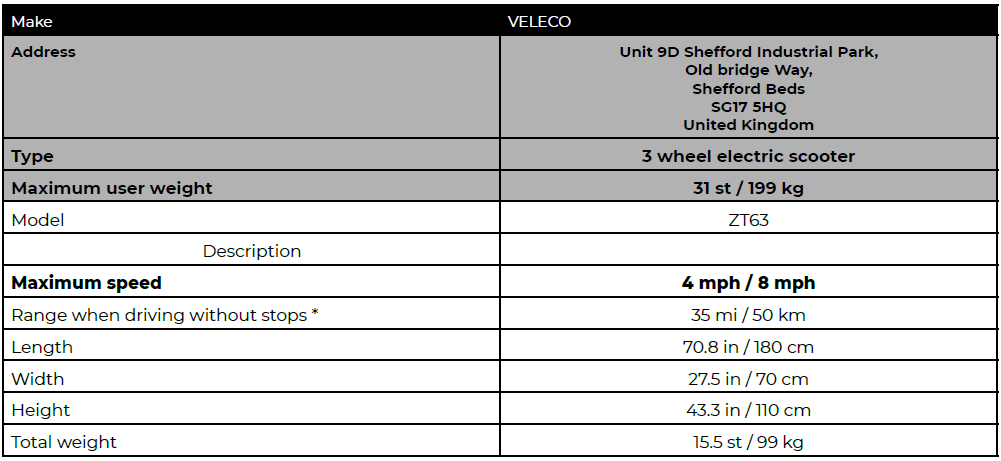

Specifications

First contact with the scooter

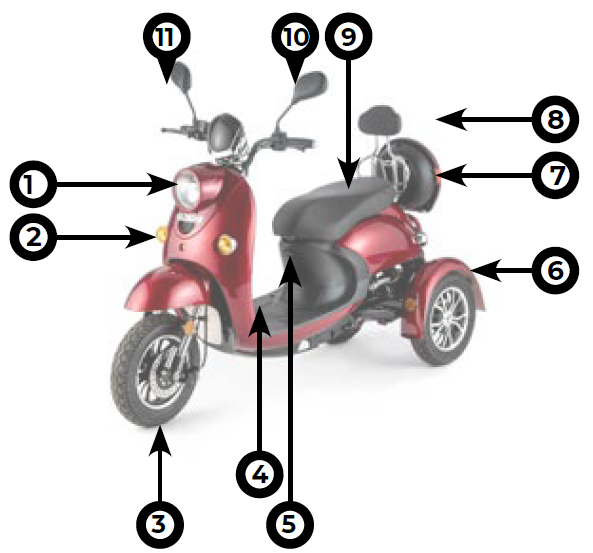

Outside elements of the scooter

1. Front light
2. Front indicator lights
3. Front wheel
4. Footrest
5. Charging socket
6. Rear lights
7. Rear storage box
8. Backrest
9. Seat
10. Mirrors
11. Storage compartment lock
12. Stop light
13. Place for the registration plate
14. Engine
15. Plate with the identification (VIN/chassis) number
16. Ignition switch
17. Cup holder

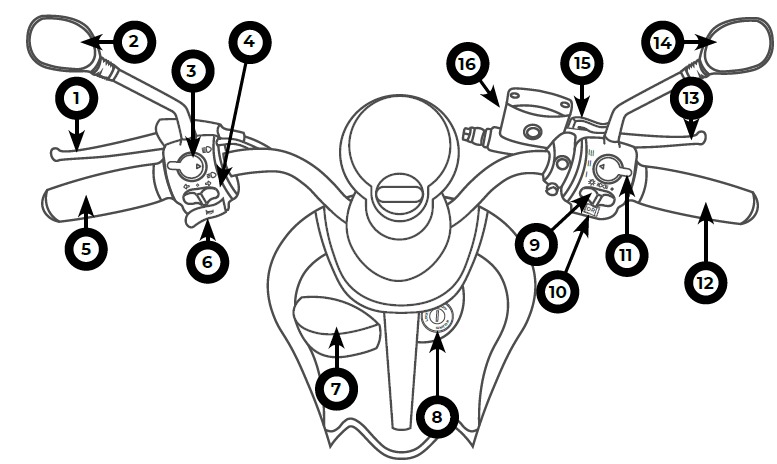

Dashboard

1. Left brake lever
2. Left mirror
3. Light switch - high and low beam (p. 21)
4. Switch - direction indicators and hazard lights* (p. 22)
5. Left handle
6. Horn
7. Cup holder
8. Ignition switch
9. Light switch - driving light and parking light (p. 25)
10. Drive mode switch (D - forward, R - reverse) (p. 26)
11. Drive mode switch (I - II - III gear) (p. 26)
12. Right handle
13. Right brake lever
14. Right mirror
15. Parking brake (p. 27)
16. Brake fluid reservoir

Batteries and a charger

Battery

• Type: Lead-acid
• Voltage: 60 V
• Capacity: 5  x 20 Ah

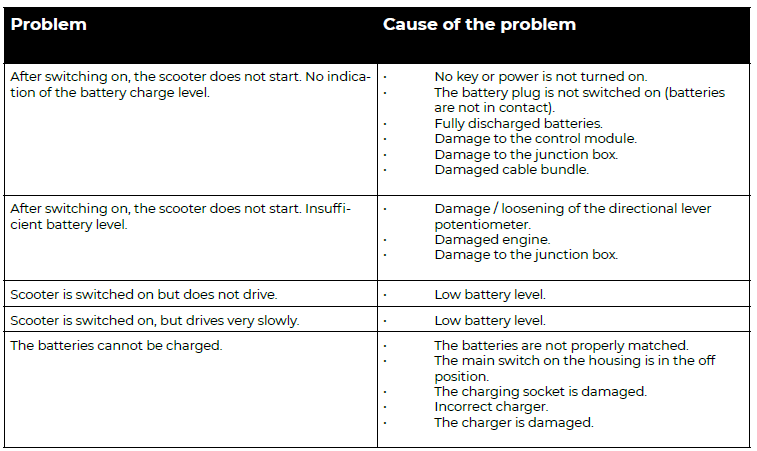

Possible problems.

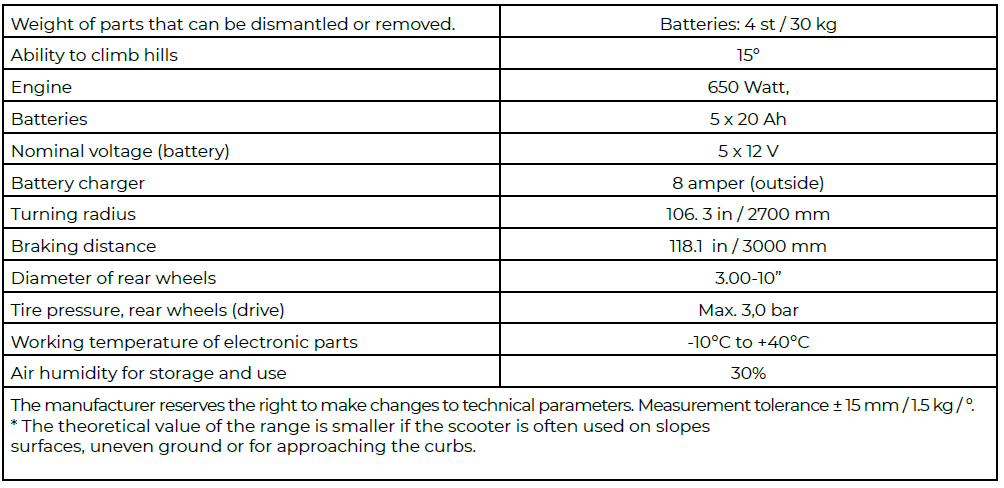

Technical data and information for the user
The technical parameters below apply to the scooter in the standard configuration and at optimal ambient conditions.  If other accessories are used, the statements of values in the tables will change. Changes in temperature outside, humidity,  slope of the ground, and the level of battery charge may degrade performance.

Guarantee conditions

Statement and assurance of the Guarantor
The Guarantor hereby declares and guarantees to the Holder of the Guarantee that the Goods sold by it, referred to as the Subject of the Agreement,, were produced correctly, in accordance with the Agreement and technical specification, and in accordance with the Guarantor’s best knowledge and currently applicable rules of technical knowledge, construction art,, and applicable law. Through this Guarantee, the Guarantor assumes liability for defects in the Product resulting from a gross violation by the Guarantor of any of the Guarantor’s obligations set out below.

The liability of the Guarantor resulting from the Guarantee

1. The Guarantor shall be liable to the Holder of the Guarantee for any defects of the Goods that will come to light after the date of sale of the subject of the agreement by the Buyer (by the Eligible Person) - until the expiry of the period resulting from this Guarantee, subject to point 5 of this section and provided correct and intended use. The warranty covers only defects resulting from the inadequate quality of the material (worse than the information), improper production technology, and improper assembly as a whole.
2. The liability of the Guarantor for defects in the Goods includes both defects of the Goods, which were revealed after the date of sale of the subject of the contract by the Buyer (the Guarantor), but their rise was proved by the Holder of the Guarantee before that date, as well as those defects that arose after the sale of the item contract, but for which the Guarantor is solely responsible.
3.  The warranty does not cover damage caused by the Buyer, third party,, or force majeure. It also does not cover damage caused by modifications and/or replacement of parts outside the professional service. These actions also result in the loss of the guarantee (these activities should be described in the warranty book).
4. The liability of the Guarantor arising from the Guarantee includes the obligation to remove defects in the Goods, which will be notified to the Guarantor by the end of the period resulting from the Guarantee. In the event of non-removal of defects of the Goods on a date agreed jointly by the parties or when defects are impossible to remove, the Eligible Person will have the right to an appropriate reduction in the sale price of the Goods in accordance with the provisions of the Polish Civil Code.
5. The Guarantor is released from liability under the guarantee if the Entitled Person from the Guarantee does not perform the following actions at his own expense:
   • Periodic inspection should be performed at the latest by 3/9/12/18/21 months from the date of purchase.
6. The Guarantor is released from liability for defects and faults of any devices, subassemblies, paints, etc. that have been used or used to perform the contract, if these elements have been covered by a separate manufacturer’s guarantee. In addition, the Guarantee does not cover natural, operational wear of individual elements or their adjustment during use, in particular:
   • Damage or wear of tires
   • Damage to rims
   • Adjusting the brakes
   • Wear of brake pads
   • Moisture and dirt, for example,, with battery mud
   • Exploitation of the Good (in particular batteries) at low (i.e.,, below 0 degrees) temperatures.
   • Damage resulting from a lack of due diligence regarding the maintenance of metal and chromium parts
     • Tearing or wiping the seat cover
     • Damage to the shock absorber
     • Breach of the frame geometry
     • Any engine damage due to the lack of oil caused by the fault of the user is not subject to warranty repair.
   • Any damage to the equipment resulting from the fault of the user, including that related to the ignorance of the operating instructions, is not subject to warranty repair. All unauthorized repairs and modifications of the equipment are prohibited, causing the warranty to be lost.
7. In case of batteries, care should be taken first of all to following issues:
   • When using for the first time or if it has not been used for a long time, the battery should be charged to the maximum; the exhausted battery should be charged within 24 hours.
     If the scooter will not be used for a long time, the battery should be charged to the maximum and left in a dry and warm place. The minimum storage temperature is around 10 degrees Celsius.
   • If the scooter is not used, the battery should be recharged once a month.
8. The warranty does not cover:
   a.    Battery damage caused by irregular or a lack of recharge.
   b.    Mechanical and thermal damages and defects caused by them.
   c.    Unauthorized repairs and alterations.
   d.    Batteries in which the top cover has been removed or damaged.
   e.    Battery installation, which is incompatible with the instructions.
   f.    Battery damage resulting from negligence of the electrical system’s technical state.
   g.    Discharges of the battery in which the resting voltage is below 8V.
   h.    Batteries used in the vehicle with a capacity and starting current not in accordance with the manufacturer’s instructions.
   i.    Use of a battery that is not in accordance with the intended use and recommendations of the manufacturer.
   j.    Damage caused as a result of neglecting the technical condition of the vehicle.
   k.    Damage resulting from the use of parts other than the original offered by Veleco.

The term of the Guarantee
The liability of the Guarantor under this Guarantee begins on the day of sale of the Subject of the Contract and ends after,  in the case of:

• Scooter - 12 months
• Battery - 6 months

Complaint procedure

1. The Holder of the Guarantee is obliged to notify the Guarantor about the noticed defect of the Product, which defect became apparent after the sale of the subject of the contract, not later than within 3 working days from the date of the notice. The documents allowing the beginning of the complaint procedure are the original proof of purchase and the correctly completed warranty card. The completed vehicle should be delivered to the service point. Complaints will not be considered when an incomplete vehicle is delivered to the service.
2. Claims under the Guarantee should be submitted to the place where the vehicle was purchased, and the information should be in writing and contain a list of perceived defects associated with the product.
3. Consideration of the complaint will take place within 14 business days of reporting the defect in the service, while the repair will be performed within the time agreed with the client.
4. Issues not included in this card are regulated by the relevant provisions of the Civil Code.

Operating

Maintenance
The life of the scooter depends on its use, storage, regular maintenance, servicing and cleaning. Before each drive:

• Check and clean tires. Replace the tire if necessary.
• Check the tire pressure and inflate it if necessary (applies only to inflated tires).
• Check the condition of the upholstery trim
• Check the brakes.
• Check that all screws are tight well.
• Check the battery level after switching on the engine.
• Clean dirt located under the rear part of the chassis, as it may corrode the plugs.

Storage

• Provide a suitable cover or packaging to protect the scooter against rust and pollutants (eg, salt water, sea air, sand, dust).
• Make sure that the control panel is turned OFF („OFF”) at the end of the journey.
• The plugs and sockets must be protected against corrosion.
• Store batteries only in dry and well-ventilated rooms at temperatures between + 5 ° C and + 40 ° C.
  Preferred storage temperature: + 20 ° C).
• Protect batteries from excessive discharging. Recharge the batteries fully.

If you have additional questions, please consult your dealer,,r who will be happy to help you with issues related to battery storage and servicing.

Cleaning and Care

Seat and backrest
When cleaning the cushions, please follow the instructions below:

• Clean the seat and backrest with a cloth moistened with hot water. Do not soak the seat and backrest.
• Use sensitive, commercially available detergents to remove dirt.
• Stains can be removed with a sponge.
• Do not use strong cleaning liquids, such as solvents or hard brushes.
• Never clean with steand/or or pressure equipment.

The manufacturer is not responsible for damage caused by the use of unsuitable cleaning products.

Plastic parts
All plastic parts of the scooter should be cleaned with commercially available cleaners for plastics.
Use only soft brushes or sponges. Please read the information on the product.

Electronic parts
The steering module should be wiped with a cloth moistened with a few drops of household detergent available for sale. Do not use abrasive or pointed polishing tools, such as a wire brush or a metal brush, as they may scratch the surface of the steering module. Be careful not to wet the electronic components with water..

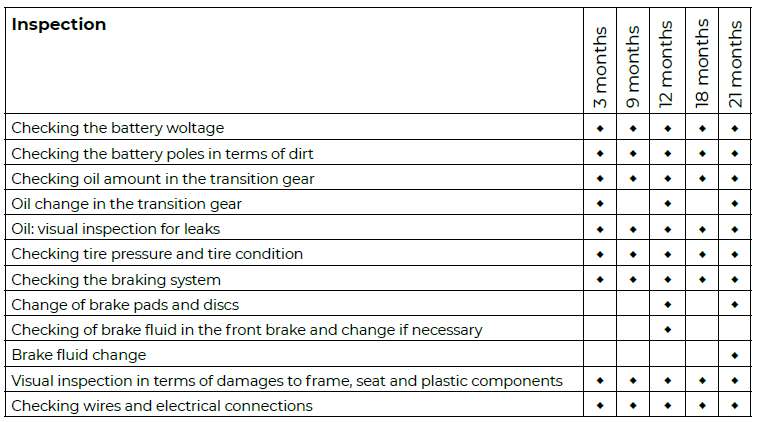

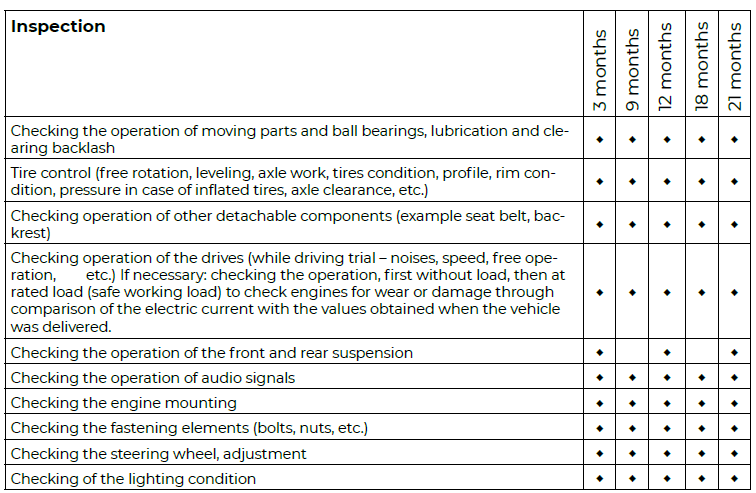

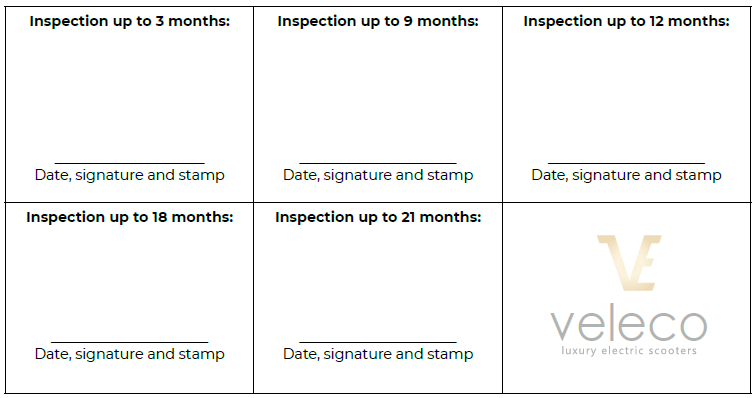

Inspection by - 3 months, 9 months, 12 months, 18 months, 21 months from sales date. You must inspect your scooter according to these standards to keep the warranty valid.

Troubleshooting

If you encounter any issues with your Veleco ZT63, here are some common problems and solutions:

• Battery Not Charging: Check the charging cable and port for any damage. Ensure the scooter is turned off during charging.
• Braking Issues: Inspect the brake pads for wear and tear. Adjust or replace them as necessary.
• Tire Pressure: Maintain the recommended tire pressure to ensure optimal performance and safety.
• Warning: Always wear protective gear, including a helmet and knee pads, when riding.

Pros & Cons

Pros:

• High-performance motor and battery combination
• Advanced braking system with regenerative braking
• Comfortable ride due to hydraulic suspension
• Intuitive LCLCD and and user-friendly interface
• Stylish and durable design

Cons:

• Premium pricing may be out of budget for some users
• Weight can be heavy when folded
• Limited availability of replacement parts
• No water resistance rating provided

Customer Reviews

Early reviews of the Veleco ZT63 have been overwhelmingly positive, with users praising its powerful performance, comfortable ride, and sleek design. However, some users have noted the higher price point and the weight of the scooter when folded. Common complaints include the lack of a water resistance rating and the limited availability of replacement parts.
