Introduction

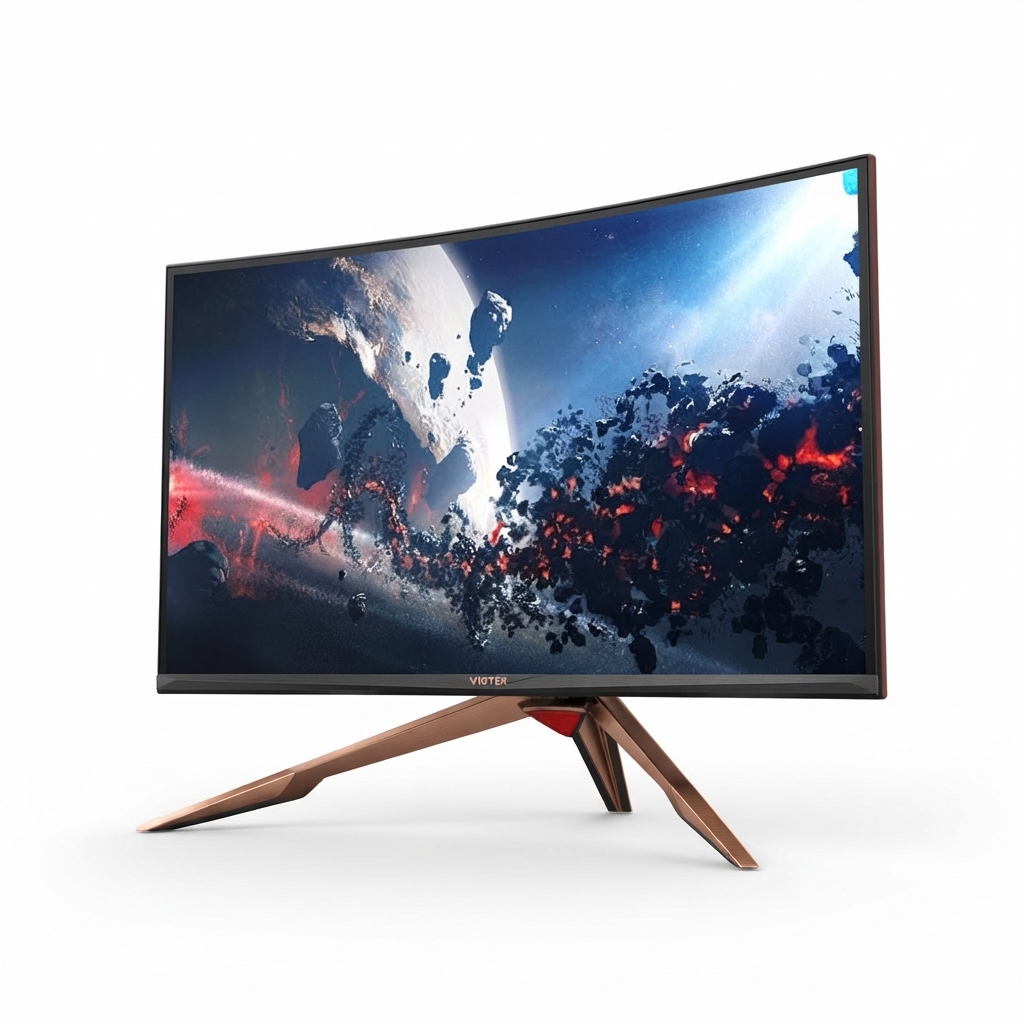

The Viotek Curved Gaming Monitor GN32LD offers an immersive gaming experience with its 32-inch QHD display and a 144Hz refresh rate. Designed to reduce tearing and ghosting, it features FreeSync technology and a sleek 1800R curve for enhanced viewing angles. Priced at $469.99, it’s ideal for serious gamers.

Box Contents

Note: The NO. 3 Screws come in two sizes: 26mm x 2 and 31mm x 2.

Product Overview

Monitor Buttons

1. Power Connector: Insert the power cable to supply power to the monitor.
2. M Menu Button: Press to display the OSD menu or enter sub-menus.
3. Down Button: Press to move down in the menus.
4. Up Button: Press to move up in the menus.
5. E Exit Button: Press to exit.
6. Power Button: Press to turn the monitor on/off.

7. LED Indicator: Changes colors to indicate status.
   NOTE: The E button can also be used to switch between two color gamuts when a compatible graphics card and either HDMI or DP connections are in use.

   Monitor Ports



8. Audio Output: Insert the audio cable for output of audio signals.
9. DP Connector: Insert one end of the DP cable into the computer’s DP output and  connect the other end to the monitor’s DP port.
10. HDMI Connector: Insert one end of the HDMI cable into the computer’s HDMI output  and connect the other end to the monitor’s HDMI port.
11. DVI Connector: Insert one end of the DVI cable into the computer’s DVI output and connect the other end to the monitor’s DVI port.

Specifications

Stand Installation

NOTE: Keep the foam over the monitor before attaching the stand. Follow the steps below to finish the installation.

1. Open the package, take out the product with foam still attached, and gently place it on a desktop or table.



2. Take out the two parts of the stand and use an included allen key and the NO. 1 screw to attach them.




   NOTE:  Use only the NO.1 screw provided.

3. Take out the cover base, insert it into the stand near the bottom and secure it with the three NO. 2 screws. Next, place the cover over the  cover base and press lightly to secure.
   NOTE:  Use only the NO. 2 screws provided.



4. Remove the monitor from the foam.



5. Align the stand stem’s bracket with the opening on the back of the monitor. Carefully insert the bracket into the with the top going in first. The pieces should click into place.



6. Place the monitor on your desktop or table after completing the installation and carefully pull or push the screen up or down to adjust the height.



7. If needed, the stand can easily be detached from the monitor by pressing the button near the bracket. Make sure the monitor is laid on a flat surface before removing the stem.
   NOTE:  To avoid damaging the monitor, do not press down on the screen while placing it on the desktop or table.



Wall Mounting

1. Open the package, take out the product with foam still attached, and gently place it on a desktop or table. If the monitor is attached to the stand, remove the stand.



2. Remove the original screws x 4 ( 1 ) from the opening in the back of the monitor, and then use the NO. 3 Screws to secure the rear panel.
   Do not discard the original screws. They are needed to secure the rear panel for the stand installation.
   Use only the NO. 3 Screws (31 mm x 2 pcs, 26mm x 2 pcs) provided. You MUST follow the figure below to finish the installation.



3. Follow the directions received with your mounting base (not included) and install the monitor on the wall.



Connectivity Options

1. Connecting the Power Cable
   Connect the power cable to the power connector, then plug the other end into an AC outlet.



2. Connecting Your Earphones
   When your earphones are plugged in, the speakers will not produce sound.



   WARNING: Listening to loud audio for prolonged periods of time may permanently damage your hearing.

3. DP Connectivity
   In order for the monitor to receive DP signals from the computer, use the DP cable to connect the monitor to the computer.



4. HDMI Connectivity
   In order for the monitor to receive HDMI signals from the computer, use the HDMI cable to connect the monitor to the computer.



5. DVI Connectivity
   In order for the monitor to receive DVI signals from the computer, use the DVI cable to connect the monitor to the computer.



Description

The Viotek Curved Gaming Monitor GN32LD is a top-of-the-line monitor that offers a truly immersive gaming experience. The 31.5-inch curved VA panel delivers vibrant colors and deep blacks, while the 1800R curvature keeps you engaged in the action. The monitor's QHD resolution, 165Hz refresh rate, and 1ms response time ensure that you'll never miss a beat, even in the most intense gaming sessions. AMD FreeSync Premium Pro technology ensures smooth visuals and eliminates screen tearing, while HDR10 support delivers stunningly realistic visuals. The monitor also features a wide range of connectivity options, including DisplayPort 1.4, HDMI 2.0, and USB 3.0. The adjustable stand offers tilt, swivel, and height options, and the monitor is also VESA mount compatible.

Basic Operation

1. Insert one end of the DP cable into your PC’s graphics card. HDMI or DVI may also be used. These cables are not included.
   NOTE: For optimal refresh rate (or “performance”), it is recommended to use a DP (display port) or DVI-D dual link cable with the monitor’s corresponding connector.

2. Connect the other end of the cable to the corresponding connector on your monitor. See the image below.



3. Connect the power cable to your monitor then connect the other end to your power source. It is recommended that you use a surge protector with adequate voltage if a wall outlet cannot be reached directly.
4. Locate the power button on the monitor and press it to turn the monitor on.
   NOTE: If you cannot locate the power button.

FreeSync

If desired, you can use the monitor’s FreeSync feature. The feature itself is on by default. In order to use this feature, please note you must have hardware with FreeSync capability, a DP cable, and the latest graphic drivers. To use this feature, connect the appropriate cable to the DP connectors on both the computer and monitor. After connecting, you will receive a prompt to enable the feature on your computer.

Indicator Light

This light is located on the bottom of the Monitor.

Bottom View

Solid blue/green/white light indicates power is on and the monitor is operating normally. Flashing blue light indicates no video source has been detected. Red light indicates that no horizontal or vertical signal has been detected or voltage is low. Please ensure your computer is on and all video cables are fully inserted and/or connected.

Setup Guide

Setting up the Viotek Curved Gaming Monitor GN32LD is a breeze.

1. Simply unpack the monitor, attach the base, and tighten the screws.
2. Connect the monitor to your computer using the included DisplayPort or HDMI cable, and then power it on.
3. Use the on-screen display (OSD) menu to adjust the monitor's settings, such as brightness, contrast, and color temperature.
4. The stand offers tilt, swivel, and height adjustments, so you can easily find the perfect viewing angle.
5. If you prefer, you can also use the VESA mount to attach the monitor to a wall or arm.

OSD Setup

The On-Screen Display (OSD) Menu may be used to adjust your monitor’s settings and appears on screen after turning on the monitor and pressing the M button.

NOTE: When using the monitor for the first time, settings will automatically adjust to optimal settings according to your computer’s configuration and parts etc

1. Press any one of the buttons (M, ., , E, ) to activate the navigator screen.



2. Press M button to enter the OSD screen.



3. Press ,  to browse functions.
   Highlight the desired function and then press M to enter the sub-menu.
   Press , to browse sub-menus then press M to highlight the desired function.
   Press ,  to highlight an option and then press M to confirm the settings and exit the current screen.
4. Press E to exit the current screen.

OSD Menu Functions

LED Effects System Console

1. Press any one of the buttons (M, ., , E, ) to activate the navigation window.



2. Press button to enter the LED Effects System Console menu.



3. Press ,  to select the settings.
   Highlight the desired option, and press M to confirm the setting.
4. Press E to exit the current settings.

NOTE:   Color options can only be set if Breathe Mode has been selected.

GAME PLUS Adjustment

1. Press any one of the buttons (M, ., , E, ) to activate the navigation window.



2. Press button to switch between Gameplus modes. According to the needs of your game, choose the corresponding game icon. These game icons are primarily designed to optimize your aim during shooting games, though they can be used for other scenarios.



Safety Precautions

Read and observe the following warnings and information below.

1. Before cleaning, always unplug your monitor. It is recommended that you use dry cloth or lightly damp cloth to clean your monitor. Dry cloth is, however, the safest. If using damp cloth, wait for your monitor to completely dry before plugging it in again.
2. Do not use alcohol or ammonia-based cleaner and/or liquids to clean your monitor.
3. This monitor features ventilation openings on the back of the unit. Avoid blocking these openings to prevent the monitor from overheating.
4. Avoid placing this monitor near any heat sources e.g: portable heaters or heating vents, as this may cause damage to your monitor.
5. Do not spray cleaner and or any kind of liquid directly onto the monitor’s screen or any part of the monitor.
6. Do not insert anything into any part of the monitor especially the ventilation openings.
7. Always make sure your monitor is placed on a secure, level surface to prevent it from falling and sustaining damage.
8. Unplug your monitor during any extended periods of non-use.
9. Do not place heavy items on the monitor or monitor cables.
10. Do not attempt to disassemble or remove parts from the monitor. Any disassembly or modification etc. not performed by an authorized technician can result in damage to the monitor and/or possible exposure to high voltage electricity which may lead to serious injury or death.

VIOTEK shall not be held responsible for injury or damage of products or persons due to failure to adhere to the aforementioned precautions or any others noted hereafter.

Troubleshooting

The screen is blank

• Press the power button to turn the monitor on.
• Confirm the brightness and contrast settings are set normally.
• Check if the Indicator Light is flashing. If so, this indicates there is no signal from your video source.
• If your source is a notebook or laptop, be sure that its settings are in mirror or extension mode and the device itself is powered on.

The image is out of focus

• Ensure the video cable is inserted properly at both ends.

The screen is flashing

• Try an alternative power source. If the current one is insuficient, it may be causing this issue.
• Ensure devices such as non-shielded speakers, fluorescent lighting, AC transformers, table fans etc. are a safe distance away from your screen to avoid magnetic disturbances.

The color bleeds or visual effects appear unusual.

• If your screen is all red or blue, or any colors disappear, check to see that the cable is properly inserted. A loose connection can cause a bad signal.
• Try connecting to another video source for comparison.

The screen appears to be scrolling, rolling, or moving unusually.

• Check that your source frequency is within 55-76Hz.
• Reconnect and ensure your video cable is secure.

The monitor needs cleaning

• Make sure the monitor has been powered off before cleaning.
• Always use soft, non-abrasive cloth when cleaning.
• Use dry, non-abrasive cloth to gently remove debris or dust.
• If necessary, lightly dampen a non-abrasive cloth with water and gently clean the surface.
• Never use alcohol or ammonia-based cleaning solutions.
• Never spray liquid directly onto any part of the monitor.

The indicator light does not work

• Check if the power is on.
• Check if the power line connected with power.

Cannot plug and play

• Inspect if the monitor is compatible with PC.
• Inspect if the graphics card is compatible with the monitor.
• Inspect if the pins in the interface are curved.

Dim image

• Adjust the brightness and contrast ratio.

Image jitter/moire pattern

• Nearby electric equipment may interfere with the monitor.

Light indicator is on or flashing, but there is no image displayed on screen

• Check if the monitor's power is on.
• Check if the graphics card is installed properly.
• Check if the signal line connects securely with the monitor.
• Check if the pins in the interface are curved.
• Press the Caps Lock key to inspect if the PC is working well.

Color shortage (red, green, or blue)

• Inspect if the pins in the interface are curved.

Image position is not centered/the size is not right

• Please adjust the Clock or Auto setting.

Color difference (colors are not optimized)

• Adjust RGB color or reset color temperature.

PIP (Picture in Picture) Input Information

Note: ”O” means this feature is supported while “X” means it is not supported.

PBP (Picture by Picture) Resolution Information

While using this feature and in order to obtain an optimal viewing experience, it is recommended to set both panels to the same resolution.

At this resolution, tearing and visual deformation should be minimized.

Resolution Compatibility for DVI/DP

System Requirements below are the minimum system requirements for your GN32LD monitor. The requirements are recommended to properly use all of the monitor’s features and ensure high-quality pictures.

Minimum Requirements

1. Operating System: Windows 7 / Windows 8 / Windows 10 64-bit (latest service pack) or higher,
2. Processor (CPU): Intel Core i5 or AMD Phenom II X3 or higher,
3. Graphics Card: NVIDIA GeForce GTX 950 or AMD Radeon R9 380 or higher,
4. Memory: 6 GB RAM,

All trademarks and registered trade names are the property of their respective owners.

Viotek Curved Gaming Monitor GN32LD Warranty

1-Year Limited Hardware Warranty
Your VIOTEK GN32LD Curved Gaming Monitor (”Product”) includes a One Year Limited Hardware Warranty (“Warranty”). The Warranty covers product defects in materials and workmanship under normal use. This Warranty is limited to residents of the United States and Canada only and is available only to original purchasers. This Warranty gives you specific legal rights and you may also have other rights which vary from state to state. This Warranty starts on the date of your purchase and lasts for one year (the “Warranty Period”). The Warranty Period is not extended if the Product is repaired or replaced. We may change the availability of this limited warranty at our discretion, but any changes will not be retroactive. Warranty services are provided by Warranty Pro (’ wp ’).

Pros & Cons

Pros

• Immersive 31.5-inch curved VA panel with 1800R curvature
• QHD resolution, 165Hz refresh rate, and 1ms response time
• AMD FreeSync Premium Pro technology eliminates screen tearing
• Wide range of connectivity options
• Adjustable stand and VESA mount compatibility

Cons

• Not currently available for purchase
• May be too large for some desks
• May require additional cables for optimal use

Customer Reviews

Customers rave about the Viotek Curved Gaming Monitor GN32LD for its immersive visuals, fast response time, and smooth gameplay. Many note that the monitor is a great value for its price, and that the adjustable stand and wide range of connectivity options are a nice bonus. However, some note that the monitor is quite large and may not be suitable for all desks. Overall, customers are impressed with the monitor's performance and recommend it to other gamers.

Most Common Complaints

The most common complaint about the Viotek Curved Gaming Monitor GN32LD is that it is not yet available for purchase. Other complaints include the monitor's size and the need for additional cables. However, these issues are relatively minor and do not detract from the monitor's overall performance.
