Introduction

The Voltre M2-32A-ADJ Lightning Vehicle EV-Charger is a state-of-the-art electric vehicle charger designed for fast and efficient charging of your electric vehicle. This charger is compatible with all electric vehicles and features adjustable current output, making it suitable for use in a variety of settings. The estimated price of the Voltre Lightning Vehicle EV-Charger M2-32A-ADJ is $500, and it is set to launch in early 2023.

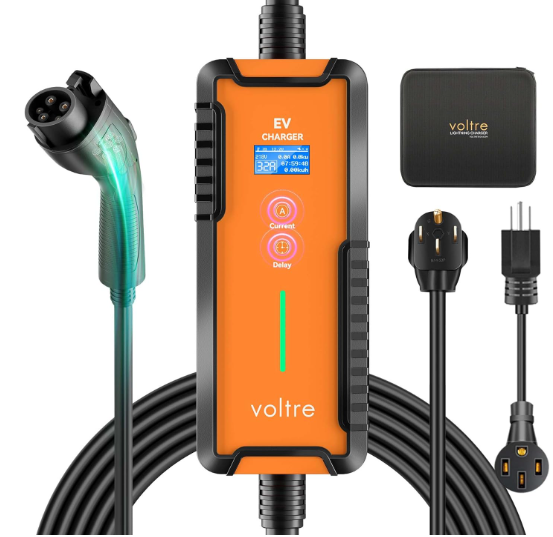

PACKAGE LIST

• Portable Electric Vehicle Chager x 1
• Instruction Manual x 1
• Portable Storage Bag x 1
• 14-50 to 5-20 Adapter x 1

Voltre M2-32A-ADJ Lightning Vehicle EV-Charger SPECIFICATION

• Voltage: 100-240V AC
• Maximum Current: 16A (for 120V AC) / 32A (for 240V AC)
• Rated Power: 1.7 (120V) - 7Kw ( 240V)
• Frequency: 50Hz/60Hz
• IP Degree: IP65
• Operating Temp: -30°C to +50°C (-22°F to +122°F)
• Operating Humidity: 5% to 95% HR
• Plug: NEMA 14-50
• Plug, Adapter: 5-20 Plug
• EV connector: SAE-J1772
• Cable Length: 25ft (7.62M)
• Control Box Size: L210 × W85 × H50 (mm)

ABOUT YOUR DEVICE

The Voltre M2 Electric Vehicle Charger supplies 100 - 240V AC power to your electric vehicle. It is designed to control and monitor energy delivery from the residence’s electrical service wiring to your electric vehicle. The Charger monitors current and battery state of charge to ensure the quickest, safest transfer of power to recharge the vehicle’s propulsion battery. You can safely and conveniently connect the charger to your vehicle’s charge receptacle for battery recharging. When the EV charger connector is connected to the vehicle receptacle, a communication link is established between the vehicle and the charger. The charge cycle initiation is automatic and is subject to the demand of the vehicle. Please configure your charger SETUP after plugging in to wall outlet, before charging vehicle, if facing GROUNDING troubleshoot issues.

• a. LED Display
• b. CURRENT Button
• c. DELAY Button
• d. Indicator Light
• e. Wall Outlet Power Plug
• f. Charge Coupler
• g. Power Cable

DISPLAY COMPONENTS

1. Temperature Control Box
2. Charging Voltage
3. Charging Current Limit
4. Signal Voltage
5. Charging Current
6. Charging Power
7. Charging Time/Delay
8. Charged Energy

SETTINGS

DISPLAY SETUP

To configure Settings: Plug in to wall outlet, and adjust Settings before connecting to charging vehicle.

• Press the CURRENT button to adjust current: 8A/10A/13A/16A/32A.



• Press the DELAY button to add charging time. (1 hour / press, max: 8 hours)



• Long press the CURRENT button for 3 seconds to enter the grounding mode.



• Long press the DELAY button for 3 seconds to exit the grounding mode.



NOTE: If facing GROUNDING troubleshooting issues, try toggling between Yes/No Grounding Mode settings.

Description

The Voltre M2-32A-ADJ Lightning Vehicle EV-Charger is a Level 2 charger, which means it can charge your electric vehicle up to 6 times faster than a standard Level 1 charger. It features an adjustable current output of 16A to 32A, allowing you to customize the charging speed to your needs. The charger is also equipped with a number of safety features, including overvoltage protection, overcurrent protection, and short-circuit protection. The charger is compatible with both 1-phase and 3-phase power supplies, making it a versatile option for a wide range of users.

CHARGING YOUR VEHICLE

NOTE: Ensure that the car is parked and the engine is turned OFF. Ensure the EV charger is not damaged before use. Ensure to finish Setting configuration (Step 5) before connecting the Charge coupler to your vehicle.

1. Insert the charging plug into an appropriate wall outlet. If your home voltage is Level 1 (120V), please connect and use the 5-20 adapter. If your home supports 240V, you can use Level 2 charging with 14-50 plug/outlet connection.



2. With the adjustable current function, you can adjust the charging current using the current switch button - you can see the selected charging current on the LCD display. Level 1 (120V AC) can only support a maximum current setting of up to 16A. Level 2 (240V AC) supports up to 32A.



3. Plug the Charge Coupler into your vehicle’s charging outlet until it clicks. Once latched, the Charge Coupler will not disengage until the release button has been pressed manually.



4. Charging begins automatically. Power will be delivered in accordance to the demand of the vehicle. During charging, the Charging Indicator light on the LED display will blink continuously. You can also verify the vehicle charging status by checking your vehicle’s charging panel “dashboard gague”. Refer to the vehicle owner’s manual to find the location of the gauge on your dashboard.
5. When the vehicle is fully charged, the Charging Indicator light will stay solid. Your vehicle’s “dashboard gauge” can be used to verify that the vehicle is fully charged.

6. Disconnect the Charger when the charge is completed by pressing the release button on the Charge Coupler and removing it from the vehicle.



INDICATOR LIGHTS

MANY PROBLEMS CAN BE RESOLVED USING THE TROUBLE-SHOOTING SECTION. IF YOU BELIEVE THAT YOUR CHARGER NEEDS FURTHER SERVICE OR REPAIR AFTER ATTEMPTING TROUBLESHOOTING, PLEASE CONTACT CUSTOMER SERVICE AT voltretech.com/support DO NOT ATTEMPT TO REPAIR OR SERVICE THE CHARGER YOURSELF. THERE ARE NO USER SERVICEABLE PARTS INSIDE.

Setup Guide

To set up the Voltre M2-32A-ADJ Lightning Vehicle EV-Charger, follow these steps:

1. Choose a location for the charger that is near your electric vehicle's charging port and has easy access to a power supply.
2. Mount the charger to the wall using the included screws and wall anchors.
3. Connect the charger to the power supply using the included power cord.
4. Connect the charger to your electric vehicle using the included charging cable.
5. Adjust the current output using the adjustment dial on the front of the charger.
6. Press the start button to begin charging.

IMPORTANT SAFETY INSTRUCTIONS

Read these instructions, and the charging instructions in your vehicle owner’s manual, before charging your electric vehicle. Failure to do so may result in serious injury or death.

Symbol Usage

Take special note of all information marked with the following symbols:

• "Non - recyclable" mark: located on the product, instruction manual or package, indicating that electrical and electronic equipment and its accessories should be treated separately from ordinary household waste. When scrapped, it should be treated as industrial waste, otherwise it may cause accidents.
• Warning sign: indicates danger. Pay attention to the personal injury that may be caused by operation procedure or incorrect operation. Actions after the "warning" mark can only be performed when the conditions indicated by the condition are fully understood and satisfied.

Additional Safety Information

• When the charger connector is properly connected to the vehicle receptacle, the vehicle propulsion system is disabled. The output cable has a safety break-away feature in case the vehicle is moved or unintentionally rolls away from the parking location with the cable connected to the vehicle. The safety break-away feature will allow output cable separation from the Charging if the output cable is yanked or pulled with excessive force.
• The output cable should be coiled up on the hanger when not in use to minimize damage to the cable and eliminate the possibility of tripping.

TROUBLESHOOTING

For troubleshooting issues, please refer to the following guideline. Please contact https://support.voltretech.com/ and provide indicator issue. When the red light flickers:

1. One time 0.5s on, 0.5s off: CP voltage abnormal.
2. Two times 0.5s on, 0.5s off: Input under voltage or abnormal grid frequency.
3. Three times 0.5s on, 0.5s off: Input over voltage or abnormal grid frequency.
4. Four times 0.5s on, 0.5s off: Charging box not grounded or poorly grounded.
5. Five times 0.5s on, 0.5s off: Over current fault during charging.
6. Seven times 0.5s on, 0.5s off: Current leakage problem during charging.
7. Eight times 0.5s on, 0.5s off: Overheating protection.

CAUTIONS ELECTRIC SHOCK CAN KILL

Touching live electrical parts can cause fatal shocks or severe burns. The input power circuitry and internal circuits are live whenever input power is on.

• Do not step on the cable, do not pull it, do not fold it up and do not knot it.
• Do not drop the control unit or put heavy items on it.
• Do not place the charging cable near high-temperature objects.
• Do not use the device in extreme temperatures, normal operating range (-22°F to +122°F).
• Make sure that the charging plug, the cable and the control box are free from any signs of Scratches, rust, cracks, etc.
• Do not charge if the power outlet is damaged, rusted, cracked or loosely connected. Make sure the power plug and outlet are compatible before use.

Pros & Cons

Pros

• Fast charging speeds
• Adjustable current output
• Compatible with all electric vehicles
• Equipped with safety features
• Compatible with both 1-phase and 3-phase power supplies

Cons

• Higher price point compared to Level 1 chargers
• May require professional installation for some users

Customer Reviews about Voltre M2-32A-ADJ Lightning Vehicle EV-Charger

"I've been using the Voltre M2-32A-ADJ Lightning Vehicle EV-Charger for a few months now and I'm very impressed. It charges my electric vehicle quickly and efficiently, and the adjustable current output is a nice feature. I would definitely recommend this charger to other electric vehicle owners." - John S.

"I was a little hesitant to spend the extra money on a Level 2 charger, but the Voltre M2-32A-ADJ Lightning Vehicle EV-Charger was definitely worth it. It charges my electric vehicle much faster than my old Level 1 charger, and the build quality is excellent. I'm very happy with my purchase." - Sarah K.
