Setup: Vornado Air Purifier AC550 User Manual

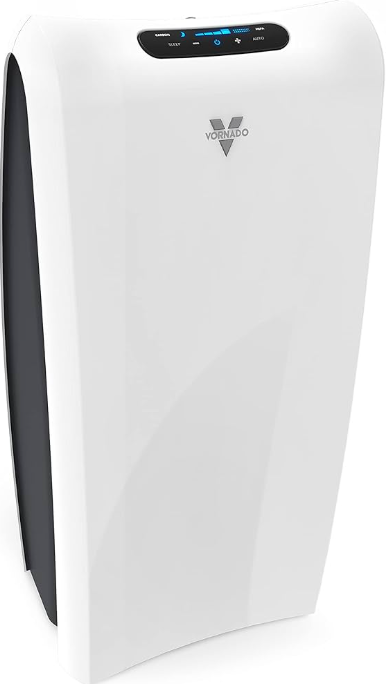

Vornado Air Purifier AC550

Introduction

The Vornado Air Purifier AC550 is a high-performance air cleaning solution designed to improve indoor air quality for homes and offices up to 335 square feet. Featuring advanced True HEPA filtration technology, it captures up to 99.97% of airborne contaminants as small as 0.3 microns, including dust, pollen, pet dander, smoke, and mold spores. This makes it an ideal choice for allergy sufferers, pet owners, and anyone seeking fresher, cleaner air.

The AC550 stands out with its four-stage filtration system, combining dual HEPA filters and two activated carbon pre-filters that not only remove microscopic particles but also effectively absorb odors. Its powerful radial blower ensures whole-room air circulation rather than cleaning only the immediate vicinity, providing consistent purification throughout the space. Additionally, it offers intelligent features such as automatic dust sensing and sleep mode for quiet nighttime operation.

Designed for modern living, the Vornado AC550 is easy to operate with electronic push-button controls and comes with a filter replacement indicator to maintain optimal performance. It is backed by an industry-leading 5-year limited warranty, reflecting its durability and reliability. Available at an estimated price range of $249 to $270, the AC550 is widely accessible through major retailers and online marketplaces, delivering excellent value for those investing in healthier air environments.

Specifications of the Vornado Air Purifier AC550

• Dimensions: 13.2" W x 27.4" H x 11.5" D
• Weight: 18.2 lbs
• Coverage Area: Up to 335 sq. ft.
• Filtration System: 2 True HEPA filters capturing 99.97% of particles down to 0.3 microns
• Activated Carbon Prefilters: 2 filters for odor absorption and larger particle trapping
• Clean Air Delivery Rate (CADR): Dust - 218, Pollen - 245, Smoke - 205
• Air Flow: 68 to 1220 cubic feet per minute (CFM)
• Noise Level: Approximately 52 dB at maximum speed
• Energy Consumption: 145 Watts
• Operational Modes: 4 speed settings, automatic dust sensing, sleep mode
• Controls: Push-button electronic interface with filter replacement indicator
• Warranty: 5-year limited manufacturer’s warranty
• Certifications: CARB certified (California Air Resources Board)

Compared to similar air purifiers in this category, the AC550 offers a robust combination of powerful air circulation and multi-stage filtration with advanced sensing technology, positioning it competitively for medium-sized rooms.

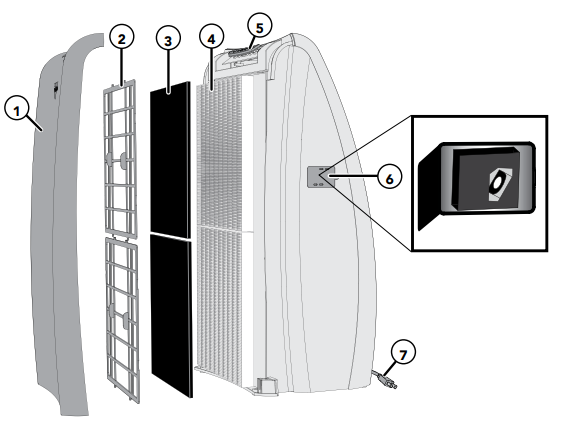

PRODUCT INFORMATION

1. FRONT PANEL
2. 2 PLASTIC SUPPORT FILTER FRAMES
   The frame secures both carbon and HEPA filters in place.
3. 2 CARBON FILTERS
   Captures larger initial particles and odors passing through the unit.
4. 2 HEPA FILTERS
   Captures 99.97% of particles 0.3 microns or larger passing through the unit, allowing only filtered air back into the environment.
5. CONTROL PANEL
   LED display and touch button controls for easy and intuitive operation.
6. DUST SENSOR AND ACCESS DOOR
   The Dust Sensor continuously monitors the amount of particulates in the air.
7. POWER CORD
   Convenient 6 ft. cord.

AUTOMATIC FILTER  REFILL PROGRAM

A convenient and hassle-free way to receive regular shipments of Vornado Filters, direct to your door.  Eliminate the hassle of remembering to reorder. Maintain the high efficiency of your Vornado Purifier by regularly replacing used Filters with fresh new ones.  How it works:  You select a plan, and Vornado will send replacement Filters at the recommended maintenance interval.  To sign up, visit vornado.com, email consumerservice@vornado.com, or call 1-800-234-0604.  Cancel at any time.

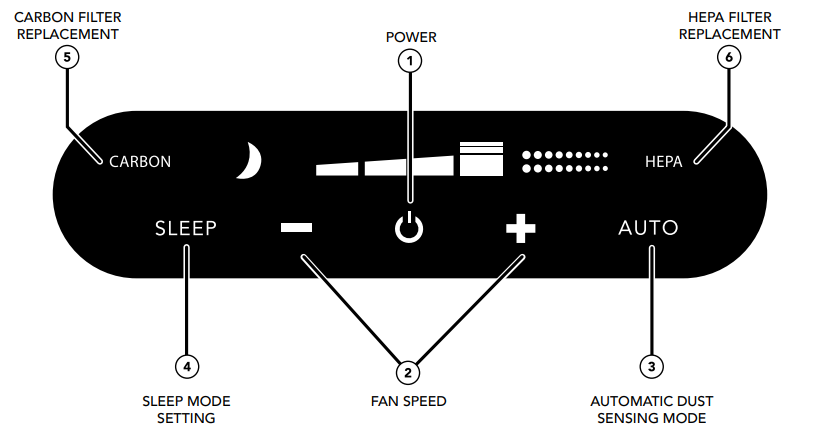

CONTROL PANEL

HOW TO USE

1. POWER, Function ON and OFF by pressing the Power button.
2. FAN SPEED, 4 fan speed settings. Adjust between Low, Medium, High, and Quick Clean.
3. AUTOMATIC DUST SENSING MODE, Advanced technology that reads the amount of particles in the air and adjusts the fan speed accordingly.  Refer to HOW TO USE to learn more about this feature.
4. SLEEP MODE SETTING, senses no light or low light conditions, and automatically adjusts the unit to low speed. Refer to HOW TO USE to learn more about this feature.
5. CARBON FILTER REPLACEMENT, Equipped with a CARBON filter indicator light to show when it is recommended to change the carbon filters.
6. HEPA FILTER REPLACEMENT, Equipped with a HEPA filter indicator light to show when it is recommended to change the HEPA filters.

AUTOMATIC LIGHT DIMMING
After a short period of time, the control panel illumination
will dim to not interfere with ambient environment lighting.  Particularly ideal for darker rooms. Pressing any button will re-illuminate the control panel.

FAN SPEED
Choose one of the 4 fan speed settings, press the “+” button to adjust to a higher speed, or press the “-“ button to adjust to a lower speed.  The LED display will indicate the selected speed.

Note: Dust and allergens are most airborne when persons and pets are active in the room.  For best results, set the unit on a higher speed setting during these times for high-demand cleaning and circulation.  Set the unit to a lower setting for quieter operation when activity is reduced.

QUICK CLEAN SPEED

A high-speed filtration setting can be used to rapidly filter the air when airborne particle levels are high. Press the (+) on the fan speed control until the Quick Clean icon (highlighted above) is displayed.  You will immediately notice a dramatic increase in airflow that will allow the unit to provide maximum air filtration. Due to increased sound levels, use of this mode is recommended only when conditions require.  Low, Medium, and High speed settings are designed for day-to-day use.

HOW TO USE

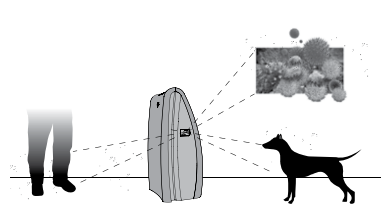

AUTOMATIC DUST SENSING MODE

This feature monitors the air quality of the room to detect the presence of particles, then adjusts the fan speed to improve air quality to optimum conditions. Press the Automatic Dust Sensing Mode Button to engage this feature. The screen will display the animated Automatic Dust Sensing icon (shown above), to indicate when this feature is active. The Dust Sensor will continuously monitor the amount of airborne particles in the environment and adjust the fan speed between Low, Medium, and High as needed to maintain optimum air quality. The Quick Clean speed is not utilized when Automatic Dust Sensing Mode is enabled.  Please note that Automatic Dust Sensing Mode is overridden when Sleep Mode is engaged to ensure the unit is providing a consistent, low noise level during nighttime sleep.

WHEN TO USE:
This feature allows the unit to reduce energy usage when fewer airborne contaminants are present in the room. Because active people and pets tend to stir up airborne particles, the unit will tend to increase speed during peak periods of activity in the room until lower readings are obtained. This feature is ideal for rooms where activity fluctuates greatly based on the time of day.

Note: The Dust Sensor will need to be cleaned periodically. Please refer to CLEANING AND MAINTENANCE.

SLEEP MODE SETTING

This feature senses no light or low light conditions, and automatically adjusts the unit to low speed.  Press the Sleep Mode button to engage this feature.  The Sleep Mode icon (shown above) will display. Ideal for use in bedrooms. Higher and more powerful speeds may be used throughout the day, with lower speeds and minimal noise being preferable at night.

Note: When in low light or no light, with sleep mode selected, the unit will only operate at low speed.  This will override Automatic Dust Sensing Mode and high-speed settings.  In regular light, the unit will operate at the previous setting.

CLEANING AND MAINTENANCE

HOW TO CLEAN
Because large volumes of air pass through your Vornado Air Purifier each day, it will need regular cleaning.

1. Unplug the unit before cleaning.
   Note: Do not use gasoline, thinners, solvents, or other chemicals for cleaning.
2. Wipe down with a soft, damp cloth. (Figure 1)
3. Dust or vacuum the interior and along the sides. It is recommended to clean the interior when the Filters are changed. (Figure 2)

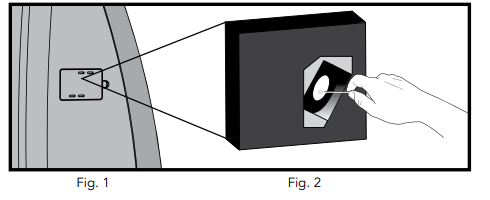

CLEANING THE DUST SENSOR
It is recommended to clean the Dust Sensor when replacing the Carbon Filters.

1. Unplug the unit before cleaning.
2. Locate the Dust Sensor Access Door on the right side of the unit. (Figure 1)
3. Open Dust Sensor Access Door.
4. Gently wipe the surface of the Dust Sensor with a cotton swab. (Figure 2)
5. Once cleaned, close the Dust Sensor Access Door.

Other Maintenance
The motor is permanently lubricated, so it needs no service. No other serviceable parts, other than Filters, are contained within the unit.

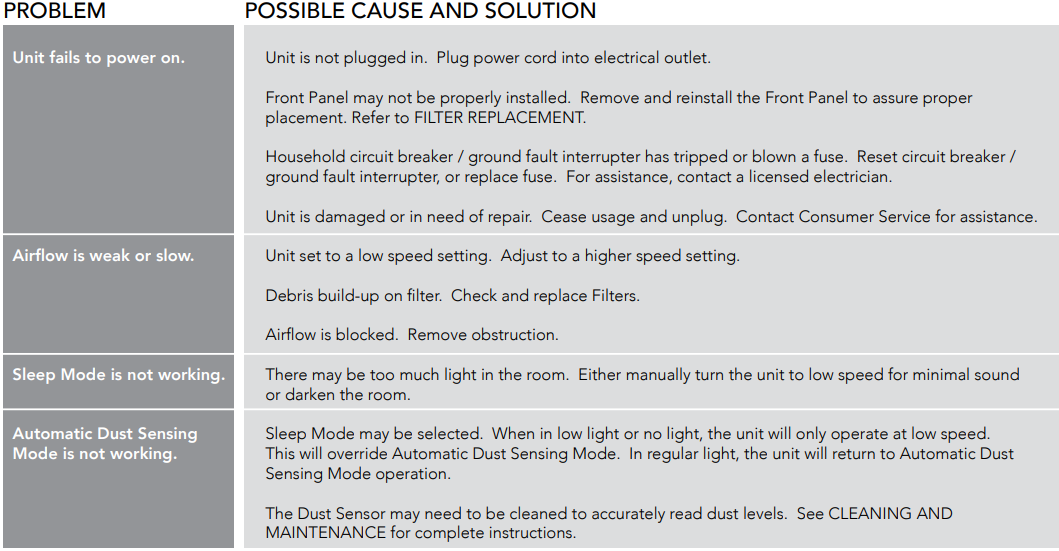

Troubleshooting Guide for the Vornado Air Purifier AC550

• Air Purifier Not Turning On: Check the power connection and ensure the unit is properly plugged in. Verify that the power button is pressed firmly.
• Filter Replacement Indicator On: Replace HEPA and carbon filters as recommended to maintain optimal air quality and performance.
• Loud Noise or Vibrations: Ensure the unit is placed on a flat, stable surface. Clean or replace clogged filters, which may cause strain on the blower.
• Auto Mode Not Responding: Clean the dust sensor window gently with a soft cloth. Dust accumulation can affect sensor accuracy.
• Persistent Odors: Replace activated carbon pre-filters promptly as they lose effectiveness over time.

Preventive measures include regular filter maintenance, keeping the intake and exhaust areas clear, and operating in appropriate room sizes as specified. The Vornado AC550 is supported by a 5-year limited warranty covering manufacturing defects. For further assistance, customers can contact Vornado customer support at 1-800-234-0604 or visit the official website for FAQs and service requests.

WARRANTY

We expect this product to be perfect. If you’re not satisfied with this product, let us know.

Vornado Air LLC (“Vornado”) warrants to the original consumer or purchaser that this Vornado® Whole Room Air Purifier (“Product”) is free from defects in material or workmanship for a period of five (5) years from the date of purchase. If any such defect is discovered within the warranty period, Vornado, at its discretion, will repair or replace the Product at no cost.

For warranty or repair service:
Call 1-800-234-0604 or email help@vornado.com to obtain a Return Authorization (“RA”) form. Please have or include your Product’s model number and serial number, as well as your name, address, city, state, zip code, and phone number when contacting Vornado for warranty service.

After receiving the RA form, ship your Product to:
Vornado Air LLC Attn: Warranty & Repair 415 East 13th Street Andover, KS 67002. For your convenience, please have your model number and serial number when contacting Vornado with service inquiries.  To assure proper handling, packages must be clearly marked with the RA number. Packages not clearly marked with the RA number may be refused at the receiving dock. Please allow 1-2 weeks for repair and return of your Product after the Product is received.
Repairs not covered by the warranty or outside the warranty period will require a fee to cover the cost of materials, labor, handling, and shipping.

This warranty does not apply to defects resulting from abuse of the Product, modification, alteration, repair, or service of the Product by anyone other than Vornado, mishandling, improper maintenance, commercial use of the Product, or damages that occur in shipment or are attributed to acts of God.

REPAIR OR REPLACEMENT AS PROVIDED UNDER THIS WARRANTY IS THE EXCLUSIVE REMEDY OF THE CONSUMER. VORNADO SHALL NOT BE LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES FOR BREACH OF ANY EXPRESS OR IMPLIED WARRANTY ON THIS PRODUCT.  EXCEPT TO THE EXTENT PROHIBITED BY APPLICABLE LAW, ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE ON THIS PRODUCT IS LIMITED IN DURATION TO THE DURATION OF THIS WARRANTY.

Some states do not allow the exclusion or limitation of incidental or consequential damages, or allow limitations on how long an implied warranty lasts, so the above limitations or exclusions may not apply to you. This warranty gives you specific legal rights, and you may have other rights that vary from state to state.

All company names and product names are trademarks of their respective owners. © All rights reserved. All technical information, data, and instructions for the installation, connection, and operation contained in these instructions for use correspond to the latest available information at the time of printing. The contents of this manual may differ slightly from the actual product.  Observe any additional supplements.

The manufacturer assumes no responsibility for damage caused by failure to follow these instructions or improper product use.  Any such actions will invalidate the product warranty.
Any unauthorized product modification, repair by an unauthorized repair center, or use of non-approved replacement parts is not recommended, and any consequences will not be covered by support services or product warranties.

Pros & Cons of the Vornado Air Purifier AC550

• Pros:
  • Highly effective True HEPA filtration captures 99.97% of allergens and contaminants.
  • A combination of HEPA and activated carbon filters removes both particles and odors.
  • Whole-room circulation with a powerful radial blower ensures even air purification up to 335 sq. ft.
  • Quiet operation with sleep mode suitable for bedrooms.
  • Automatic dust sensing adjusts fan speed dynamically based on air quality.
  • 5-year limited warranty provides long-term peace of mind.
• Cons:
  • Relatively large and heavier than some compact air purifiers, limiting portability.
  • Energy consumption is higher compared to smaller units, which may impact electricity bills.
  • Replacement filters can be moderately expensive.
  • Limited smart home integration; no remote app control or voice assistant compatibility.

Overall, the Vornado AC550 delivers solid value for medium-sized rooms with a focus on air quality and quiet performance, standing out against many alternatives that either offer less coverage or less effective filtration.

Customer Reviews and Feedback on the Vornado Air Purifier AC550

Users generally praise the Vornado Air Purifier AC550 for its strong filtration capabilities, noticeable reduction in indoor allergens, and quiet operation during sleep mode. Many reviewers highlight its effectiveness in eliminating pet odors and improving allergy symptoms. Common commendations include the ease of use and the clear filter replacement indicator.

On the other hand, some customers note the unit’s bulkiness and weight as drawbacks, making it less convenient to move between rooms. A few mention the cost of replacement filters and higher electricity usage. Despite this, most users rate the AC550 positively, with star ratings averaging around 4 to 4.5 out of 5, recommending it for medium-sized bedrooms, living rooms, and home offices.

Frequent recommendations include purchasing replacement filters in advance and placing the unit in an area with good airflow to maximize efficiency.
