Setup: Vornado Room Circulator Fan V660 Instruction Manual

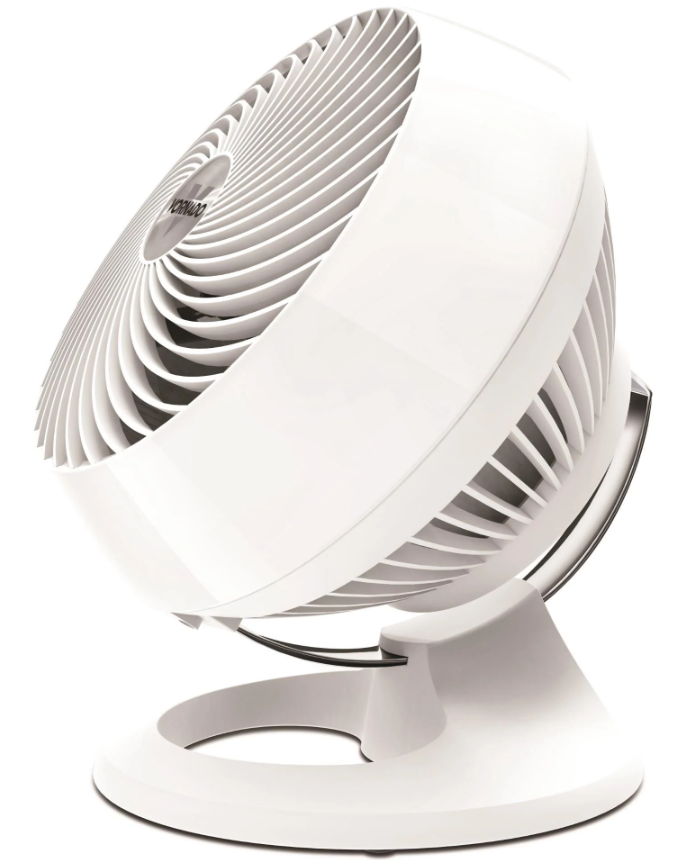

Vornado Room Circulator Fan V660

Introduction

The Vornado Room Circulator Fan V660 is a high-performance fan designed to efficiently circulate air throughout large rooms, enhancing comfort and reducing energy costs. Launched in recent years, this fan has quickly gained popularity for its powerful and quiet operation. With an estimated price range of $100 to $150, it offers a balance of quality and affordability.

The V660 is intended for use in large spaces such as living rooms, bedrooms, and offices. Its advanced technology ensures that air is circulated evenly, creating a consistent temperature throughout the room. This makes it an excellent choice for both heating and cooling seasons. The fan’s sleek design and compact footprint make it a stylish addition to any room décor.

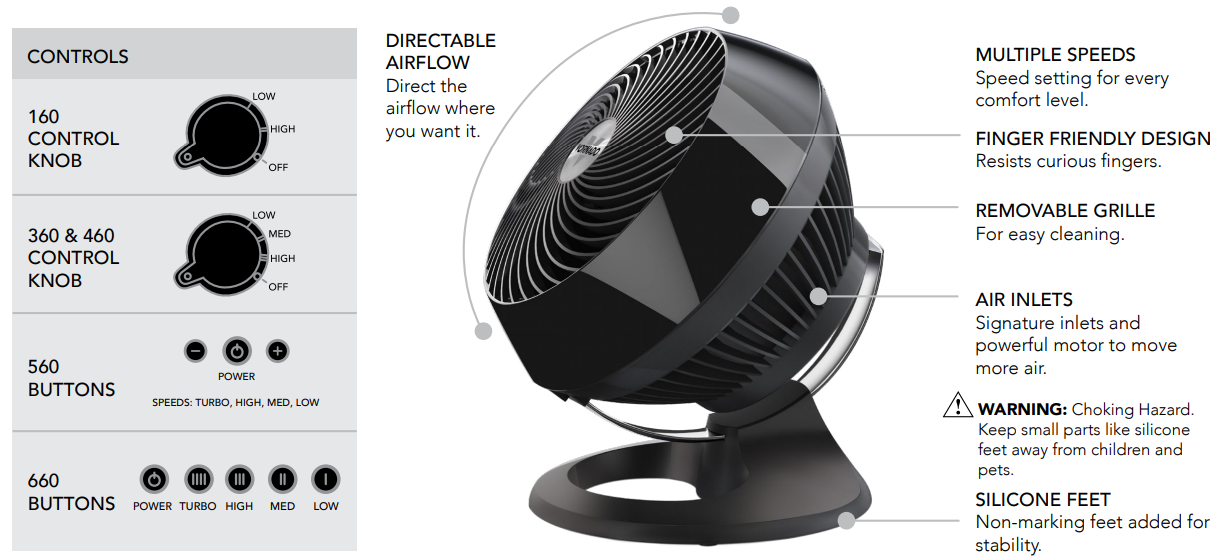

FEATURES

Save energy by maximizing the performance of heating and cooling systems. When you use a Vornado Air Circulator, you will not have to set your summertime thermostat as low or your wintertime thermostat as high. Refer to page 9 for further details.

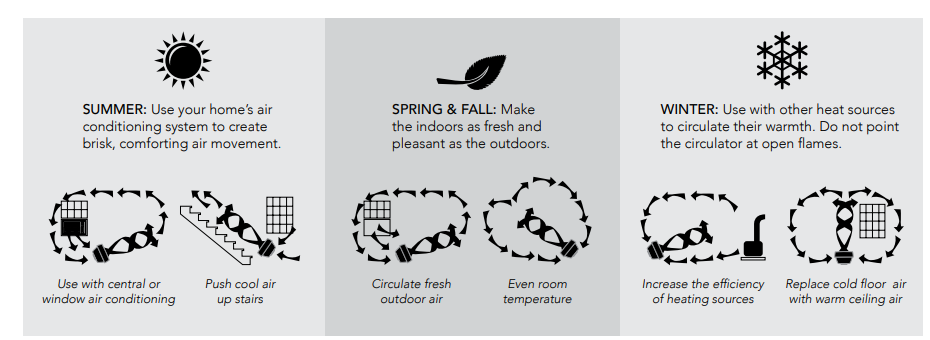

CIRCULATION 101

GETTING THE MOST OUT OF YOUR VORNADO - ALL YEAR LONG
With Vornado Air Circulators, you can save money on energy bills by adjusting your thermostat several degrees and still maintaining the same comfort level.

HOW TO USE
Before use, check the appliance for visible damage. DO NOT USE THIS CIRCULATOR if there is evidence of damage. If any damage is found, contact Vornado Air LLC at 1-800-234-0604.

1. Plug in and position the circulator so airflow is not obstructed.
2. Set the desired speed and allow a few minutes for an airflow pattern to be established. Different airflow patterns can be established by changing the location, angle, and speed. Adjust until the desired comfort level is achieved.

CLEANING

GRILLE REMOVAL (MODELS 160, 560 & 660)  Screwdriver required.
WARNING: To reduce the risk of electrical shock and injury to persons, unplug the circulator before removing the grille.

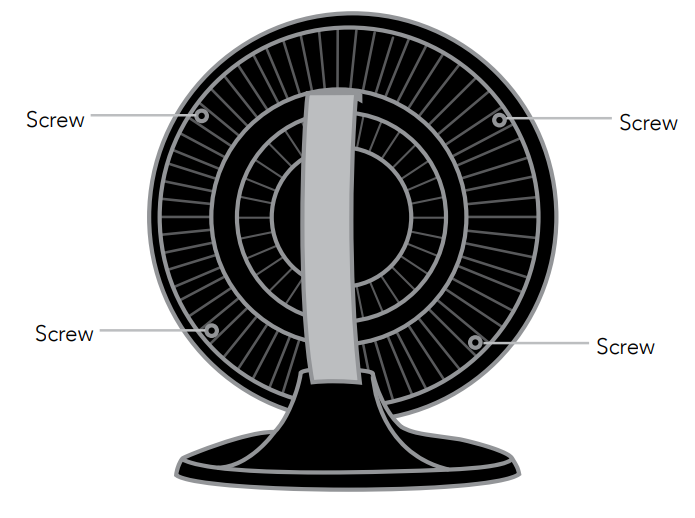

1. To release the Front Grille, remove the 4 screws located on the back of the inlet grille, located roughly at 2, 5, 7, and 10 o'clock positions.
2. Dust or wash the Front Grille with a mild dishwashing soap. Do not place the grille in the dishwasher. The excessive heat can distort the plastic.
3. To reattach - position the Front Grille so the Vornado logo in the center of the Front Grille is straight. Replace all the screws.

Use the brush attachment on your household vacuum cleaner to vacuum any accumulated dust off the Front Grille and Air Inlets.

WARNING: To reduce the risk of electrical shock and injury to persons, unplug the circulator before removing the grille.

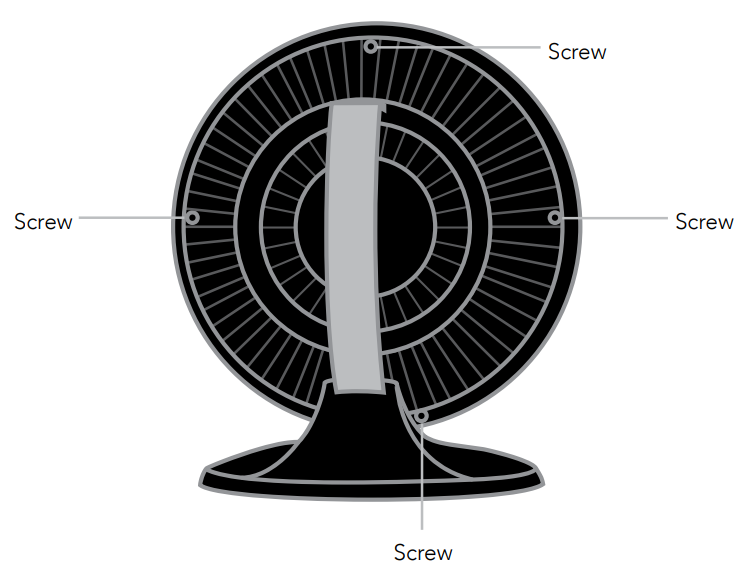

1. Feel for bumps on the back of the product, close to inlets, that help to locate screws at roughly 12, 3, 6, and 9 o'clock positions. Remove the 4 screws located at these positions, releasing the grille.
2. Dust or wash the Front Grille with a mild dishwashing soap. Do not place the grille in the dishwasher. The excessive heat can distort the plastic.
3. To reattach - position the Front Grille so the Vornado logo in the center of the Front Grille is straight. Replace all the screws.

Use the brush attachment on your household vacuum cleaner to vacuum any accumulated dust off the Front Grille and Air Inlets.

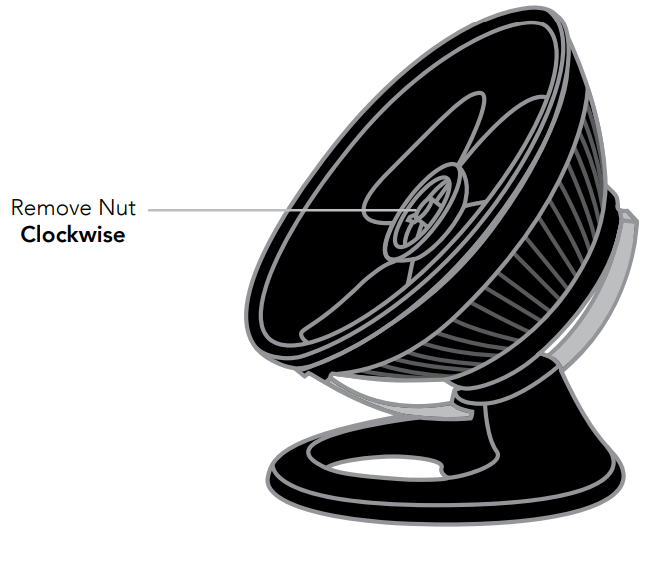

BLADE REMOVAL: Pliers recommended.

WARNING: To reduce the risk of electrical shock and injury to persons, unplug the circulator before removing the blade.

1. First, remove the nut from the shaft by turning the nut clockwise to loosen. Remove the washer. Pull the blade straight out from the shaft.
2. Wipe the Blade with a damp cloth. If your circulator is used in a greasy environment, such as a kitchen, mild soap or a common household cleaner may be necessary. Do not use solvents. Do not place the blade in the dishwasher. The excessive heat can distort the plastic.
3. To reattach - be certain the flat side of the shaft aligns directly with the corresponding flat side on the blade’s socket. Push the blade all the way on the shaft until it bottoms out. Do not use a hammer, as this could result in bearing damage. Reinstall the ut.

Detailed Specifications (Key Features)

• Powerful Vortex Technology: Circulates air up to 100 feet.
• Low to High Speed Settings: Adjustable for different room sizes and preferences.
• Energy Efficient: Uses less energy than traditional fans.
• Compact Design: Fits easily in any room without taking up much space.
• Quiet Operation: Minimal noise even at high speeds.
• Durable Construction: Built with high-quality materials for long-lasting performance.
• Easy to Clean: Removable grill for simple maintenance.

Setup Guide

To set up the Vornado Room Circulator Fan V660, follow these steps:

• Unpack the fan and ensure all parts are included.
• Place the fan on a flat surface, away from any obstructions.
• Plug in the fan and turn it on using the power button.
• Adjust the speed settings according to your preference using the control dial.
• Direct the fan to the desired area by adjusting its tilt and rotation.

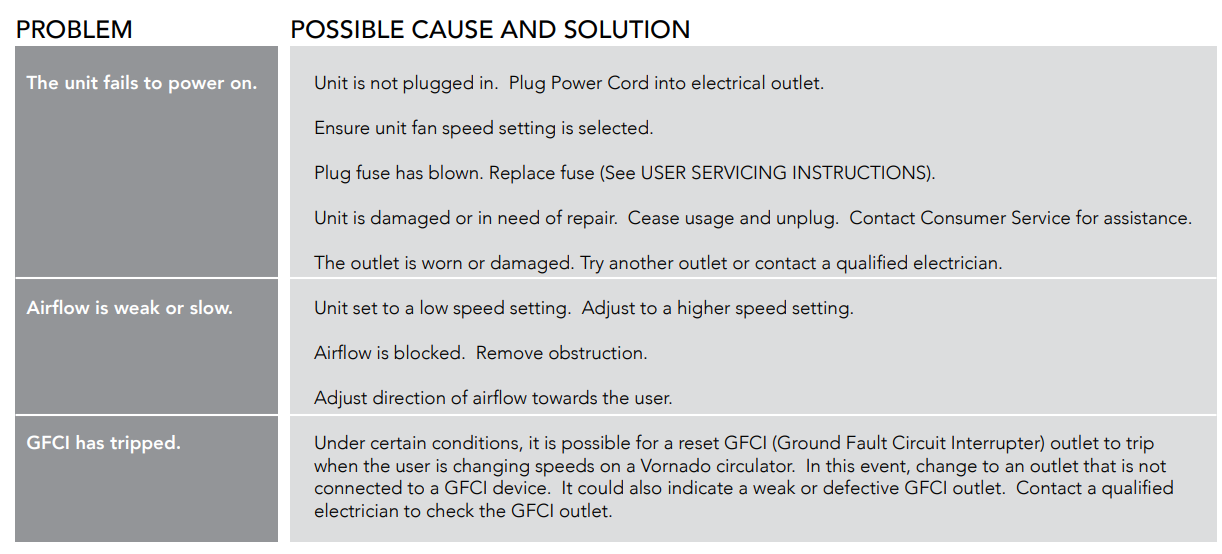

Troubleshooting

Instructions and Warnings: Always follow the manufacturer's instructions for assembly, operation, and maintenance. Avoid touching the fan blades or motor during operation, and keep it out of reach of children and pets.

WARRANTY

We expect this product to be perfect. If you’re not satisfied with this product, let us know.

• Vornado Air LLC (“Vornado”) warrants to the original consumer or purchaser that this Vornado® Whole Room Circulator (“Product”) is free from defects in material or workmanship for a period of five (5) years from the date of purchase. If any such defect is discovered within the warranty period, Vornado, at its discretion, will repair or replace the Product at no cost.
• For warranty service: Call 1-800-234-0604 or email help@vornado.com to obtain a Return Authorization (“RA”). Please have or include your Product’s model number and serial number, as well as your name, address, city, state, zip code, e-mail, and phone number when contacting Vornado for warranty service. To file a contactless warranty claim, visit vornado.com/contact-us.
• After receiving the RA form, ship your Product to: Vornado Air LLC, Attn: Warranty & Repair,r 415 East 13th Street, Andover, KS 67002. For your convenience, please have your model number and serial number when contacting Vornado with service inquiries. To assure proper handling, packages must be clearly marked with the RA number. Packages not clearly marked with the RA number may be refused at the receiving dock. Please allow 2-3 weeks for warranty service and return of your
• Product after the Product is received.
• This warranty does not apply to defects resulting from abuse of the Product, modification, alteration, mishandling, improper maintenance, commercial , us,e, or repair or service of the Product by anyone other than Vornado; damages which occur in shipment or are attributed to acts of God. Improper product use, which includes using an external device that alters or converts the voltage or frequency of electricity, or shipping a Vornado product to a country not intended for, use, will void all warranties. Any unauthorized pr uc modification, repair by an unauthorized repair center, or use of non-approved replacement parts is not recommended, and any consequences will not be covered by support services or product warranties. The product warranty will be honored only on models that are being used in the country intended.
• REPAIR OR REPLACEMENT AS PROVIDED UNDER THIS WARRANTY IS THE EXCLUSIVE REMEDY OF THE CONSUMER. VORNADO SHALL NOT BE LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES FOR BREACH OF ANY EXPRESS OR IMPLIED WARRANTY ON THIS PRODUCT. EXCEPT TO THE EXTENT PROHIBITED BY APPLICABLE LAW, ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE OF THIS PRODUCT IS LIMITED IN DURATION TO THE DURATION OF THIS WARRANTY.
• Some states do not allow the exclusion or limitation of incidental or consequential damages, or allow limitations on how long an implied warranty lasts, so the above limitations or exclusions may not apply to you. This warranty gives you specific legal rights, and you may have other rights that vary from state to state. The manufacturer assumes no responsibility for damage caused by failure to follow these instructions or improper product use. Any such actions will invalidate the product warranty.
• All company names and product names are trademarks of their respective owners. ©
• All rights reserved. All technical information, data, and instructions for the installation, connection, and operation contained in these instructions for use correspond to the latest available information at the time of printing. The contents of this manual may differ slightly from the actual product. Observe any additional supplements.

Pros & Cons

Pros:

• Highly efficient air circulation technology.
• Quiet operation even at high speeds.
• Energy-efficient and cost-effective.
• Durable and easy to maintain.
• Adjustable speed settings for different room sizes.

Cons:

• It may be too powerful for small rooms.
• Some users find the design too bulky despite its compact footprint.
• Higher price point compared to basic fans.

Customer Reviews

Customers have generally praised the Vornado Room Circulator Fan V660 for its powerful air circulation and quiet operation. Many have noted a significant reduction in their energy bills due to the fan’s efficiency. However, some users have mentioned that the fan can be too powerful for smaller spaces and that the design, although sleek, can be perceived as bulky.

Most Common Complaints

• Too powerful for small rooms.
• Bulky design.
• Higher price point.
