Setup: Vornado Mini Classic Vintage Air Circulator Instruction Manual

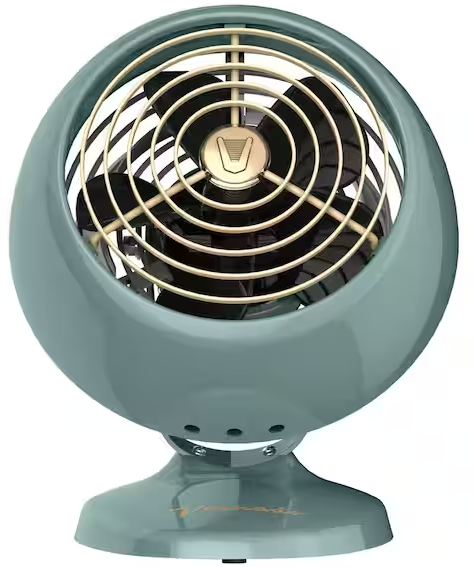

Vornado Mini Classic Vintage Air Circulator

Introduction

The Vornado Mini Classic Vintage Air Circulator is a compact and stylish air circulation fan designed to enhance air movement in small to medium-sized spaces. This product is part of Vornado's iconic line of air circulators, known for their unique design and efficient performance. The Mini Classic Vintage Air Circulator is estimated to be priced around $50-$70, making it an affordable solution for improving air circulation in homes, offices, or any other indoor setting. It was launched as part of Vornado's efforts to bring retro-style design back into modern homes while maintaining the high standards of air circulation technology.

The primary purpose of this air circulator is to move air efficiently, creating a cooling effect without the need for air conditioning. It is particularly useful in rooms where air tends to stagnate, helping to distribute heat evenly during colder months and cool air during warmer months. Its vintage design makes it a decorative piece that fits well with various home decor styles.

Specifications

• Compact Size: Measures 6.5 inches in height, making it perfect for desks, nightstands, or small tables.
• Vintage Design: Features a classic retro look with a durable metal construction.
• Multi-Speed Control: Offers two speed settings for adjustable airflow.
• Energy Efficient: Uses minimal power to operate, making it an eco-friendly option.
• Quiet Operation: Designed to run quietly, ensuring minimal disturbance.
• Easy to Clean: Simple design allows for easy dusting and maintenance.

Important Safety Instructions

This owner’s guide and any additional inserts are considered part of the product. They contain important information about safety, use, and disposal. Before using the product, please familiarize yourself with all operating and safety instructions. Please keep all documents for future reference and pass these documents on, together with the product, to any future owner. See www.vornado.com/circulators-manuals to view, download, and print the most current version of these instructions.

INTENDED USE: This product is intended to circulate the air in indoor living spaces only in the United States. This product is not intended for commercial or industrial use. The manufacturer assumes no responsibility for damage or injury due to unauthorized use or product modification. Failure to follow these directions will void the product warranty.

WARNING: Risk to Children and Impaired Persons
Supervision is required during the installation, operation, cleaning, and maintenance of this product by children 12 years of age and younger and anyone with reduced physical, sensory,, or mental capabilities. Children should be supervised to ensure that they do not play with the appliance, its parts,, and packaging material.

Installation

WARNING: To reduce the risk of fire, electrical shock,, and injury to persons, observe the following:

• Place this product away from curtains, draperies, tablecloths,, and other fabrics, since they may be drawn into the product, damage the motor, and/or cause a fire.
• No part of this product (the appliance, power cord, plug, packaging, etc.) should be placed near furnaces, fireplaces, stoves, or other high-temperature heat sources. Do not use this product in a window, on an uneven or unstable surface, or near water.
• The appliance, power supply, power cord,, and plug cannot come into contact with water. Do not use this product on wet surfaces. Do not use this product in a bathtub or shower,, or position the product where it may fall into a bathtub, laundry, swimming pool, or other water container. Do not use this product outdoors or expose it to weather or elements.
• Do not run the cord under carpeting. Do not cover the cord with throw rugs, runners, or similar coverings. Do not route cord under furniture or appliances. Arrange the cord away from the traffic area and where it will not be tripped over. The cord should not hang over the edges of counters or be placed where it can be crimped or closed in doors. Place the appliance near an easily accessible outlet so the product can be unplugged quickly during an emergency.

SAFE USE WARNING To reduce the risk of fire, electrical shock,, and injury to persons, observe the following:

• WARNING: To reduce the likelihood of circuit overload, fire,, and electric shock, do not operate with a solid-state speed device, such as a dimmer control switch.
• Do not operate any fan with a damaged cord or plug. Discard fan or return to an authorized service facility for examination and/or repair.
• Do not operate the unit if the unit has been dropped or damaged. Do not use this product if it has a damaged power cord or plug. To avoid the risk of electrical shock, do not attempt to repair or replace parts. Only original replacement parts may be used. If the power cord is damaged, it must be replaced by the manufacturer, its service agent, or similarly qualified persons in order to avoid a hazard. Contact Vornado Consumer Service at 1-800-234-0604 (phone) or consumerservice@vornado.com (email) for further instructions about replacement and repair.
• Before plugging the power cord into the electrical outlet, be sure that all electrical information on the rating label, including voltage, is compatible with your outlet’s power supply.
• Do not sit or stand on the product.
• Never use the cord as a handle or otherwise yank, strain, or stretch the power cord.
• While the product is plugged in, do not insert or allow foreign objects to enter any input or output opening,, as this may cause risk of electric shock or fire, or damage the product.
• A loose fit between the wall outlet (receptacle) and the plug may cause overheating and distortion of the plug. Discontinue use of the product in this outlet. Contact a qualified electrician to replace loose or worn outlets.
• This appliance has a polarized plug (one blade is wider than the other). To reduce the risk of electric shock, this plug is intended to fit in a polarized outlet only one way. If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. Do not attempt to defeat this safety feature.
• Before moving, repositioning, servicing, cleaning, and when not in use, use the product controls to turn off the power and then unplug.  To disconnect from the outlet, grasp and pull only the plug. Also, power off and unplug if the product will be left unattended for an extended period of time or during electrical storms.

SERVICING WARNING To reduce risk of fire, electrical shock,, and injury to persons, observe the following:

• Clean your product regularly, only as is instructed in this manual. Before cleaning, turn off the power to your product and unplug it. Do not use gasoline, thinners, solvents, ammonia,, or other chemicals for cleaning. Refer to the CLEANING instructions provided.
• Do not open the appliance housing while the product is plugged in. To avoid risk of shock, all service and/or repairs must be done by a Vornado Authorized Service Center.
• This product employs overload protection (fuse).  A blown fuse indicates an overload or short-circuit situation. If the fuse blows, unplug the product from the outlet. Replace the fuse as per the user servicing instructions (follow product marking for proper fuse rating) and check the product.
• If the replacement fuse blows, a short-circuit may be present, and the product should be discarded or returned to an authorized service facility for examination and/or repair.

User Servicing Instructions

1. Using the product controls, turn off the appliance.
2. Grasp the plug (not the cord) and disconnect from the outlet.
3. Risk of Fire. Replace fuse only with a 2.5-amp, 125 Volt fuse as approved by Vornado Consumer Service. For an authorized replacement fuse, please contact Vornado Consumer Service.

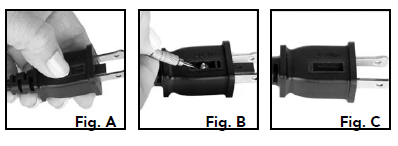

4. Once the replacement is received, use a small flat-head screwdriver to slide open the fuse cover (located on the plug) (See next page, Fig. A).
5. Remove the fuse by using the screwdriver to gently lift each end of the fuse (See Fig. B).
6. Install the replacement fuse by using the screwdriver to gently push each metal end of the fuse into the receptacle one at a time. Do not push on the center of the fuse—it is fragile and may break.
7. Slide the fuse cover closed using the screwdriver. When closed, the cover should fit completely in the plug. No part of the cover should stick out (See Fig. C).
8. Plug your appliance into the outlet and turn the power on.
9. If the replacement fuse blows, a short-circuit may be present, and the product should be discarded or returned to an authorized service facility for examination and/or repair.

Risk of fire. Do not replace the attachment plug. Contains a safety device (fuse, AFCI, LCDI) that should not be removed. Discard the product if the attachment plug is damaged.

SAVE THESE INSTRUCTIONS

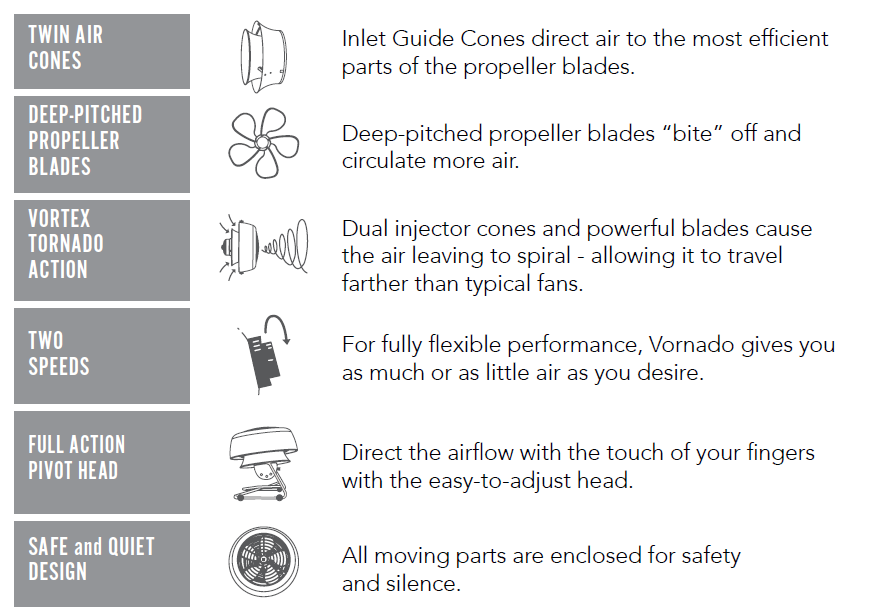

Features and Benefits

• Inlet Guide Cones direct air to the most efficient parts of the propeller blades.
• Deep-pitched propeller blades “bite” off and circulate more air.
• Dual injector cones and powerful blades cause the air leaving to spiral,  allowing it to travel farther than typical fans.
• For fully flexible performance, Vornado gives you as much or as little air as you desire.
• Direct the airflow with the touch of your fingers with the easy-to-adjust head.
• All moving parts are enclosed for safety and silence.

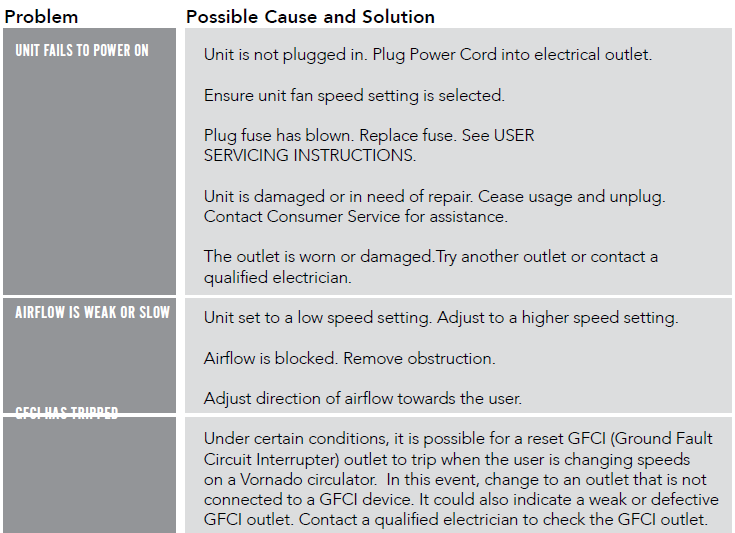

Troubleshooting

If you encounter any issues with your Vornado Mini Classic Vintage Air Circulator, here are some common problems and solutions:

• No Power: Check if the power cord is properly plugged into an electrical outlet. Ensure there are no issues with the outlet itself.
• Loud Noise: Inspect the fan blades for dust or debris. Clean the fan blades gently with a soft brush or cloth.
• Inadequate Airflow: Ensure that the air circulator is not blocked by furniture or curtains. Adjust the direction of the airflow as needed.

Always refer to the user manual for specific instructions and safety precautions.

Warranty

Personal Air Circulator 5 Year Limited Warranty

Vornado Air LLC (“Vornado”) warrants to the original consumer or purchaser that this Vornado® Personal Air Circulator (“Product”) is free from defects in material or workmanship for a period of five (5) years from the date of purchase. If any such defect is discovered within the warranty period, Vornado, at its discretion, will repair or replace the Product at no cost.

For warranty or repair service:
Call 1-800-234-0604 or email help@vornado.com to obtain a Return Authorization
(“RA”) form. Please have or include your Product’s model number and serial number, as well as your name, address, city, state, Zip code, and phone number when contacting Vornado for warranty service.  To file a contactless warranty claim, visit vornado.com/contact-us.

After receiving the RA form, ship your Product to:
Vornado Air LLC Attn: Warranty & Repair 415 East 13th Street, Andover, KS 67002. For your convenience, please have your model number and serial number when contacting Vornado with service inquiries. To ensure proper handling, packages must be clearly marked with the RA number. Packages not clearly marked with the RA number may be refused at the receiving dock. Please allow 1-2 weeks for repair and return of your Product after the Product is received.

Repairs not covered by the warranty or outside the warranty period will require a fee to cover the cost of materials, labor, handling,, and shipping.

This warranty does not apply to defects resulting from abuse of the Product, modification, alteration, mishandling, improper maintenance, commercial use,, or repair or service of the Product by anyone other than Vornado; damages which occur in shipment or are attributed to acts of God. Improper product use, which includes using an external device that alters or converts the voltage or frequency of electricity, or shipping a Vornado product to a country not intended for use, will void all warranties. Any unauthorized product modification, repair by unauthorized repair center,, or use of non-approved replacement parts is not recommended,, and any consequence will not be covered by support services or product warranties. The product warranty will be honored only on models that are being used in the country intended.

REPAIR OR REPLACEMENT AS PROVIDED UNDER THIS WARRANTY IS THE EXCLUSIVE REMEDY OF THE CONSUMER. VORNADO SHALL NOT BE LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES FOR BREACH OF ANY EXPRESS OR IMPLIED WARRANTY ON THIS PRODUCT. EXCEPT TO THE EXTENT PROHIBITED BY APPLICABLE LAW, ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE ON THIS PRODUCT IS LIMITED IN DURATION TO THE DURATION OF THIS WARRANTY.

Some states do not allow the exclusion or limitation of incidental or consequential damages, or allow limitations on how long an implied warranty lasts, so the above limitations or exclusions may not apply to you. This warranty gives you specific legal rights, and you may have other rights that vary from state to state. The manufacturer assumes no responsibility for damage or injury caused by failure to follow these instructions, improper product use o, or unauthorized product modifications. Any such actions will invalidate the product warranty.

All company names and product names are trademarks of their respective owners.
©All rights reserved. All technical information, data, and instructions for the installation, connection, and operation contained in these instructions for use correspond to the latest availablinformationat information at the time of printing. The contents of this manual may differ slightly from the actual product. Observe any additional supplements.
U.S. Patent 7,530,783.

Pros & Cons

Pros:

• Compact and lightweight, easy to move around.
• Vintage design that fits well with various home decor styles.
• Energy-efficient and quiet operation.
• Easily adjustable speed settings.
• Durable metal construction with easy-to-clean design.

Cons:

• Limited range of airflow due to its small size.
• No remote control or timer feature.
• It may not be as effective in larger rooms.

Customer Reviews

Customers have praised the Vornado Mini Classic Vintage Air Circulator for its stylish design and effective air circulation. Many have noted its quiet operation and energy efficiency as significant advantages. However, some users have mentioned that it may not be as powerful as larger models and is best suited for small to medium-sized rooms.

A common complaint is the lack of a remote control or timer feature, which some users find inconvenient. Despite this, the overall satisfaction rate remains high due to its performance and aesthetic appeal.
