Vornado Evaporative Humidifier EVDC300 User Guide

Vornado Evaporative Humidifier EVDC300

Introduction

The Vornado Evaporative Humidifier EVDC300 is a cutting-edge device designed to maintain optimal humidity levels in your home. Launched in recent years, this humidifier is part of Vornado's lineup of innovative home comfort solutions. The EVDC300 is engineered to provide effective and efficient humidification, making it an excellent choice for those seeking to alleviate dry air issues.

This humidifier is designed for medium to large-sized rooms and is particularly beneficial during the dry winter months or in arid climates. With its advanced evaporative technology, it ensures a consistent and healthy humidity level without over-humidifying. The estimated price range for the Vornado EVDC300 is around $100-$150, making it a competitively priced option in the market.

The EVDC300 is easy to use and maintain, with features that include a built-in humidistat for automatic moisture control and a washable filter to reduce maintenance costs. Whether you're looking to relieve dry skin, reduce static electricity, or protect your furniture from dry air damage, the Vornado Evaporative Humidifier EVDC300 is an excellent investment.

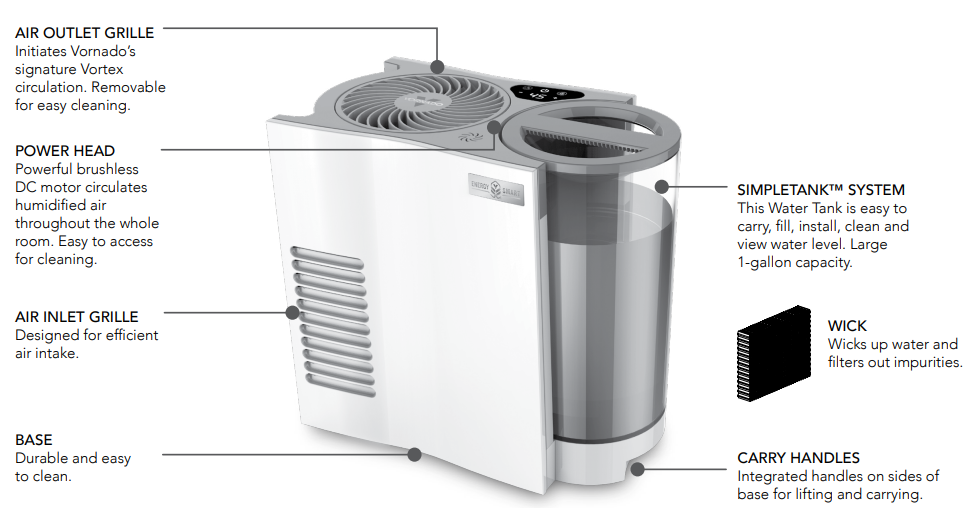

FEATURES

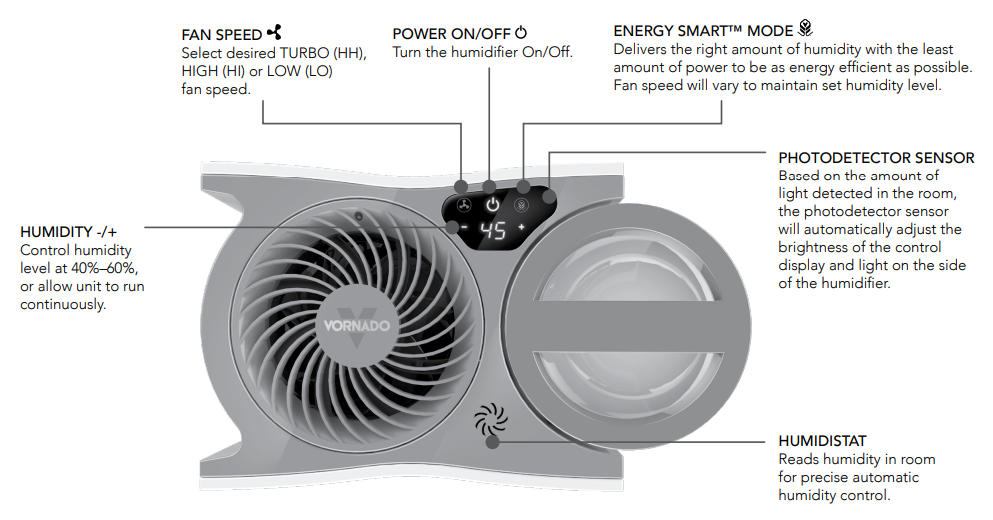

CONTROLS

HOW TO USE

1. Position the humidifier to not blow directly on objects or plants. Plug power cord into standard grounded wall outlet.
2. To turn humidifier on touch . The humidifier will default to LOW fan speedand 50% humidity. Set humidity level by touching -/+ until the desired humidificationlevel appears on the display. If Continuous is selected, CO will appear on the displayand the humidifier will run continuously.
3. Touch to select Turbo (HH), High (HI) orLow (LO) fan speed. The will illuminate blue. The selection will flash for fiveseconds, then set and return to selectedhumidity level.
4. You may also select Energy Smart™ mode and ES will flash on the display forfive seconds, then set before returning tothe selected humidity level. The will illuminate green. In Energy Smart™ modeContinuous (CO) and Turbo (HH) fan speed are disabled.
   Note: The LED Display dims after 20 seconds of inactivity.
5. Once settings are changed from first use default, they are savedwhen powering humidifier off.
   If unit is unplugged, during next use, settings will default to LOW fan speed, 50% humidity.
   WARNING: Avoid finger contact with the fan blade, which is accessibleon the underside of the Power Head. Before dissasembly or removingthe Power Head from the humidifier, wait until the fan blade comes to a complete stop

TURBO (HH)
Operation for fast humidification of larger rooms. Turbo-speed operation will evaporate 3 gallons of water (+/- 10%) in 24 hours ofcontinuous operation. This assumes room conditions of 70°F and30% relative humidity.

HIGH (HI)
Operation for moderate humidification of mid-size to large rooms.

LOW (LO)
Operation for quiet, nighttime use or smaller rooms. On Low operation, your humidifier may run without refilling forextended periods.

HUMIDITY – 40%–60%
The humidifier will operate until the desired humidity level is reached. At this point, the Fan will turn off. If the Fan does not turn on, the humidity setting may be lower than the room humiditylevel. Increase the humidity set point until the Fan turns on. This isan indication of the level of humidity already in the room.

CLEANING

Proper cleaning of your Evaporative Whole Room Humidifier is essential to the air quality and performance of your humidifier. The frequency in which your humidifier will need to be cleaned will vary depending on use, water hardness and outside environmental factors. It is recommended, assuming average use, to thoroughly clean the unit several times throughout the season, or when algae, mineral deposits or other particles
begin to form. Note: If the humidifier is turned Off with water in Base and not turned back on for 8 hours or longer, or if humidifier is not cleaned as recommended, you may experience some growth of algae or bacteria. These microorganisms may become airborne.

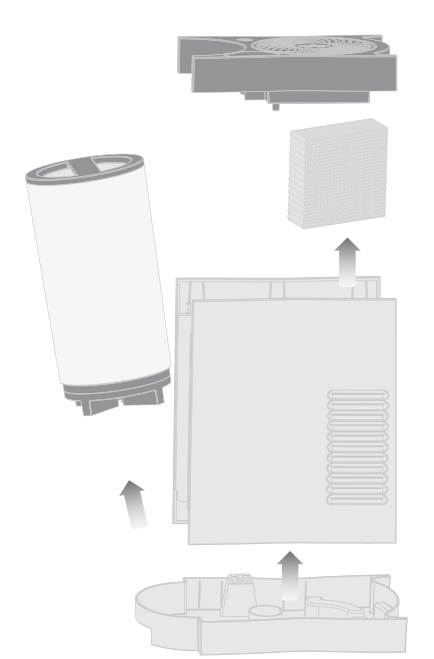

TO CLEAN BASE

1. Turn humidifier Off and unplug.
   Warning: Do not submerge humidifier top in water.
2. Remove Water Tank and Air Outlet Grille by lifting up.
3. Remove the Wick.
4. Remove humidifier body from base by lifing up. Do not disassemble the front and back panels from the body.
5. Empty the Base. Clean Base with warm water and a mild detergent. Rinse and dry. Reassemble humidifier. Note: The Base is not dishwasher safe.

TO CLEAN GRILLE

1. Turn humidifer Off and unplug.
   Note: Do not use gasoline, thinners, solvents or other chemicals for cleaning.

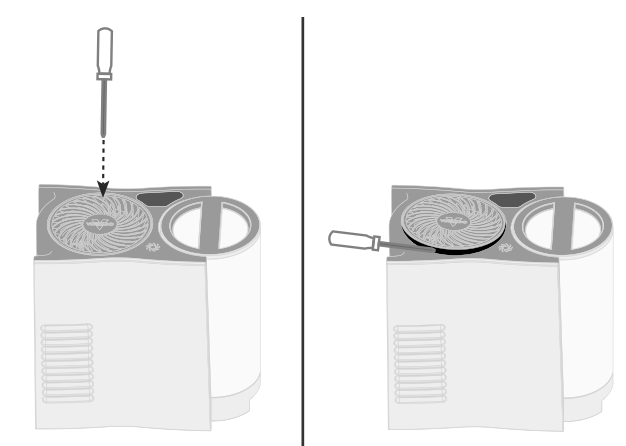

2. Using a Phillips Head screwdriver, remove screw located at 12 o’clock position inside grille. Twist grille counterclockwise to unlock, then use screwdriver to lift grille.
3. Clean the grille, blade or underside of motor with a soft cloth or with a can of compressed air.
4.  Reinstall grille and twist grille clockwise until screw holes align. Replace screw.

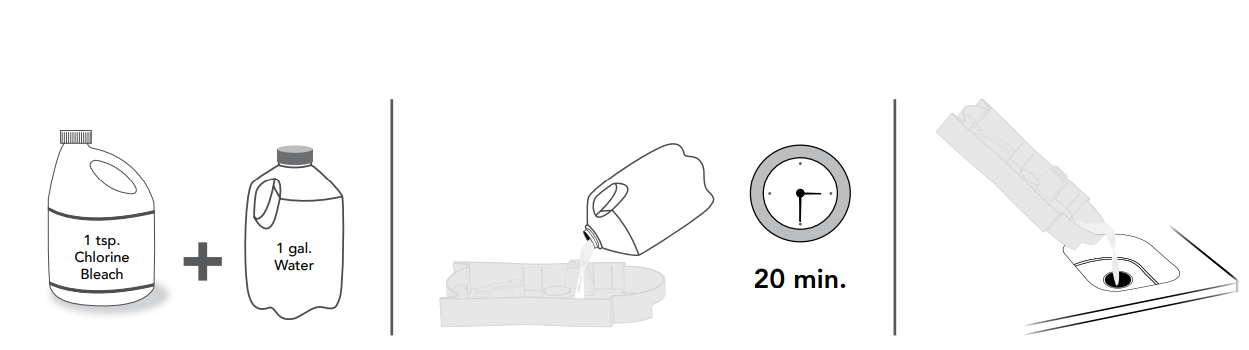

IN THE EVENT YOU WANT TO DISINFECT THE BASE:

1. Mix solution of 1 teaspoon chlorine bleach and 1 gallon water. Fill Base with solution, wet all surfaces. Let stand 20 minutes, then empty.
2. Rinse Base with water until bleach smell is gone. Dry with clean cloth or paper towel.
3. You may also wipe down the entire surface of humidifier with a soft cloth.

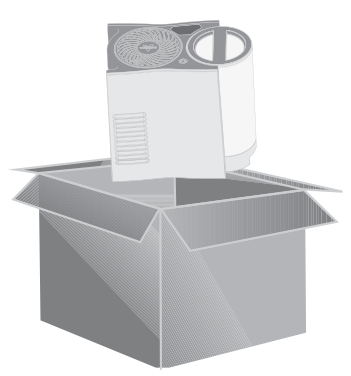

STORAGE

During the off-season or after extended periods of non-use, you may choose to store your humidifier. To ensure long life of the product, it is recommended to store your humidifier by following these instructions:

• Cleaning is recommended before storage.
  • Unplug power cord and bundle loosely.
  • Let humidifier dry completely before storing. Do not store with water inside Water Tank or Base. Remove and discard Wick if it is not suitable for reuse. Do not store humidifier with wet Wick. If Wick is suitable for future use, remove and empty water from Base and Water Tank. Replace Water Tank, power On and select HIGH Fan Speed. Allow humidifer to run until Wick is completely dry.
  • Cover, or place back in retail carton if available. This will prevent humidifier from accumulating dust over time.
  • Store humidifier in cool and dry location.

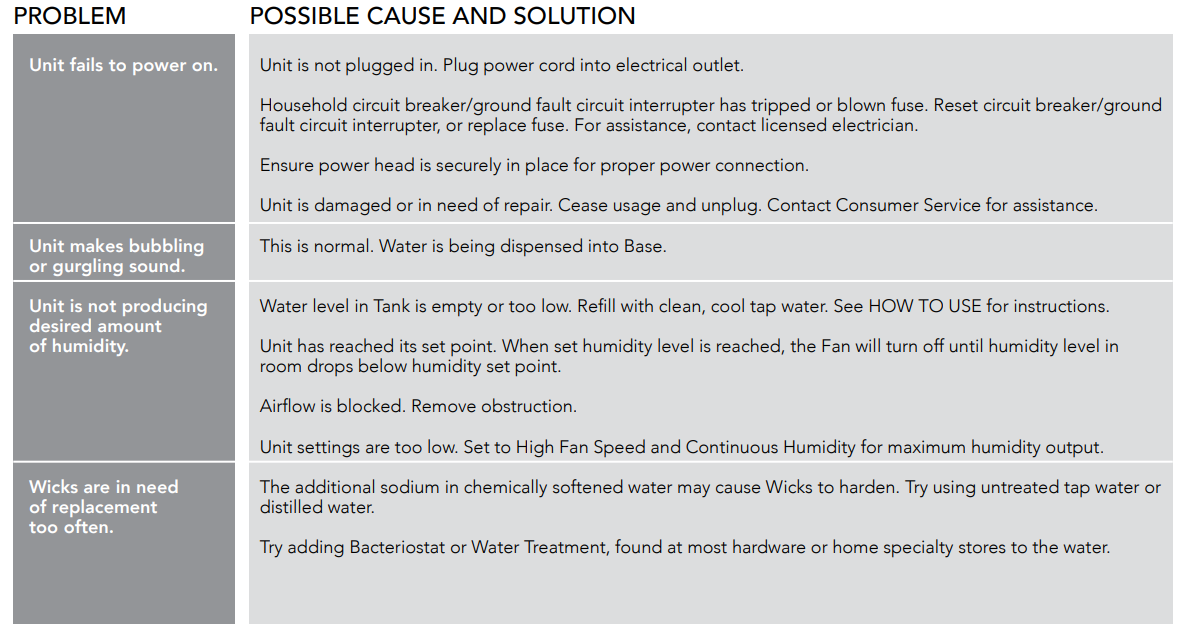

TROUBLESHOOTING

OUR WARRANTY

• Vornado Air LLC (“Vornado”) warrants to the original consumer or purchaser this Vornado® Evaporative Whole Room Humidifier (“Product”) is free from defects in material or workmanship for a period of five (5) years from the date of purchase. Themotor has a ten (10) year warranty from the date of purchase. If any such defect is discovered within the warranty period, Vornado, at its discretion, will repair or replace the Product at no cost.
• For warranty service: Call 1-800-234-0604 or email help@vornado.com to obtain a Return Authorization (“RA”). Please have or include your Product’s model number and serial number, as well as your name, address, city, state, zip code, e-mail, and phone number when contacting Vornado for warranty service. To file a contactless warranty claim, visit vornado.com/contact-us.
• After receiving the RA form, ship your Product to: Vornado Air LLC Attn: Warranty & Repair 415 East 13th Street Andover, KS 67002. For your convenience, please have your model number and serial number when contacting Vornado with service inquiries. To assure proper handling, packages must be clearly marked with the RA number. Packages not clearly marked with the RA number may be refused at the receiving dock. Please allow 2-3 weeks for warranty service and return of your
• Product after the Product is received.
• This warranty does not apply to defects resulting from abuse of the Product, modification, alteration, mishandling, improper maintenance, commercial use or repair or service of the Product by anyone other than Vornado; damages which occur in shipment or are attributed to acts of God. Improper product use, which includes using an external device that alters or converts the voltage or frequency of electricity, or shipping a Vornado product to a country not intended for use will  void all warranties. Any unauthorized product modification, repair by unauthorized repair center, or use of non-approved replacement parts is not recommended and any consequences will not be covered by support services or product warranties. The product warranty will be honored only on models that are being used in the country intended.
• REPAIR OR REPLACEMENT AS PROVIDED UNDER THIS WARRANTY IS THE EXCLUSIVE REMEDY OF THE CONSUMER. VORNADO SHALL NOT BE LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES FOR BREACH OF ANY EXPRESS OR IMPLIED WARRANTY ON THIS PRODUCT. EXCEPT TO THE EXTENT PROHIBITED BY APPLICABLE LAW, ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE ON THIS PRODUCT IS LIMITED IN DURATION TO THE DURATION OF THIS WARRANTY.
•  Some states do not allow the exclusion or limitation of incidental or consequential damages, or allow limitations on how long an implied warranty lasts, so the above limitations or exclusions may not apply to you. This warranty gives you specific legal rights, and you may have other rights that vary from state to state. The manufacturer assumes no responsibility for damage caused by failure to follow these instructions or improper product use. Any such actions will invalidate the product warranty.
• All company names and product names are trademarks of their respective owners. © All rights reserved. All technical information, data, and instructions for the installation, connection, and operation contained in these instructions for use correspond to the latest available information at time of printing. The contents of this manual may differ slightly from the actual product. Observe any additional supplements.

Detailed Specifications (Key Features)

• Humidification Method: Evaporative
• Room Size Coverage: Medium to Large Rooms (up to 700 sq. ft.)
• Moisture Output: Up to 3 gallons per day
• Humidistat: Built-in for automatic moisture control
• Filter: Washable filter for reduced maintenance costs
• Noise Level: Quiet operation
• Power Consumption: Energy-efficient design
• Dimensions: 12.5 x 10.5 x 17.5 inches

Pros & Cons

Pros:

• Effective Humidification: Maintains optimal humidity levels efficiently.
• Energy-Efficient: Designed to consume less power while delivering high performance.
• Quiet Operation: Runs silently, making it ideal for bedrooms and living rooms.
• Easy Maintenance: Washable filter reduces replacement costs and environmental impact.
• Compact Design: Fits well into any home decor without taking up too much space.

Cons:

• Filter Maintenance: Requires regular cleaning of the filter to maintain performance.
• No Ion Exchange Filter: May require more frequent cleaning due to mineral buildup if tap water is used.
• Best suited for medium to large rooms; may not be sufficient for very large spaces.

Customer Reviews

Customers have generally praised the Vornado Evaporative Humidifier EVDC300 for its effective performance and ease of use. Many have noted its ability to quickly humidify large rooms and its quiet operation. However, some users have mentioned that the filter requires frequent cleaning and that it may not be as effective in very large spaces.

Most Common Complaints

• Frequent need to clean the filter due to mineral buildup.
• Some users find it less effective in very large rooms or open-plan spaces.
• Occasional reports of leakage if not assembled correctly.
