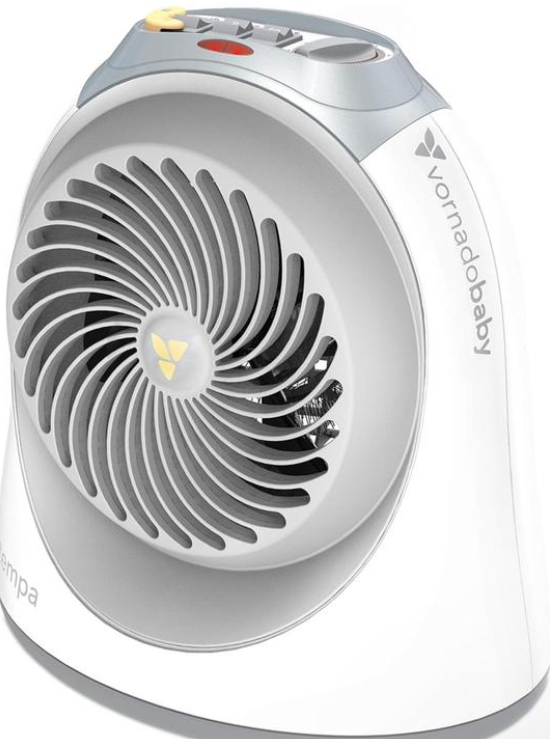

Vornado Baby Tempa Whole Room Heater

Introduction

The Vornado Baby Tempa Whole Room Heater is a cutting-edge heating solution designed specifically for the safety and comfort of babies and young children. This heater is part of Vornado's lineup of innovative heating products, known for their efficiency and reliability. The Baby Tempa is engineered to warm entire rooms safely and evenly, making it an ideal choice for nurseries and children's bedrooms.

The Vornado Baby Tempa Whole Room Heater is estimated to be priced around $100-$150, depending on the retailer and any promotions available. It was launched to provide parents with a trustworthy and efficient heating solution that prioritizes child safety.

This heater features advanced safety mechanisms, including automatic shut-off in case it tips over, and a cool-touch exterior to prevent burns. The compact design and quiet operation make it suitable for use in any room, ensuring a comfortable and safe environment for your baby.

Instructions

This owner’s guide and any additional inserts are considered part of the product. They contain important information about safety, use, and disposal. Before using the product, please familiarize yourself with all operating and safety instructions. Please keep all documents for future reference and pass these documents on, together with the product, to any future owner. See www.vornado.com to view, download,,d and print the most current version of this owner’s guide.

Intended Use: This product is intended to heat and circulate the air in indoor living spaces only. This product is intended for floor use only. This product is not intended for commercial or industrial use. This heater is not intended for use in bathrooms, laundry areaornd similar damp locations. The manufacturer assumes no responsibility for damage or injury due to unauthorized use or product modification. Failure to follow these directions will void the product warranty.

• WARNING: When using electrical appliances, basic precautions should always be followed to reduce the risk of fire, electric shock, injury to persons, and hyperthermia, including the following:
• WARNING: Risk to Children and Impaired Persons- Extreme caution is required during the installation , operation, cleaning, ng and maintenance of this product by or around children 12 years of age and younger and anyone with reduced physical, sens, or,y or mental capabilities, and whenever the heater is left operating and unattended. Children should be supervised to ensure that they do not play with the appliance, its parts,, and packaging material.
• WARNING: Risk for Heat Stroke (Hyperthermia)
• Hyperthermia can result in death. Symptoms of hyperthermia include high body temperature, headache, nausea, vomiting, tiredness, dizziness, fainting, and rapid pulse. If you begin to experience symptoms related to hyperthermia, turn off the heater and seek medical attention.
• To avoid excessive room temperatures,, which can cause hyperthermia: DO NOT leave the product running unattended in a confined space around infants, or individuals with reduced physical, sensory, or mental capabilities.
• INSTALLATION WARNING: To reduce the risk of fire, electrical shock,, and injury to persons, observe the following:
• A heater has hot and arcing, or sparking parts inside. Do not use it in areas where gasoline, paint, or flammable liquids are used or stored.
•  Do not use this heater in an RV, boat,, oat or during any application where battery power is converted to AC power.
•  Place this product at least 3 feet away on all sides from, electrical outlets, furniture, pillows, bedding, papers, clothes, curtains, and other objects that may cause or catch on fire.
• Do not place the heater near a bed because objects such
  as pillows or blankets can fall off the bed and be ignited by the heater.
  • To prevent a possible fire, do not place the heater on soft surfaces, like a bed, where air intakes or exhaust can be blocked in any manner.
  • No part of this product (the appliance, power cord, plug, packaging, etc.) should be placed near furnaces, fireplaces, stoves, or other high-temperature heat sources.
  • Do not use on an uneven or unstable surface.
  • Do not use this product on an elevated surface such as a shelf or desktop. Use only while placed on the floor. Operate only in the upright position.
  • This appliance, power supply, power cord, and plug cannot come into contact with water. Do not use this product on wet surfaces. Do not use this product in a bathtub or shower,r or position where it may fall into a bathtub, shower, laundry, swimming pool,,l or other water container.
• Do not use in a window, outdoors, or exposed to weather or elements.
  •  Do not run cord under carpeting. Do not cover the cord with throw rugs, runners, or similar coverings. Do not route under furniture or appliances. Arrange the cord away from the traffic area and where it will not be tripped over. The cord should not hang over the edges of counters or be placed where it can be crimped or closed in doors. Place the appliance near an easily accessible outlet so the product can be unplugged quickly during an emergency.
• Do not modify the product with any aftermarket accessory.
• SAFE USE WARNING: To reduce the risk of fire, electrical shock, and injury to persons, observe the following:
  • Use this heater only as described in this manual. Any other use not recommended by the manufacturer may cause fire, electric shock, or injury to persons.
  • Extreme caution is required at all times a heater is in operation. Always unplug the eater when not in use. Vornado does not recommend unattended and unsupervised use of this heater.
  • This heater is hot when in use. To avoid burns, do not let bare skin touch hot surfaces. If provided, use handles when moving this heater.
  • Always plug heaters directly into a wall outlet/receptacle. Never use with an extension cord or relocatable power tap (outlet/power strip).
  •  Do not use this heater on a surge-protected unit or Ground Fault Circuit Interrupter (GFCI) outlet.
  •  Before plugging the power cord into the electrical outlet, be sure that all electrical information on the rating label, including voltage, is compatible with your outlet’s power supply.
  •  To reduce the likelihood of circuit overload, fire, and electric shock, do not operate with a solid-state speed device, such as a dimmer control switch. Do not use this heater with a timer designed to automatically turn the unit on or off, as this may accidentally disable the heater’s thermal cutout safety feature.
  • Use of this appliance on the same electrical circuit as another high-energy-use product, such as a vacuum cleaner, blender, variable-speed fan, or circular saw, is not advised.
  • Risk of fire. Do not operate any heater with a damaged cord or plug,,g or after the heater malfunctions, has been dropped, ped, or damaged in any manner. Discharge the hard heater, or return it to a Vornado authorized service facility for examination and/or repair.
  • Do not sit or stand on the product.
  • Never use the cord as a handle or otherwise yank, strain, or stretch the power cord.
  • Do not insert or allow foreign objects to enter any ventilation or exhaust opening,, as this may cause an electric shock or fire, or damage the heater.
  • Check your heater cord and plug connections.  A loose-fitting outlet can cause the plug to overheat or cause a fire. Be sure the plug fits tightly in the outlet. Check frequently during use to make sure the plug and outlet are not hot. If so, discontinue using the heater and have the outlet replaced by a qualified electrician.
  • Never ignore the signs of an electrical problem, such as: warm outlet coverplates, sparks when plugging in or operating, or lights flickering/dimming during operation. Immediately turn off and unplug the appliance if any such problems are noticed. Contact a qualified electrician to investigate possible causes before operating the appliance again.
  • Note: Heaters draw more current than small appliances; overheating of the outlet may occur even if it has not occurred with the other appliances.
  • Before moving, repositioning, servicing, cleaning,, and when not in use, use the product controls to turn off the power
    and then unplug. To disconnect from the outlet, grasp and pull only the plug. Also, power off and unplug if the product will be left unattended for an extended period of time or during an electrical storm

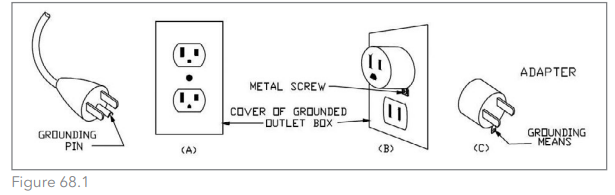

  • This product’s power cord is equipped with a three-prong, grounded plug that must be inserted into a grounded receptacle. Connect to properly grounded outlets only.
  • This heater is for use with 120-volt electrical outlets. The cord has a plug as shown at A in Figure 68.1, below. An adapter, as shown at , C, is available for connecting three-blade grounding-type plugs to two-slot receptacles. The green grounding
    lug extending from the adapter must be connected to a permanent ground, nd such as a properly grounded outlet box. The adapter should not be used if a three-slot grounded receptacle is available.

• If your heater suddenly stops working:
  • This heater is equipped with a thermal cutout safety feature designed to automatically shut off when overheating is detected. See the “RESET HEATER” instructions in this guide to determine how to check and reset the heater.
  • If the heater and other electrical products suddenly stop working at the same time, your home circuit breaker
    or fuse may have tripped due to an overload of power. Consider only running your heater on the “low” setting, only running one heater at once and unplugging all
    other electrical products while running the heater, and/or hiring an electrician to install an additional circuit to your home’s electrical system.
• Servicing Warning: To reduce the risk of fire, electrical sh, ock and injury to persons, observe the following:
  • Clean your product regularly, only as is instructed in this manual. Before cleaning, turn off the power to your product and unplug it. Do not use gasoline, thinners, solvents, ammonia, or other chemicals for cleaning. Refer to the CLEANING instructions provided.
  • Do not open the appliance housing while the product is plugged in. To avoid risk of shock, all service and/or repairs must be done by a Vornado Authorized Service Center.

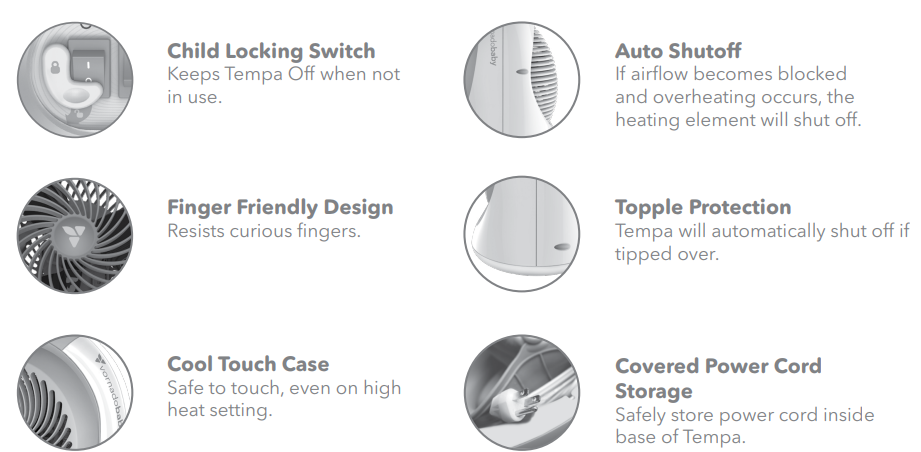

Safety

Plug It In Safely! Your Tempa has a 6 ft. power cord, covered for additional safety. Vornado recommends placing the product as close to an outlet as possible and securing the remaining cord.

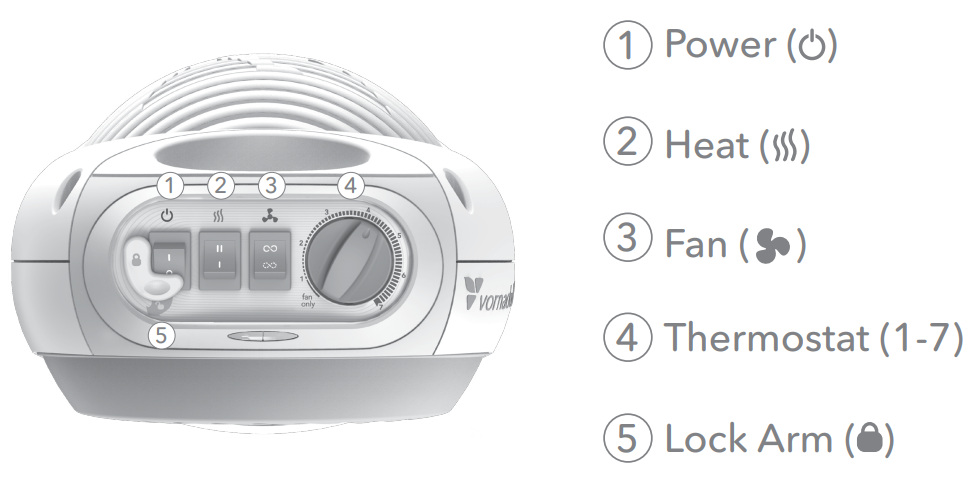

Tempa Controls

Plug In & Placement

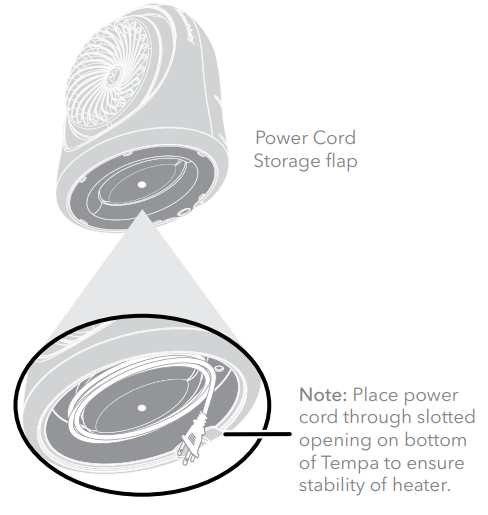

Power Cord Storage
For your convenience and safety, the Power Cord Storage keeps the power cord neat and out of harm's way.

1. Lift the Power Cord Storage flap to locate the e plug, then unwind the power cord stored inside.

Safety Tip: Power cords increase strangulation risks. Secure as much excess cord as possible inside the Power Cord Storage.

Set Up

1.  Position Tempa so the vortex beam of air is directed across the room, unobstructed.
2. Plug the power cord into a grounded wall outlet.

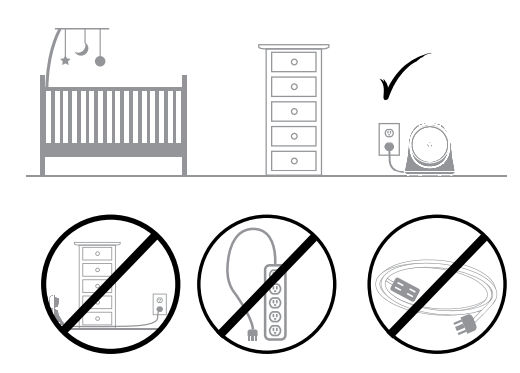

Safety Tip: It is best to position Tempa close to the power outlet and store the excess power cord inside the Power Cord Storage.
Place Tempa away from walkways, doorways, and anywhere it may pose a tripping hazard.

How To Use

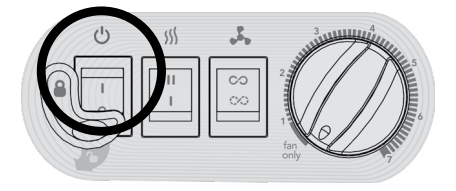

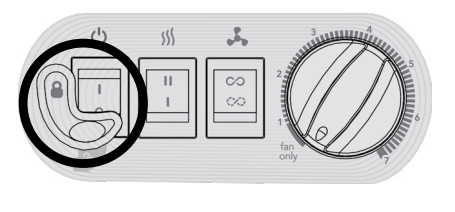

Locking Controls

1. To unlock this feature,e first pivot the Lock A, rm then press the Power switch  On. The red light will illuminate when on.



2. To disengage this feature, press the Power switch Off, and the Lock Arm will automatically protect the Power switch.h



Operation

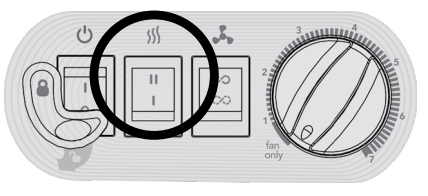

1. Select the Heat setting . Low Heat (I) or High Heat (II).
   Note: It is normal for the exit air from the heater to feel cooler on low heat than on high heat

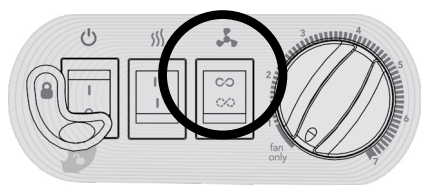

2. Select the Fan setting. In the Auto position , the fan will cycle on and off with the heating element. In the Continuous position , the fan will run continuously,, and the heating element will cycle on and off.

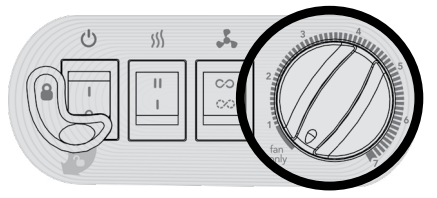

3. The thermostat knob is set to the desired comfort level. Monitor the desired setting and adjust the Thermostat accordingly.

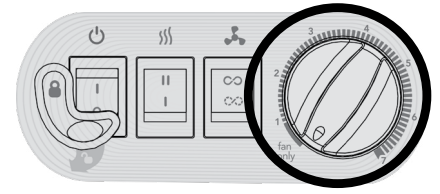

4.  For fan use only without heat, select Fan Only on the Thermostat and Continuous on the Fan.



Keeping Tempa Clean

Because Tempa moves a substantial amount of air, it will need regular cleaning. Cleaning the outside of the heater is recommended every week.

Cleaning the Grille

1. Power Tempa Off and unplug.

2. Use the brush attachment on your household vacuum cleaner to vacuum any accumulated dust on the unit or wipe down the entire surface with a soft, dry cloth.



   Note: Do not use gasoline, thinners, solvents, or other chemicals for cleaning.
   Note: Do not modify Tempa with any aftermarket accessory.
   You should periodically blow out Tempa with pressurized air to keep the heat element and motor clear of dust, hair, and debris that can build up inside the heater as it moves air during use. This also eliminates unwanted odors caused by the accumulation of these particles inside the unit.

Always unplug Tempa before starting any part of the cleaning process.

Tips

Resetting Your Vornado Heater
Your Vornado Tempa has a multi-level safety shut-off system designed to prevent overheating. If this happens, the safety shut-off system will cut power to the heat element, and you will need to manually reset Tempa.

1. Press Power Switch Off and unplug Tempa.
2. Remove any obstructions and wait 5 –10 minutes, allowing Tempa to cool down.
3.  Plug in Tempa and press the Power Switch to On. Your Vornado Tempa is ready.
   Note: If the safety shut-off system repeatedly shuts off Tempa or if it will not reset, DO NOT ATTEMPT TO DISASSEMBLE Tempa. Call Vornado Consumer Services toll-free at 1-800-234-0604.
   • During the off-season or after extended periods of non-use, you may choose to store Tempa. To ensure the long life of the product, it is recommended to store Tempa by following these instructions:
   • Always set the Power switch to Off and unplug Tempa before cleaning.
   • After unplugging the unit, wrap the cord neatly inside the Power Cord Storage.
   • Thoroughly clean Tempa. Use the brush attachment on your household vacuum cleaner to vacuum any accumulated dust on Tempa or wipe down the entire surface with a soft, dry cloth.
   • Cover, or place Tempa back into the retail carton if available.  This will prevent Tempa from accumulating dust over time.
   • Store Tempa in a cool and dry location.
   • The motor is permanently lubricated and requires no oiling. Do not use gasoline, thinners, solvents, or other chemicals for cleaning.

Detailed Specifications (Key Features)

• Whole Room Heating: Circulates warm air throughout the room for consistent heat.
• Safety Features: Automatic shut-off if tipped over, cool-touch exterior.
• Compact Design: Space-saving and easy to place in any room.
• Quiet Operation: Minimal noise for undisturbed sleep.
• Adjustable Thermostat: Allows for precise temperature control.
• Energy Efficiency: Designed to use less energy while providing effective heat.

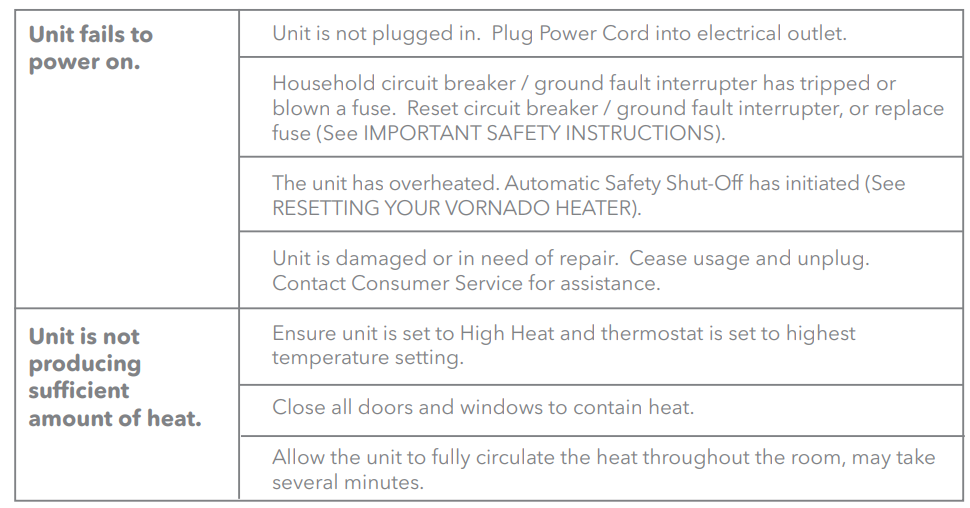

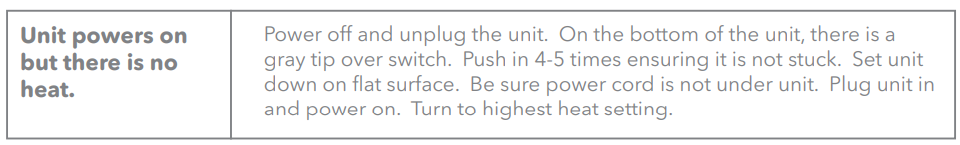

Troubleshooting

If you encounter any issues with your Vornado Baby Tempa Whole Room Heater, here are some common problems and their solutions:

• Heater Not Turning On: Check if the power cord is properly plugged in. Ensure that there are no tripped circuit breakers or blown fuses.
• Inconsistent Heat: Make sure the heater is placed at least 3 feet away from any objects to allow for proper air circulation.
• Automatic Shut-Off: If the heater shuts off, check if it has been tipped over. Ensure it is placed on a stable surface.

Always follow the manufacturer's instructions and warnings to ensure safe and effective use of the heater.

Happy Parent Guarantee

• If you’re not satisfied with this product, let us know. We’ll go the extra mile to ensure you’re a happy Vornadobaby parent!
• Vornado Air LLC (“Vornado”) warrants to the original consumer or purchaser that this Vornadobaby® Tempa Whole Room Heater (“Product”) is free from defects in material or workmanship for a period of five (5) years from the date of purchase. If any such defect is discovered within the warranty period, Vornado, at its discretion, will repair or replace the Product at no cost.
• For warranty or repair service:
  Call 1-800-234-0604 or email help@vornado.com to obtain a Return Authorization (“RA”) form. Please have or include your Product’s model number and serial number, as well as your name, address, city, state, zip code, and phone number when contacting Vornado for warranty service. Or to file a contactless warranty claim, visit vornado.com/contact-us.
• After receiving the RA form, ship your Product to:
  Vornado Air LLC Attn: Warranty & Repair 415 East 13th Street Andover, KS 67002   For your convenience, please have your model number and serial number when contacting Vornado with service inquiries.  To assure proper handling, packages must be clearly marked with the RA number. Packages not clearly marked with the RA number may be refused at the receiving dock. Please allow 1-2 weeks for repair and return of your Product after the Product is received.
• Product registration is available online at www.vornado.com
• Repairs not covered by the warranty or outside the warranty period will require a fee to cover the cost of materials, labor, handling, and shipping. This warranty does not apply to defects resulting from abuse of the
• Product, modification, alteration, mishandling, improper maintenance, commercial use,e or repair, or service of the Product by anyone other than Vornado; damages which occur in shipment or are attributed to acts of God. Improper product use, which includes using an external device that alters or converts the voltage or frequency of electricity, or shipping a Vornado product to a country
• not intended for use,,se will void all warranties. Any unauthorized product modification, repair by unauthorized repair center,nter or use of non-approved replacement parts is not recommended, and any consequences will not be covered by support services or product warranties. The product warranty will be honored only on models that are being used in the country intended. REPAIR OR REPLACEMENT AS PROVIDED UNDER THIS WARRANTY IS THE EXCLUSIVE REMEDY OF THE CONSUMER. VORNADO SHALL NOT BE LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES FOR BREACH OF ANY EXPRESS
  OR IMPLIED WARRANTY ON THIS PRODUCT. EXCEPT TO THE EXTENT PROHIBITED BY APPLICABLE LAW, ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE ON THIS PRODUCT IS LIMITED IN DURATION TO THE DURATION OF THIS WARRANTY. Some states do not allow the exclusion or limitation of incidental or consequential damages, or allow limitations on how long an implied warranty lasts, so the above limitations or exclusions may not apply to you. This warranty gives you specific legal rights, and you may have other rights that vary from state to state. The manufacturer assumes no responsibility for damage or injury caused by failure to follow these instructions, improper product use, or unauthorized product modifications. Any such actions will invalidate the product warranty.
• All company names and product names are trademarks of their respective owners. ©
• All rights reserved. All technical information, data,, and instructions for the installation, connection,,n and operation contained in these instructions for use correspond to the latest available information the at the time of printing. The contents of this manual may differ slightly from the actual product. Observe any additional supplements.

Pros & Cons

Pros:

• Safety Features: Automatic shut-off and cool-touch exterior provide enhanced safety.
• Efficient Heating: Whole-room heating with Vortex Action technology ensures consistent heat.
• Compact Design: Space-saving and easy to place in any room.
• Energy Efficiency: Designed to use less energy while providing effective heat.
• Quiet Operation: Minimal noise for undisturbed sleep.

Cons:

• Limited Coverage Area: May not be suitable for very large rooms.
• No Remote Control: Requires manual adjustment of thermostat and power settings.
• Slightly Higher Cost: Compared to some other basic heaters on the market.

Customer Reviews

Customers have praised the Vornado Baby Tempa Whole Room Heater for its safety features, efficient heating, and quiet operation. Many parents appreciate the peace of mind that comes with knowing their child is safe and comfortable. However, some users have noted that it may not be suitable for very large rooms and that there is no remote control for convenience.

Common complaints include the higher cost compared to basic heaters and the lack of a remote control feature. Despite these minor drawbacks, the overall consensus is positive, with many recommending this product for its reliability and safety.
