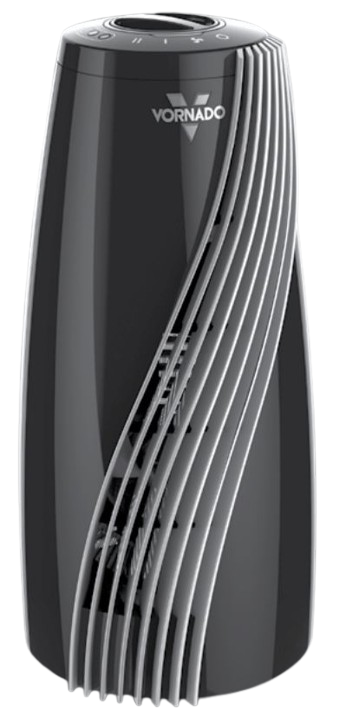

Vornado Small Room Tower Heater ATH1

Introduction

The Vornado Small Room Tower Heater ATH1 is a compact and efficient heating solution designed for small to medium-sized rooms. This heater is part of Vornado's lineup of innovative heating products, known for their advanced technology and user-friendly design. The ATH1 is intended to provide warm and consistent heat, making it an ideal choice for bedrooms, offices, or any small space that needs a reliable heat source.

Launched in recent years, the Vornado ATH1 has quickly gained popularity due to its sleek design, quiet operation, and energy-efficient performance. With an estimated price range of $50 to $70, it is an affordable option for those looking to heat smaller areas without breaking the bank.

The ATH1 features Vornado's patented V-Flow technology, which circulates warm air throughout the room, ensuring even heat distribution and minimizing cold spots. This technology, combined with its compact tower design, makes the ATH1 a versatile and effective heating solution.

Detailed Specifications

• Compact Tower Design: Ideal for small to medium-sized rooms.
• V-Flow Technology: Circulates warm air for even heat distribution.
• Energy Efficiency: Uses less energy compared to traditional heaters.
• Quiet Operation: Runs silently, making it suitable for bedrooms and offices.
• Adjustable Thermostat: Allows for precise temperature control.
• Safety Features: Overheat protection and cool-touch exterior.
• Power Consumption: 1500 Watts.
• Dimensions: 6.5 x 6.5 x 14 inches.

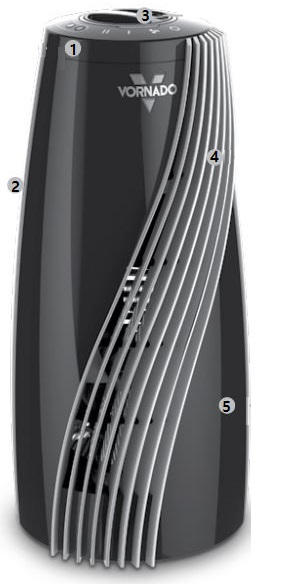

Safety Features

1. COOL-TOUCH CASE: Safe to touch, even on high heat setting.
2. AUTOMATIC SAFETY SHUT-OFF SYSTEM: If airflow becomes blocked, power to heater is shut off to prevent overheating.
3. TIP-OVER INDICATOR LIGHT: If the heater tips over the red indicator light will illuminate until the heater is placed back in upright position.
4. FINGER-FRIENDLY DESIGN: Resists curious fingers.
5. AUTOMATIC TIP-OVER PROTECTION: If tipped more than 10 degrees in any direction, power is cut to heater.

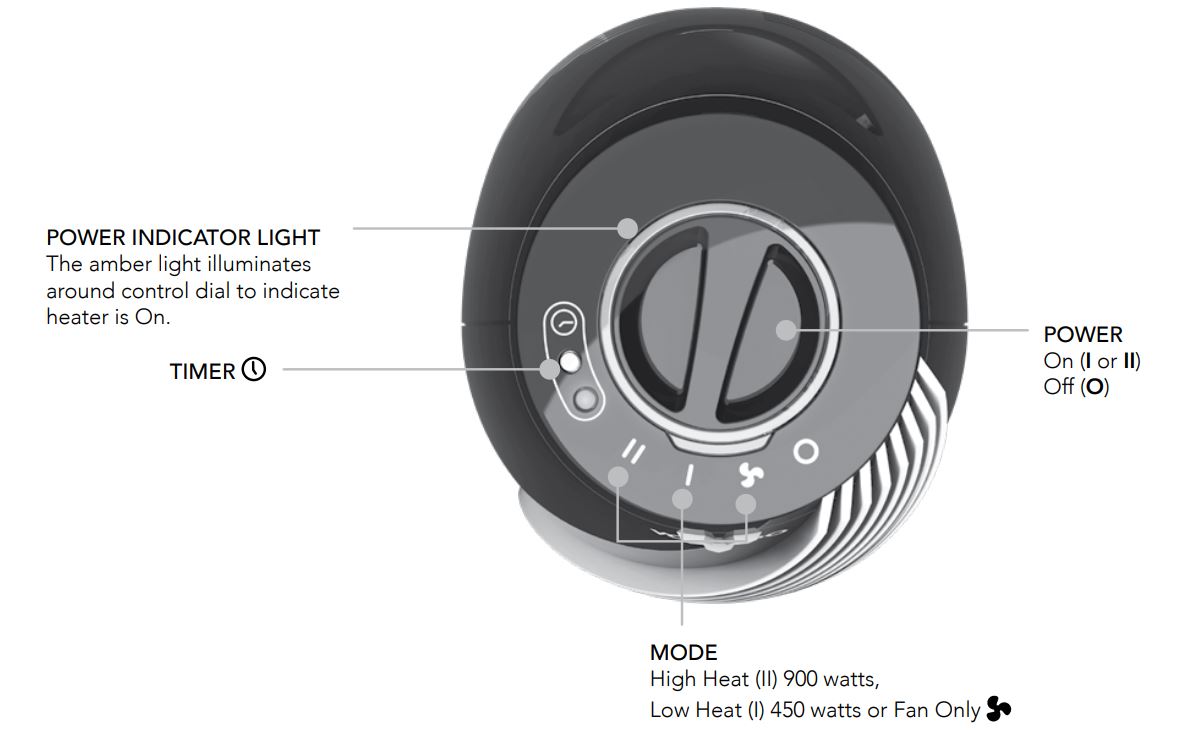

Controls

How To Use

Before use, check appliance for visible damage. DO NOT USE THIS HEATER if there is evidence of damage. If any damage is found, contact Vornado Air LLC at 1-800-234-0604.

1. Use integrated handle on back of heater for lifting and carrying.
2. Position heater so airflow is not obstructed.
3. Plug power cord into standard grounded wall outlet.
4. Select Mode by turning control dial. In Fan Only  position, fan will run continuously. Press  to set timer for 4 hours. LED light illuminates when Timer is set.

Cleaning

Because your heater moves a substantial amount of air, it will need regular cleaning. Cleaning the outside of the heater is recommended on a weekly basis. If service is required, return your heater to Vornado. See WARRANTY for instructions.

1. Unplug heater before cleaning.
2. Use brush attachment on household vacuum cleaner to vacuum any accumulated dust off Air Inlets on back of heater. You should periodically blow out the heater with pressurized air to keep heat element and motor clear of dust, hair and debris that can build up inside the heater as it moves air during use. This also eliminates unwanted odors caused by accumulation of these particles inside the unit.
3. Use brush attachment on household vacuum cleaner to vacuum any accumulated dust off Front Angled Outlet Grill.
4. Wipe down the entire heater with a soft, dry cloth.

Note: Do not modify the product with any aftermarket accessory.

Storage

During the off-season or after extended periods of non-use, you may choose to store your heater. To ensure long life of the product, it is recommended to store your heater by following these instructions:

Tip: Cleaning is recommended before storage.

1. Unplug power cord and bundle loosely.
2. Cover, or place back in retail carton if available. This will prevent heater from accumulating dust over time.
3. Store heater in cool and dry location.

DISPOSAL: Dispose of all packaging materials in an environmentally responsible manner.

Reset Heater

Your Vornado Heater has a multi level safety shut-off system designed to prevent overheating. Overheating may occur when the inlets or outlet are blocked. If this happens, the safety shut off system will cut power to the heater and you will need to manually reset the heater.

1. Power heater off, then unplug power cord.
2. Remove any obstructions.
3. Wait 5–10 minutes, allowing heater to cool down.
4. Plug in power cord and place heater in desired position.
5. Power heater On. Your Vornado Heater should now function normally. If the heater’s red indicator light remains illuminated even after positioning the heater back in upright position after being tipped over, the heater may have overheated and will need to be reset as directed above.
   Note: If the safety shut-off system repeatedly shuts off your heater or if it will not reset after following the above procedure, call Vornado Consumer Services Department toll-free at 1-800-234-0604.

Setup Guide

To set up the Vornado ATH1, follow these steps:

1. Unbox the heater and ensure all parts are included.
2. Place the heater on a flat, stable surface away from any flammable materials.
3. Plug the heater into a grounded electrical outlet. Ensure the outlet is not overloaded with other appliances.
4. Turn on the heater using the power button on the control panel.
5. Adjust the thermostat to your desired temperature using the control dials.
6. Allow the heater to warm up the room. You can adjust the temperature settings as needed.

Troubleshooting

If you encounter any issues with your Vornado ATH1, here are some common problems and solutions:

• Unit fails to power on:
  • Unit is not plugged in. Plug power cord into electrical outlet.
  • Household circuit breaker / ground fault circuit interrupter has tripped or blown fuse. Reset circuit breaker / ground fault ciruit interrupter, or replace fuse.
  • Unit has overheated. Automatic Safety Shut-Off has initiated. See RESET HEATER.
  • Tip-over switch on bottom of unit has been tripped and safety shut-off system has cut power to heater. Place heater on level surface.
  • Unit is damaged or in need of repair. Cease usage and unplug. Contact Consumer Service for assistance.
• Unit is not producing sufficient amount of heat:
  • Ensure unit is set to High Heat.
  • Close all doors and windows to trap heat.
  • Allow unit to fully circulate heat throughout room; may take several minutes.
• Unit is powered on but there is no heat: Turn Power Off and unplug unit. A cylindrical plunger is on bottom of unit. Push in 4-5 times, ensuring it is not stuck. Set unit down on flat surface. Ensure power cord is not under unit. Plug unit in and turn Power On. Turn to highest heat setting.

WARRANTY

We expect this product to be perfect. If you’re not satisfied with this product, let us know.

Vornado Air LLC (“Vornado”) warrants to the original consumer or purchaser this Vornado® Small Room Tower Heater (“Product”) is free from defects in material or workmanship for a period of five (5) years from the date of purchase. If any such defect is discovered within the warranty period, Vornado, at its discretion, will repair or replace the Product at no cost.

For warranty or repair service:

Call 1-800-234-0604 or email help@vornado.com to obtain a Return Authorization (“RA”) form. Please have or include your Product’s model number and serial number, as well as your name, address, city, state, Zip code and phone number when contacting Vornado for warranty service.

After receiving the RA form, ship your Product to:

Vornado Air LLC Attn: Warranty & Repair 415 East 13th Street, Andover, KS 67002. For your convenience, please have your model number and serial number when contacting Vornado with service inquiries. To ensure proper handling, packages must be clearly marked with the RA number. Packages not clearly marked with the RA number may be refused at the receiving dock. Please allow 1-2 weeks for repair and return of your Product after the Product is received.
Repairs not covered by the warranty or outside the warranty period will require a fee to cover the cost of materials, labor, handling and shipping.
This warranty does not apply to defects resulting from abuse of the Product, modification, alteration, mishandling, improper maintenance, commercial use or repair or service of the Product by anyone other than Vornado; damages which occur in shipment or are attributed to acts of God. Improper product use, which includes using an external device that
alters or converts the voltage or frequency of electricity, or shipping a Vornado product to a country not intended for use will void all warranties. Any unauthorized product modification, repair by unauthorized repair center or use of non-approved replacement parts is not recommended and any consequences will not be covered by support services or product warranties. The product warranty will be honored only on models that are being used in the country intended. REPAIR OR REPLACEMENT AS PROVIDED UNDER THIS WARRANTY IS THE EXCLUSIVE REMEDY OF THE CONSUMER. VORNADO SHALL NOT BE LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES FOR BREACH OF ANY EXPRESS OR IMPLIED WARRANTY ON THIS PRODUCT. EXCEPT TO THE EXTENT PROHIBITED BY APPLICABLE LAW, ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE ON THIS PRODUCT IS LIMITED IN DURATION TO THE DURATION OF THIS WARRANTY. Some states do not allow the exclusion or limitation of incidental or consequential damages, or allow limitations on how long an implied warranty lasts, so the above limitations or exclusions may not apply to you. This warranty gives you specific legal rights, and you may have other rights that vary from state to state. The manufacturer assumes no responsibility for damage or injury caused by failure to follow these instructions, improper product use or unauthorized product modifications. Any such actions will invalidate the product warranty.
All company names and product names are trademarks of their respective owners.
©All rights reserved. All technical information, data and instructions for the installation, connection and operation contained in these instructions for use correspond to the latest available information at time of printing. The contents of this manual may differ slightly from the actual product. Observe any additional supplements.

Pros & Cons

Pros:

• Compact and space-saving design.
• Energy-efficient with V-Flow technology.
• Quiet operation suitable for bedrooms and offices.
• Adjustable thermostat for precise temperature control.
• Safety features like overheat protection and cool-touch exterior.

Cons:

• Limited to heating small to medium-sized rooms.
• No remote control or smart app integration.
• Might not be as powerful as larger heaters.
• Some users find the design less aesthetically pleasing compared to other models.

Customer Reviews

Customers generally praise the Vornado ATH1 for its efficiency and quiet operation. Many users appreciate the compact design and the ease of using the adjustable thermostat. However, some users have noted that it may not be as effective in larger rooms and lacks advanced features like remote control or smart app integration.

Common complaints include the limited heating capacity and the lack of additional features. Despite these, the overall consensus is that the Vornado ATH1 is a reliable and efficient heating solution for small spaces.
