Setup: Vornado SPHERE Personal Air Circulator Owner Manual

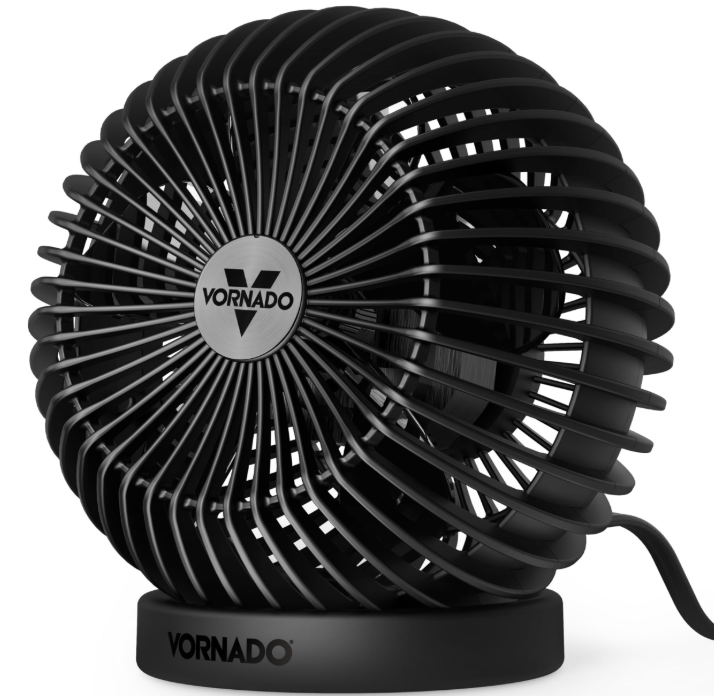

Vornado SPHERE Personal Air Circulator

Introduction

The Vornado SPHERE Personal Air Circulator is a revolutionary air circulation device designed to enhance personal comfort and air quality. Launched in recent years, this product has quickly gained popularity for its unique spherical design and advanced air circulation technology. The estimated price of the Vornado SPHERE ranges from $100 to $150, making it an affordable and efficient solution for personal air circulation needs.

This device is specifically designed for individual use, making it ideal for offices, bedrooms, or any small to medium-sized space. Its primary purpose is to circulate air effectively, providing a cooler and more comfortable environment without the need for air conditioning. The SPHERE is also known for its quiet operation and energy-efficient design, making it a preferred choice for those seeking a reliable and eco-friendly air circulator.

Specifications

The Vornado SPHERE Personal Air Circulator boasts several key features that set it apart from other air circulation devices:

• Spherical Design: Unique 360-degree air circulation pattern.
• Adjustable Speed: Multiple speed settings for customized airflow.
• Whisper-Quiet Operation: Designed for silent performance.
• Energy Efficiency: Uses less energy compared to traditional fans.
• Compact Size: Ideal for small to medium-sized spaces.
• Easy Maintenance: Removable grill for simple cleaning.

READ AND SAVE THESE INSTRUCTIONS

Important Safety Instruction

This owner’s guide and any additional inserts are considered part of the product. They contain important information about safety, use, and disposal. Before using the product, please familiarize yourself with all operating and safety instructions. Please keep all documents for future reference and pass these documents on, together with the product, to any future owner. See www.vornado.com/circulators-manuals to view, download,, and print the most current version of these instructions.

INTENDED USE: This product is intended to circulate the air in indoor living spaces only in the United States. This product is not intended for commercial or industrial use. The manufacturer assumes no responsibility for damage or injury due to unauthorized use or product modification. Failure to follow these directions will void the product warranty.

WARNING: Risk to Children and Impaired Persons
Supervision is required during the installation, operation, cleaning, and maintenance of this product by children 12 years of age and younger and anyone with reduced physical, sensory,, or mental capabilities. Children should be supervised to ensure that they do not play with the appliance, its parts,  or packaging material.

INSTALLATION

WARNING:: To reduce the risk of fire, electrical shock, and injury to persons, observe the following:

• Place this product away from curtains, draperies, tablecloths,, and other fabrics, since they may be drawn into the product, damage the motor,, and/or cause a fire.
• No part of this product (the appliance, power cord, plug, packaging, etc.) should be placed near furnaces, fireplaces, stoves, or other high-temperature heat sources. Do not use this product in a window, on an uneven or unstable surface, or near water.
• The appliance, power supply, power cord, and plug cannot come into contact with water. Do not use this product on wet surfaces. Do not use this product in a bathtub or shower,, or position the product where it may fall into a bathtub, laundry, swimming pool, or other water container. Do not use this product outdoors or expose it to weather or elements.
• Do not run cord under carpeting. Do not cover the cord with throw rugs, runners, or similar coverings. Do not route cord under furniture or appliances. Arrange the cord away from the traffic area and where it will not be tripped over. The cord should not hang over the edges of counters or be placed where it can be crimped or closed in doors. Place the appliance near an easily accessible outlet so the product can be unplugged quickly during an emergency.

SAFE USE WARNING
To reduce risk of fire, electrical shock,, and injury to persons, observe the following:

•  WARNING: To reduce the likelihood of circuit overload, fire,, and electric shock, do not operate with a solid-state speed device, such as a dimmer control switch.
• Do not operate any fan with a damaged cord or plug. Discard the fan or return it to an authorized service facility for examination and/or repair.
• Do not operate the unit if the unit has been dropped or damaged. Do not use this product if it has a damaged power cord or plug. To avoid the risk of electrical shock, do not attempt to repair or replace parts. Only original replacement parts may be used.  If the power cord is damaged, it must be replaced by the manufacturer, its service agent, or similarly qualified persons in order to avoid a hazard. Contact Vornado Consumer Service at 1-800-234-0604 (phone) or consumerservice@vornado.com (email) for further instructions about replacement and repair.
• Before plugging the power cord into the electrical outlet, be sure that all electrical information on the rating label, including voltage, is compatible with your outlet’s power supply.-    Do not sit or stand on the product.
• Never use the cord as a handle or otherwise yank, strain, or stretch the power cord.
• While the product is plugged in, do not insert or allow foreign objects to enter any input or output opening,, as this may cause risk of electric shock or fire, or damage the product.
• A loose fit between the wall outlet (receptacle) and the plug may cause overheating and distortion of the plug. Discontinue use of the product in this outlet. Contact a qualified electrician to replace loose or worn outlets.
• This appliance has a polarized plug (one blade is wider than the other). To reduce the risk of electric shock, this plug is intended to fit in a polarized outlet only one way. If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. Do not attempt to defeat this safety feature.
• Before moving, repositioning, servicing, cleaning, and when not in use, use the product controls to turn off the power and then unplug.  To disconnect from the outlet, grasp and pull only the plug. Also, power off and unplug if the product will be left unattended for an extended period of time or during electrical storms.

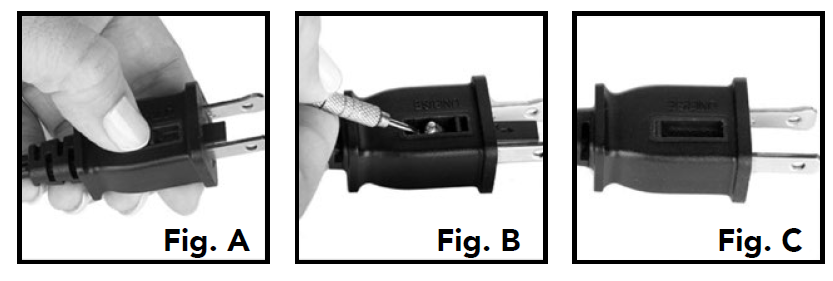

User Servicing Instructions

1. Using the product controls, turn off the appliance.
2. Grasp the plug (not the cord) and disconnect from the outlet.
3. Risk of Fire. Replace fuse only with a 2.5 Amp, 125 Volt fuse as approved by Vornado Consumer Service. For an authorized replacement fuse, please contact Vornado Consumer Service.
4. Once the replacement is received, use a small flat-head screwdriver to slide open the fuse cover (located on the plug) (Fig. A).
5. Remove the fuse by using the screwdriver to gently lift each end of the fuse (Fig. B).
6. Install the replacement fuse by using the screwdriver to gently push each metal end of the fuse into the receptacle one at a time. Do not push on the center of the fuse—it is fragile and may break.
7. Slide the fuse cover closed using the screwdriver. When closed, the cover should fit completely in the plug. No part of the cover should stick out (Fig. C).
8. Plug your appliance into the outlet and turn the power on.
9. If the replacement fuse blows, a short-circuit may be present, and the product should be discarded or returned to an authorized service facility for examination and/or repair.

• Risk of fire. Do not replace the attachment plug. Contains a safety device (fuse, AFCI, LCDI) that should not be removed. Discard the product if the attachment plug is damaged.

Features

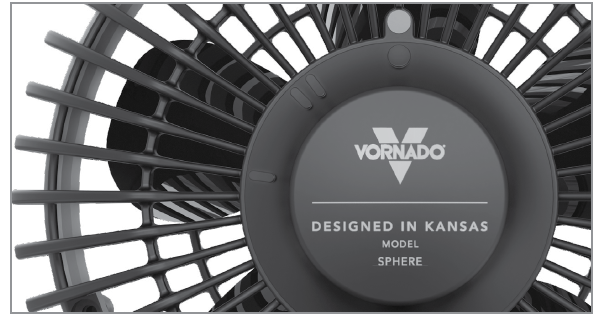

Controls
Easy-to-reach controls on the back with 2 speeds to set your comfort level.

SILICONE BASE
Easily adjust the direction of airflow by placinging iin desirededed position on the base.

Controls

Your SPHERE air circulator is fully assembled and ready for immediate use. Simply plug in your SPHERE and enjoy its cooling effect. Thanks to SPHERE’s small size and easy use, it can be used to provide a cool breeze in almost any space. SPHERE was engineered to provide just the right amount of air, either directed at you to create a nice breeze, or away from you to create swirling currents of air, rejuvenating your personal space.

1. LOW FAN SPEED
2. HIGH FAN SPEED
3. OFF

WARNING: Do not hang the product.

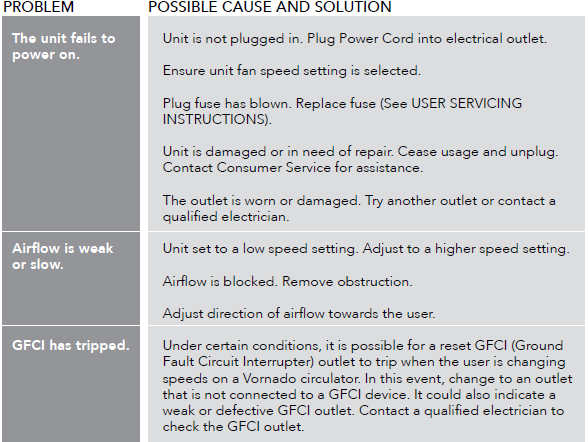

Troubleshooting

If you encounter any issues with your Vornado SPHERE, here are some common problems and their solutions:

• No Power: Check if the device is properly plugged in. Ensure the power button is turned on.
• Reduced Airflow: Clean the grill and interior of the device to ensure optimal airflow.
• Noisy Operation: Check for any blockages or debris inside the device. Ensure the device is placed on a stable surface.

Instructions and Warnings: Always follow the manufacturer’s instructions for use and maintenance. Avoid using the device near water or in humid environments.

Warranty

We expect this product to be perfect. If you’re not satisfied with this product, let us know.

• Vornado Air LLC (“Vornado”) warrants to the original consumer or purchaser that this Vornado® Circulator (“Product”) is free from defects in material or workmanship for a period of three (3) years from the date of purchase. If any such defect is discovered within the warranty period, Vornado, at its discretion, will repair or replace the Product at no cost.
• For warranty service: Call 1-800-234-0604 or email help@vornado.com to obtain a Return Authorization (“RA”). Please have or include your Product’s model number and serial number,
  as well as your name, address, city, state, zip code, e-mail, and phone number when contacting Vornado for warranty service. To file a contactless warranty claim, visit vornado.com/contact-us.
• After receiving the RA form, ship your Product to: Vornado Air LLC, Attn: Warranty & Repair,, 415 East 13th Street,, Andover, KS 67002. For your convenience, please have your model number
  and serial number when contacting Vornado with service inquiries. To assure proper handling, packages must be clearly marked with the RA number. Packages not clearly marked with the RA number may be refused at the receiving dock. Please allow 2-3 weeks for warranty service and return of your Product after the Product is received.
• This warranty does not apply to defects resulting from abuse of the Product, modification, alteration, mishandling, improper maintenance, commercial use,, or repair or service of the Product by anyone other than Vornado; damages which occur in shipment or are attributed to acts of God. Improper product use, which includes using an external device that alters or converts the voltage or frequency of electricity, or shipping a Vornado product to a country not intended for use,, will void all warranties. Any unauthorized product modification, repair by an unauthorized repair center, or use of non-approved replacement parts is not recommended, and any consequences will not be covered by support services or product warranties. The product warranty will be honored only on models that are being used in the country intended.
• REPAIR OR REPLACEMENT AS PROVIDED UNDER THIS WARRANTY IS THE EXCLUSIVE REMEDY OF THE CONSUMER. VORNADO SHALL NOT BE LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES FOR BREACH OF ANY EXPRESS OR IMPLIED WARRANTY ON THIS PRODUCT. EXCEPT TO THE EXTENT PROHIBITED BY APPLICABLE LAW, ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR  A PARTICULAR PURPOSE ON THIS PRODUCT IS LIMITED IN DURATION TO THE DURATION OF THIS WARRANTY.
•  Some states do not allow the exclusion or limitation of incidental or consequential damages, or allow limitations on how long an implied warranty lasts, so the above limitations or exclusions may not apply to you. This warranty gives you specific legal rights, and you may have other rights that vary from state to state. The manufacturer assumes no responsibility for damage caused by failure to follow these instructions or improper product use. Any such actions will invalidate the product warranty.
• All company names and product names are trademarks of their respective owners. © All rights reserved. All technical information, data, and instructions for the installation, connection, and operation contained in these instructions for use correspond to the latest available information at the time of printing. The contents of this manual may differ slightly from the actual product. Observe any additional supplements.

Pros & Cons

Pros:

• Unique spherical design for effective air circulation.
• Adjustable speed settings for customized airflow.
• Whisper-quiet operation for minimal disturbance.
• Energy-efficient and eco-friendly design.
• Compact size suitable for small to medium-sized spaces.

Cons: It may not be as effective in large rooms or open spaces.

• Some users may find the design too futuristic or bulky.
• Requires occasional cleaning to maintain optimal performance.

Customer Reviews

Customers have generally praised the Vornado SPHERE for its innovative design and effective air circulation. Many have noted its quiet operation and energy efficiency as significant advantages. However, some users have mentioned that it may not be as powerful as larger fans and requires regular cleaning to maintain performance.

Most Common Complaints: Some users have reported issues with the device's durability and the need for frequent cleaning to avoid reduced airflow.
