Setup: Vornado Dual Zone Infrared Heater IR405 User Manual

Introduction — Vornado Dual Zone Infrared Heater IR405 Overview

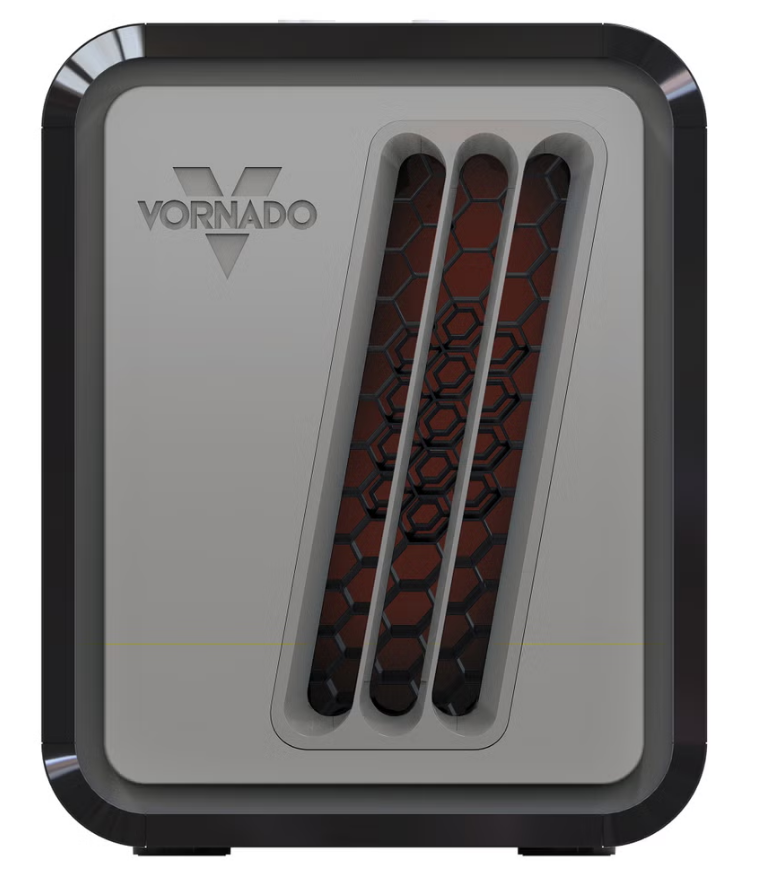

The vornado Dual Zone Infrared Heater IR405 is a compact, feature-rich space heater designed to deliver efficient whole-room warmth while offering a dedicated personal-zone option for targeted comfort. Its dual-zone design and V-Flow circulation aim to combine infrared radiant warmth with forced-air distribution so rooms heat faster and more evenly. The unit targets homeowners, apartment dwellers, office workers, and small-business operators who want quiet, energy-conscious supplemental heating without installing permanent systems.

Key benefits and unique selling points include a dual-zone control (whole-room plus personal zone) for flexible heating, a digital touch control panel with adjustable thermostat, multiple heat settings and a fan-only mode for year-round use, and Vornado’s whole-room circulation technology for improved heat distribution. The IR405 uses up to 1500W of power (typical for full-power portable heaters) and offers simple, intuitive controls suitable for nontechnical users and tech-savvy buyers alike.

Common use cases: heating living rooms, bedrooms, home offices, small workshops, or personal workstations where you want both general room warmth and a focused warm spot. Estimated retail price typically ranges from approximately $100–$170 depending on retailer and seasonal promotions, and the model is commonly available through major retailers and national warehouse chains and specialty appliance stores.

Specifications — Technical Details & Key Features

The following specifications summarize the IR405’s capabilities and performance metrics for quick reference:

• Model: Vornado IR405 (Dual Zone Infrared Heater)
• Power: Up to 1500 watts (standard portable heater maximum)
• Heating Modes: Whole-Room Low, Whole-Room High, Personal Zone (targeted infrared), plus Fan Only
• Controls: Touch-sensitive control panel with digital LED display and adjustable thermostat
• Airflow Technology: V-Flow whole-room circulation (Vornado proprietary air circulation design)
• Safety Features: Tip-over switch and overheat protection (industry standard for portable heaters)
• Design: Portable tower form factor with front-facing grille for radiant and convective heat
• Dimensions & Weight: Compact footprint for tabletop or floor placement (refer to retailer spec sheet for exact measurements)
• Additional: Quiet operation, lightweight for room-to-room portability, cord storage or wrap (varies by package)

Performance benchmarks: At full 1500W output the IR405 delivers strong supplemental heat for small-to-medium rooms (approximately 100–250 sq ft depending on insulation and ceiling height). The combination of infrared (for targeted warmth) and V-Flow circulation (for distributing warmed air) is intended to create a perception of faster comfort than convection-only units.

Comparison with similar products: compared to basic ceramic space heaters, the vornado Dual Zone Infrared Heater IR405 adds a dedicated personal zone and V-Flow circulation for broader distribution; relative to premium tower heaters, the IR405 emphasizes a balance of targeted infrared warmth and whole-room airflow rather than purely radiant-only or convection-only designs.

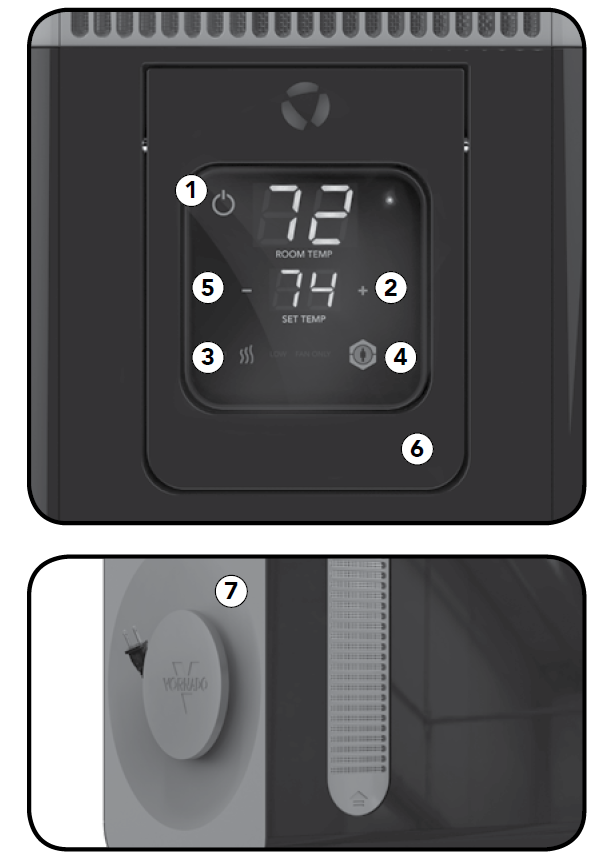

Controls

• Power the heater On/Off. The red light illuminates to indicate the heater is on.
• Allows you to select your desired comfort level with an adjustable thermostat.
• Select between 750 watts (Low) and 1500 watts (High), or the Fan Only option for year-round use.
• Create a personal heat zone for extra-warm heat (Personal Zone Heat) at 1500 watts.
• Touch controls with a digital LED display.
• Integrated carry handle for easy lifting and carrying.
• Safely store excess cord on the back of the heater.

Features

• Built-in cord storage

  Safely store excess cord on the back of the heater.

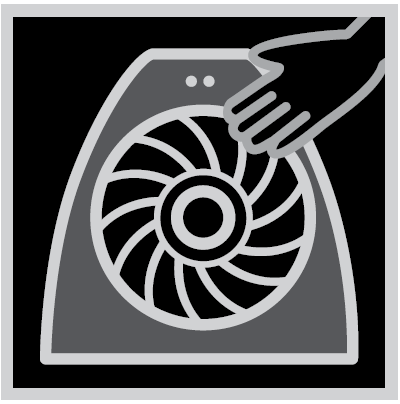

• Cool touch case

  Safe to touch, even on the high heat setting.

• Automatic safety shut-off system

  If airflow becomes blocked, power to the heater is shut off to prevent overheating.

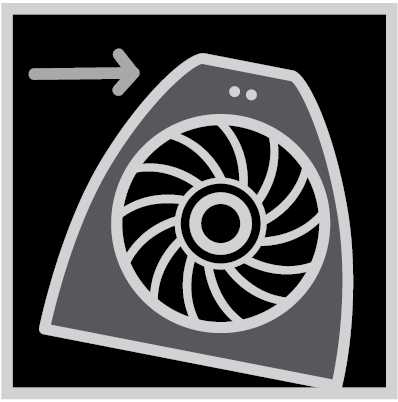

• Automatic tip-over protection

  If the heater tips over, the safety shut-off system cuts power to the heater. Position the heater back in an upright position. Touch the Power button, and the heater will return to the last stored setting.

Cleaning and Storage

Storage

During the off-season or after extended periods of non-use, you may choose to store your heater. To ensure a long product life, it is recommended to store your heater by following these instructions:

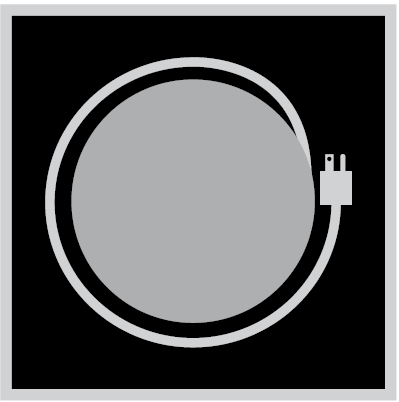

1. Unplug the power cord and wrap it around the Cord Wrap on the back of the heater.
2. Thoroughly clean your heater.
3. Cover the heater or place it back in the retail carton, if available. This will prevent the unit from accumulating dust over time.
4. Store the unit in a cool, dry location.

How to clean

• Your heater has no user-serviceable parts. Do not disassemble the unit. This will void your warranty. If service is required, return your heater to Vornado (see Warranty for instructions).
• The motor is permanently lubricated and requires no oiling.

Because your heater moves a substantial amount of air, it will need regular cleaning. To clean the heater, follow these simple instructions:

• Unplug the unit.

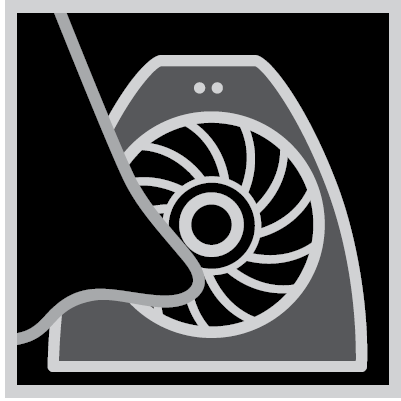

• Remove the U-shaped Inlet Grill by sliding it up until it comes off the heater. Wipe it with a soft cloth and/or rinse it under running water. Dry thoroughly before replacing.
• Use the brush attachment on a household vacuum cleaner to gently vacuum the permanent Screen Filter on the heater.
• Use the brush attachment on your household vacuum cleaner to remove any accumulated dust from the Front Outlet Grill. Wipe down the entire surface with a soft cloth.

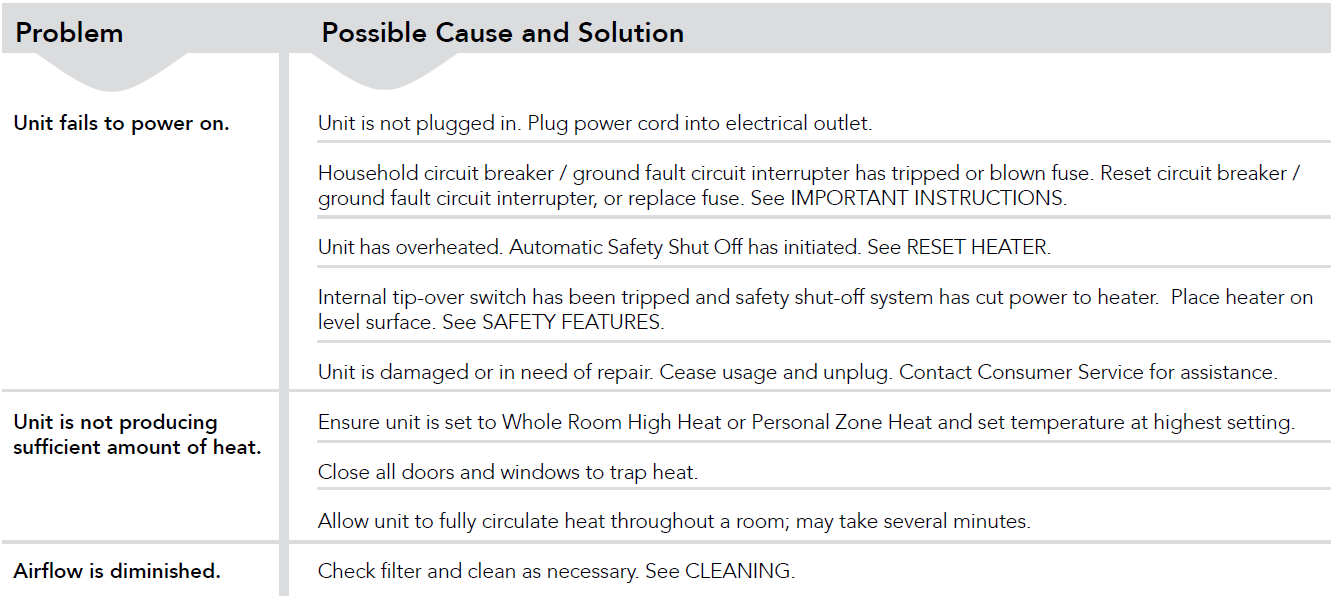

Troubleshooting

Pros & Cons — Balanced Assessment

• Pros — Flexible Dual-Zone Control: Allows simultaneous whole-room heating and a focused personal zone, useful when multiple occupants have different comfort needs.
• Pros — Efficient Circulation: V-Flow technology improves heat distribution versus small ceramic spot heaters, reducing cold spots in medium rooms.
• Pros — Intuitive Controls: Touch panel with digital thermostat and multiple heat/fan modes makes temperature management simple for most users.
• Pros — Portability & Quiet Operation: Lightweight design and relatively quiet fan make it good for bedrooms and home offices.
• Cons — Power Draw: At 1500W maximum, it consumes the same peak power as many portable heaters, which can raise electricity costs during prolonged use.
• Cons — Coverage Limits: Effective for small-to-medium rooms (100–250 sq ft); larger open-plan areas may need multiple units or central heating support.
• Cons — Feature Trade-offs: Lacks some advanced smart features (Wi‑Fi, app control) found in higher-end models; scheduling and remote control may be limited to manual or programmable timer functions depending on SKU.
• Value for Money: For buyers seeking targeted dual-zone warming and good room circulation without paying for premium smart features, the IR405 represents strong value compared with basic ceramic heaters and some higher-priced infrared-only units.

Customer Reviews & Real-World Feedback — Ratings, Praise, and Common Complaints

Average user sentiment for the vornado Dual Zone Infrared Heater IR405 trends positive, with many buyers praising its fast warm-up, the convenience of the dual-zone modes, and the quiet fan operation; typical star ratings range from 4.0 to 4.5 out of 5 on retail listings.

Common praises include effective whole-room circulation using V-Flow, easy-to-read digital controls, and usefulness for home offices and bedrooms. Repeat testimonials highlight the personal-zone feature as helpful for colder desks or seating without overheating the entire room.

Frequent complaints include the expected high electricity draw at maximum power, limited coverage in very large rooms, and occasional requests for smart-home integration or more granular scheduling. A minority of users report concerns about longevity compared with heavier-duty space heaters—keeping warranty and retailer return policies in mind is recommended.

Purchase recommendation: the IR405 is recommended for consumers seeking a reliable, versatile portable heater with both whole-room and personal-zone options; compare price and return policy at major retailers to ensure the best value.
